China wide belt Sander sanding machine for Plywood

Supplier: Qingdao Delilai Machinery Co., Ltd
Region: Shandong, China
Contact: Ms Nicole Liu
Price: $3700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	standard package;	Payment Terms:	L/C,T/T,Western Union,UNION;
Supply Ability:	100 Set/Sets per Month Heavy duty custom design automatic wide belt sanding machine;	Weight:	2200kg;
Main motor power:	15kw,11kw;	Condition:	New;
Application:	Wood Process;	Working width:	400-1000mm;
Working length:	≥450mm;	Place of Origin:	China;
Port:	Qingdao;	Applicable Industries:	Building Material Shops,Retail,woodworking;
belt speed:	4-16m/min;	Product name:	China wide belt Sander sanding machine for Plywood;
After-sales Service Provided:	Online support;	Working thickness:	2.5-110mm;
Brand Name:	DELILAI;	Raw material:	Wood Waste;
Service:	OEM / ODM;	Warranty:	1 YEAR;

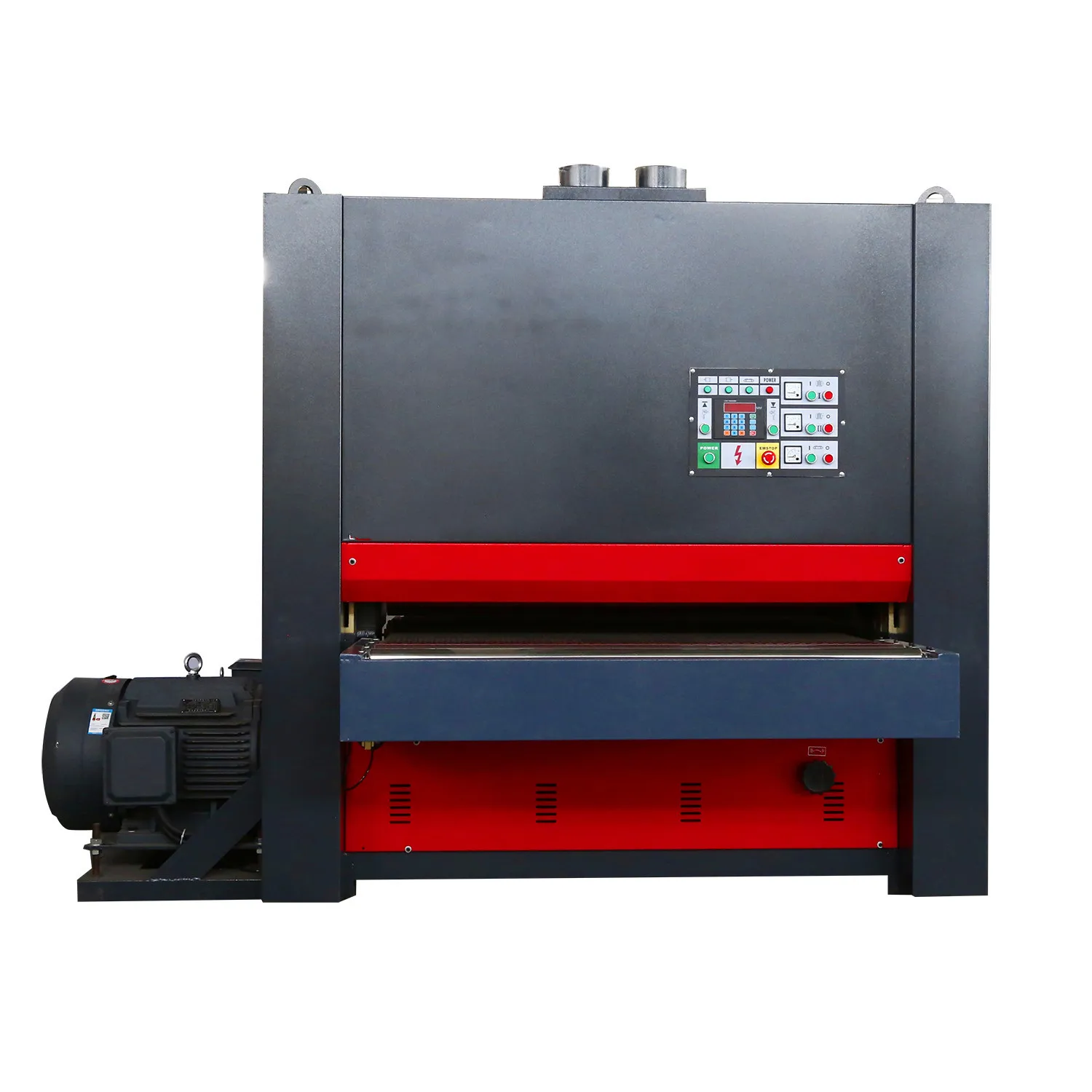

China wide belt Sander sanding machine for Plywood

Product name	Top quality calibrating mdf wood sanding machine
Model	R-RP1000
Working width	30-1000mm
Working thickness	2.5-100mm
Working length	≥450mm
NO.1# abrasive belt speed	20m/s
NO.2# abrasive belt speed	18m/s
Feeding speed	4-16m/min
Size of abrasive belt(WxP)	1020x2000mm
Total motor power	28.05kw
Main motor	15kw,11kw
Working air pressure	0.55Mpa
Consumption of compressed air	0.1m3/min
Volume of sucked air	7000m3/h
Speed of sucked air	25-30m/s
Overall dimension(LxWxH)	1900x1700x2100mm
Net weight	2200kg

Characteristics:

This machine is mainly used for surface polishing and fixed thickness sanding, suitable for wood panels,flooring, furniture, artificial stone, handicrafts,wood products and other products.

1.Former sand frame is adjustable steel rollers, simple operation, the fixed thick roller and sanding pad effectively combine with high precision sanding

2.When breakdown happen,the device is powered down,transmission bed descend to protect the work piece safe.

3.Advanced balancing testing fixed thick rolls,steel rolls, pulleys,makes the machine run more smoothly

4.Elevating convey or bed microcomputer control, the error is small,fast and flexible

5.Light, electricity, gas integrated design and reliable operation

Our Value Message Is “Quality Is Our Culture”
“With Us Your Money In Safe Your Business In Safe”

1. 100% after-sales quality assurance, support many payment method;
2. All other model of woodworking machinery are available according to your requirement (OEM&ODM)! factory price you will get from DELILAI
3. We can provide professional operation training.
4.Sliding table saw,edge banding machine etc with CE ISO certifications and strong supply ability
