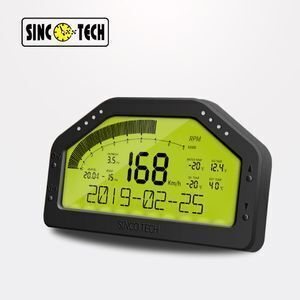

6.5 Inch SINCO TECH Multi-Funtion Race DashBoard Full Sensor Kit Digital LCD Race Dash Display (908)

Product details
Car Make:12v Vehcile;OE NO.:N/A;
Brand Name:SINCO TECH;Place of Origin:Zhejiang China;
Warranty:1,1 Year;Certificates:CE ISO9001;

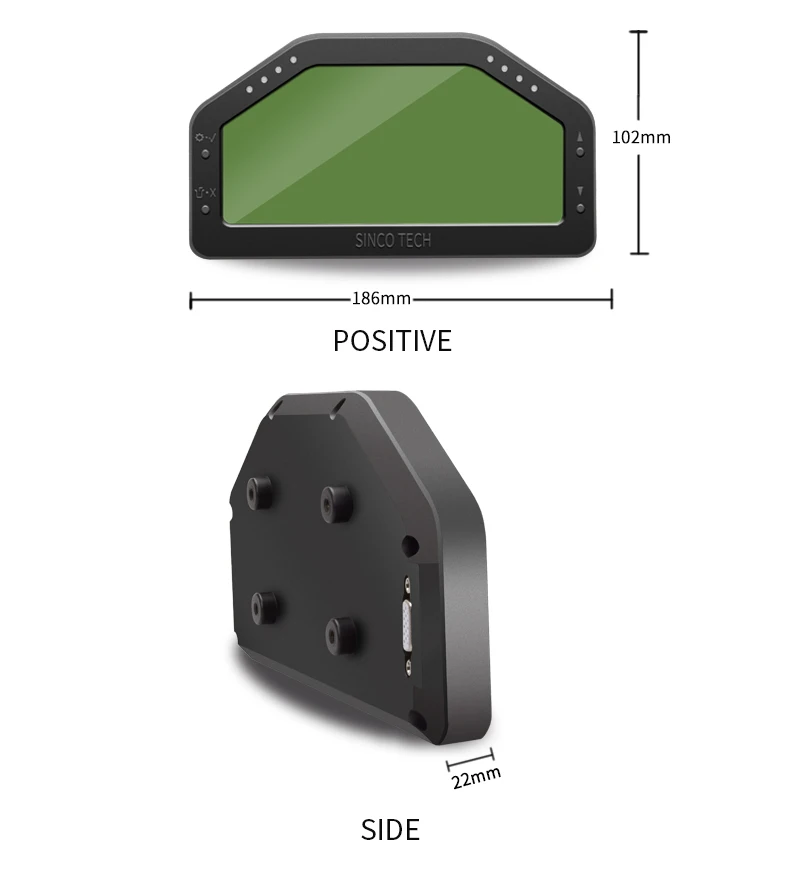

Size:6.5'';Function1:RPM,Speed,Water temperature, Oil temperature,Boost;

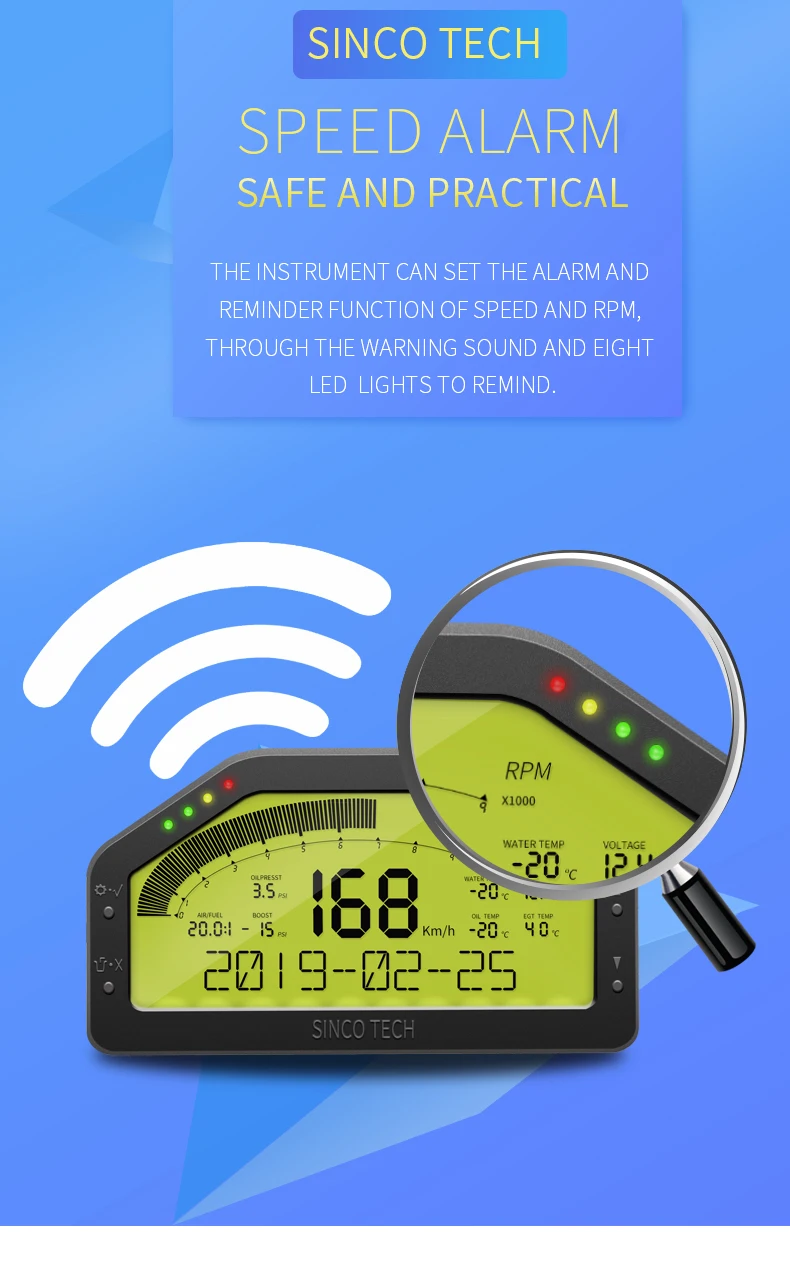

Model Number:DO908;Alarm:RPM;Speed;
Function2:Exhaust temperature,Oil pressure,Voltage,Air fuel;Apply:12V / Car;
Product Name:DO908;Single gross weight:1.5 KG;
Selling Units:Single item;Operating Voltage:9V-16V;

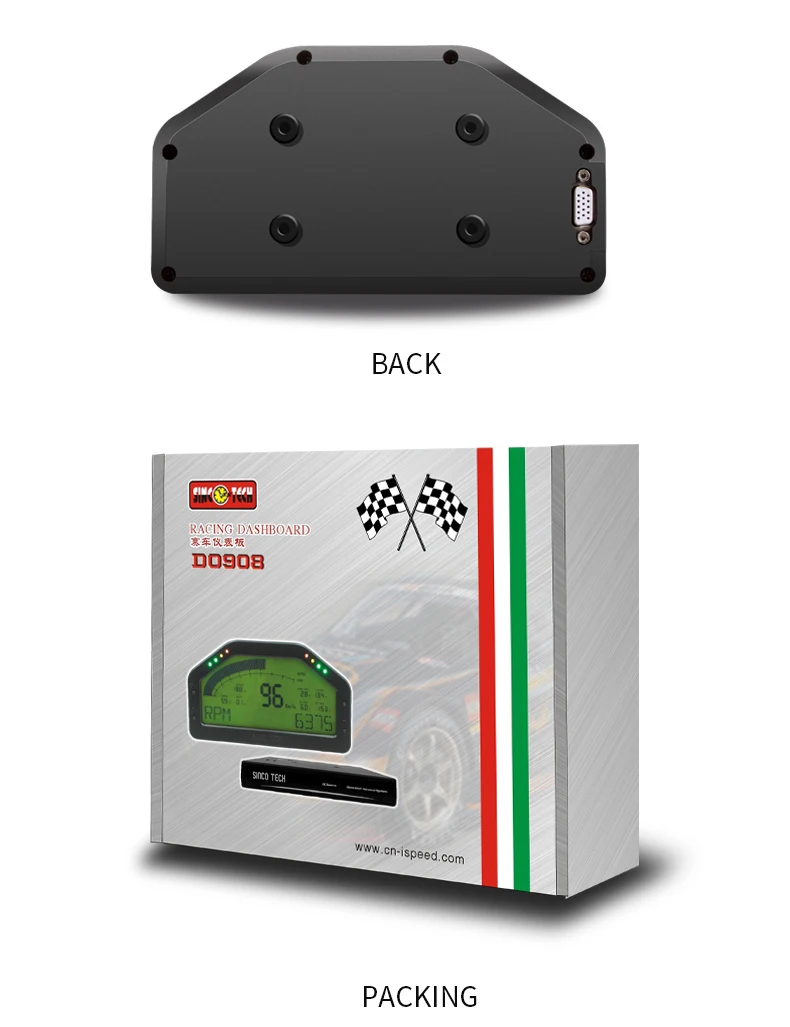

Brand:SINCO TECH;Packaging Detail:With thick cardboard;
Type:Race Dash Board;Single package size:25X22X12 cm;

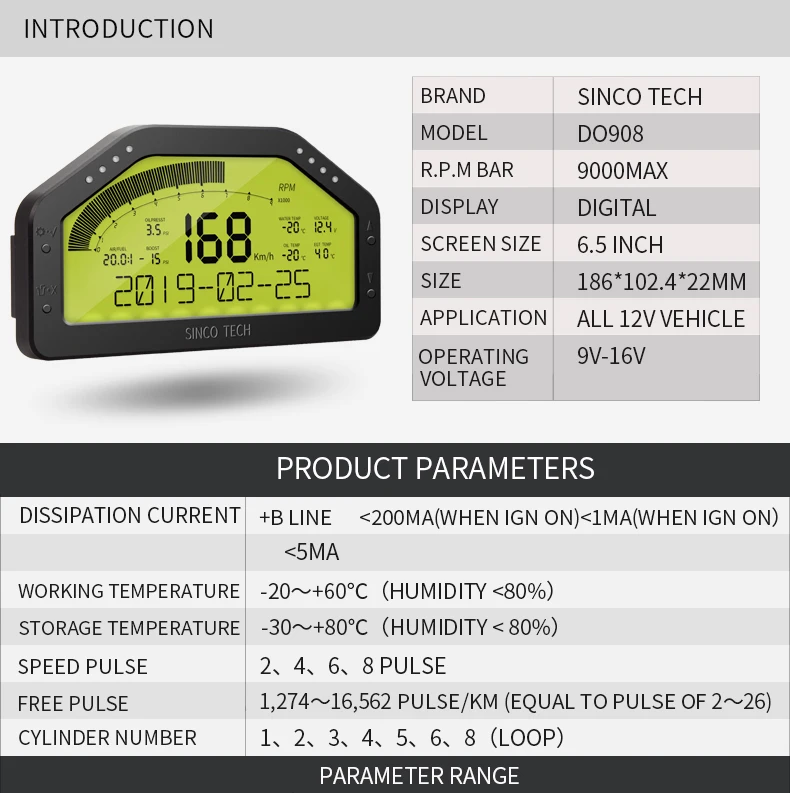

Ruian Ispeed Automotive Electronics Co.,Ltd

Brand

SINCO TECH

Name

DO908 MULTI-FUNCTION RACE DASHBOARD

Display

Digital

Operating Voltage

9V-16V

Application

All 12v Vehicle

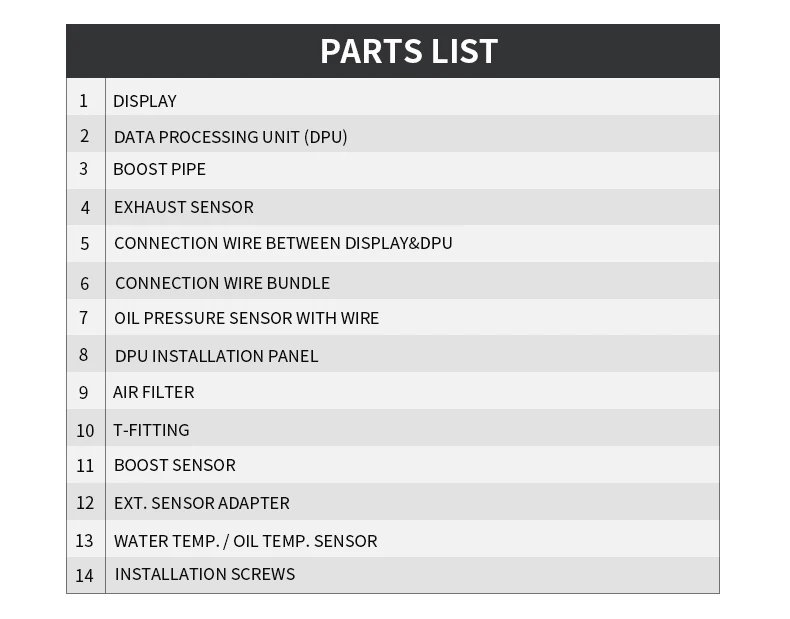

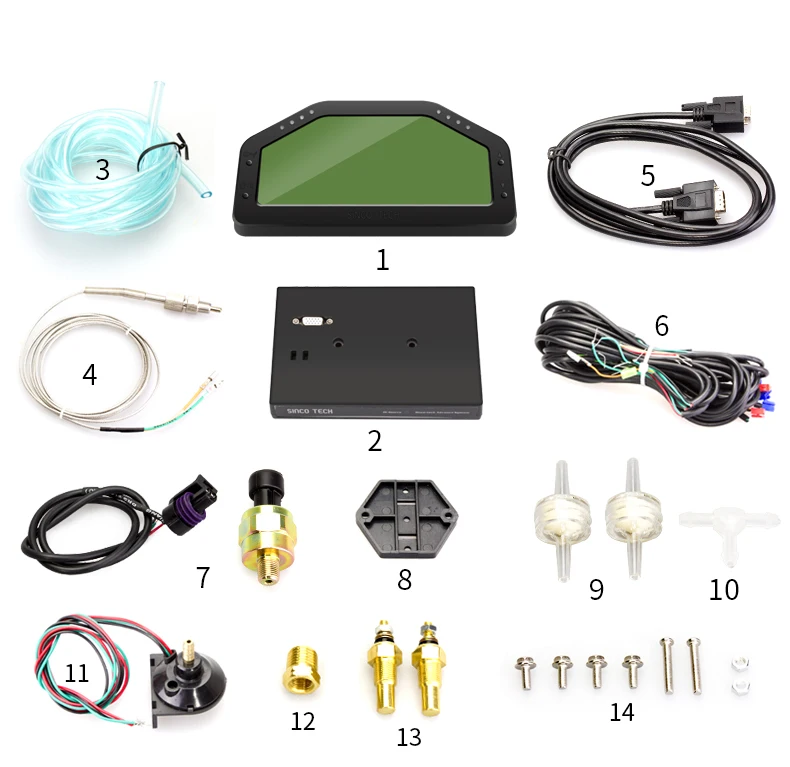

Part List

Display,the Data Processing Unit,Types Of Sensors,Installation Accessories ,Instructions manual.

Dissipation Current

+B line

<200mA(when IGN ON)

<1mA( when IGN OFF)

ILM line

<5mA

Working temperature

-20~+60℃(Humidity <80%)

Storage temperature

-30~+80℃(humidity < 80%)

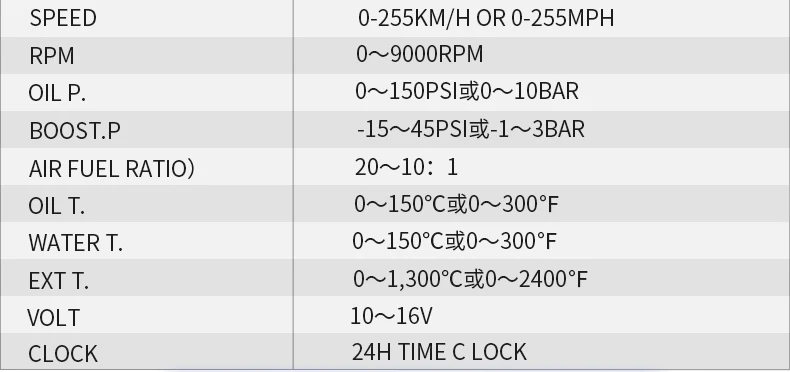

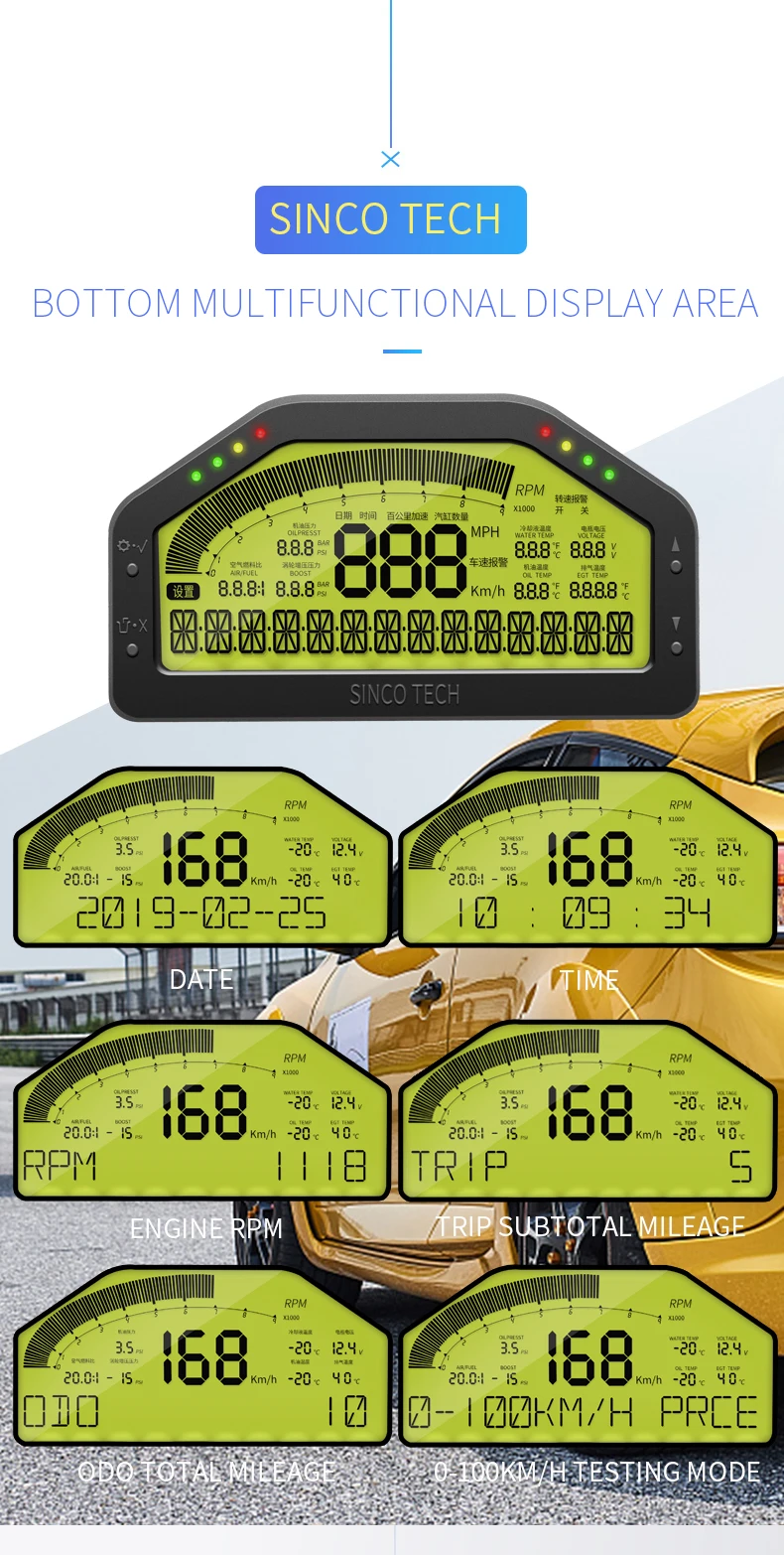

Display range:

#in order to display ,OP3 optional sensors should be prepared separately



Speed                               0-255Km/h

RPM                                  0~9000rpm

OP1(subsidiary)           OIL P.           0~150PSI OR 0~10BAR

OP2(subsidiary)                BOOST.P         -15~45PSI OR -1~3BAR

OP3*                AIR FUEL RATIO          20~10:1

OP4(subsidiary)                OIL T.           0~150℃ OR  0~300℉

OP5(subsidiary)                WATER T.        0~150℃ OR  0~300℉

OP6(subsidiary)                EXT T.         0~1,300℃ OR 0~2400℉

VOLT                                10~16V

CLOCK                             24H TIME C LOCK

Speed pulse

2,4,6,8 pulse

Free pulse:1,274~16,562 pulse/km (equal to pulse of 2~26)

Cylinder number

1,2,3,4,5,6,8(loop)
