Good quality of customized mould, small pneumatic coin press or shot press

Supplier: Dongguan Juli Hydropneumatic Equipment Co., Ltd.
Region: Guangdong, China
Contact: Mr Tony July
Price: $183.00 /set
Min. Order: 1 set

Click here to contact

Product details

Safety Sensor:	Customer Optional;	After-sales Service Provided:	Overseas service center available;
Model Number:	JLYB-80;	Structure Type:	Single Column;
Start Button:	Two Hand Safety Push Buttons/Foot Switch;	Core Components:	Pump,PLC;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal,Alipay;	Local Service Location:	None;
Marketing Type:	Hot Product 2020;	Voltage:	220V;
Cylinder Adjustable Stroke:	50mm;	Working Height:	162*155mm;
Certification:	CE;	Supply Ability:	150 Set/Sets per Month;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops;	Key Selling Points:	High Safety Level;
CNC or Not:	Normal;	Packaging Detail:	Foam inside and plywood box outside.;
After Warranty Service:	Video technical support,Online support;	Warranty:	one year;
Power Source:	Pneumatic;	Condition:	New;
Weight (T):	0.035;	Driving Pressure:	0.3-0.8MPA;
Pressure capacity:	0.2T;	Nominal Force (kN):	2 kN;
Brand Name:	JULY;	Machine Type:	Punching Machine;
Place of Origin:	Guangdong China;	Video outgoing-inspection:	Provided;
Cylinder:	Diameter 80*100MM;	Machinery Test Report:	Provided;
Port:	Shen zhen;	Warranty of core components:	1 YEAR;
Showroom Location:	None;	Package Preview:	https://sc02.alicdn.com/kf/H0134dce1d4ee45dab61cd13f3451b2beD.jpg_640x640.jpg,https://sc01.alicdn.com/kf/Hfd8dea5e07454c2b8294f16582965afey.jpg_640x640.jpg;
Output Pressure:	130-360KG;	Dimension(LWH):	187315890mm;

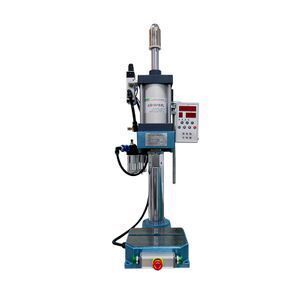

JULY custom mould good quality small pneumatic coin press making machine

Product Description

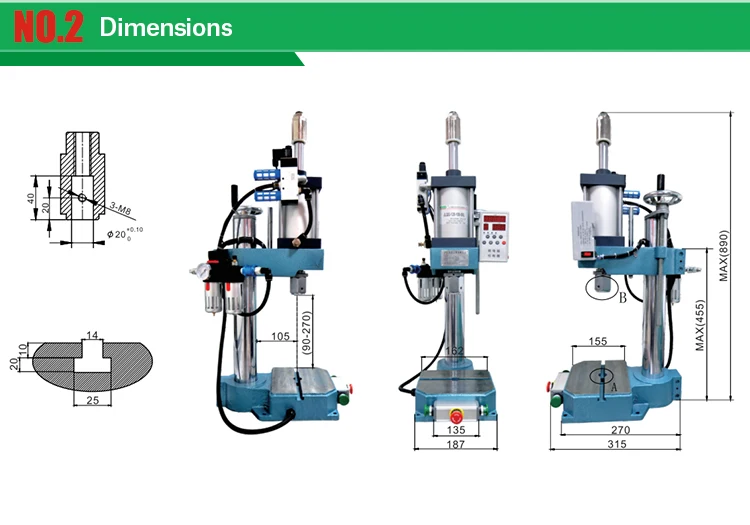

Model	JLYB-80
Maximum Working Height	270mm
Minimum Working Height	90mm
Workbench Area	162*155mm
Cylinder Specification	Diameter80*100 mm
Total Cylinder Stroke	100mm
Cylinder Adjustable Stroke	50mm
Power Supply	AC220V,50-60Hz
Air Pressure	0.3-0.8Mpa

Air source pressure Mpa	0.3	0.4	0.5	0.6	0.7	0.8
Compressor output KG	130	180	220	270	310	360

main categore

Company Profile

FAQ

Q1. What is your term of payment?

A: Usually, we accept T/T, irrevocable L/C at sight. For regular orders, we prefer 30% in advance, 70% against the copy of B/L. For long term business relations, we have more advantage terms for payment.

Q2. What is your terms of delivery?

A: We accept FOB, CIF, DDU, DDP etc. You can choose the one which is the most convenient or cost-effective for you.

Q3: What is the lead time?

A: It usually takes 15 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was nonstandard, we have to consider extra 10-15 days.

Q4: Can you produce according to the drawings?

A: We can accept customers' customization, but we need to communicate with our engineers about the production.

Q5: Can you use the spare parts that customers specify the brand?

A: We are very willing to accept the spare parts that customers specify the brand to product assembling, but we need to charge some assembling cost.

Q6: Can you supply the product mold or other related accessories?

A: We can on behalf of the procurement according to the customer's drawings and requirements. After the product mold and accessories are installed and debugged in the machine, it will be sent to you shipped with the machine.

Q7: Do you accept the factory inspection?

A: Yes, we are very happy to accept customers to visit. We are a manufacture with a very rich R & D and production experience for many years.

Q8: How to solve the quality of after-sales?

A: We have a professional after-sales service team to solve your problem at the first time. For product quality problems during the warranty period (non-human damage), we will be maintenance or replacement for you unconditionally. For man-made damage, we only be charged for the maintenance costs.

Q9:What is your shipping method?
A: We respect the client's choice, by sea, by air or by express.

Q10. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery. We have QC team comply with TQM, each step is in compliance to the standards.
