Metal Dome/Contact Dome/Snap Dome- for PCB Assembly - Best Quality & Made in Hong Kong with over 30 years of experience

Supplier: CROWN HONOUR LIMITED
Region: China
Contact: Ms. Cherry Fung
Price: $0.011 / >=10000 pieces
Min. Order: 10000 pieces

Click here to contact

Product details

Application:	For PCB Assembly;	Port:	Hong Kong;
Certification:	ISO9001:2015 / ROHS;	Material:	Japanese Imported Stainless Steel / Nickel Plated/ Gold Plated;

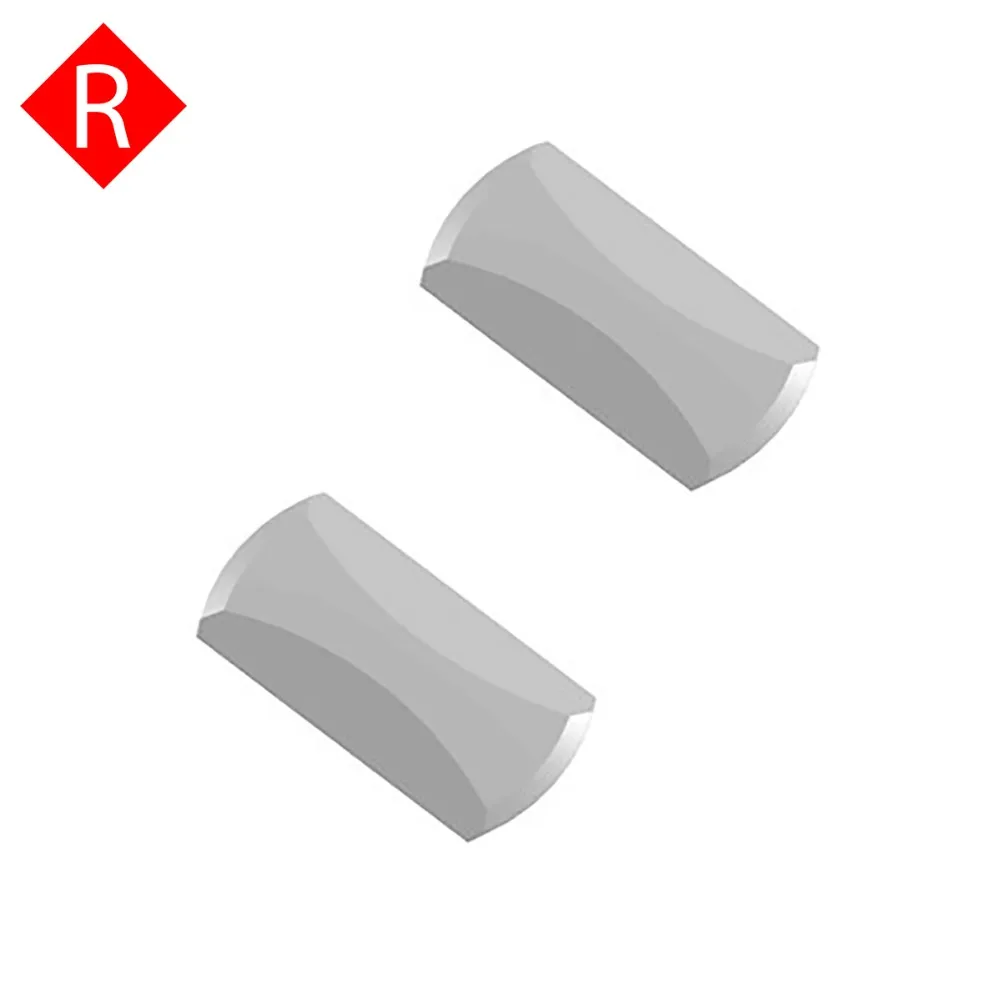

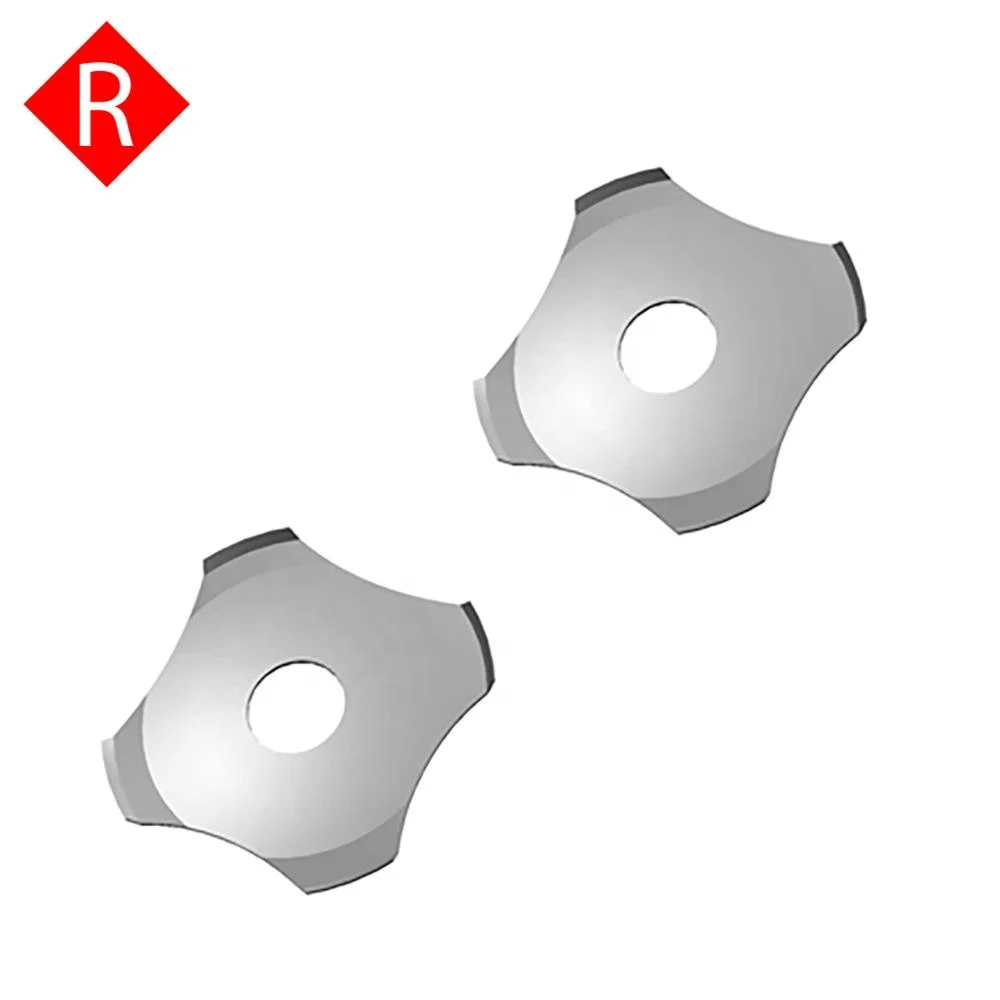

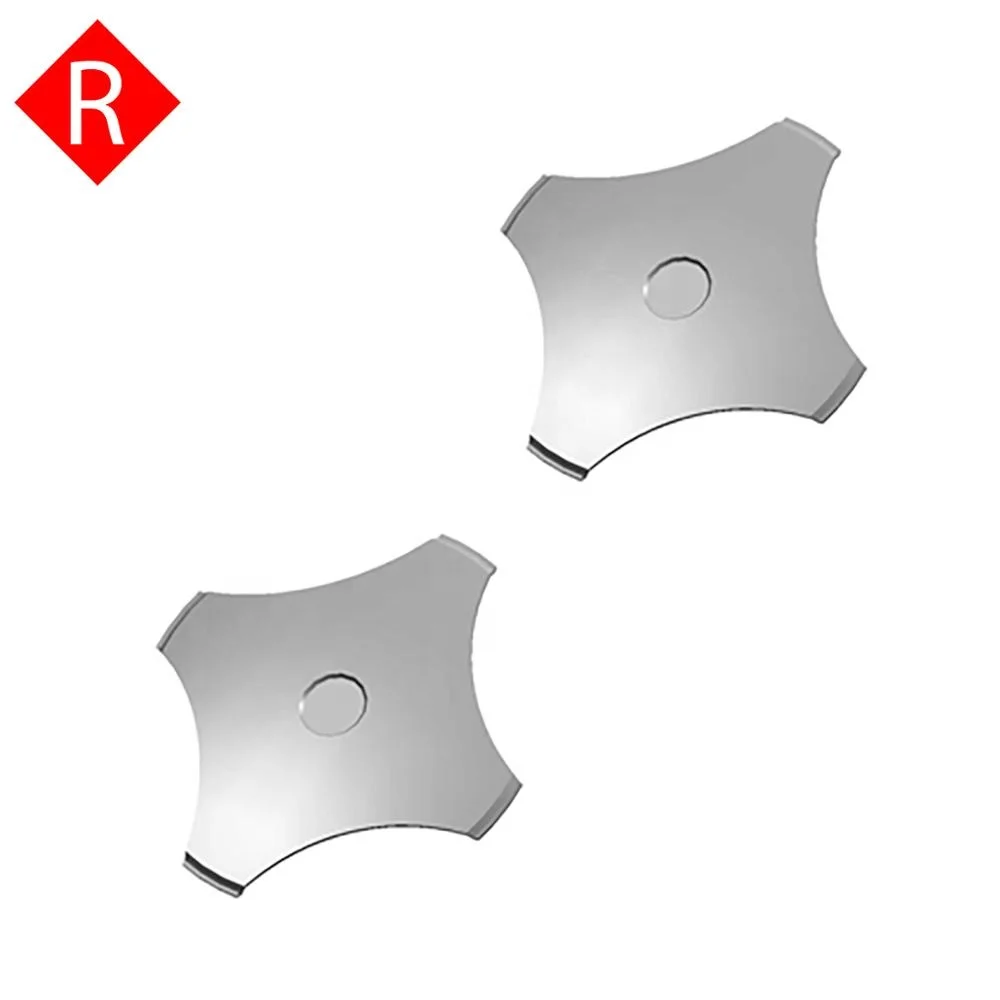

Packaging Detail:	Our Metal Dome Product packing uses PE environmental plastic bags. We can arrange packing by bottle to fulfill customers' requirements. We also offer further options, i.e. Metal Dome SMT Carrier Tapes or Peel & Place Dome Arrays. Please contact us for more information.;	Dome:	Oblong, 4-Leg, Triangular, Round, SMT Tape and Reel, Dome array;
Exported to:	Asia, Worldwide;	Keypad Button Material:	Metal Dome;
Keyword:	Metal Dome, Snap Dome, Tactile Dome Switch;	Supply Ability:	100000 Piece/Pieces per Day;
Package Preview:	https://sc01.alicdn.com/kf/ULB814Ldr9bIXKJkSaefq6yasXXaq.jpg_640x640.jpg,https://sc02.alicdn.com/kf/UTB8RcnhrYPJXKJkSafSq6yqUXXa8.jpg_640x640.jpg;	Size:	Min. 4mm, 6mm, 8mm, 12mm, 35mm etc.;
Brand Name:	True Tone;	Feature:	Durable;
Model Number:	Metal Dome;	Place of Origin:	Hong Kong S.A.R.;
Payment Terms:	T/T;	MOQ:	Negotiable;
Product name:	Metal Dome;	Package:	PE Bag, Bottle, SMT Dome Reel, Dome Array;

Product Description

1. Product: Metal Domes / Snap Dome/ Contact Dome, SMT Dome Reel, Dome Array etc.

2. Size: 4mm - 35mm (Please contact us for details)

3. Certification: ISO9001, SGS, ROHS

Standard Specification:

Product Name	Metal Domes / Snap Dome/ Contact Dome, SMT Dome Reel, Dome Array etc.
Material	Japanese Imported Stainless steel, Nickel Plated and Gold Plated
Contact Configuration	SPST N.O
Switching / Working Voltage	0.1 to 50V DC
Switching Capacity	1 Watt
Switching Current	0.005 to 100mA DC
Contact Resistance	<100 ohms <1 ohm (with plating)
Contact Bounce Make	<0.3ms
Contact Bounce Break	<0.6ms
Operation Temperature Rating	-40 Degrees C to +100 Degrees C
Storage Temperature Rating	-55 Degrees C to +100 Degree C

Products Photo

Our Company

True Tone Industries Ltd.

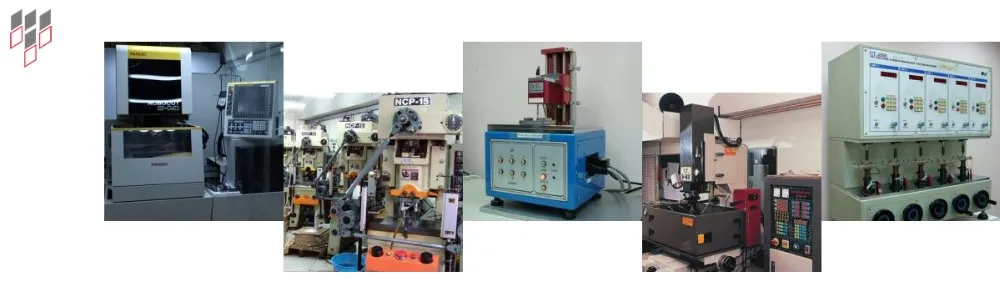

Factory located in Hong Kong, with over 30 years of experiences in manufacturing metal domes.

Our Company Mission

- Best Product Quality
- Excellent Customer Service
- Customers' Needs Fulfillment
- Management System Improvement

Packing & Delivery

Packing Details : Standard Packing by PE Environmental Plastic Bags.
(By Bottle, SMT carrier tapes or Dome Array on Request)
Delivery Time : 28 days after order (Please contact our customer service for accurate delivery time)

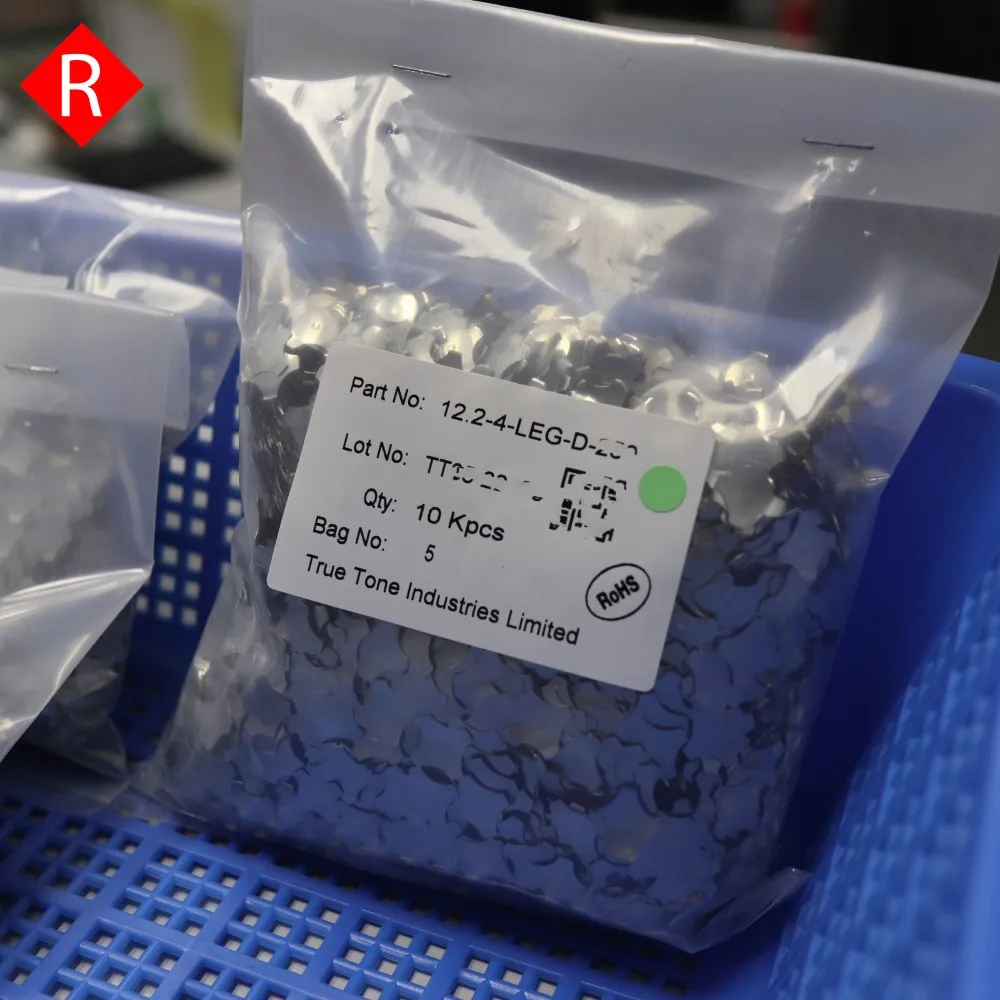

1. Packing by PE environmental Bags

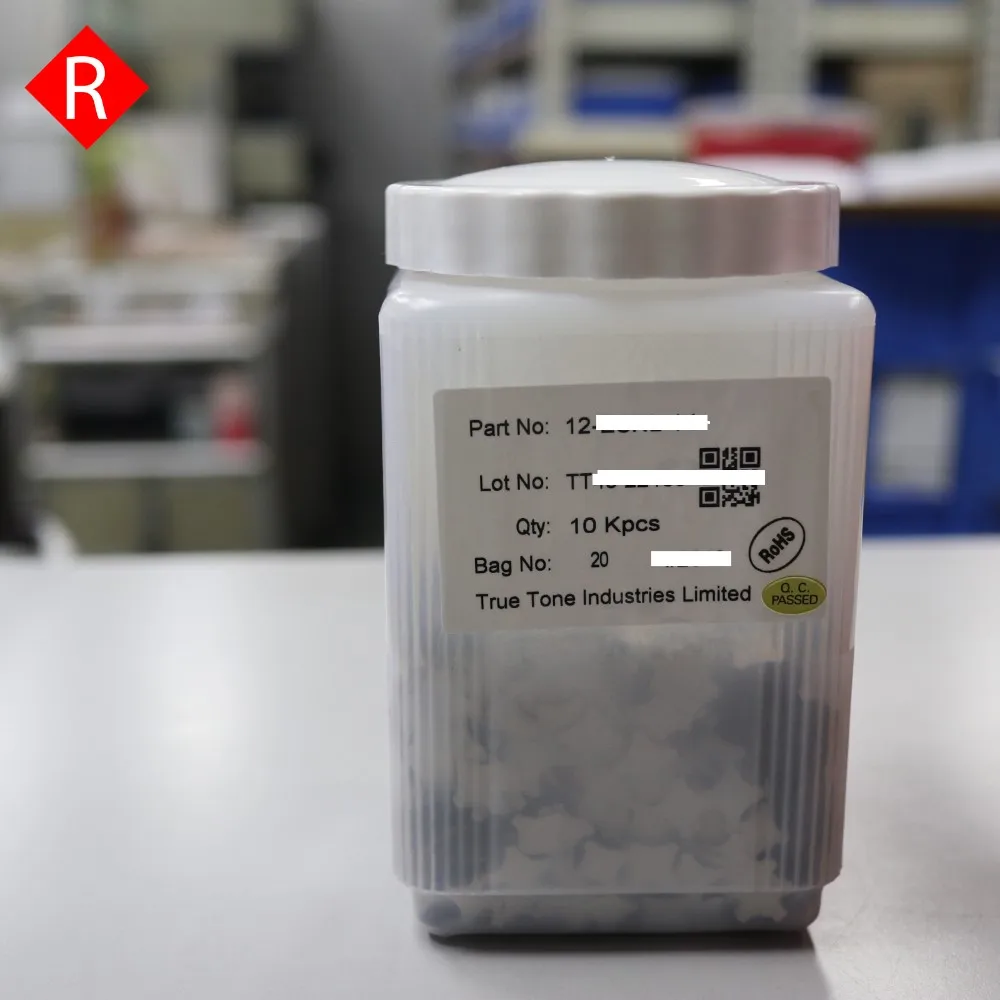

2. Packing by Bottle (On Request)

3. Select suitable Carton Boxes

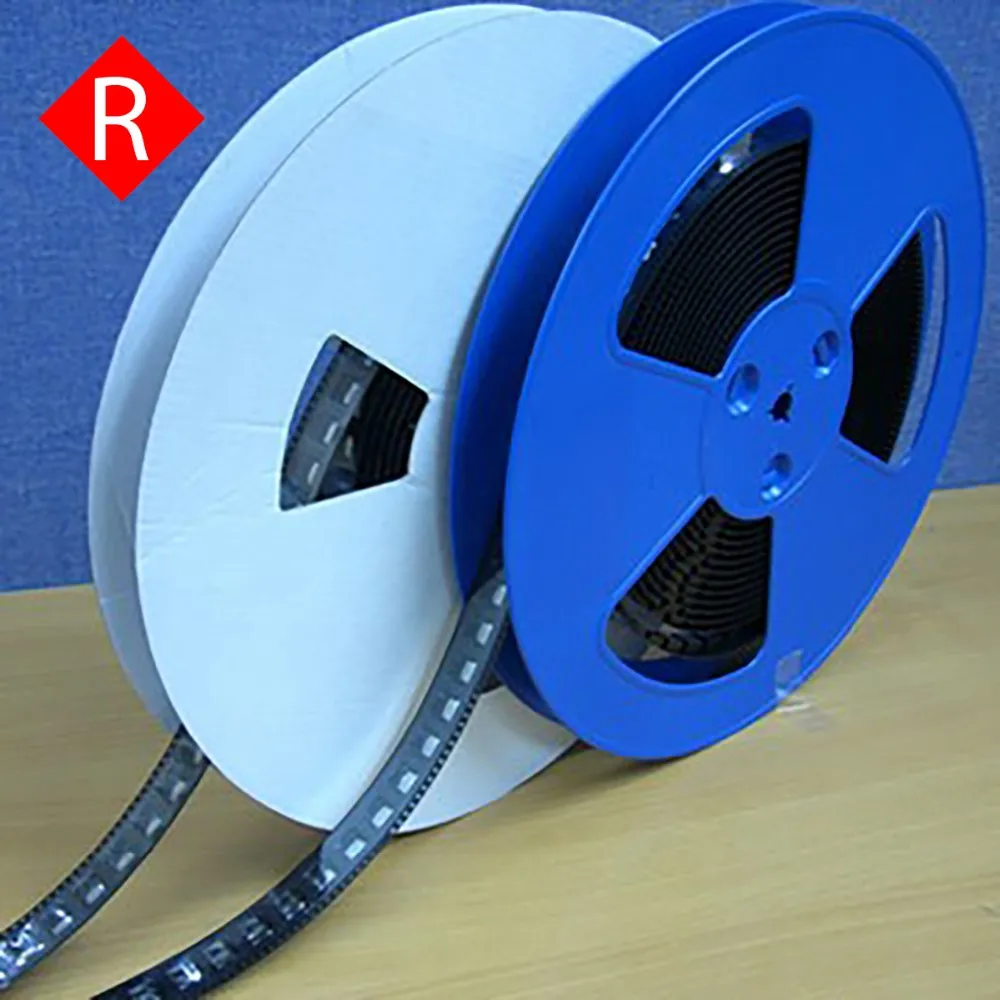

4. SMT Dome Reel (On Request)

5. Dome Array (On Request)

6. Ready for delievery

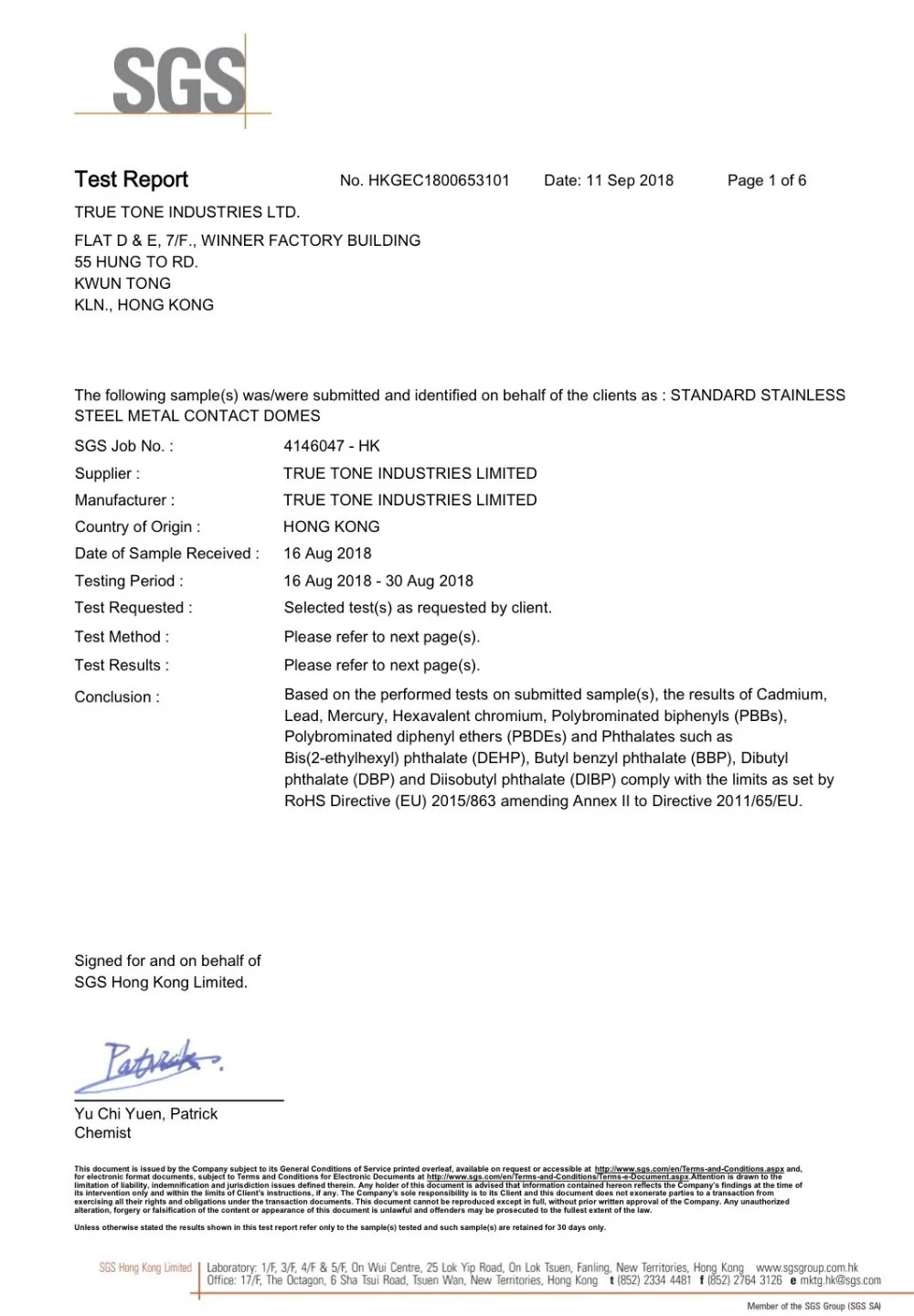

Our Certifications

RoHS Compliant

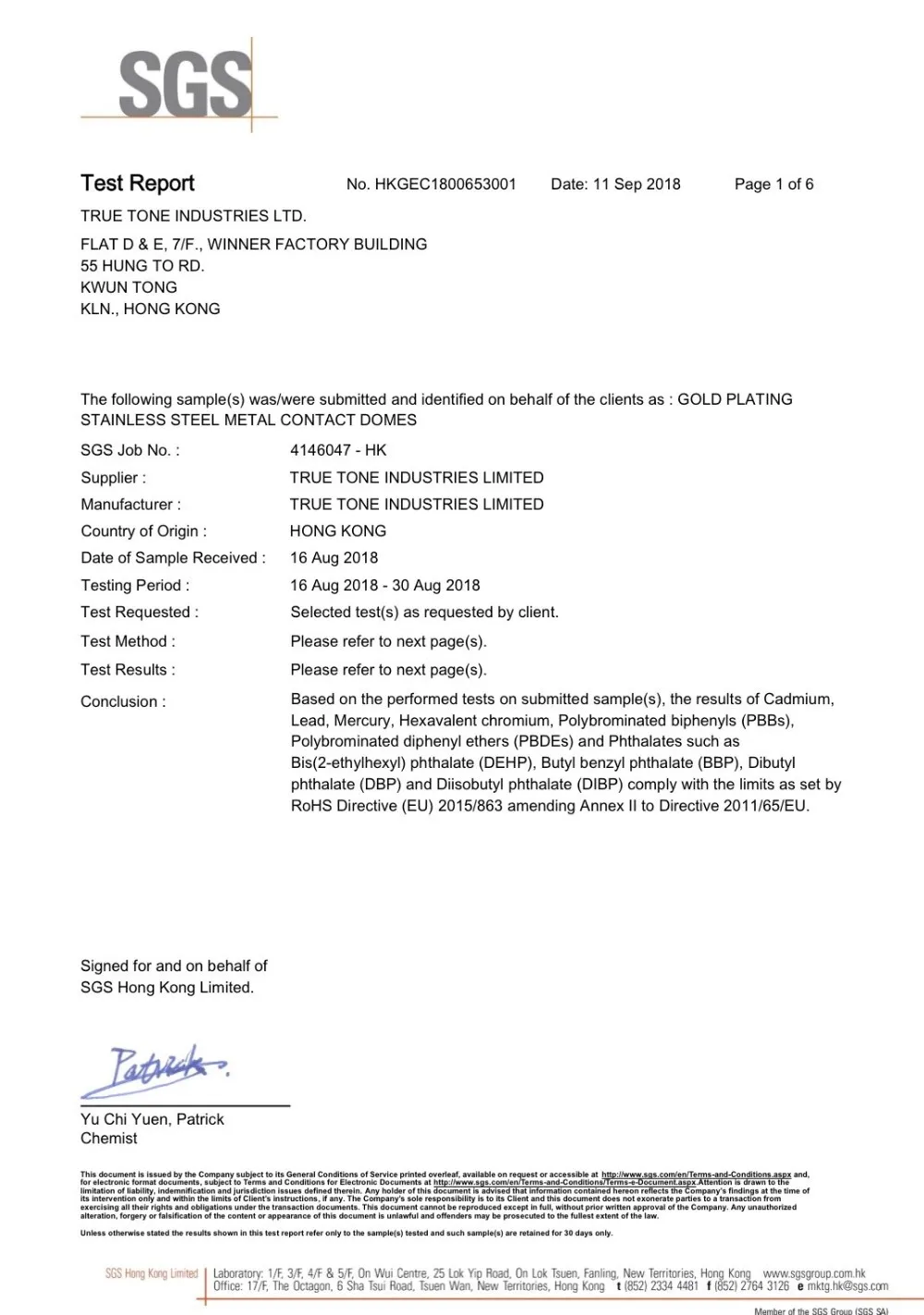

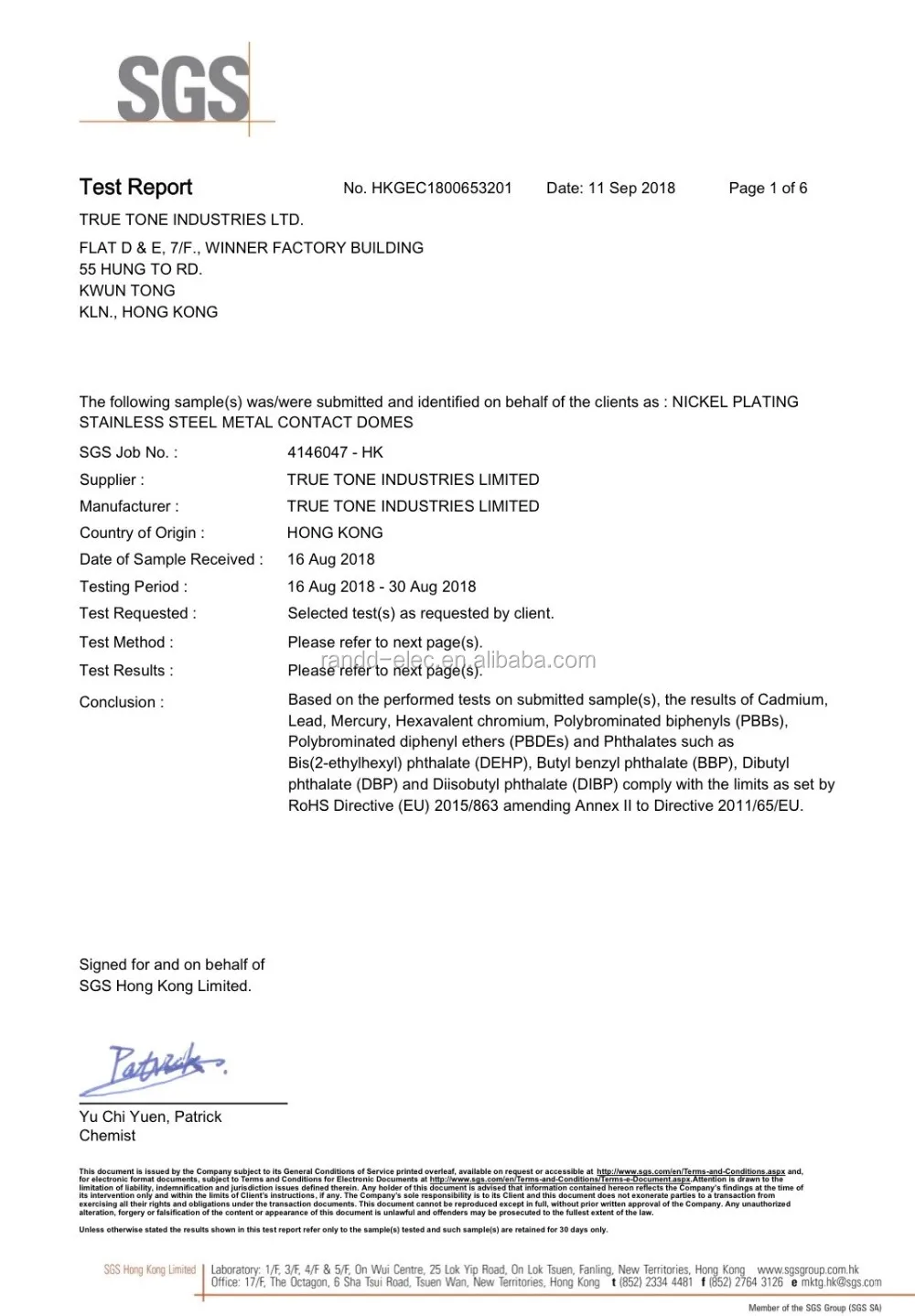

Our products of Metal Domes (i.e. Stainless Steel, Nickel Plated & Gold Plated) complied with the requirement of RoHS standards.

Please also view our company profile for our certifications.
