0.1 Precision Grade Competitive Price DMF-Series Oxygen Concentration Meter

Supplier: Beijing Sincerity Automatic Equipment Co., Ltd.
Region: Beijing, China
Contact: Ms Zoe Pan
Price: $1500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

key words:	oxygen concentration meter;	Supply Ability:	500 Unit/Units per Month;
Packaging Detail:	wooden boxes;	Port:	Tianjin Ports;
Payment Terms:	T/T,Western Union;	Model Number:	DMF-Series;
Brand Name:	Sincerity;	Place of Origin:	Beijing China (Mainland);

0.1 Precision Grade Competitive Price DMF-Series Mass Flow Oxygen Concentration Meter

Product Description

Technical Parameters:

Applications	Suitable for Liquid, Gas, Liquid- Solid, Gas- Solid, Liquid- Gas Mass Measurement or volume measurement
Material of the Measurement Pipeline	SS 316L/ HC Hastelloy
Pressure	Please refer to the chart shown below. Special orders would be placed for high pressure.
Medium Temperature	-50℃~+150℃ (Highest Temperature: +350℃, Lowest Temperature: -300℃ could be special ordered )
Environment Temperature	Sensor:-40℃~+150℃; Transmitter:-20℃~+70℃
Flow Rate Measurement Accuracy	± 0.2% ,± 0.1% optional
Density Measurement Accuracy	±0.002g/cm³,±0.001g/cm³ optional
Repeatability	±0.10% Flow Rate ±[½(Zero Point Stability/Flow Rate)×100]% Flow Rate
Output Signal	4~20mA Load Resistance <500Ω(Instantaneous or Density optional); 0~10kHz Instantaneous Flow Rate Pulse Signal; Standard RS 485 RTU protocol
Explosion- Proof Symbol	EX d ib II C T5 Gb

Micro Coriolis Mass Flow Meters: DMF-1-1; DMF-1-2

+

Model	DN	Measurement scope(kg/h)	Work Pressure (MPa)	Connection type (mm)
DMF-1-1-AB	1.5	0~4	0~32	Weld Joints Φ6×1.5
DMF-1-1-A	3	0~40	0~32	Weld Joints Φ6×1.5
DMF-1-1-B	6	0~100	0~25	Weld Joints Φ10×2
DMF-1-2-A	8	0~200	0~20	Weld Joints Φ10×1

High Pressure Medium Scale Coriolis Mass Flow Meters: DMF-1-3; DMF-1-4; DMF-1-5-A

+

Model	DN	Measurement scope (kg/h)	Work Pressure (MPa)	Connection Type(mm)
DMF-1-3-A	10	0~500	0~25	Weld Joints Φ20×4
DMF-1-3-B	15	0~1000	0~25	Weld Joints Φ20×3
DMF-1-4	20	0~3000	0~25	Weld Joints Φ20×2
DMF-1-5-A	25	0~10000	0~25	Weld Joints Φ31×3

Large-scale Flow Meter: DMF-1-3; DMF-1-4; DMF-1-5; DMF-1-6

High pressure could be special ordered. (4~70MPa)

+

Model	DN	Measurement scope (t/h)	Work Pressure (MPa)	Connection Type(mm)
DMF-1-3-A	10	0-0.5	0~4	Flange 10
DMF-1-3-B	15	0-1.0	0~4	Flange 15
DMF-1-4	20	0-3.0	0~4	Flange 20
DMF-1-5-A	25	0-10	0~1.6	Flange 25
DMF-1-5-B	40	0-20	0~1.6	Flange 40
DMF-1-6-A	50	0-30	0~1.6	Flange 50
DMF-1-6-AB	65	0-50	0~1.6	Flange 65
DMF-1-6-B	80	0-100	0~1.6	Flange 80
DMF-1-6-C	100	0-150	0~1.6	Flange 100
DMF-1-6-CD	125	0-200	0~1.6	Flange 125
DMF-1-6-D	150	0-300	0~1.6	Flange 150
DMF-1-6-E	200	0-500	0~1.6	Flange 150

DMF-V-Series Coriolis Mass Flow Meters

+

Model	DN	Measurement scope(T/h)	Work Pressure (MPa)	Connection type (mm)
DMF-1-3-V10	10	0-1.0	0~4	Flange DN10
DMF-1-3-V15	15	0-3.5	0~4	Flange DN15
DMF-1-4-V20	20	0-5.5	0~4	Flange DN20
DMF-1-5-V25	25	0-15	0~4	Flange DN25
DMF-1-6-V50	50	0- 40	0~4	Flange DN50
DMF-1-6-V80	80	0- 100	0~1.6	Flange DN80
DMF-1-6-V100	100	0- 150	0~1.6	Flange DN100
DMF-1-6-V150	150	0- 350	0~1.6	Flange DN150
DMF-1-6-V250	250	0- 500	0~1.6	Flange DN250

Product Display

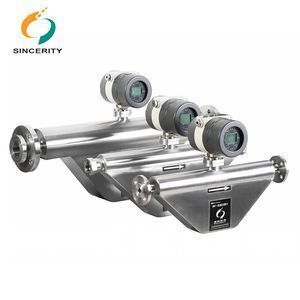

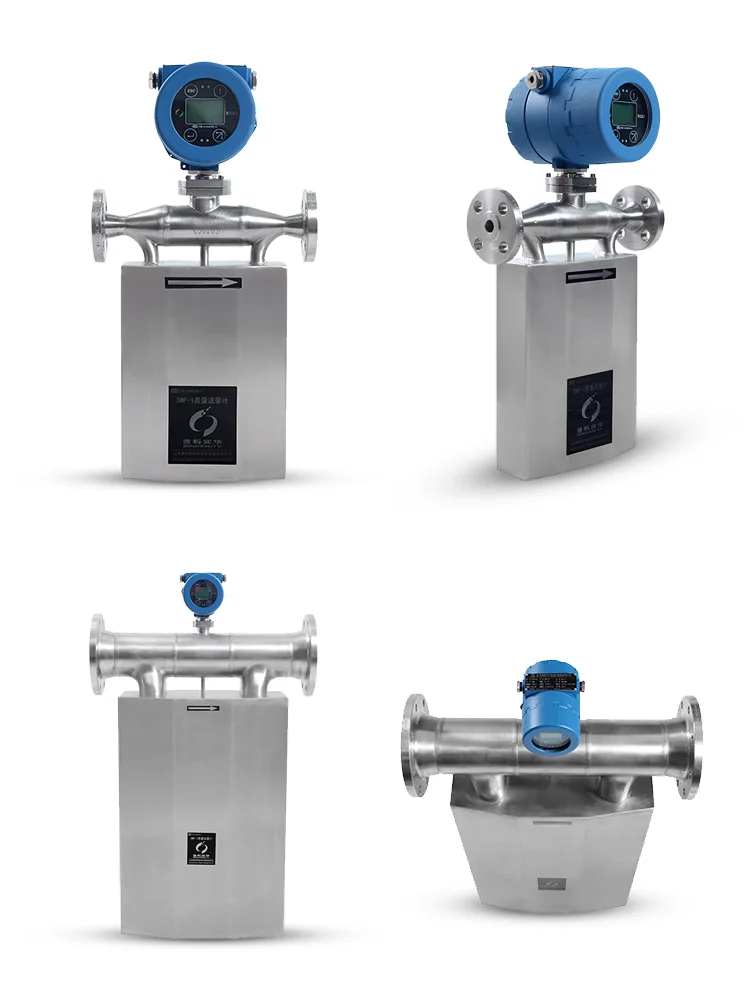

DMF-1 Series U-Shape Series Coriolis Mass Flow Meters

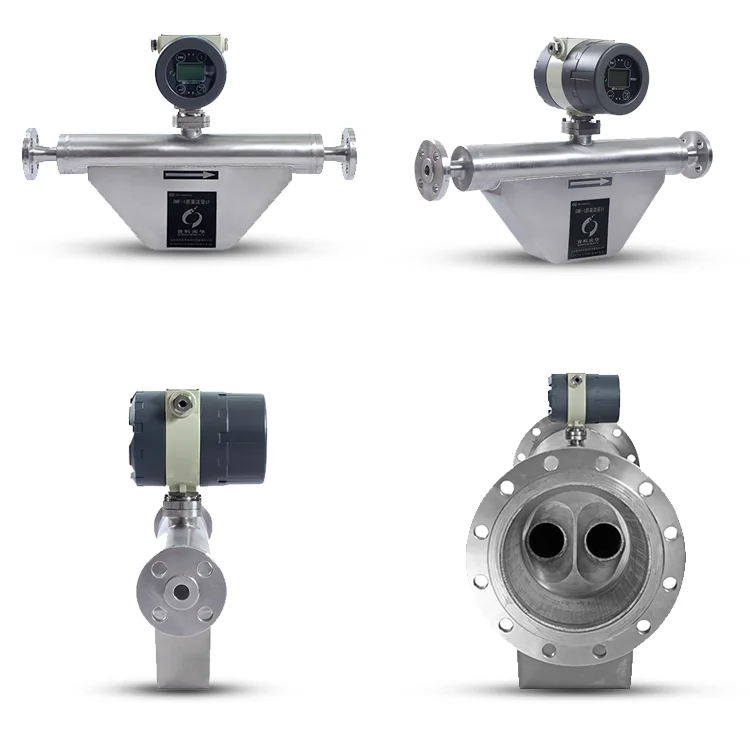

DMF-1 Series V-Shape Coriolis Mass Flow Meters

Our Advantages

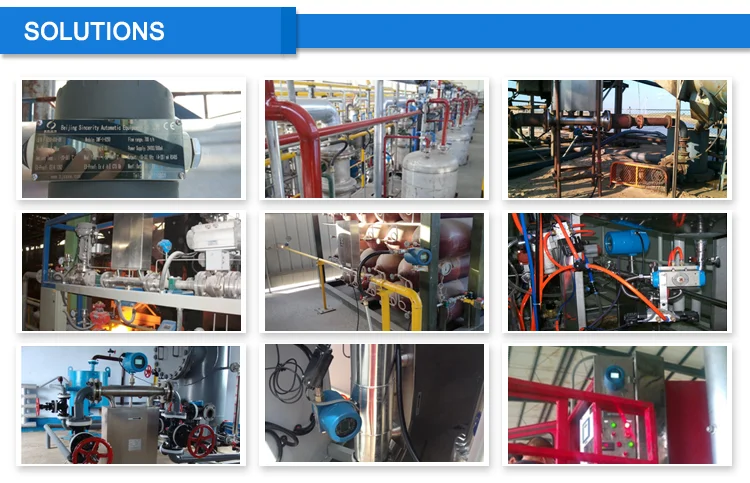

Product Applications

Related Products

company profile

FAQ

Q: Are you a factory or trading company?

A: We are a manufacturer.

Q: Where are you located? How can we visit you?

A: We located in Chaoyang District of Beijing, in north of China.

Q: How can I choose suitable machine?

A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us:

1) Medium, what is the medium that you want to measure?

2) Flow rate, what is the maximum / working flow rate ?

3) Temperature

4) Pressure

5) Pipeline size, what is the designed size of pipeline?

Q: What's your payment terms? Delivery time and MOQ?

A: We accept T/T, L/C, Western Union, etc. Usually we need 30% as deposit, 100% paymment before shipment.

Delivery Time: 7-10 days after payment

MOQ: 1 set

Q: If I bought a machine, how could you make it safe while shipping.

A: We have a professional package suitable for oversea transportation. Machines will be protected well in the case.

Q: What's your quality control system?

A: All machines will be tested after finish. We have QC department reponse for this job. And we already got CE/ ISO approved.

Q: What's your after-sales service?

A: 1) Warranty 1 year for whole machine.

2) Engineers available service machinery overseas

3) Full operator training

Q: If I don't know how to use the machine, can you teach me?

A: 1) There's a operational manual inside

2) Online- skype & phone

3) Demo Video

Q: This is my first time buy machines from China, how I buy machines from you ?

A: Choose suitable machine through talking with our sales manager→ Pay to us→Manufacture and testing the machine (about 3-5 work days)→Shipping to you

If you need more information or have any special requirements, pls feel free to contact us. We will be at service at any time. We would like to be your honest and long-term supplier in the near future.
