Model Number: | all type; | Packaging Detail: | standard export package; |
material: | silicon carbide; | Standard or Nonstandard: | Nonstandard; |
Port: | ningbo port and China port; | Place of Origin: | Zhejiang China (Mainland); |
Supply Ability: | 5000 Set/Sets per Month; | Payment Terms: | T/T,Western Union; |
Pump Parts & Accessries: | Pump shaft; | Brand Name: | zhengkai; |
Delivery Detail: | about 20 days; |

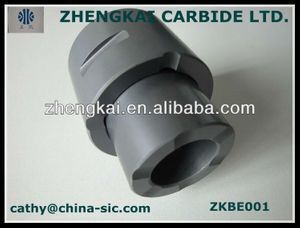

The company mainly offers sic bearing for pump made in Silicon carbide (SIC). Please feel free to contact us, we are sure both of us will have plenty of opportunities working together.SEND US DRAWING!
Contact person: Ms.Cathy Weng
Tel/Fax:0086-574-88929157
1.Zhengkai Carbide Co., Ltd. Technical Parameter
1) ZKS-1: Reaction bonded (self-combine) SIC
2) ZKS-2: Self sintered pressure less SIC (SSIC)
3) ZKS-3AZKS-3B: SIC with 5 - 30% graphite content
4) ZKS-4: SIC with controlled porosity
| ZKS-1 | ZKS-2 | ZKS-3 AB | ZKS-4 |
SiC Purity(%) | ≥90 | ≥ 98 | Graphite content | Control porosity |
Granuliform(um) | 8~20 | 4~10 | ≤10 | |
Density(g/cm3) | ≥3.05 | ≥ 3.10 | 2.65~2.90 | 2.65 |
Hardness | HRA >90 | HV2800 | HRA >80 | HV 1800 |
3 point bending strength (Mpa) | 350~450 | 400~500 | 250~300 | 200~250 |
Compressive strength(Mpa) | > 2500 | >2500 | >1500 | 1500 |
fracture Toughness |
| 3.50~4.60 |
|
|
Modulus of elasticity (GPa) | >350 | 380~410 | 200 | 250 |
Thermal conductivity (Cal/cm.s.0c) | 0.3 | 0.2 |
|
|
Coefficient of thermal expansion(mm/mm0k) | 4.5 | 4.2~5.2 | 3.0 | 3.5~4.0 |
2.PRODUCTION
3.INSPECTION
4.PACKING
For any questions, please don't hesitated to contact me.
ATTN:cathy weng
Tel number:86-574-88929157
skype:dns1103
