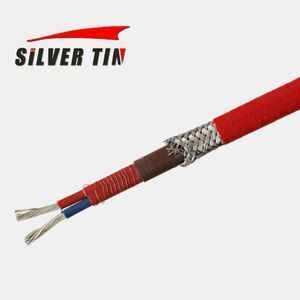

PTFE Material Constant wattage heating cable

Supplier: Shanghai Silver Tin Temperature Measuring Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ella Zhao
Price: $0.65 / >=200 meters
Min. Order: 200 meters

Click here to contact

Product details

Packaging Detail:	Standard package or accoding to customers' detail request;	Application:	defrost, snow melting, heat trace;
Conductor Type:	Stranded;	is_customized:	YES;
Conductor Material:	Copper;	Supply Ability:	100000 Meter/Meters per Month;
Application:	Pipe Heating;	Product NAme:	PTFE Material Constant wattage heating cable;
Payment Terms:	L/C,T/T;	Number of Conductors:	Twin Conductor;
Place of Origin:	Shanghai China (Mainland);	Port:	Shanghai;
Jacket:	modified polyolefin;	Brand Name:	Silver Tin;
Model Number:	SHC;	Insulation Material:	Fluoropolymer outer jacket;

Product Description

Description

The main feature of this type of cable is an uniform specific charge on its entire length, granting the possibility to manage
the specific power independently from the required cable length.

Constant power cables are manufactured winding the heating wire to the phase and neutral wires on which an antilaceration silicone is extruded.

A special metal braid can be added on the external insulation to protect the cable from mechanical stress and improve its
thermal distribution. It can act as well as grounding.

Rated voltage:220V Max. TEMP:250°C

Insulation resistance:≥20MΩ Grade:IP54

Dielectric strength:2000V 50Hz/1min Conformity Certificate of Explosion-Proof: CJEx07.125U

Insulation material:F46 Fluoroplastic Size(include sheath and Textile ):6.3x9.3m

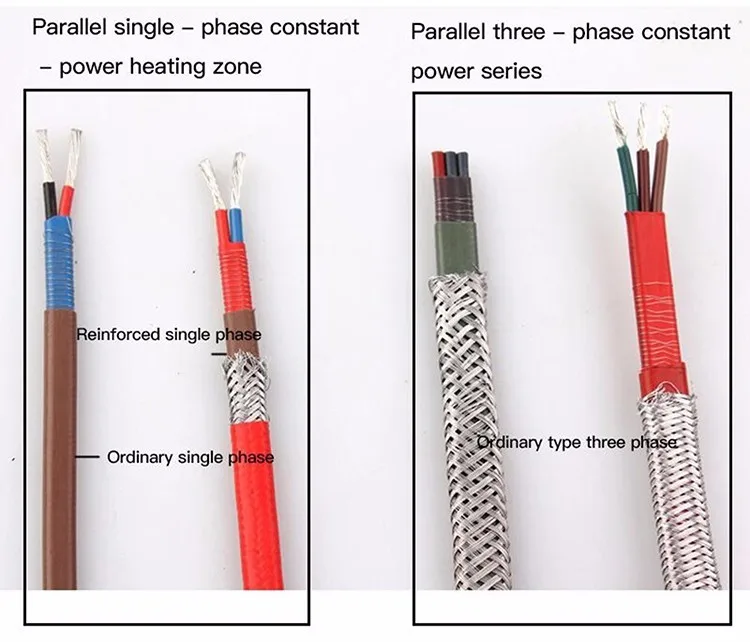

Normal	Strengthened	Power rating	Max. L(M)	Max. TEMP(°C)	Sheath color
RDP2-J3-10	RDP2(Q)-J3-10	10	210	150	Black
RDP2-J3-20	RDP2(Q)-J3-20	20	180	120	Red
RDP2-J3-30	RDP2(Q)-J3-30	30	150	90	Blue
RDP2-J3-40	RDP2(Q)-J3-40	40	140	65	Orange

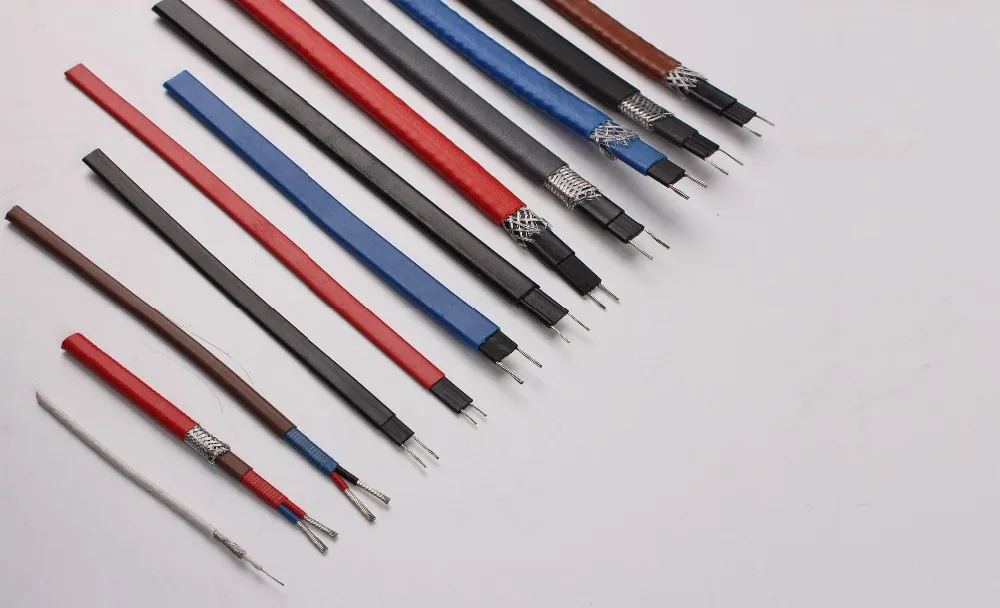

Detailed Images

Feature

*High flexibility
*Excellent mechanical resistance
*Fits perfectly wide surfaces to be heated
*Limited diameters (3.5mm)
*Easy finishing and installation
*Provided in coils
*Highly customizable

Specification
Heating Cable structure		Tinned copper bus wires
		Self-regulating semi-conductive core
		Fluoropolymer insulation
		Tinned copper braid
		-CR: Thermoplastic outer jacket
		-CT: Fluoropolymer outer jacket
Service voltage		110~120v, 220~277V
Max. Maintain temp.		110°C(230°F)
Continuous exposure temp.		135°C(275°F)
Max. Intermittent exposure temp.		-30°C(-22°F)
Min. installation temp.		<18.2 Ω/km
Bus wire gauge		14AWG(45&60W/m) 16AWG(17&31W/m)

Related Products

Self-regulating heating cable

Carbon fiber heating wire

Packing & Delivery

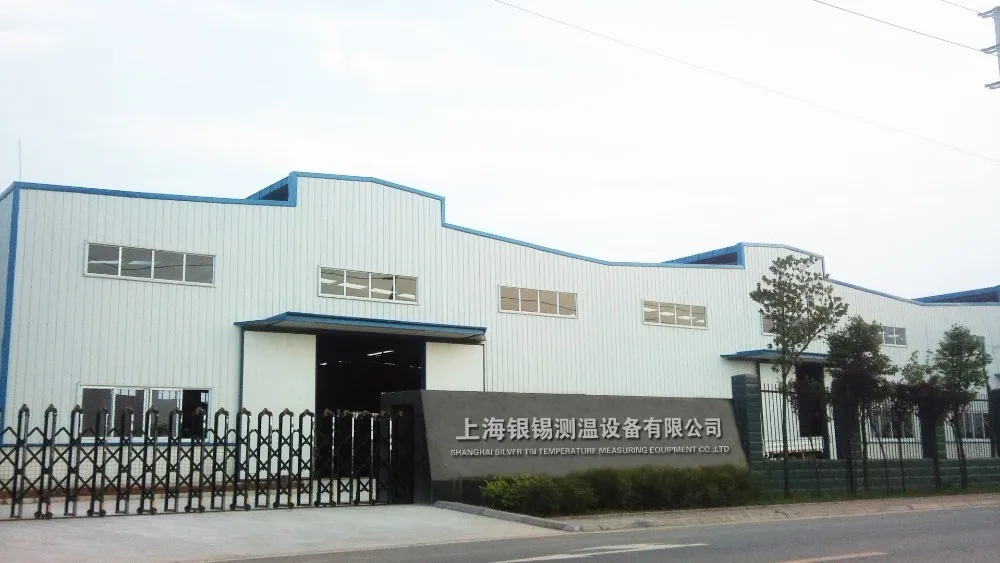

Shanghai Silver tin Temperature Measuring Equipment Co., Ltd. is a high-tech enterprise specializing in the R&D and manufacture of electric heating technology. It has introduced European advanced production technology and equipment, also research and develop heating cables and related accessory products for building comfort heating, pipe insulation and antifreeze, outdoor snow melting and ice melting.The company owns a production base company and a sales company with strong strength, complete production equipment and perfect testing methods.
