6hole fish-like plate used for rail connect

Product details
OEM Service:Avaiable on request;Payment Terms:L/C,T/T,Western Union;
Application:Railway Fastening;Package Preview:https://sc01.alicdn.com/kf/H71101e49f514486ebb24a7438f8043d7G.jpg_640x640.jpg,https://sc02.alicdn.com/kf/Hc6e98b1146274c78af6948766b34e3e6b.jpg_640x640.jpg;
Description:Fishplate/ Fish plate/ Joint bar;Certificate:ISO9001:2008;
Dimensions (L x W x H) (mm):P43/P50/P60;Packaging Detail:Bulk in carton, then on pallet, or according to customers' requirement;
Brand Name:Hongxin;Product name:railway fish plate;
Place of Origin:China;Supply Ability:100000 Piece/Pieces per Month;
Rail Weight:12/15/22/30/50/60/70/80/100kg/m, etc;Standard:GB/T1222;
Type:Tie Plates;Usage:Railway Joint;
Port:qingdao;shanghai;tianjin;Rubber tie plate:P43, P50, P60;
Material:Q235;Keyword:fishplate;

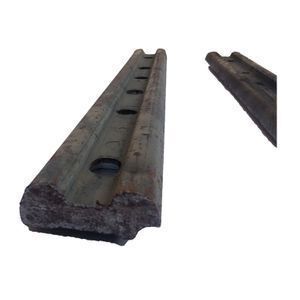

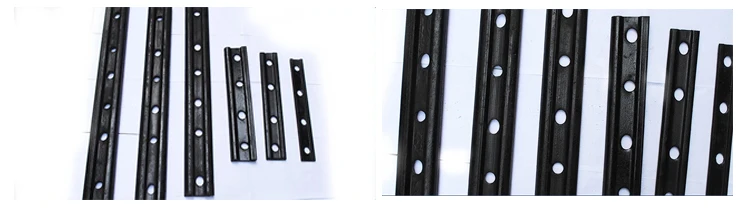

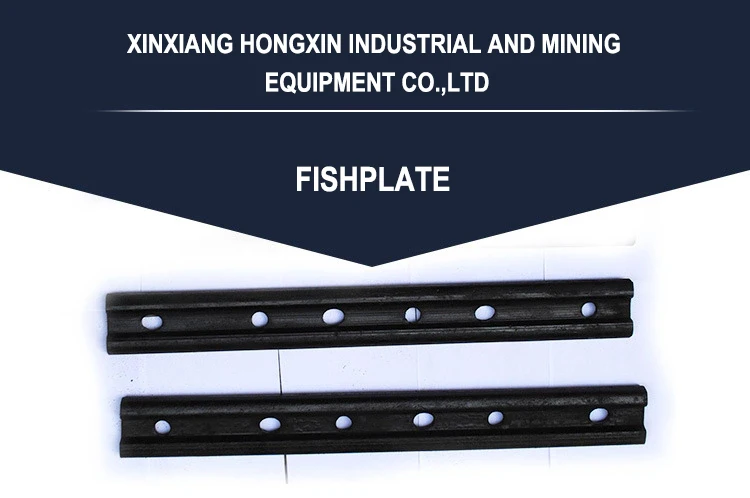

6hole fish-like plate

Product Description



Rail fish plate (rail joint splint) is commonly known as splint, which plays a connecting role at rail joint. It is divided into light rail, heavy rail and lifting rail. Fishtail plate is a kind of fastener used for connection between track and track.

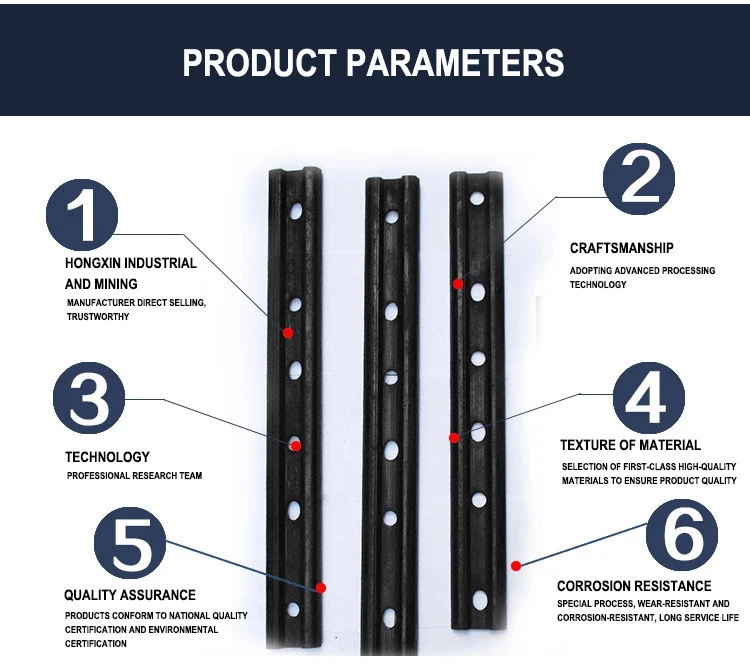

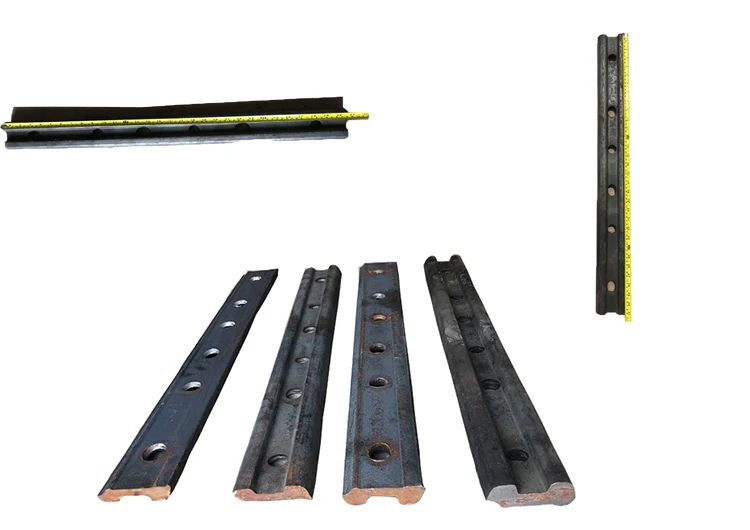

Technical Parameters



TYPELENGTH/DIAMETERWEIGHT (KG)MATERIALMATERIAL
115RE4 hole- 24″17.0445#50#
115RE6 hole -36″25.56Chemical composition(%): Chemical composition(%):
132-136RE4hole-24″17.75

C:0.42-0.50,





Mn:0.50-0.80,





Si:0.17-0.37,





Cr:≤0.25,





P:≤0.035,





S:≤0.035

C:0.62-0.70,





Mn:0.50-0.80,





Si:0.17-0.37,





Cr:≤0.25,





P:≤0.035,





S:≤0.035

132-136RE6hole-36″26.63
UIC 604 hole - 630/Ø2618.07
UIC 604 hole-600/ Ø 2817.47
UIC 604 hole - 630/ Ø 2518.1
UIC 544hole14.34
UIC 546hole- 80019.94
BS 80A4hole6.5
BS 90A685.8 / Ø 2613.23

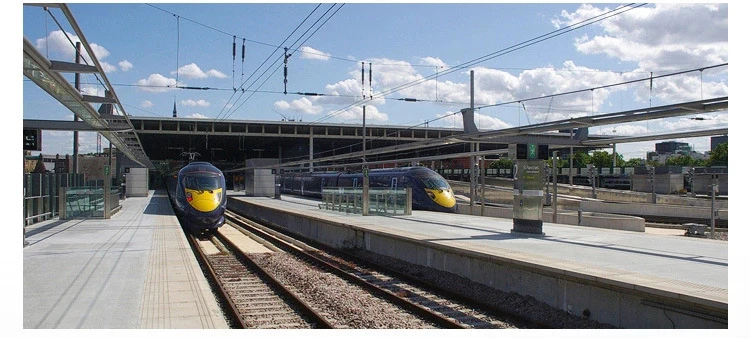

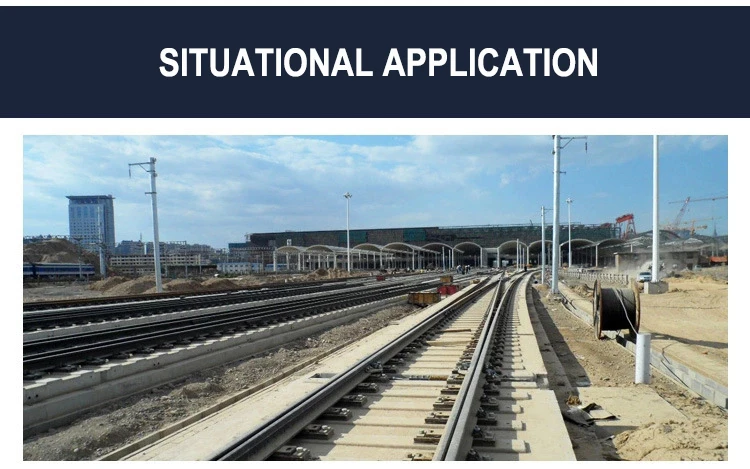

Product Application

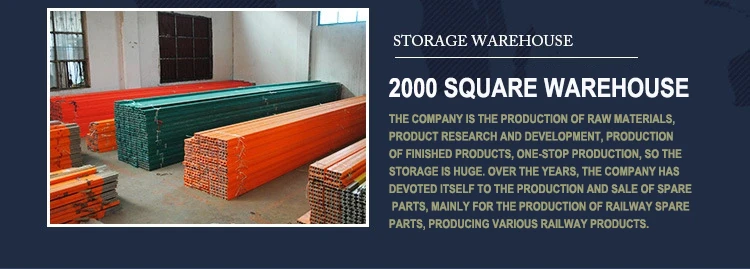

Company Information

Packaging & Shipping

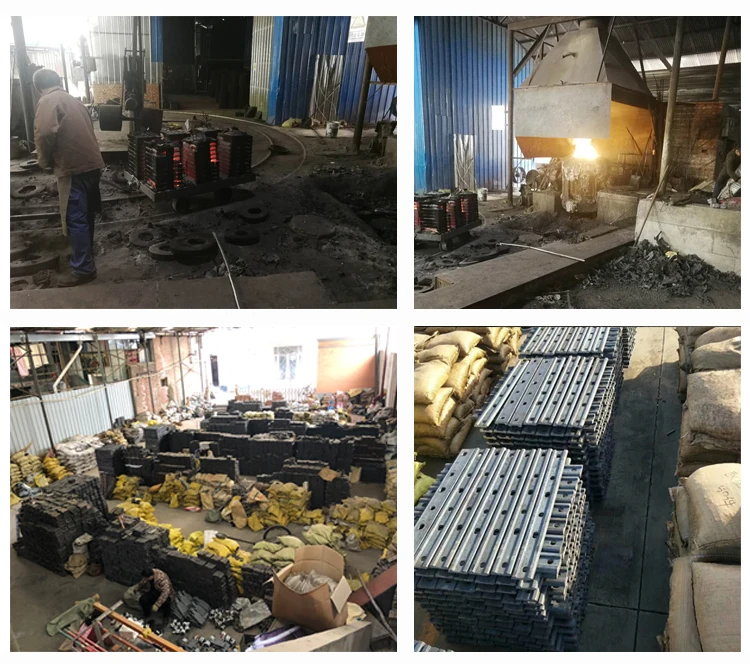

Our Workroom



Certifications



FAQ



1.What the style of your company?



Our company is a OEM factory , all the product made by ourselves, and we can control the schedule very well.



2. What do you need to provide a quote?



Please kindly send us the drawing of your product. Details below should be included:

A.Dimension (Tolerance) B. Materials C. Surface finish D. Quantity



3.How do I know about the production?



We will double confirm you requirements and send you the sample before the mass production.
During the massproduction, we will keep you informed of any process.
Besides, we will do 100% quality inspection before shipment.



4.How do I know about the delivery ?



We will inform you the tracking number once we get it from shipping agent.
Also we will keep updating the latestshipping information for you.



5.What will you do for after sales?



When our metal parts apply to your products, we will follow up and await your feedback.
Any question related to ourmetal parts, our experienced engineers are ready to help.
