Coverage Area: | 5800㎡; | After-sales Service Provided: | Video technical support,No overseas service provided; |
Blade Quantity: | 6 Blades; | Package Preview: | https://sc01.alicdn.com/kf/H935e80c94bf54053a5312f30a3613c3bq.jpg_640x640.jpg,https://sc01.alicdn.com/kf/H490dee526bab47cdb889bf4e0a9981acB.jpg_640x640.jpg; |
Brand Name: | BLOWING UP; | Diameter: | 12 Ft/3800 mm; |
Type: | Other; | Weight: | 75kg; |
Certification: | CE, ISO9001; | Voltage: | 380V/220V; |
Supply Ability: | 2000 Set/Sets per Month; | Power: | 0.75KW; |
Applicable Industries: | Hotels,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Restaurant,Retail; | Blade Material: | Aluminum Alloy; |

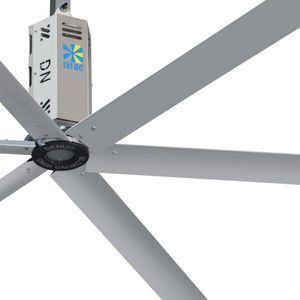

Product name: | Energy Saving Large Air Volume 12ft Ceiling Fan; | Warranty: | 1 YEAR; |
Packaging Detail: | Energy Saving Large Air Volume 12ft Ceiling Fan is packed into wooden cases in export standard.; | Place of Origin: | Zhejiang China; |
Mounting: | Ceiling Fan; | Port: | Ningbo; |
Certification: | CE; | Payment Terms: | L/C,T/T,Western Union; |
The width of the blade is gradually narrow along the radial, on the contrary the velocity increases,
improve the equilibrium in generating the airflow along the whole blade; So it is better performance
than blade with the same width along the radial.
Comprehensive Service
Before sales:You provide us site drawing or pictures, our engineer can give you a solution on
how to installation our fans.
During sales: we will confirm with you all specifications, you don't worry you will buy goods
unnecessary.
After sales: Video and manual provided on Installation procedures.
7*24 hours on line trouble shooting support.
Spare parts available.
WARRANTY: 1-3 years.
Lifespan: 20 years.
Technical Specification | 12ft(3.8m) | 20ft(6.1m) | 24ft(7.2m) |
Model | DN-FQ-38E | DN-FQ-60E | DN-FQ-72E |
Cover Area | 400M2 | 900M2 | 1100M2 |
Max speed | 65r/min | 55r/min | 50r/min |
Fan weight | 75KG | 120KG | 130KG |
Motor power | 0.75KW | 1.5KW | 1.5KW |
Input Voltage | 380V | 380V | 380V |
Q: Are you the factory?
A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.
Q Where does your fan use in?

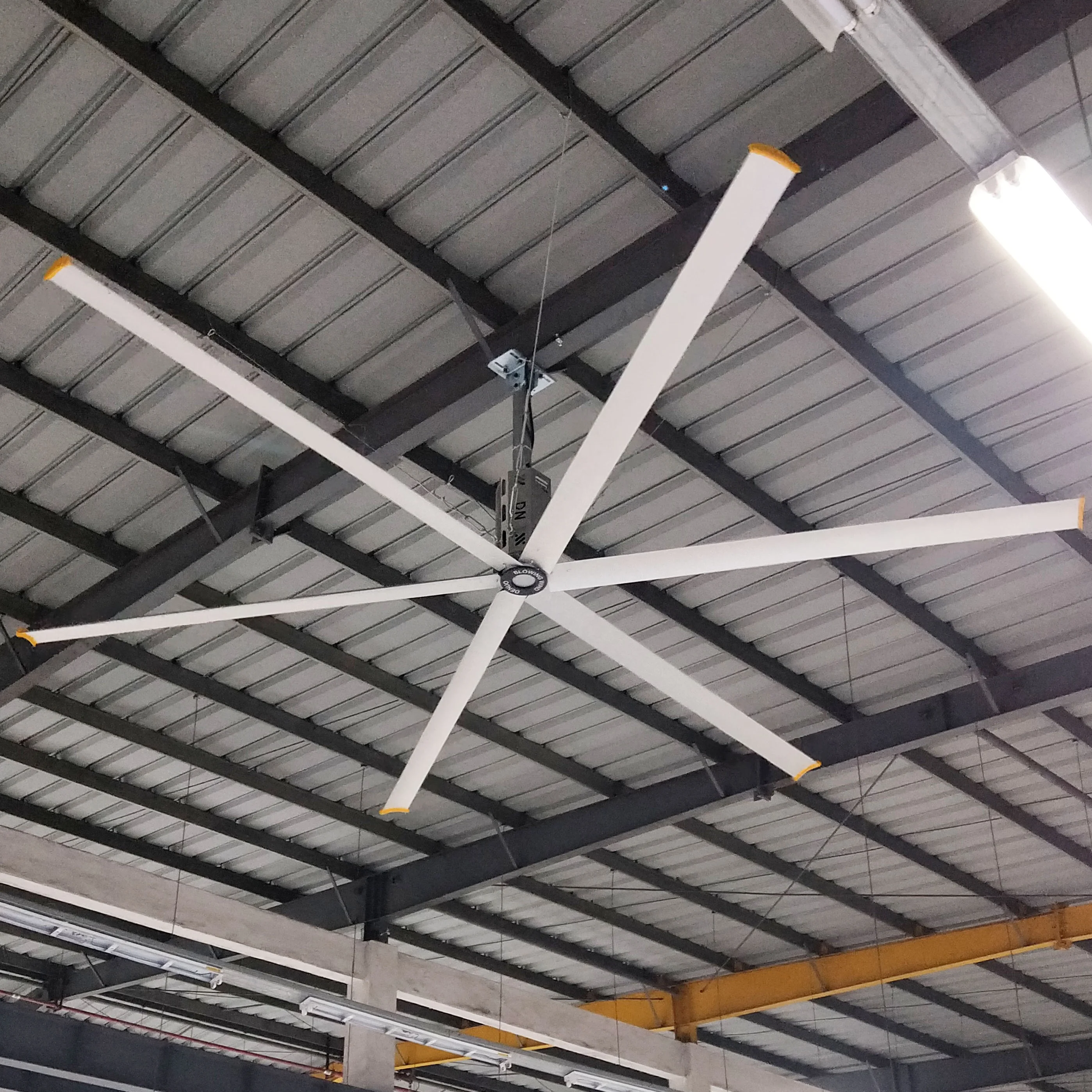

A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it used in electrcity?
A: Yes, it's power supply is electricity, but only 1.8KW or less, very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 3-5 working days.
Q: How long is the warranty?
A: We offer 2-year warranty to guarantee the quality. Most importantly, its service life is 12-15 years.
