24 v stainless steel water fuel tank sensor float switch oil level Switch float

Product details
Contact impedance:<100m;Product name:stainless water fuel tank sensor float switch oil level Switch float;
Installation method:horizontal type;Switching voltage:220VAC/200DC;
Model Number:level switches;Selling Units:Single item;
Place of Origin:Jiangsu China;Single gross weight:2.0 KG;
Resistive load:107 times;Point capacity:50W;
Brand Name:Kayson;Packaging Detail:cartons and wooden cases or customized;
Working temperature:±10~120℃;Single package size:30X30X30 cm;
keyword:Switch float;
Product Description

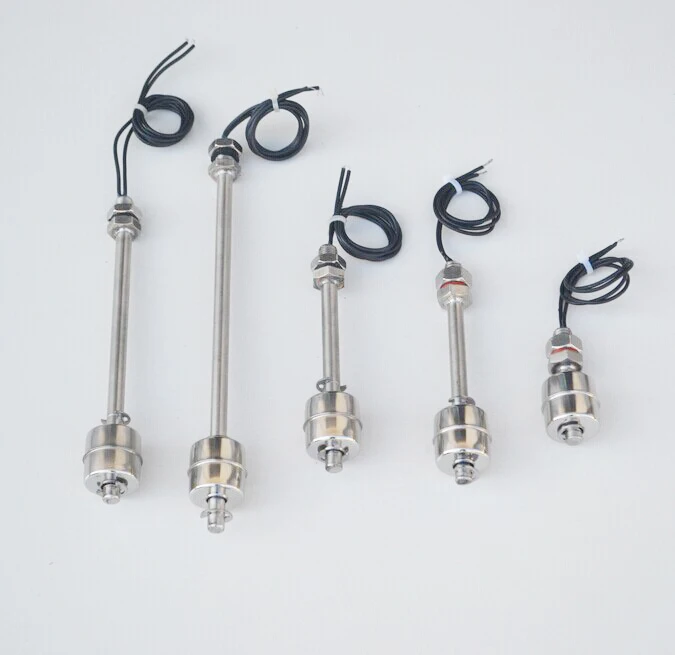

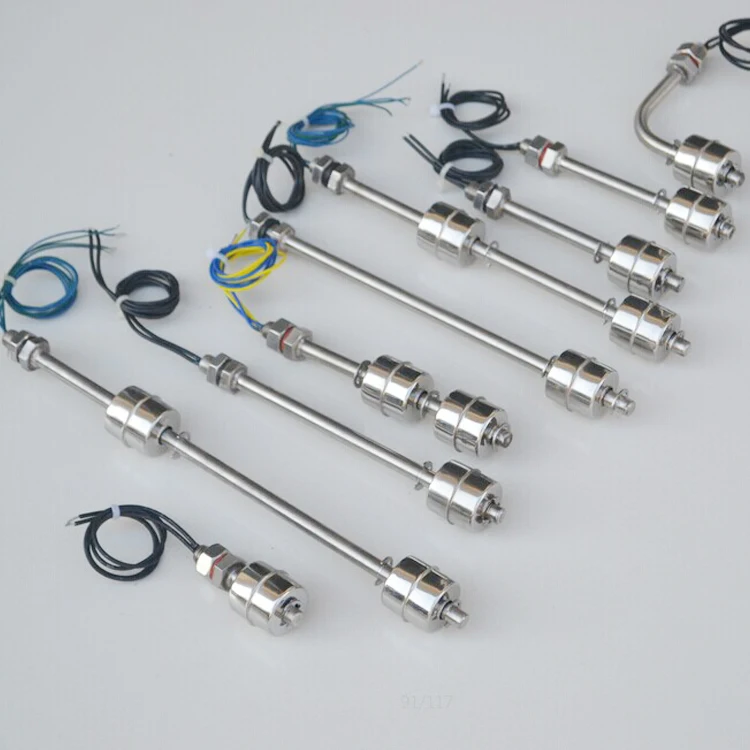

24 v stainless steel water fuel tank sensor float switch oil level Switch float

Float level switch is a simple structure, easy to use level control device, it does not need to provide power,

no complicated circuit, it has a smaller than the general mechanical switch, long life and other advantages

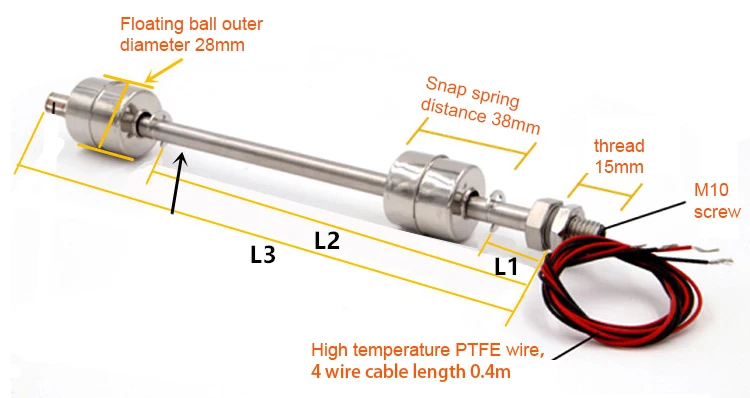

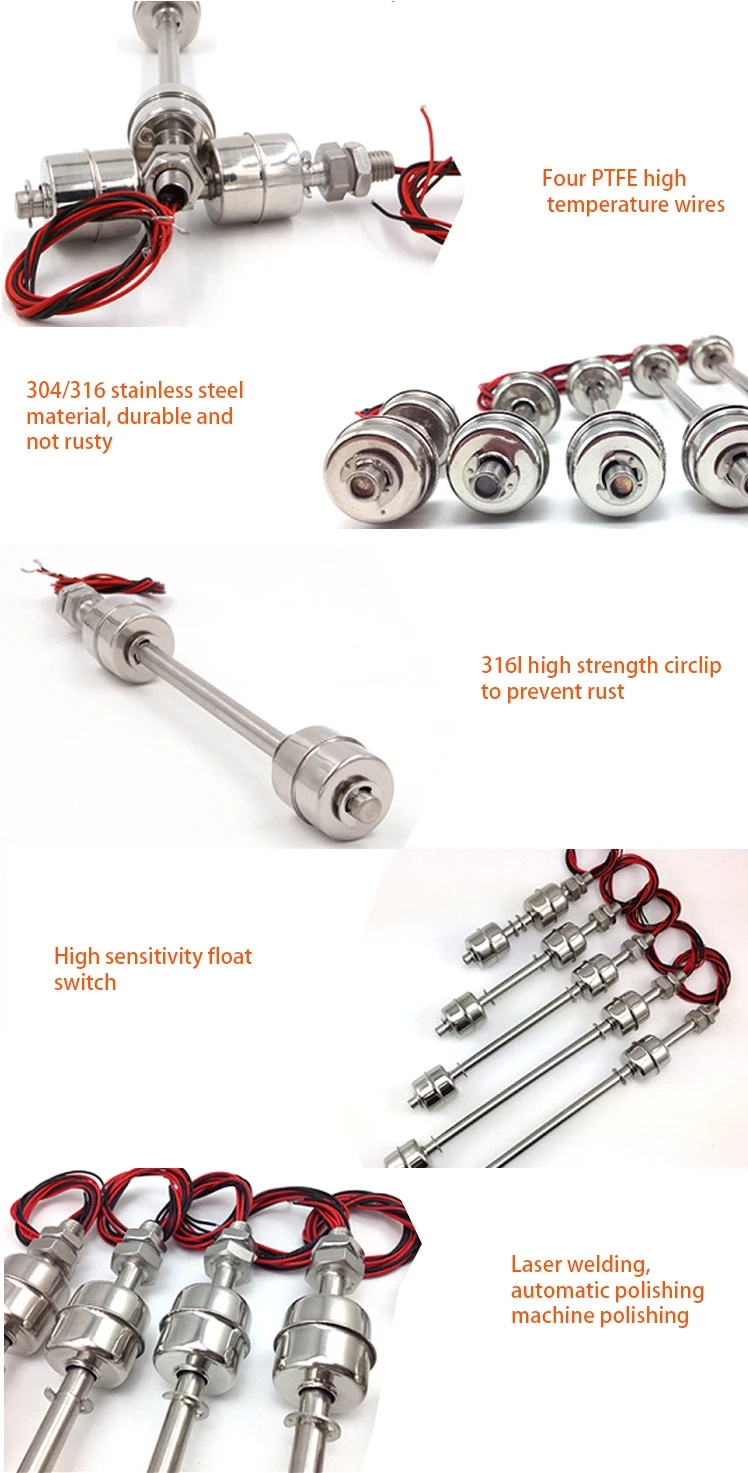

MaterialStainless Steel
Point capacity50W
Resistive load107 times
Switching voltage220VAC/200DC
Working temperature±10~120℃
Switching current0.5A
Insulation resistance>10Ω
Contact impedance<100m
Switch materialSUS304
Working pressure<1.0MPA
Installation methodhorizontal type
working principle:

The level sensor is mainly composed of a reed switch and a float, which contains magnetic material, one or more reed switches in a closed non-permeable metal pipe or plastic tube, and then passes the conduit through one or more With a magnetic material of the float, and the use of fixed double-ring control float and reed switch in the relevant position, the float with the liquid rise or fall, the use of the ball near the beginning of the magnetic spring contacts, For level control or indication (when the float is close to the reed switch is turned on; off when the switch is off).

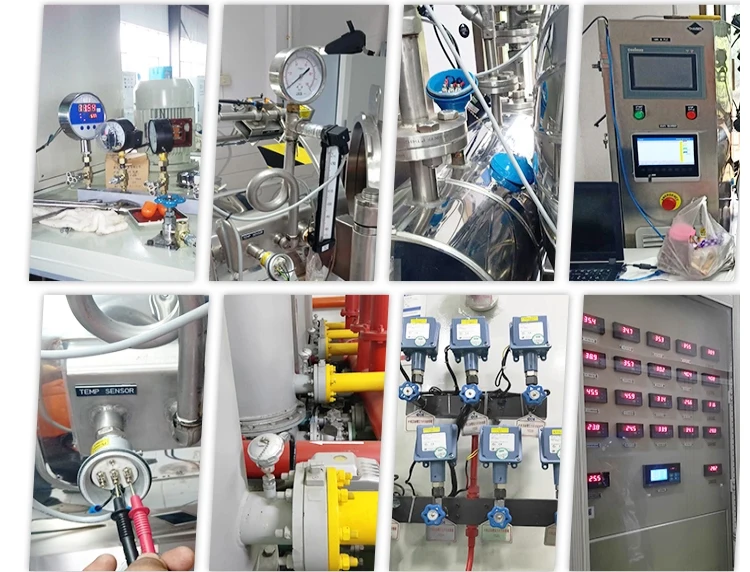

Application



Company Information

Certifications

1. Qucik Response:Your inquiry will be replied within 24 hours. Response Rate over 90%
2. Smooth Communication: Well-trained and experienced staffs to answer all your inquires.
3. Sincere Service Attitude: Treat Customers As Friends. No Questions are Neglected.
4. OEM Accepted: Free Sample,We can customize your products to meet all your different requests.
5. Small MOQ: Small Amount wholesales are supported to meet your needs as well as large demands.
6. Fast Delivery: We have Reliable Forwarders with long term cooperation and Competitive Price.
    You may contact any one of our sales and services team: email to us as inquiry.

Packaging & Shipping

Package : paper box and Wooden box or customized for you.

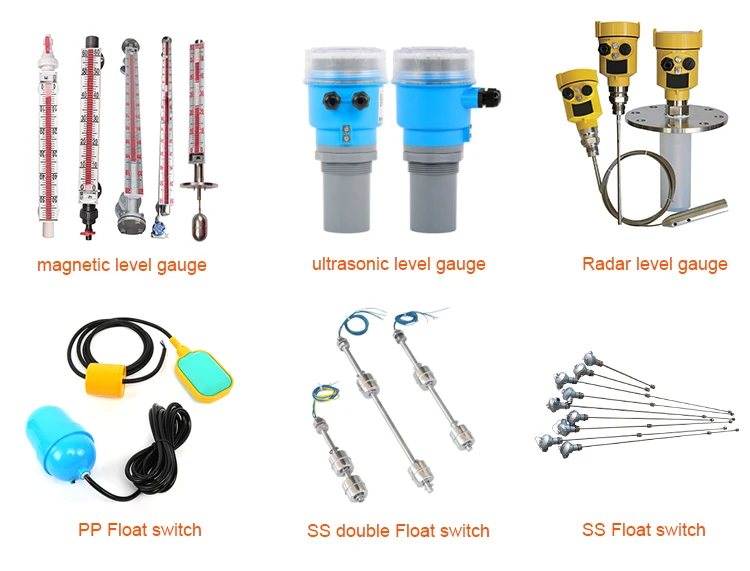

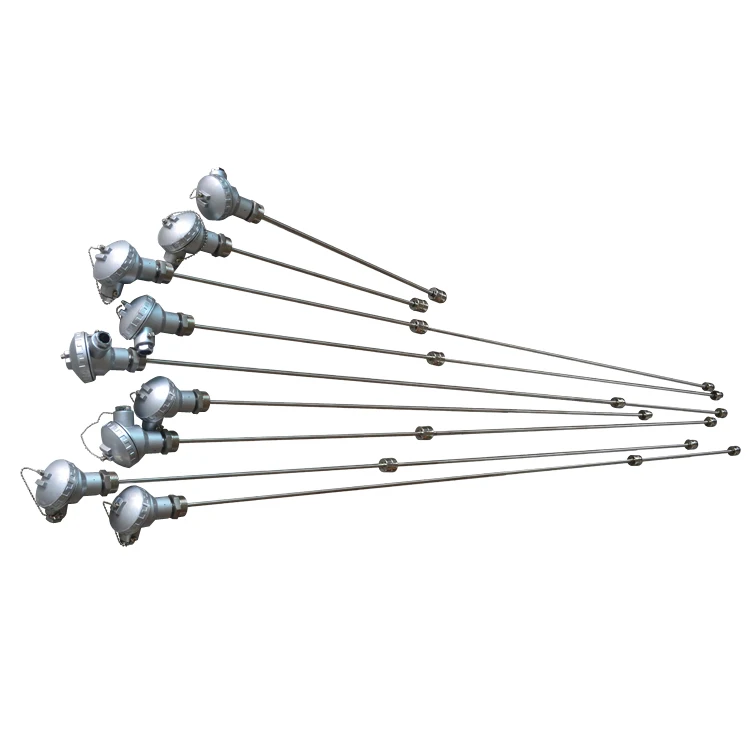

Related Products
