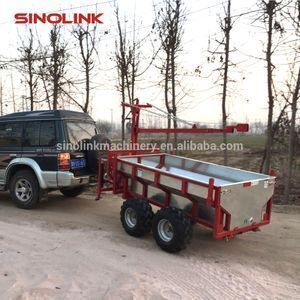

Garden Forestry ATV Timber Trailer for sale With Checker Plate Floor And Mesh,Farm trailer ATV trailer

Click here to contact

Product details

Brand Name:	Lincoln John;	Winch:	Manual Handed or Electric winch;
Packing Method:	Iron frame+cardboard packaging;	Material Of Box:	1.5mm galvanized sheet;
Rubber Tires:	22*11-10(optional)/ 4 PIECES;	Packaging Detail:	Iron Frame + cardboard Case;;
Place of Origin:	Shandong China;	Supply Ability:	300 Unit/Units per Month;
Warranty:	12 months;	Port:	Qingdao;
Packing size:	21201150850mm;	Use:	ATV Trailer;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Max Payload:	1000kg;
Size:	3400x1020x960mm;	OEM No.:	Requirement;
Crane:	Yes;	Coupler/ATV Connector:	Diameter 50mm/2000kg;

Product Description

1) ATV Trailer TT1000(A) Model has 1000 kg capacity and 340kg N.W.

2) 4 Piecs of 22*11-10 Rubber tires.

3) Crane attached with manual winch or electric winch(with remote controller)

4) Galvanized Sheet, Customized Color.

Model	TB1000(A)
Overall size	3400×1020×960mm
Box size	2000×1020/520×540mm
Packing size	21201150850mm
Box Material	1.5mm galvanized sheet
Surface Finish	Powder coating (colors optional), plating or galvanizing
Draw Bar Length	1000mm
Draw Bar Size	60603.5mm
Loading Capacity	1000kg
N.W.	340kg
Rubber tires	22*11-10(optional)
Rubber quantity	4
Axle diameter	32mm
Winch Type	manual operated
Electric winch	Add more +30USD
Pulling force of electric winch	2500lbs/1100KG(optional)
Weight of electric winch	10KG(optional)
length of electric winch line	15M (Optional)
Diameter of electric winch line	5mm(optional)
Coupler/ATV connector	ø50mm,2000kg
Packing method	Iron frame, cardboard packaging
Warranty	12 months (not including tires)

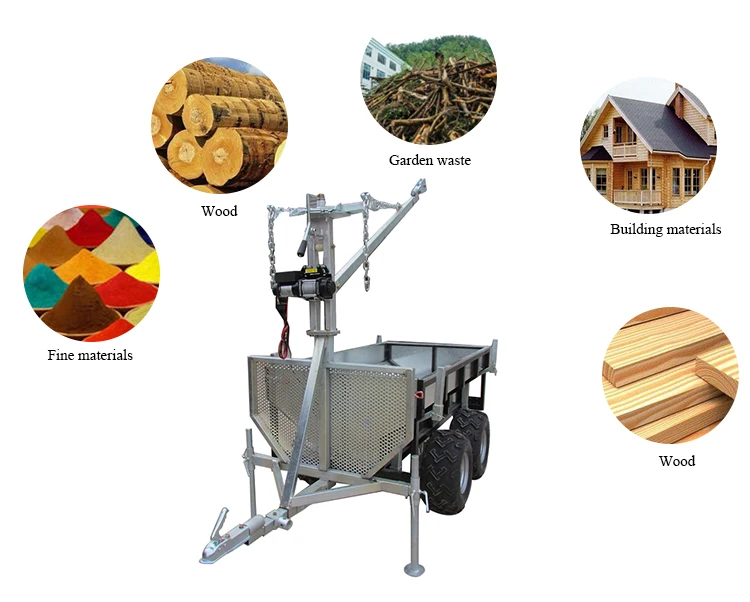

Product Uses

Customer Feedback

Packaging
Size	1600(L) * 1100(W) * 700 (D)
Weight	164kg
Packaging Details	we normally use iron frame+ plywood case as packing method with .If container is too tigher,we will use pe film for packing or pack it according to customers special reques
