35x15x5mm Piezoelectric Element Piezo Ceramic Ring

  • Supplier: Longzhichuang Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Linda Liu
  • Price: $1.60 / >=10 pieces
  • Min. Order: 10 pieces
Product details
Shape:Round;Advantage:High Reliability;
Frequency:Customized;Selling Units:Single item;
Item name:Piezo Element;Single gross weight:0.03 KG;
Material:Aluminum Nitride,Piezo Ceramic;Application:Ultrasonic Application;
Type:Piezoelectric Ceramics;Model Number:PZT Piezo Ceramic;
Single package size:10X5X5 cm;Place of Origin:Guangdong China;
Brand Name:LZC;Product name:35x15x5mm Piezoelectric Element Piezo Ceramic Ring;
Packaging Detail:Standard package;

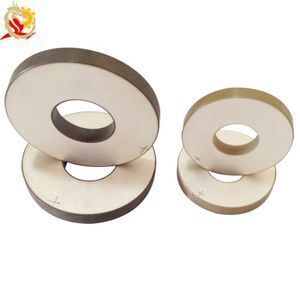

35x15x5mm Piezoelectric Element Piezo Ceramic Ring

Description



Piezoelectric ceramics are a class of electronic ceramic materials with piezoelectric properties. The main difference from typical piezoelectric quartz crystals that do not contain ferroelectric components is that the crystal phases that make up their main components are ferroelectric crystal grains. Since the ceramic is a polycrystalline aggregate in which the crystal grains are randomly oriented, the spontaneous polarization vector of each ferroelectric crystal grain is also chaotically oriented. In order for the ceramic to exhibit macroscopic piezoelectric characteristics, it is necessary to fire in the piezoelectric ceramic. After the end face is double-electrode, it is subjected to polarization treatment under a strong direct current electric field, so that the respective polarization vectors of the original chaotic orientation are preferentially oriented along the direction of the electric field. The piezoelectric ceramic after polarization treatment is in the electric field. After the cancellation, a certain macroscopic remnant polarization is retained, so that the ceramic has a certain piezoelectric property. 35x15x5mm Piezoelectric Element Piezo Ceramic Ring



We can customized piezo disc of
the size as 16mm, 20mm, 25mm,28mm, 38mm
the high frequency: 1MHz, 1.7MHz, 2MHz, 2.4MHz, 3MHz...
the low frequency: 103KHz, 108KHz, 110KHz, 115KHz, 132KHz...



Applicaiton

Piezo rings use for ultrasonic cleaning, ultrasonic welding, ultrasonic sensor
