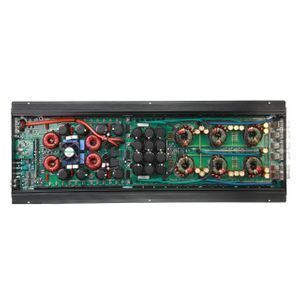

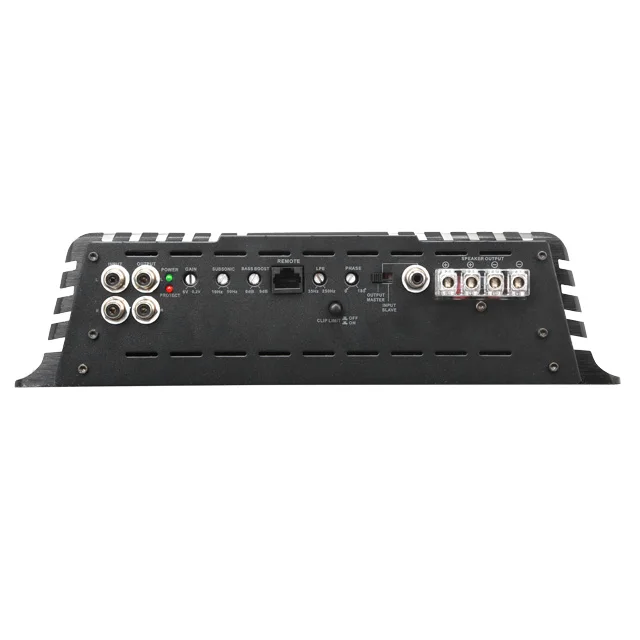

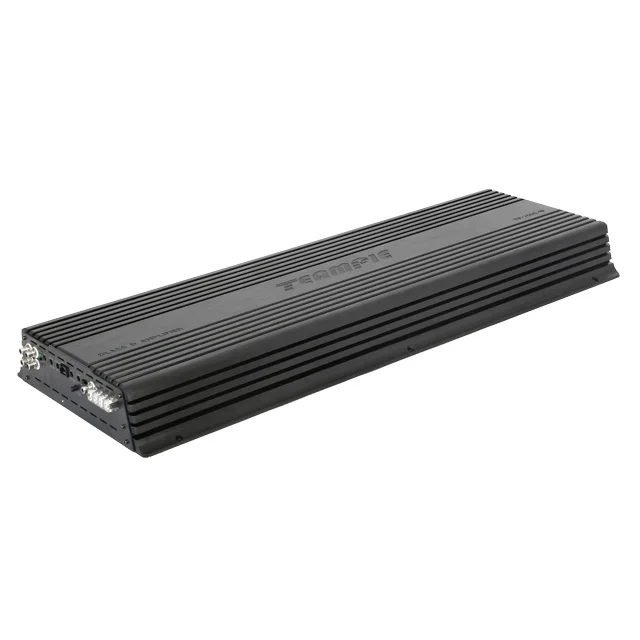

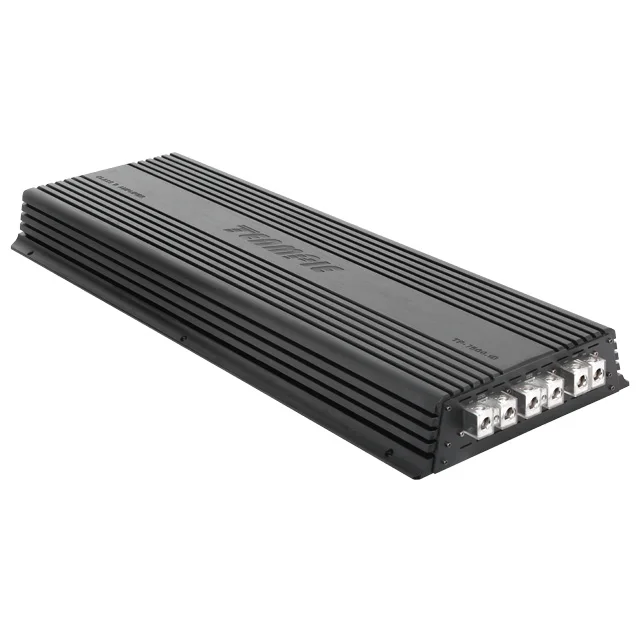

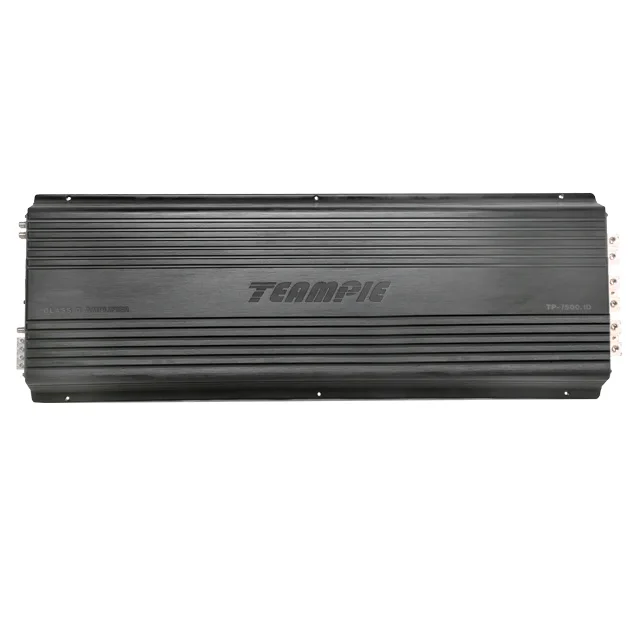

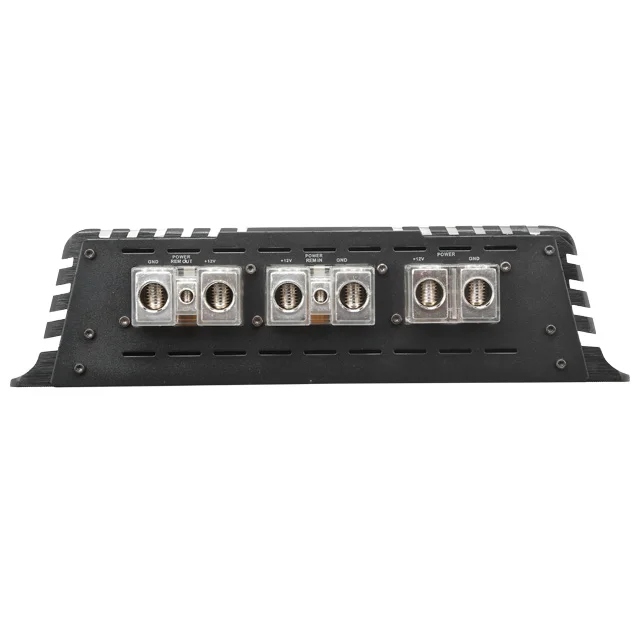

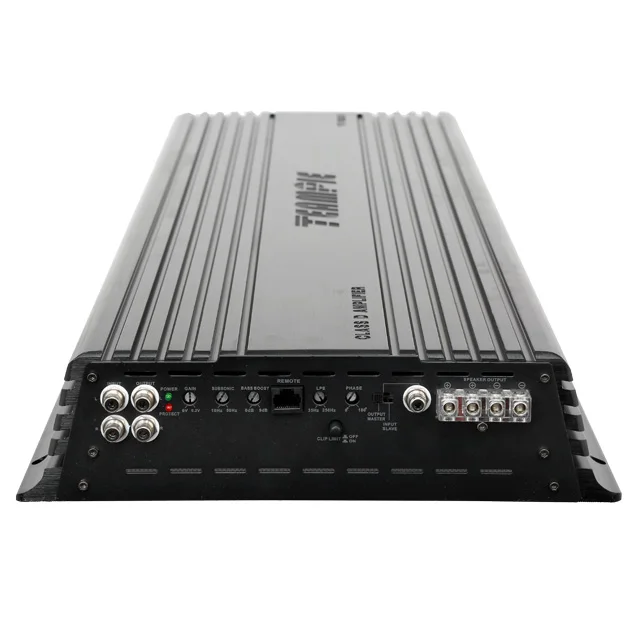

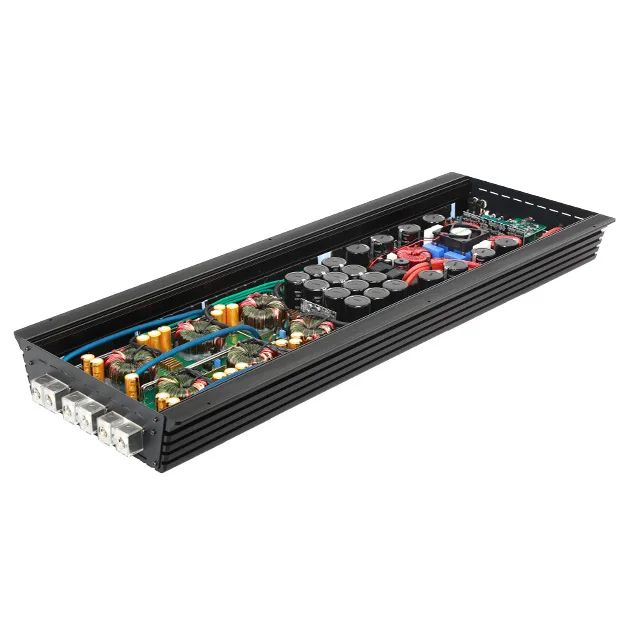

Professional High Power Car Amplifier 7500W Competition Car Audio Amplifier Mono Block Class D TP-7500.1D

Click here to contact
Product details
OUTPUT POWER:7500W * 1CH;Single package size:100X48X25 cm;
TYPE (FREQUENCY):LOW RANGE;Model Number:TP-7500.1D;
Place of Origin:Guangdong China;Size:850*303*77mm;
Packaging Detail:Module in Bubble Bag , Pack in Carton Box;SNR:91 - 100dB;
Selling Units:Single item;Channel Separation:1;
Voltage:9-15V;Warranty:12;
Single gross weight:23.0 KG;Brand Name:Teampie;
Frequency Range (Hz):15 - 270 Hz;Impedance:1 OHM;
INPUT SENSITIVITY:0.2-6V;

Professional High Power Car Amplifier 7500W Competition Car Audio Amplifier Mono Block Class D TP-7500.1D

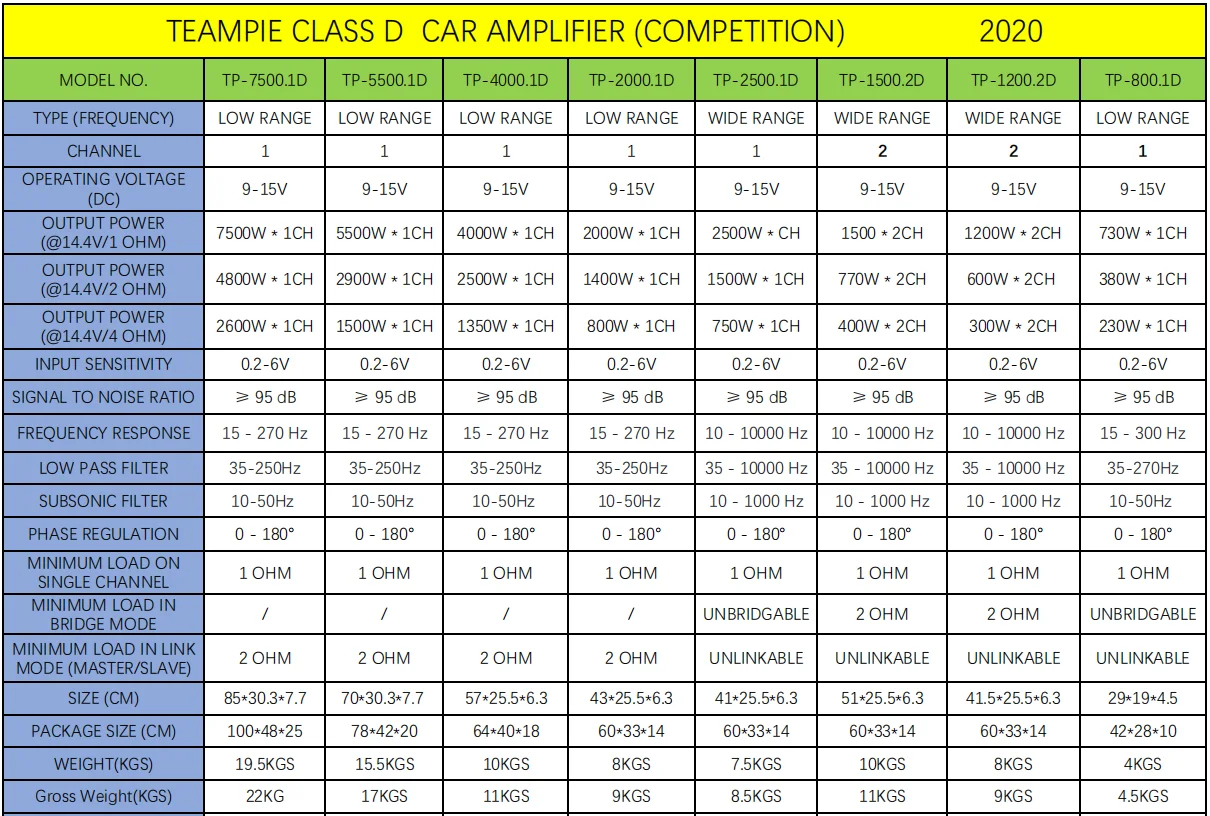

PRODUCT SPECIFICATIONS
  MODEL NO.TP-7500.1D
  TYPE (FREQUENCY)LOW RANGE
  CHANNEL1
  OPERATING VOLTAGE (DC)9-15V
  OUTPUT POWER (@14.4V/1 OHM)7500W * 1CH
  OUTPUT POWER (@14.4V/2 OHM)4800W * 1CH
  OUTPUT POWER (@14.4V/4 OHM)2600W * 1CH
  INPUT SENSITIVITY0.2-6V
  SIGNAL TO NOISE RATIO≥ 95 dB
  FREQUENCY RESPONSE15 - 270 Hz
  LOW PASS FILTER35-250Hz
  SUBSONIC FILTER10-50Hz
  PHASE REGULATION0 - 180°
  MINIMUM LOAD ON SINGLE CHANNEL1 OHM
  MINIMUM LOAD IN LINK MODE (MASTER/SLAVE)2 OHM
  SIZE (CM)85*30.3*7.7
  N.W(KGS)19.5
  G.W(KGS)22
