ultrasonic lace sewing machine for ribbon

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,ultrasonic lace sewing machine for ribbon;Certification:trade assurance;
Brand Name:YN;Supply Ability:100 Set/Sets per Day ultrasonic lace sewing machine for ribbon;
Power(W):2500W;Condition:New;
After-sales Service Provided:Video technical support,Online support;Condition:New;
Color:silver;After-sales Service Provided:No overseas service provided;
Max Sewing Thickness:200gsm;Weight:105kg;
Place of Origin:Jiangsu China (Mainland);Port:Shanghai;
Function:ultrasonic lace sewing machine for ribbon;Warranty:1 Year;
Automatic Grade:Semi-Automatic;Voltage:220V;
Weight:105kg;Product name:ultrasonic lace sewing machine for ribbon;
Dimension(L*W*H):1200*600*1200;Packaging Detail:wooden case for ultrasonic lace sewing machine for ribbon;
Main products

Ultrasonic spot welding machine    ultrasonic lace sewing machine     ultrasonic quilting machine      ultrasonic sewing machine





Ultrasonic lace sewing machine for ribbon



Product Description

Basic components
1. New type PC intellectual ultrasonic generator;
2. 20KHz ultrasonic transducer unit;
3. Bottom mould fixed suspension structure;
4. Double-motor speed adjustment system;
5. Manual roller lifting system;
6. Double-barreled framework and heavy support board.
Characteristics
1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely;
2. Strong ultrasonic power with three adjustable gears (maximum, medium and minimum), meets the welding requirements of different materials andthicknesses;
3. The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology;
4. Variety of roller patterns, other roller designs available according to customer requirements;
5. Four times faster than sewing machines, minimal operator training required.
Functions
1. Trimming: Straight or curvilinear edge cutting  and edge treatment for melting,so smooth, no rough edges;
2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.

Suitable material

All kinds of artificial leather and fabric, nonwoven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece. such as nylon, polyster, ABC, PC, PVC, PE, PP, PS, etc.
Application
Apply to lace clothing, ribbon, decoration products, handkerchief, tablecloth, curtain, bedspread,
pillowcase, quilt cover, tent, raincoat, disposable operating coat and hat, disposable mask,
non-woven fabric bags and so on.

Technical specification

CommodityUltrasonic lace sewing machine
Power Source220V 50-60HZ
Inout Power1500-2500W
Output Frequency20KHZ
Working Speed0-20M/minute
Roller SizeYN-60Width: 23-60MM, Diameter: 50-60MM
YN-100Width: 50-100MM, Diameter: 50-60MM
YN-200Width: 100-250MM, Diameter: 50-100MM
Dimension1200*600*1200MM
Weight90-120kg

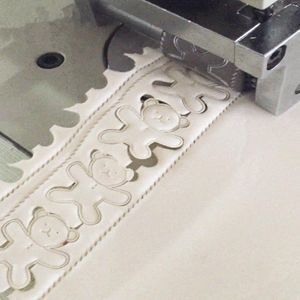

sample photo

For making different kinds of lace



detailed images



Company Information

Changzhou yana electronic equipment co., LTD., specializing in the production of computer intelligent ultrasonic lace machine, ultrasonic non-woven bag making machine and other accessories Ultrasonic and all kinds of garment machinery and special equip



The company to pursue science and technology leading, customer-orientated business philosophy, over the years to ultrasound equipment research and development work.Currently has a ultrasonic lace machine, pressure machine, spot welding machine, wireless sewing machine, bag making machine, ultrasonic sewing machine, ultrasonic waveHeat sealing machine and so on many kinds of utility equipment. Wherein, ultrasonic lace machine for its wide application scope, product characteristics, praised by many customers at home and abroadLove. Widely used in clothing pieces, napkins, tablecloths, curtains, window cover, craft jewelry, headdress hairpin, clothing accessories and other fieldsDomain.

Packaging & Shipping

Packing: Wooden case

Delivery: By sea, by air or by land

Packing and delivery is according to your choice.
