Span: | Generally 7.5-22.5m (Can be customized); | Max. Lifting Height: | Generally 30m (Can be customized); |
Feature: | Bridge Crane; | Lifting speed: | 5/0.8m/min(or as your demand); |
Power: | 3 Phase 380V 50hz (or as your demand); | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Payment Terms: | L/C,T/T; | Crane running speed: | 5-20 m/min(or as your demand); |
Place of Origin: | Henan China; | Port: | Tianjin/Qingdao/Shanghai Port; |
Colour: | Request; | Application: | Plants/ warehouses/ material stocks/ factory, etc.; |
Certification: | CE ISO BV ISO9001; | Main electrical parts: | Siemens, Schneider and CHINT; |
After-sales Service Provided: | Field installation, commissioning and training; | Supply Ability: | 20000 Set/Sets per Year Customized 5 ton single girder bridge EOT crane with motor; |
Rated Lifting Moment: | /; | Brand Name: | Hengshan; |
Max. Lifting Load: | 20t; | Working system: | M5; |
Showroom Location: | Italy,Brazil,Indonesia,Pakistan,India,Russia,Bangladesh,Malaysia; | Control method: | Ground control / remote control / operational room; |

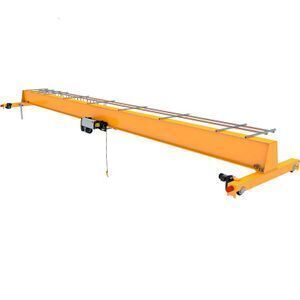

Product name: | Customized 5 ton single girder bridge EOT crane with motor; | Warranty: | 2 years; |
Condition: | New; | Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Construction works ,Energy & Mining; |
Packaging Detail: | 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport. Delivery of Single girder overhead crane: 1. If the size of whole crane are suitable for container ship, usually by container; 2. If the size is too big, usually by bulk ship or by container after truncation; 3.As your request.; | Trolley running speed: | 5-20m/min(or as your demand); |
Local Service Location: | Italy,Brazil,Indonesia,Pakistan,India,Russia,Malaysia,Bangladesh; |
Europe overhead crane advanced designed crane for the low headroom and high lifting height demands. It has many advantages such as: Strong rigidity, light dead weight, outstanding structure design, long working lift etc. It could save your factory space and investment effectively.Its technology is advanced and design is based on international standard: DIN (Germany),FEM (Europe), and ISO (International)
The all motions of this overhead crane are double speeds, the lifting motor is double speed type,the cross travelling motor and long travelling motor are controled by frequency inverte It could be widely used to handle materials in many industries' workshop and warehouse,such as manufacture processing, warehouse, storage, paper mill, electronics industries workshopand other material handling situation
Advantage: |
1. Overload protection: If the material is over the capacity, the crane will give a sharp warning for protection itself
2. Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.
3. Control Method: Room control or remote control to avoid any injure to the operation staff
4. Main lifting motor: with thermal protection and currency protection.
5. Hooks with latch
6. Rubber buffers
7. Protective earthing
8. Crane switch and travel end switch
9. Sub-assemblies characteristic are tested before assemly.
10.All cranes must be pre-assmebled and tested before leaving factory and offer the certification of test.
Optional crane parts: |
ITEM | NAME | CHINA BRAND SUPPLIER | FOREING BRAND SUPPLIER |
1 | Motor | NEW GREAT POWER JIAMUSI MOTOR JIANGLING | ABB SIEMENS |
2 | Reducer | GUOMAO TAILONG ZHONGRUI | SEW FLANDERS |
3 | Brake | CHANGJIANG JIN'GU | SIBRE |
4 | Bearing | HWL BEARING | SKF |
5 | Electric System | CHINT | SCHNEIDER ABB |
6 | Frequency Converter | YUDING APPOLLO | YASKAWA |
7 | Wire Rope | NANTONG | / |
8 | Steel | HBIS | / |
Drawing and data: |
Technical table | |||||||
Item | Data | ||||||
Capacity | 1-12.5t | ||||||
Span | 7.5-25.5m | ||||||
Lifting height | 6-12m | ||||||
lifting speed | 5/0.8m/min | ||||||
cross travelling speed | 2-20m/min | ||||||
long travelling speed | 2-45m/mim | ||||||
Working class | ISOA3-A5/FEM2M | ||||||
Power source | as your demands | ||||||
Other | According to your specific usage, specific model and design will offer |
Packing/Delivery Adevices: | ||||||||
1 | Crane Beam & Main Equipment: Packaged by color strip woven plastic cloth for abrasion reduce and | |||||||
moisture-proof. | ||||||||
2 | Crane Kit & Electric Accessories: Export standard high quality plywood case for reduce distortion. | |||||||
3 | Loading & Delivery Option: Prefered to choose container loading for better cost saving. Oversize beams | |||||||
and equipment can be cut for cantainer loading as suitable size crane products. Bulk cargo shipment will be | ||||||||
used when container loading not available. | ||||||||
4 | Loading Port: Qingdao Port is prefered, Tianjin Port, Shanghai Port etc. available on your demand. | |||||||
5 | Delivery Time: Lead time 25 days, port time 5 days, estimate time of arraival (ETA) to Xxxxxx Port 30 days. |
