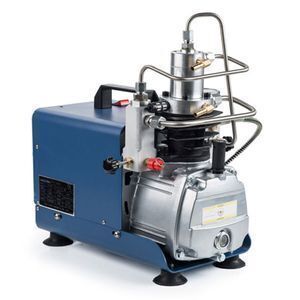

300Bar 4500Psi High Pressure Pcp Air Compressor

Product details
Single gross weight:22.0 KG;Single package size:47X28X48 cm;
Condition:New;Packaging Detail:Standard exporting carton;
Mute:Yes;Configuration:Portable;
Type:PISTON;Weight:18kg;
Place of Origin:Henan China;Cooling method:Water;
Selling Units:Single item;Warranty:1 Year;
Brand Name:Windbell;Dimension(L*W*H):360*180*370mm;
Working pressure:0-300BAR 0-30MPA 0-4500PSI;Certification:ISO9001;
RPM:2800;Motor power:1.kw;
Power Source:AC POWER;After-sales Service Provided:Online support;
Lubrication Style:Splash Type;Compression Stage:2;
Applicable Industries:Building Material Shops,Manufacturing Plant,Retail,Construction works ,Energy & Mining;Free air delivery:50L/Min;
Voltage:220V;

300Bar 4500Psi High Pressure Pcp Air Compressor

Product Description








Main Features:



• FAST FILLING: It takes only 38 minutes to fill full 6.8L tank to 300BAR, perfect for air impermeability test, pressure proof test etc.



• DURABILITY: Alloy air cylinder and high-quality components ensure years of use



• PERFORMANCE STABILITY: Designed with two-stage compression and two water-oil separators for performance stability



• COOLING SYSTEM: Please prepare enough cooling water, it is recommended to be a vat of water to achieve better cooling effects.



Attention:



300Bar 4500Psi High Pressure Pcp Air Compressor



A single working time cannot exceed 30 minutes, the machine temperature cannot exceed 80 degrees Celsius. If the working time is too long or the temperature is too high, the device will enter the over-temperature protection state, automatic shutdown. If the machine is too hot, automatic shutdown is a normal phenomenon, have a rest after a few minutes the temperature can return to normal, then start again.





Technical Data for 300Bar 4500Psi High Pressure Pcp Air Compressor
Compressor
Free air delivery
L/min
50
Working pressure
Bar/psi
0-300/0-4500
Compression stage

2
Motor
Rated Power
Kw
1.8
Voltage
V/hz
100-130 or 220-250/50/60
Speed
RPM
2800
Whole unit
Noise
dB
<=78
Cooling type

Water
Lubrication type

Splash

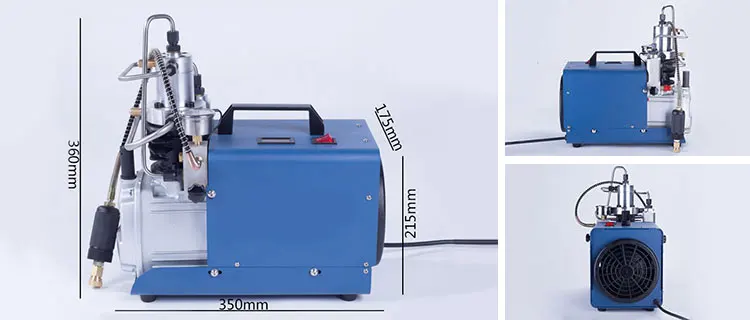

Dimension
mm
360*180*370
Weight
kg
18

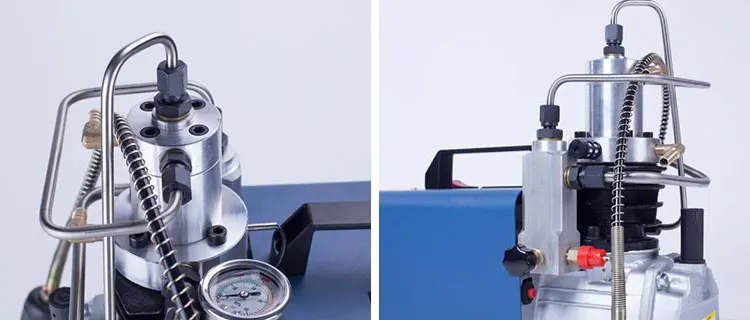

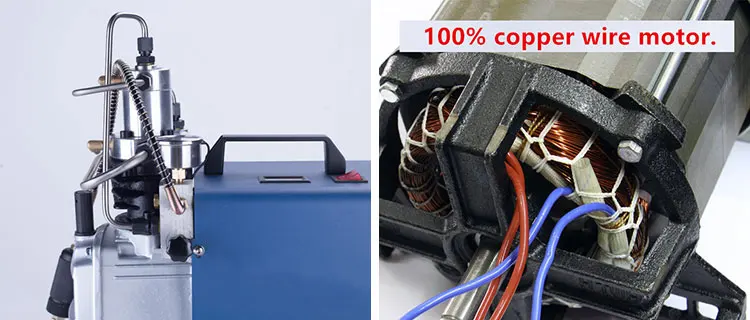

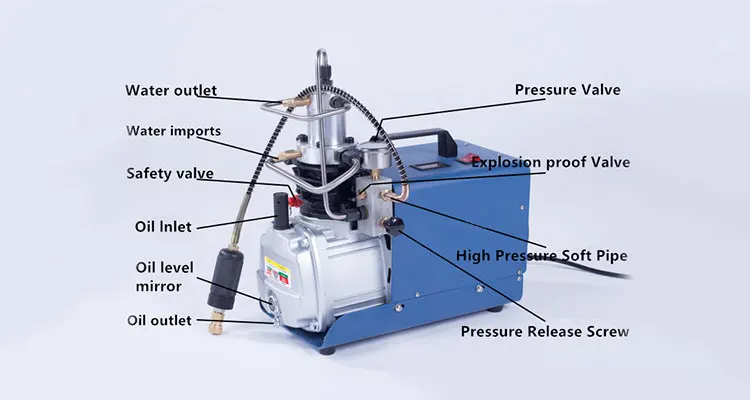

Product Details











Ceritifications

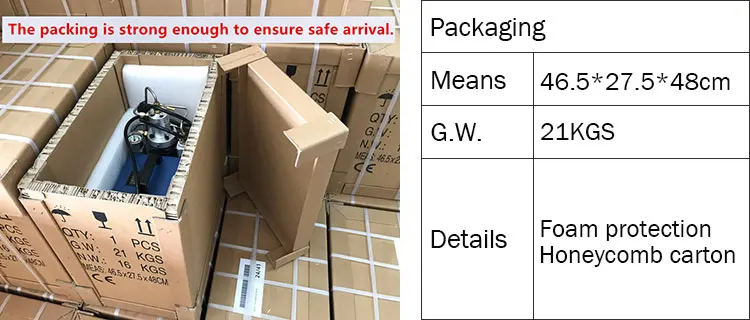

Packaging & Shipping







Applications





FAQ



300Bar 4500Psi High Pressure Pcp Air Compressor



1. How long your products' warranty is?



Usually, the warranty is 2-year, our after-sales service can deal all the problems of

pcp pump and compressor.



2. How long the electric pump need to fill a cylinder to 4500psi?



it need 4'30" to fill a 8.3 cu in (0.3L) tank to 4500psi

it need 3'10" to fill a 8.3 cu in (0.3L) tank to 4500psi



3. What is the max capacity of cylinder the electric pump can fill?



Our compressor is special design for small cylinder, like 68 and 88 cu in cylinder.



6. How to palce order?



You can place an order via the alibaba.com, or please contact us by admin at wbcompressor.net



7. What payment can you accept?



Usually, we can accept VISA ,TT, WEST UNION or others which are workable for both of us.
