impact wrench 1/2 air impact wrench 1/2 inch pneumatic impact wrench 3/4

Click here to contact
Product details
Free Speed:6800r.p.m;Single package size:28X26X10 cm;

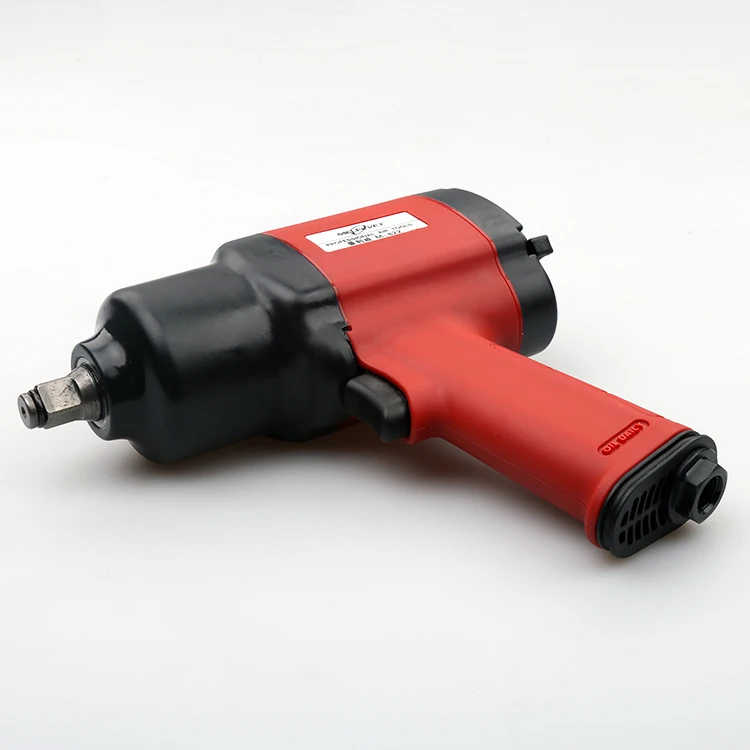

item:MELEVEY M-822 air impact wrench;No-Load Speed:6800r.p.m;
air hose size:3/8";Bolt Capacity:22mm;
Place of Origin:Shandong China;Selling Units:Single item;
air pressure:6-8kg/cm2;air inlet:1/4";
Model Number:MELEVEY M-822;Single gross weight:5.05 KG;
Max torque:1050N.m;N.W:2.5kg;
square:1/2";

 impact wrench 1/2 air impact wrench 1/2 inch pneumatic impact wrench 3/4



MELEVEY pneumatic impact wernch is well known as a global pneumatic tool brand, It is produced by GERMANY MELEVEY SHARE CO., LIMITED which is a Quality-Oriented manufacturer.

Due to our 30-year experience of making parts and tools, experienced R&D team and metal Research Lab, we are able to have know-how and also better materials to make good quality air tools. Not only for our MELEVEY brand air impact wrench, but also for OEM/ODM customers, we are able to offer our cusomized designs promptly and efficently.

During 30 years, the central creed we insist on is that "quality is the start point of value and dignity; Best service is our main goal." Therefore,MELEVEY products are high quality tools with reliable supply. If you are a quality-oriented buyer, MELEVEY products will be your best choice!

Due to the quality of our products, we have had our products to be sold all over the world and won good reputation.


Application:
The tool is pneumatic wrench with the characteristics of large power, high efficiency, various application. It is widely suitable for installing the motorcycle, cars, generator. It is also very useful for car mending factory, tire shop and so on.

Features:

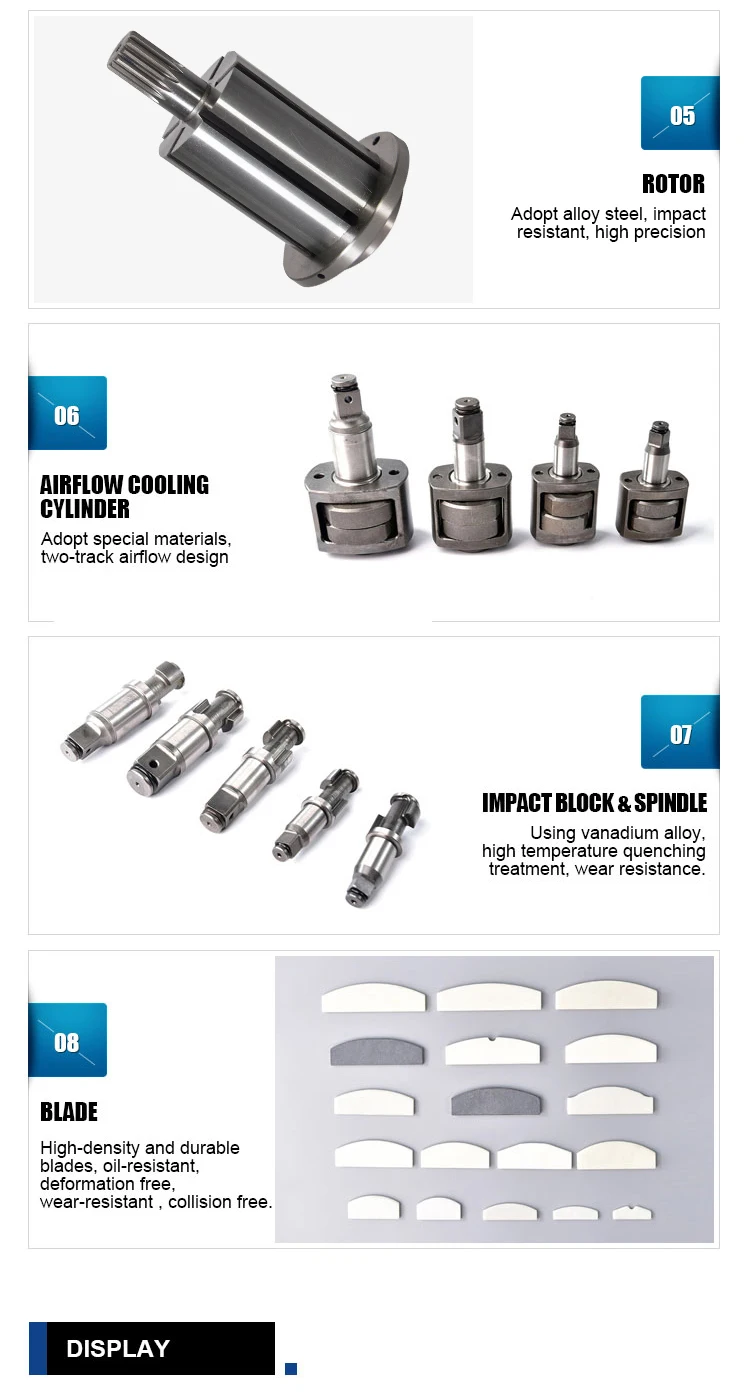

All the parts are processed by precious machine tool. the dimension of process face is very precious. All the material of impact structure is high quality steel, the heat treatment system extend the service life, so it can stand large impact and wearing.
The tool with the ingenious structure, which make the operator feel comfortable and reduce the tire sense largely.

Operations and Maintenances:
a) The moisture of the air compressor and gas storage cylinder must be cleaned thoroughly, air supply pipe is not allowed to leak gas;
b) Check the air pressure meter whether the pressure is 8kg, the safe working pressure is within the range of 6.3kg;
c) Make sure the tool can normally operate, please install the filer and automatic lubricator on the outlet of the air compressor.
d) Without lubricator, please keep the air inlet mouth full of lubrication grease before and after working, which can reach the best performance (please use the professional grease of the air wrench).
e) When the tool can not work, please insert the lubrication grease which can make it turn. If always can not remove the obstacle, please contact with the dealer.
1/2 inch PRODUCED BY

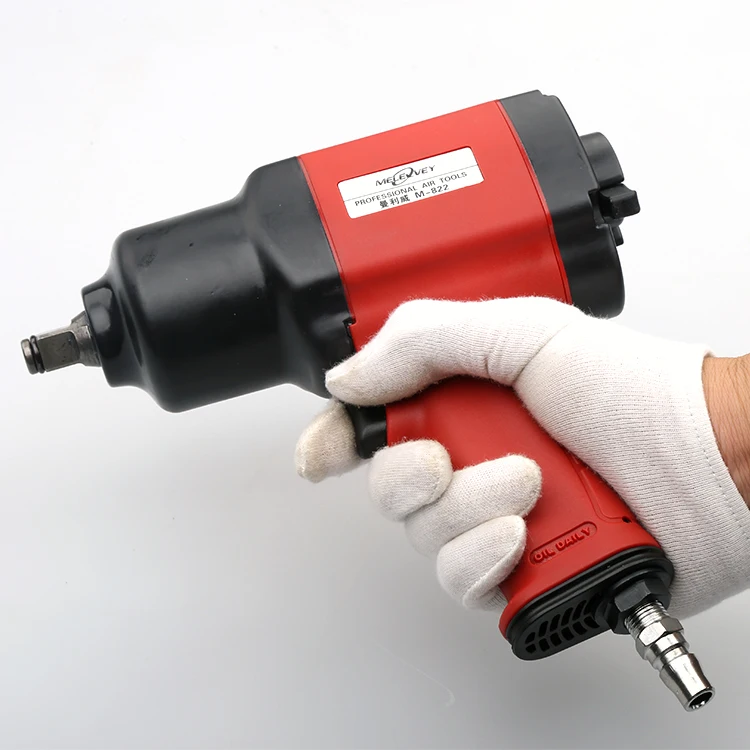

MELEVEY 1/2" composite heavy duty air impact wrench, which makes your choice is more flexibility, comfortable, every hitting can output the biggest power, more competitive.

Product Description

  • Twin hammer design, high torque output and balance.
  • Made by maraging steels, lightweight but durable, design for heavy duty.
  • Small body, big strength. factory production line

Product Name

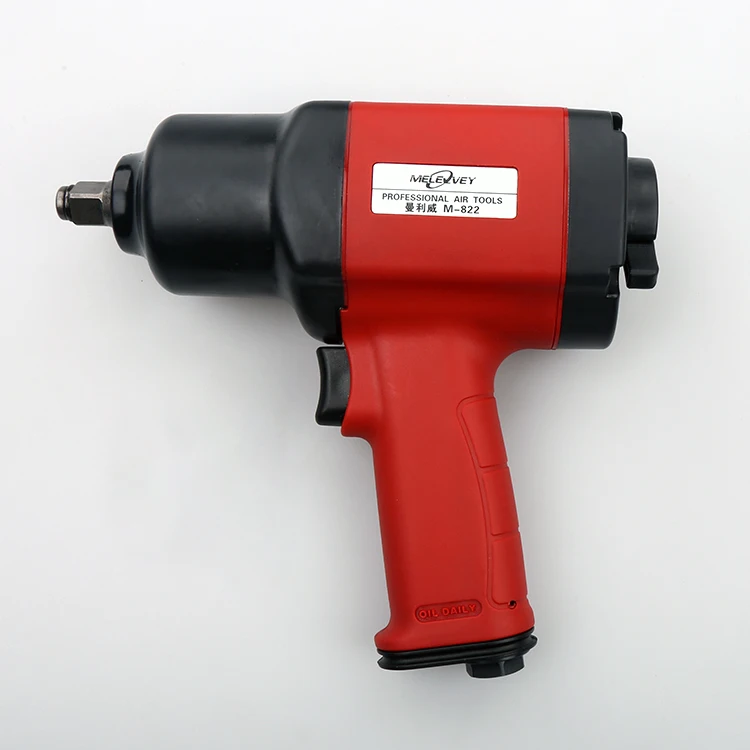

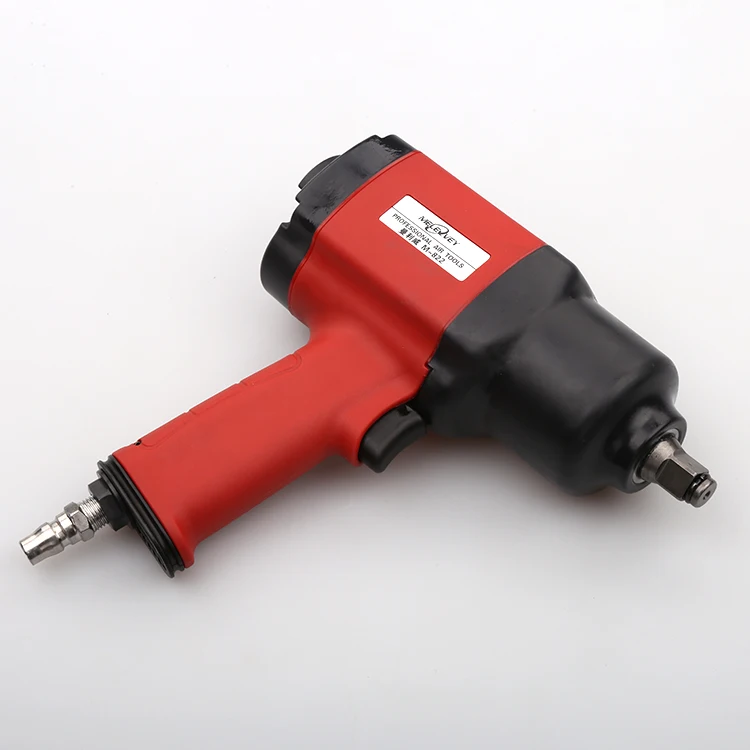

MELEVEY M-822 NEW

Free Speed

6800RPM

Max torque

1050N.m

Air Hose Size

3/8"

Air Pressure

6-8kg/cm2

Square

1/2"

Air Inlet

1/4"

Bolt Capacity

22mm

N.W

2.5KG

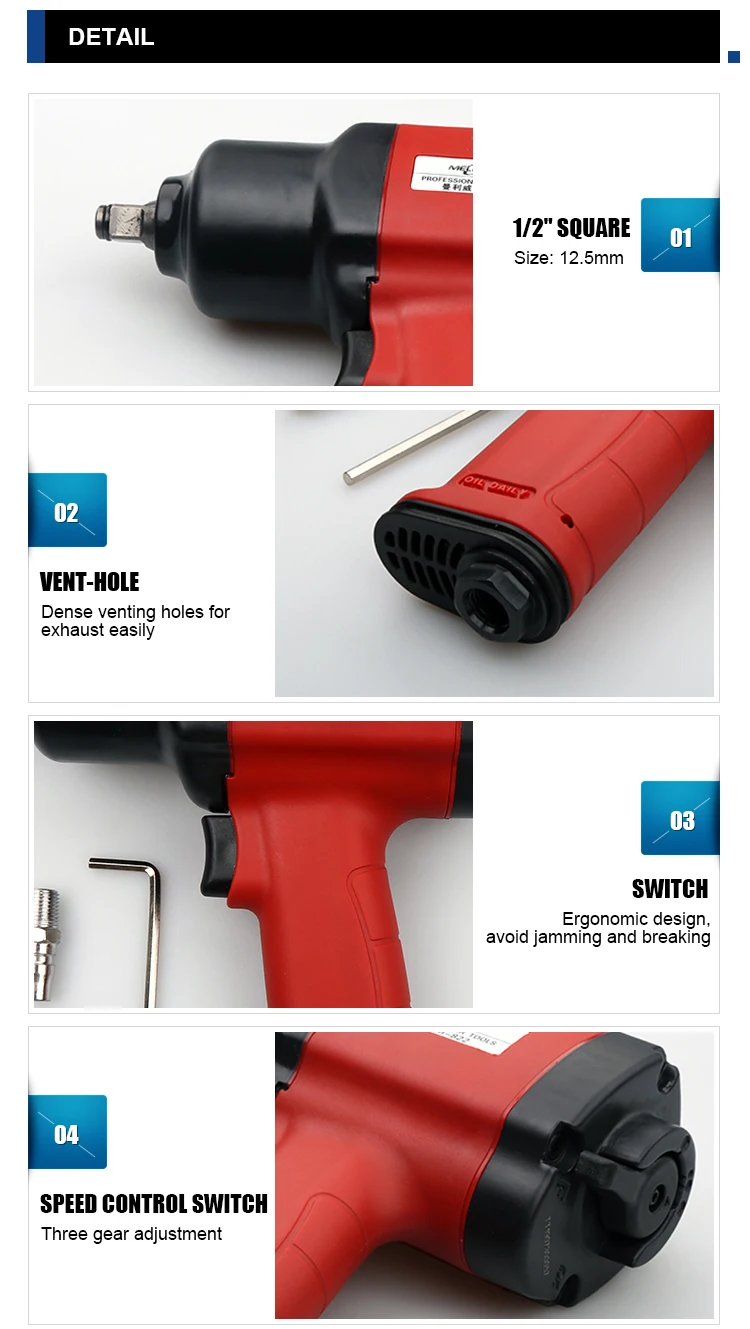

three-gear speen control

MELEVEY small wrench: positive and negative rotation, one button easy unloading tire.

suitable for workshop assembly, tire removal, pipe installation, etc.

Air-saving, power-saving, using safety & light design.

Aluminum alloy structure with heat treatment, it can stand large impact and wearing.
Standard 1/2in drive, so it fit any shallow or deep, impact or chrome 1/2 in drive sockets.

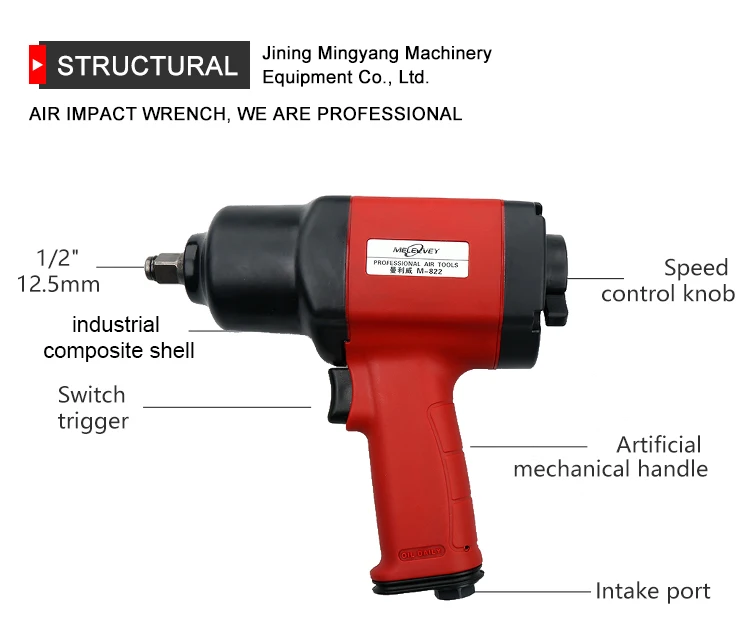

Forward and reverse lever at the click of a button so easily interchangeable.
Adjustable 4-position power regulator for easy control of torsion output.
Comes with 1/4 in fitting for easy attachment to any quick release air line.
Perfect for changing tire and general assembling work in garage or workshops.

Strong Power

Durable hammer structure and high voltage,

the air impact wrenches are widely used in truck repair market.

Be used to disassembly of oversize machine

Such as mine, power station, major ship and etc..

let your tool have a 15-20min rest after about 2 hour working.
and put 3-4 drops of low viscosity white mineral oil into the machine from the air connector.
about every 7 days, you should check the tools and put grease in the hammer room or bearings.
or the operating should be made when you find the tool runs unusually slowly.

Composite material, Light but durable, Not easy to deformation.

Two hammer design, powerful and heavy duty.

Many series and new types, Air impact wrench trendsetter.

PRECAUTIONS:

  • The machine is highly precise, with a speed of up to 7000rpm during operation. any small sand and iron filings entering the movement may cause the impeller to break,therefore, make sure that the air inlet is clean and do not allow sand and gravel to enter the air pipe.
  • It is recommended to use a water separator and drain regularly to ensure that the inside of the machine is dry.
  • Be sure to add 2-3 drops of lubricant to the air inlet of the gun body before use and let the machine rotate for half a minute without load.
Feedback

Widely used for assembly line of car, motorbike etc. disassembly, maintenance too.

Used for assembly and repair for vehicle producing, woodworking machine etc.

Professinally used for automobile maintanance and disassembly of screw on heavy duty machine.

Be used to disassembly of oversize machine, such as mine, power station, major ship and etc.

Packaging & Shipping

Company Information
 Jining Mingyang Machinery Equipment Co., Ltd.

Jining Mingyang Machinery Equipment Co., Ltd. was established in 2007, It's located in Jining, Shandong Province, China, where Confucius was born.

We has always been Mingyang's belief that advanced world class equipment is the foundation for world class quality. The company possess 6 fully automated metal hardening system from AICHELIN (Austria), 1 automated powder coating line with auto cleaning capalilities, over 100 CNC machines that have vertical and horizontal machining capabilities, 3 coordinate measuring instruments from Carl Zeissas (Germany) well as many other advanced monitoring and testing equipment.

These advance production equipment are the foundation of world class quality products. MELEVEY, a high-end brand of the company, has been designated to be purchased by the Chinese army. Now MELEVEY products have been distributed in more than 20 countries and regions around the world.

MELEVEY production line is different from other production lines. It has the most advanced production equipment in the industry. This production line is developed and manufactured in Austria, Europe. All operations are automatically controlled by computers. The workshop is an unmanned workshop. Only one person is needed in the control room. These advanced equipment plays a decisive role in MELEVEY products. All the oil we use is from the United States Houghton quenching oil.

Jining Mingyang Machinery Equipment Co., Ltd. and employees make the solemn commitment as the following four core values is basis of all works:

Achieved:Dedicated to the user's satisfaction and success.

Innovation:Pursue reliability and efficiency of products;concentrate on innovation which has good effect on customers and companies.

Accurate and Realistic:Base on factual decision and product tacking management.

Integrity an Reliable:Build confidence for users to products.
FAQ

Q1. Is customized products accepted?

A1: Yes,customized products is accepted. We can do OEM.



Q2. What’s the payment method?
A2: We accept T/T.



Q3. What quality level is your tool ?
A3: We have pretty wide range, most of our tools are automotive or industrial quality.



Q4. Is there any discount price can be offered?
A4: Depending on the order q’ty, for more q’ty we can offer some discount for the tool.



Q5. Are there samples available before orders?
A5: Yes,we can sell samples to you.



Q6. What’s your main market?
A6: We export to all over the world, and now our main markets are Asia, and Africa.
