DPF Heat Pump System EEV Fujikoki Electronic Expansion Valve 1.3C

Product details
Medium Temperature:-30~+120 degree;Brand Name:Zhongbao;
Installation method:Valve body vertical up;Certification:UL;
Type:Refrigerant Liquid Receiver;Working Life:100000 times;
Packaging Detail:Refrigeration Solenoid Valve Packing:Neutral Packing or Customize Logo Packing Carton;Enviromental Temperature:-30~+55 degree;
Usage:Air conditioning ,ice maker,Refrigerating system parts;Certificate:ISO9001,UL ,TUV,CQC;
Application:Heater Parts;Supply Ability:20000 Set/Sets per Day;
Refrigerant:R22,R407C,R410A etc;Payment Terms:L/C,T/T,Western Union;
The Highest Working Pressure:4.2MPa;Product Name:DPF Heat Pump System EEV Fujikoki Electronic Expansion Valve 1.3C;
Package Preview:https://sc02.alicdn.com/kf/HTB1cLGsdbus3KVjSZKbq6xqkFXaT.jpg_640x640.jpg;After-sales Service Provided:Online support;
Port:Ningbo Or Shanghai;Warranty:More than 5 Years;
Applicable Industries:Garment Shops,Building Material Shops,Food Shop;Place of Origin:Zhejiang China;
Coil Temperature:Below 130 degree;



Product Description

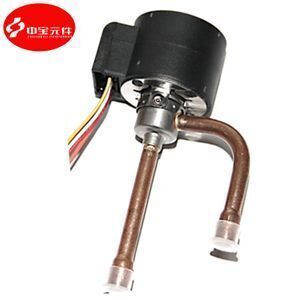

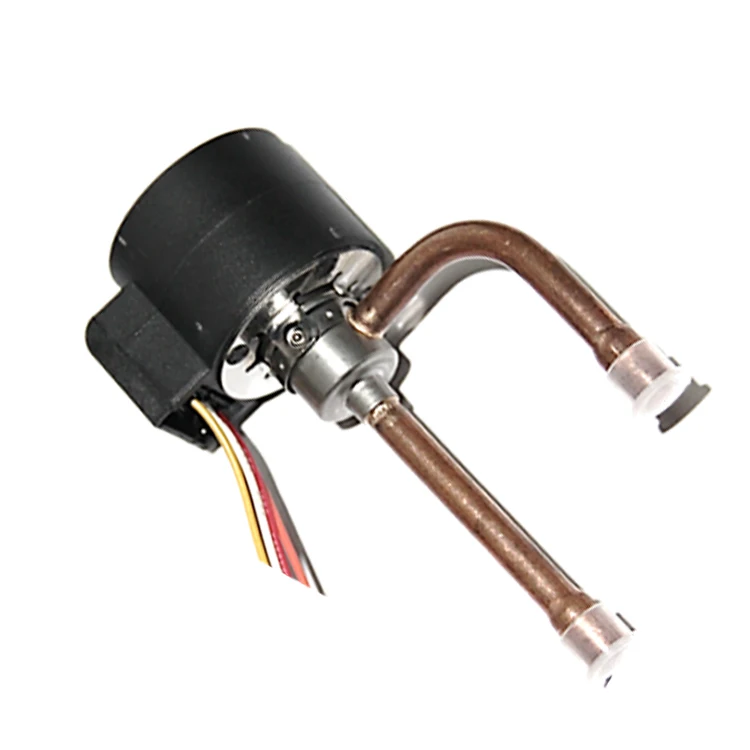

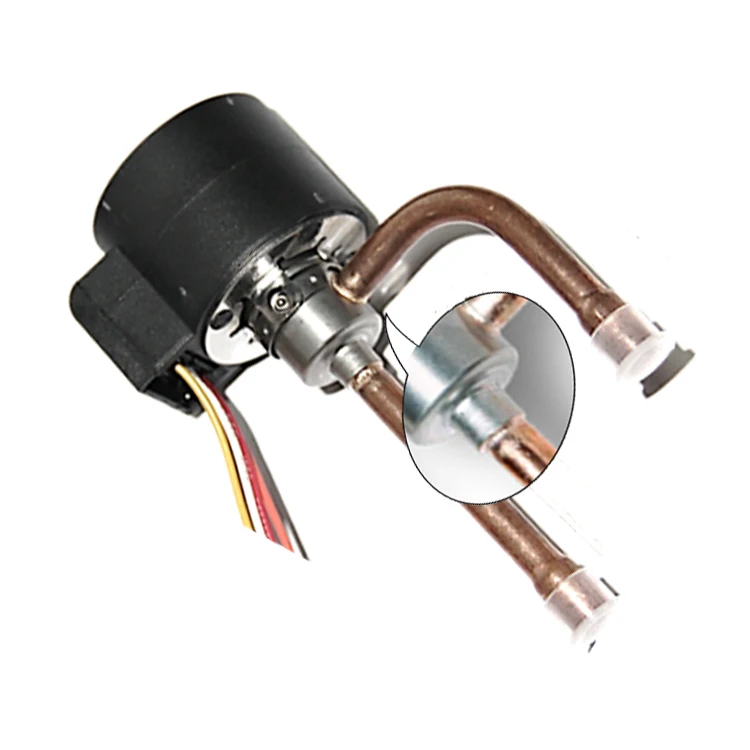

  DPF Heat Pump System EEV Fujikoki Electronic Expansion Valve 1.3C









Features

  • Applicable for oil-free system (T series)
  • Smaller installation space: low height, small volume, light weight
  • Optimized flow path design for noise reduction
  • Fast operation, Energy saving
  • Applicable for reversible systems like heat pumps: bidirectional flow

General specifications

  • Applicable refrigerants: R22, R134A, R404A, R407C, R410A etc.
  • Cooling Capacity: 3,5 to 105 kW (R22 Nominal Capacity)
  • Medium temperature: -30°C (-22°F) to +70°C (158°F) (duty cycle rate below 50%)
  • Ambient temperature: -30°C (-22°F) to +60°C (140°F) (duty cycle rate below 50%)
  • Relative humidity: below 95% RH
  • Ps: 4.5MPa (45 Bar)
  • Installation position: Coil upwards, valve rotor central axis within +/-15° versus vertical axis
  • 500 steps (full stroke); 32 ± 20 opening steps

Electrical Parameters

  • Rated Voltage: 12V DC(+/- 10%), rectangular wave
  • Actuating mode: 4-phase 8-step permanent magnet stepping motor of direct-acting type
  • Excitation mode: 1 ~ 2 phase excitation, monopole actuation
  • Excitation rate: 30 to 90pps (Maintain excitation in stop position min. 0.1~1.0sec. to activate self-holding mechanism.)
  • Coil current: 260mA/phase (20°C)
  • Coil resistance: 46 +/- 3.7 ?/phase (20°C)
  • Insulation class of coil: E
  • Protection class: IP 66
