Best price dot matrix bank passbook printer for PLQ-20

Product details
Single package size:46X40X28 cm;Type:Dot-matrix;
Style:Black And White;Use:Card Printer;
Max. Resolution:360*180dpi;Dimension:384mm x 280mm x 203mm (W x D x H) {15.11" x 11" x 8"};
Brand Name:none;Selling Units:Single item;
Single gross weight:10.8 KG;Model Number:PLQ-20;
Products Status:Stock,Used;Black Print Speed:up to 480cps;
Interface Type:Bi-directional parallel interface;Condition:Original new and used for selling;
Delivery Detail:0 days after payment;Model Number:PLQ-20;
MOQ:1 piece;Offer:original new and second hand in 70-80%new;
Max Paper Size:67-297mm;Package Type:With transparent bag in an original carton, and blank carton;
Weight:7.7 Kg(17lbs);Voltage:AC 100-120V;
Color Print Speed:Null;Packaging:packed in a bag with foam and then in a carton;
Place of Origin:Guangdong China (Mainland);Interface ports:Bi-directional parallel interface (IEEE 1284 inbble mode supported);
Product Description

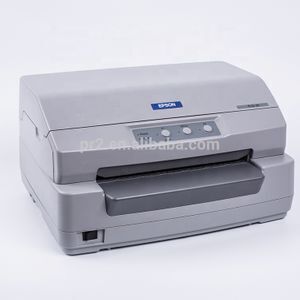

PLQ-20 bank passbook printer
(with power cable, USB and serial cable, CD drivers,110V or 220V)

Print method
24 pin, impact dot matrix
Print direction
Bi-direction with logic seeking
Columns
94 (10cpi)


Print speed
PR2 Emulation:High Speed Draft 480/432cps at 10/12cpi; Draft (CPS) 360/360cps at 10/12cpi;
NLQ(CPS) 180/180cps at 10/12cpi; LQ (CPS) 120/144 cps at 10/12cpi
ESC/P and: High Speed Draft 480/576cps at 10/12cpi
PPDS emulations: Draft (CPS) 360/432 cps at 10/12cpi; LQ (CPS) 120/144cps at 10/12cpi
Input Buffer
64 Kb
Noise Level
53 dB(A)

Reliability
MTBF: 10,000(POH)
Print head life: 400million strokes/wire
MSRW head: 1.6 million strokes
Interface
Bi-directional parallel interface (IEEE 1284 inbble mode supported),
Serial, USB (2.0 compatible)
Copy capability
1 + copies
Paper handling functions
Automatic platen gap adjustment, automatic sheet alignment, automatic border recognition

Bar code printing
PR2: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, Code 39, Coda bar (NW-7), Industrial 2 of 5, ESC/P: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET
Rated voltage range
AC 100-120V
Rated frequency range
50 to 60 Hz (49.5 to 60.5 Hz)
Power consumption
Approx. 60W, Approx. 8W in sleep mode, 0W in powered off mode, Energy Star Compliant
Dimensions
384mm x 280mm x 203mm (W x D x H) {15.11 x 11 x 8"}
Weight
7.7 Kg(17lbs)


Paper handling
Cut Sheet(Single Sheet): W x L = 65 x 67mm to 245 x 297mm; Thickness: Min. 0.065mm, max. 0.19mm Weight: Min. 52g/m 2, max. 157g/m 2
Cut Sheet(Multi Part) W x L=65 x 67mm to 245 x 297mm; Copies: 1 original + 6copies; Total Thickness: Min. 0.12mm, max. 0.53; Weight (one sheet of multipart): Min. 34 g/m 2, max. 50 g/m 2


Passbook
Width Min. 110mm, max. 241.3mm; Length: Horiz. seam: Min. 127mm, max. 220mm,
Vert. seam: Min. 85 mm, max.220 mm; Total Thickness: Max. 2.6mm (open passbook)
Weight: Min. 95 g/m 2, max. 116 g/m 2
Ribbon cartridge
Type: Fabric; Color: Black
Ribbon life
5 million characters (LQ 10cpi, 48 dots/character), 10 million characters( Draft 10cpi, 24 dots/character)
Warranty
Standard: 1 year repair or replace; Optional extension to 3 years
