Port: | Shanghai; | Model Number: | ZJ4113-350W; |
Motor Power: | 350W; | Spindle Taper: | B16; |
Class of speed: | 5; | Max drilling capacity: | 13mm; |
Product Name: | Profession Level 350w 13mm 5 Speeds Drill Press ZJ4113; | Supply Ability: | 100000.0 Carton/Cartons per Year; |
AMP: | 1.6A; | Volt: | 220V; |
Pols: | 4; | Packaging Detail: | 1pc/ctn.; |
Swing: | 210mm; | Place of Origin: | Jiangsu China; |
HZ: | 50Hz; |

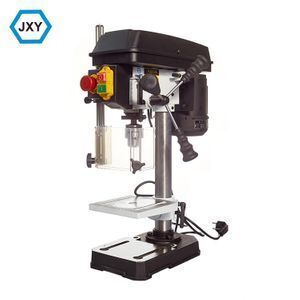

Profession Level 250w 13mm 5 Speeds Drill Press ZJ4113
Model | ZJ4113 | |
Max Drilling Diameter(mm) | φ13mm(1/2") | |
Motor Power | 350W | |
Chuck Capacity(mm) | 1.5-13 | |
Spindle Travel(mm) | 50 | |

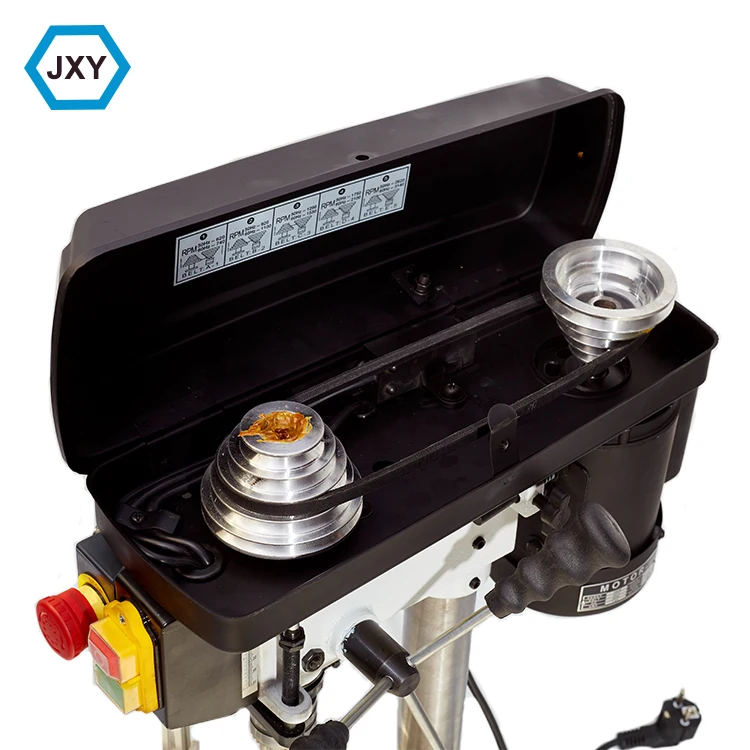

Class Of Speed | 5 | |
Speed 50Hz | 620-2620R.P.M. | |
Spindle Taper | B16 | |
Max. distance from spindle axis to surface of column(mm) | 105 | |
Max. distance from spindle end to surface of table(mm) | 220 | |
Max. distance from spindle end to surface of base(mm) | 300 | |
Swing(mm) | 210 | |

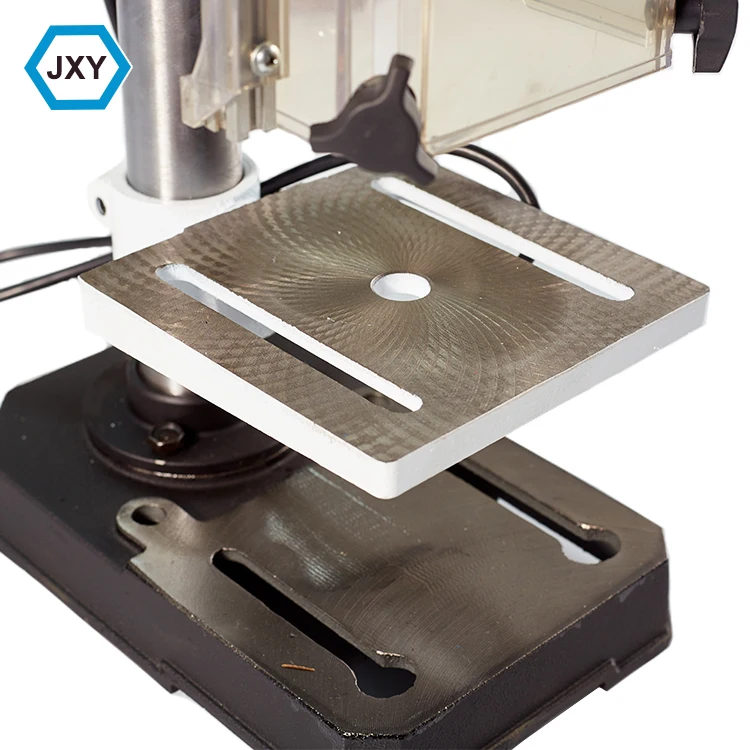

Table Size(mm) | 160×160 | |
Base Size(mm) | 290×190 | |
Column Diameter(mm) | φ46 | |
Height(mm) | 580 | |
Net Weight/Gross Weight(kg) | 19/20 | |
Packing Size(mm) | 430*330*225 |
