Certificate: | ISO/TS16949; | Supply Ability: | 1000000 Piece/Pieces per Month; |
Payment Terms: | L/C,T/T,Western Union,Trade Assurance; | Lubricating: | POM; |
Package Preview: | ; | Packaging Detail: | Packing Details: 1. Inner Packing For small products: 100pcs-200pcs per sealed plastic bag. For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size) 2. Outer Packing 8pcs-300pcs per carton (depends on the product size) 3. Shipment Packing 18-24 cartons per wood case or pallet, shockproof and safe for transportation.; |
Precision Rating: | High; | Material: | Steel+Bronze+POM; |
Place of Origin: | Zhejiang China; | Type: | Sliding; |
Name: | DX Marginal Lubrication Bushes; | Brand Name: | Changsheng; |
Application: | Farm Equipment; | Model Number: | SF-2Y; |
Feature: | POM Metal-polymer Bearing; | Bush types: | KX Bushing; |
Customized: | Customized Drawings; | Brand: | Changsheng; |
Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Construction works ; | Port: | Shanghai Port; |
Standard: | DIN1494; |

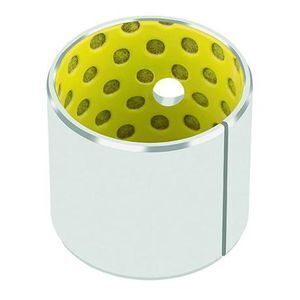

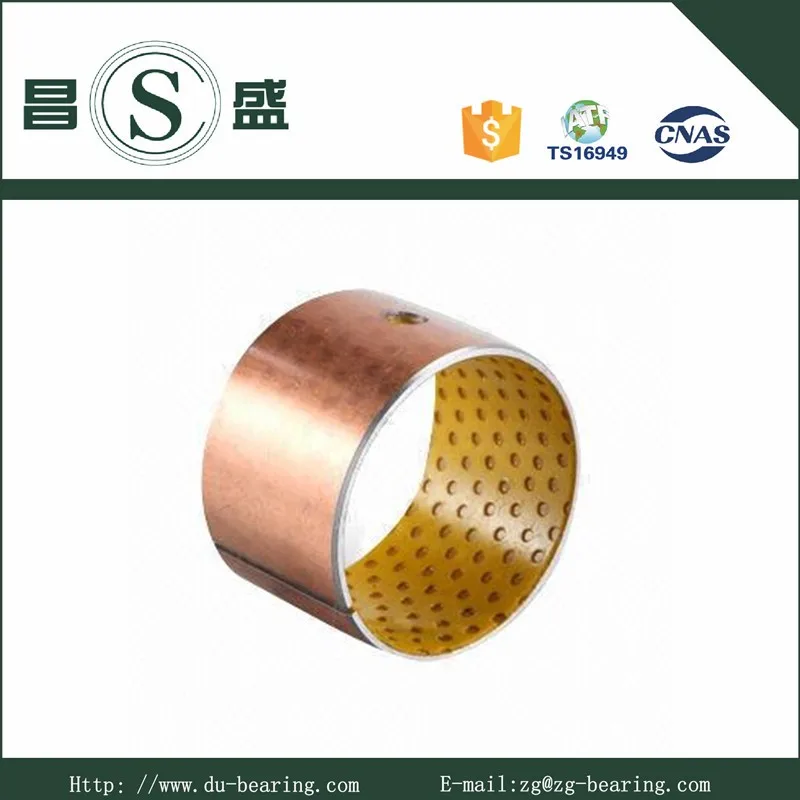

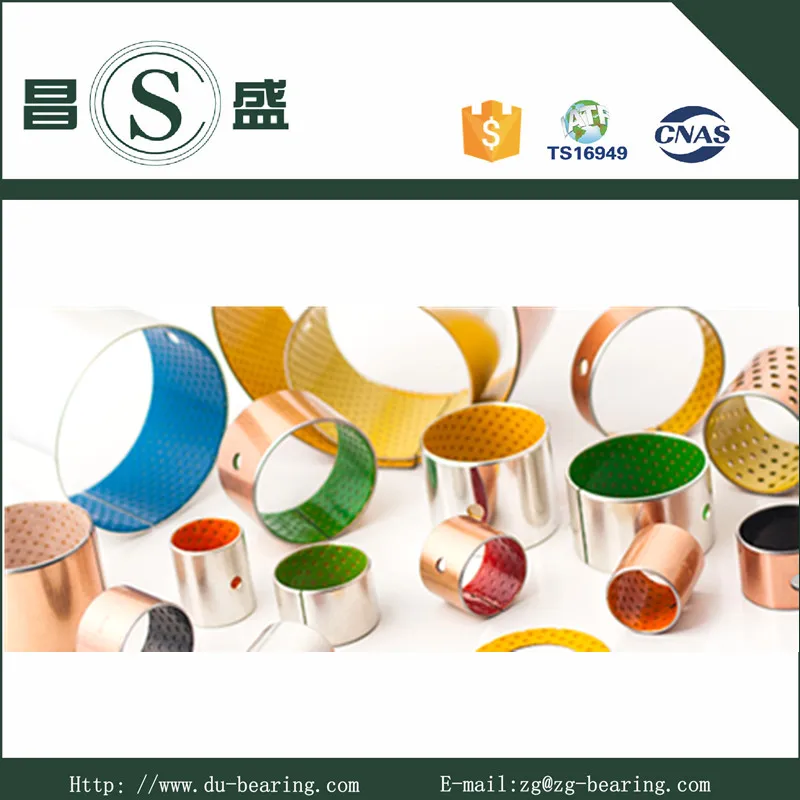

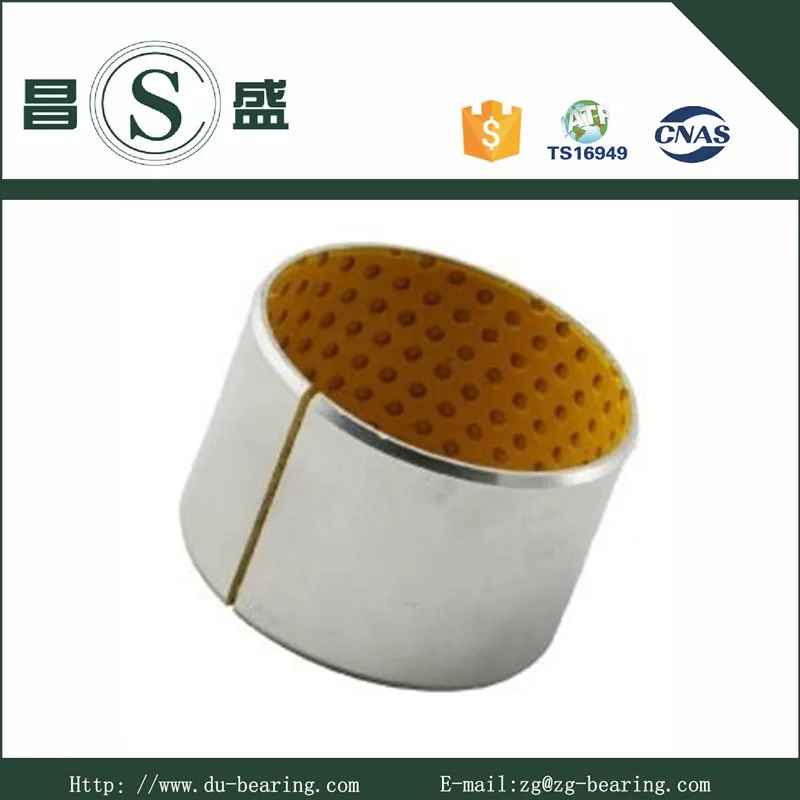

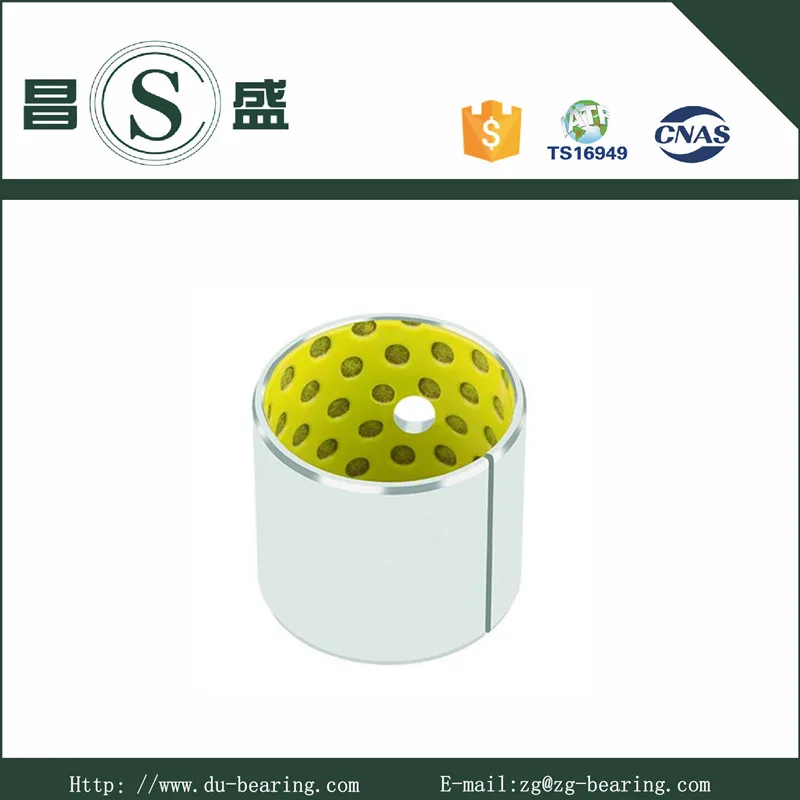

DX Marginal Lubrication Bushes KX Bushing POM Metal-polymer Bearing
Among those professional lead-free boundary self lubricating dx bushing tsb-2y manufacturers in China, welcome to buy customized and low price lead-free dx bushing, boundary self lubricating bushing, marginal lubrication bearings, marginal lubricated bushing or get its free sample from our factory.
DX Marginal Lubrication Bushes KX Bushing POM Metal-polymer Bearing
STRUCTURE: Metal-Polymer Composite Bushing Material
COMPOSITION: Steel Back + Porous Bronze Sinter + POM with Lubrication Indents(without Pb)
MICROSECTION:
POM sliding layer with lubricant indents (without Lead)
Porous Bronze Sinter
Steel Backing
Tin/Copper coating
TECHNICAL DATA:
Max.Load | Static | 140 N/mm2 |
Dynamic | 70 N/mm2 | |
Max line speed V(m/s) | Grease lubrication | 2.5 m/s |
PV value limit (N/mm2.m/s) | 2.8 N/mm2.m/s | |
Operating Temperature | -60°C~+120°C | |
Friction Coeff. | 0.06~0.12μ | |
Hardness (HB) | > 270HB | |
Roughness(Ra) | 0.4~1.25 | |
Coeff. Of linear expansion | 11x10-6/K |
CHARACTERISTICS:
DX Marginal Lubrication Bushes KX Bushing POM Metal-polymer Bearing for grease or oil lubricated applications.
Standard parts contain grease indents in the sliding layer, plain sliding layer available by request.
Optimum performance under relatively high loads and low speeds.
Suitable for linear, oscillating and rotating movements.
Wide range of parts available from stock.
TYPICAL APPLICATIONS: DX Marginal Lubrication Bushes KX Bushing POM Metal-polymer Bearing is widely used in Vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry etc.
