Wholesale Carbon Fiber Universal 12v Heated Car Seat Heater for Aftermarket

Supplier: Shenzhen Besthome Product Co., Ltd.
Region: Guangdong, China
Contact: Ms Jolly shi
Price: $10.77 /piece
Min. Order: 1 piece

Click here to contact

Product details

Keywords:	Car seat heater;	Size:	28x48cm,28x48cm, Customized;
Type:	Seat Cushion,Seat Parts;	Packing:	1Unit /polybag;
Name:	Carbon Fiber Universal 12v Heated Car Seat Heater for Aftermarket;	Supply Ability:	20000 Piece/Pieces per Month Wholesale Carbon Fiber Universal 12v Heated Car Seat Heater for;
Port:	Shenzhen;	Temperature:	30-70°C;
Voltage:	12V-24VDC;	Material:	Carbon fiber,Carbon Fiber;
Place of Origin:	Guangdong China;	Warranty:	1 Year;
Model Number:	BH-SR01001;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Brand Name:	BestHome;	Packaging Detail:	Wholesale Carbon Fiber Universal 12v Heated Car Seat Heater for Aftermarket Package: 1pc/ opp bag;
MOQ:	100 Units;

Product Description

Wholesale Carbon Fiber Universal 12v Heated Car Seat Heater for Aftermarket

Our Advantage :

Robustness
Geometric flexibility
Quick performance
Fatigue strength
Integration near the surface
Cost effectiveness

Item no	SR01001
Working Voltage	10.5-15V or 22-28V
Heating Power	15*30W×2
Working current	1.8- 2.5A
Temperature controlled	30 ~ 70°C
Materials	Both carbon fiber heat pad and alloy wire heat pads
Controlling Stage
Usage	Single seat
Heated Pad dimension	480*280±5mm , customized
Fits	Universal
Certificate	TS-16949,ISO9000,TUV,CE
Warranty	1 Year
Packaging	1pc per opp bag
Certificate	CE, ROHS

Round Hi-off –low Switch

Dia 23 mm

H - off -L Rectangle Switch

41 x23 mm

2- Dial- 5 Position Switch

42x 24 mm

Toyota Land cruiser Switch

46x32mm

2 dial 5 position

37.8x19mm

Toyota 5 Position Switch

33x22.5 mm

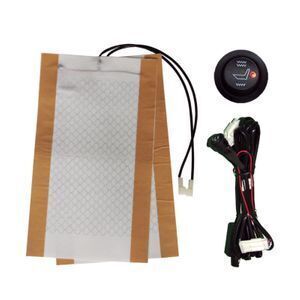

Packing of component list

Single Unit		Dual Unit (2 Seats)
2 X Carbon Fiber Heating Pads		4 X Carbon Fiber Heating Pads
1x Illuminate HI/Low Switch		1x Illuminate HI/Low Switch
1x Wire Harness		1x Wire Harness
1x 5- pin Automotive relay		1x 5- pin Automotive relay
1x fuse Holder containing a 12Votage fuse		1x fuse Holder containing a 12Votage fuse
4x strips of “heat transfer Tape		8x strips of “heat transfer Tape
4x Quick Zip Ties		8x Quick Zip Ties

Testing Process

QE	Fatigue Durablity Test- 5000 times	Electro- hydraulic servo fatigue test rig is for the car seat test equipment perormance testing
		10 thermocouples (the point 10 is room temperature)to real -time to measure of heating pad
QA	Flammablity testing	Materials for Vehicle interiors Flammability Materia Requirements "US regulation 571.302 and acc .to Din 75 200
	High- Low Temperature test	Low Testing Temperature 20℃ (-4) ℉
FQC	High Votage shocking testing	18 Votage against 8 min .100% checking
	Power on testing	100% Power on testing in 3 min per each one
	Resistance Test	Micro-Resistance Meter(0.01Ω) to check each pad

Real-time temperature curve

Production Flow

Packing & Delivery

1. Each piece in an individual carton with comprehensive protection.
2. Strong multiple corrugated paper export shipping carton.
3. Extra poly foam protection all over the product.
4. Customized package mode is acceptable on your requirement.

Our Company

We established in 2001 as one of china 's professional manufactures in home electrical product, especially in heated product has own plant taking up a total floor area over 4000 square meters.
Backed by strong on structural and electronic engineer design ,the company offer one stop solution service to customers from product concept to final product.
Today, we are already be good partner of world brand clients.
Over the years, BestHome built up R&D, tooling, plastic injection, assembly line and laboratory all in house to achieve advantage in good quality control and competitive cost strength.
Be focuse on global home electrical product market. BestHome be devolop ,design and manufacture the best heated product manufacture
We are sure BestHome is your best partner for your success.

Certifications

FAQ

1. Are you a trading company or a manufacturer?
We are a professional office furniture manufacturer located in Shenzhen city, China.

2. How do your quality control systems operate?

1) We only cooperate with the number 1 state-owned enterprises for the raw material like the fabric.
2) For the production process, we use the precise and advanced production equipment to produce the products.
3) We have implemented the most strict QC inspection system throughout the whole production procedure.

3. Can you accept customized design?
The answer is positive, both OEM & ODM are acceptable for us.

4. Does your company provide samples?
Yes, samples are available according to your request but will be charged.
