Brand Name: | TRQWH; | Type: | Head Protection; |
Model Number: | TRQ-FF02-1100; | Dark state: | DIN11; |
Product Name: | Solar Auto Darkening Welding Mask; | Power Control: | Solar Energy Welding Mask; |
Supply Ability: | 20000 Unit/Units per Month Welcome to Visit our Factory; | Sensitivity: | Fixed; |
Cartridge Size: | 108*50*5mm; | Light Shade: | DIN3; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,rmb; | Feature: | Long Life Time; |
Certification: | CE ANSI Iso9001; | Color: | Green+Black; |
DELAY TIME: | 0.1-1.0S (Internal Stepless Variable); | Power Supply: | Solar Cells +Lithium Battery; |
Place of Origin: | Hubei China; | Port: | Any Port of China; |
Packaging Detail: | Packing Details: 1 unit=1 set auto darkening welding helmet to a PE plastic bag, 1 piece instruction book, 1 piece color box 1 single small box measurement: 25*23*30cm Gross Weight: 0.85KG 4 units/carton carton Measuremetn: 54*50*32cm Gross Weight: 5.0KG 6 units/carton carton measurement: 76*55*32cm Gross Weight: 7.5KG 20 units/carton carton measurement: 68.5*55*45cm Gross Weight: 18.9KG; | Helmet Material: | PVC; |
Switch Time: | 1/10000S; | UV/IR Protection: | DIN15; |

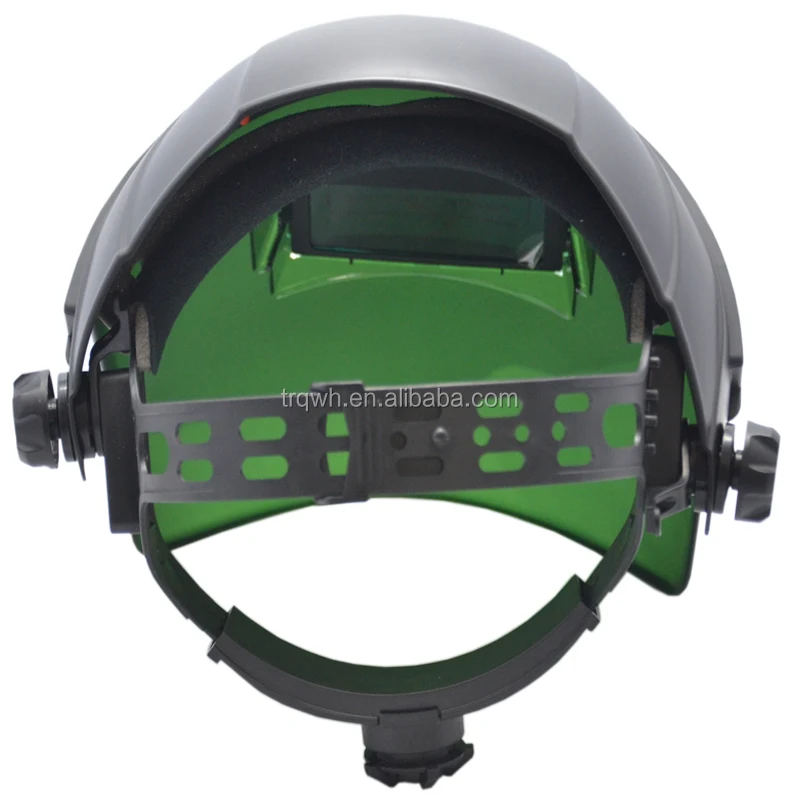

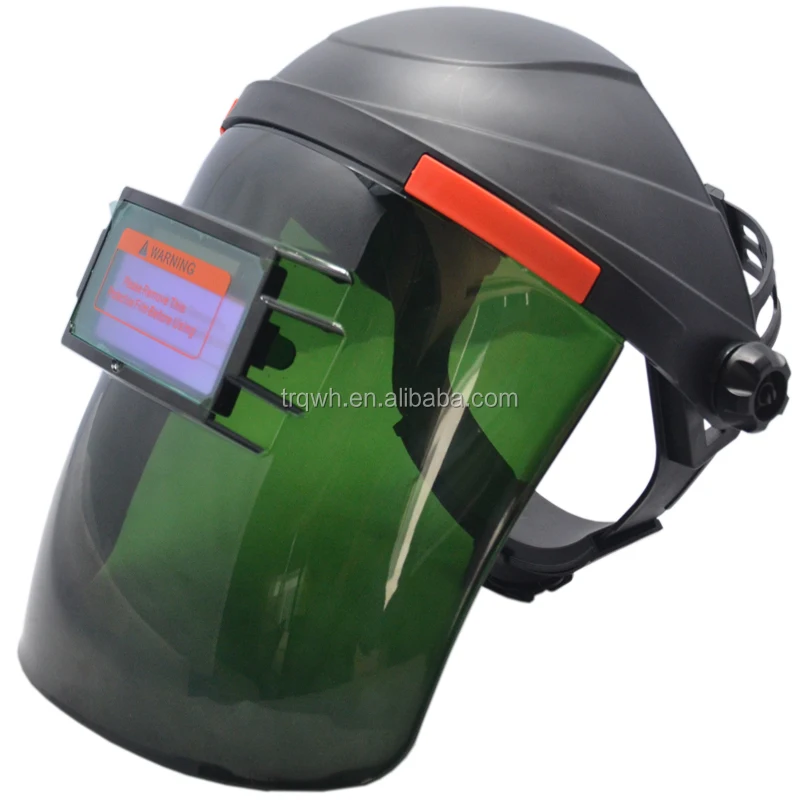

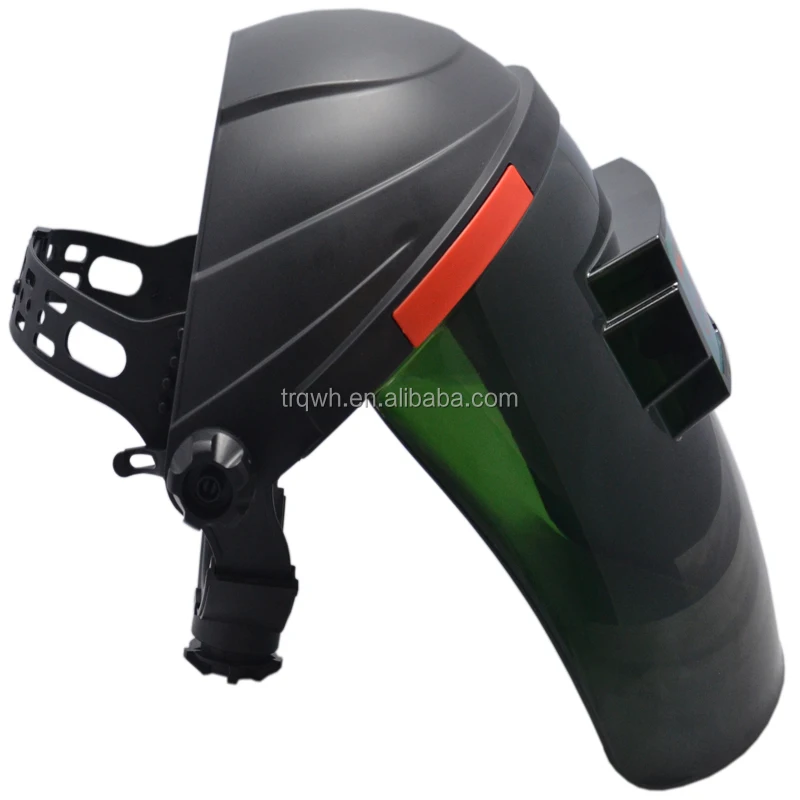

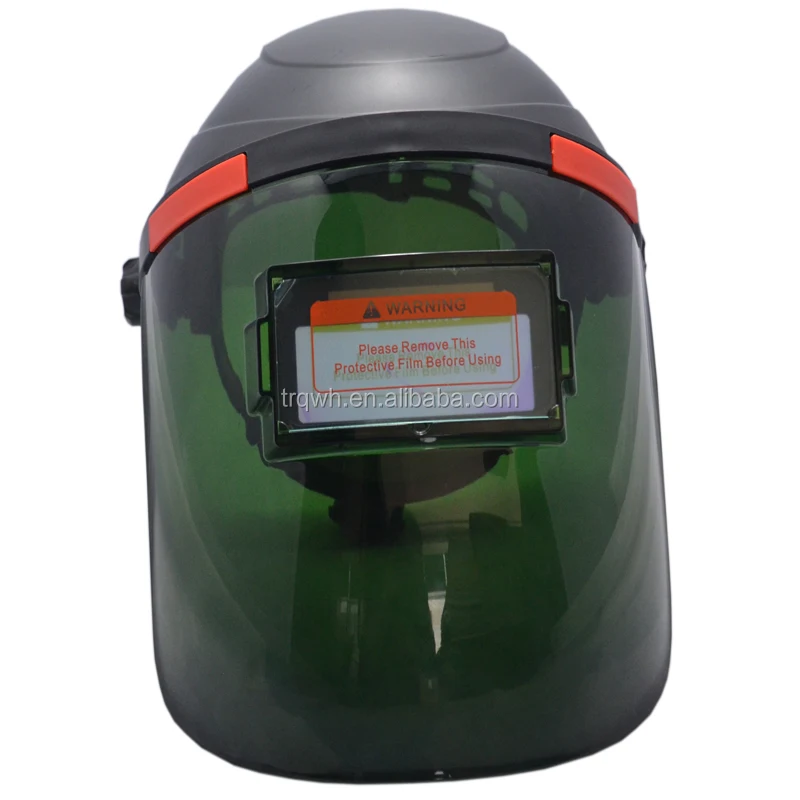

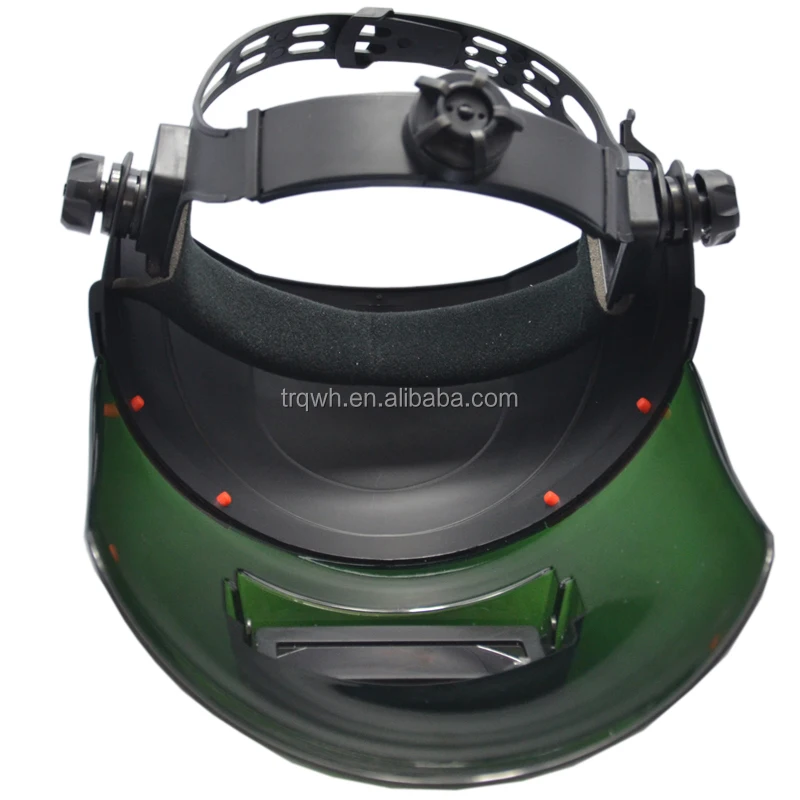

Summer Cool Solar Auto Darkening Welding Mask
Auto Darkneing Welding Helmet Suitable for:
Argon are welding, TIG, TIG Pulsing, MIG, MAG,
Electrode, Plasma cutting and Grinding.
Auto Darkening Welding Helmet Performance Characteristics:
1: Popular&classiacal design, the welding helmet's internal structure design meets the ergonomics principle
2: Helmet shell adopts PP material, with high and low temperature resistant, corrosion resistant, flame retardant, soft, ligh-tight, high intenstity and durable.
3: Auto-darkening filter switching time soon, high clear, wide view area, and with small cosumable etc. features.
4: Automatic SMT welding technology, fully ensure product quality stability and reliability.
5: Overall-process protection against ultraviolet(UV) and infrared(IR) radiation.
TRQ Auto Darkening Welding Filter
Filter Parameters | TRQ-1100 | TRQ-2100DH | TRQ-2200DH | TRQ-2200DE | TRQ-2233DE | TRQ-2233FF |
Filter Size | 108*50*5mm | 110*90*10mm | 110*90*10mm | 110*90*10mm | 110*90*10mm | 110*90*10mm |
View Area | 90*32mm | 90*32mm | 90*40mm | 90*40mm | 92*42mm | 92.5*42.5mm |
Light Sate Shade | DIN3 | DIN3 | DIN4 | DIN4 | DIN4 | DIN4 |
Dark State Shade | DIN11 | DIN11 | DIN9-13(internal) | DIN9-13(external adjust) | DIN9-13(external adjust) | DIN9-13(external adjust) |
UV/IR Protection | DIN15 | DIN15 | DIN16 | DIN16 | DIN16 | DIN16 |
Switch Time | 0.2ms | 0.2ms | 0.2ms | 0.2ms | 0.2ms | 0.2ms |
Delay Time | 0.5s | 0.5s | 0.5s | 0.5s | Stepless Control 0.2s-1s | Stepless Control 0.2s-1s |
Sensitivity | Fixed | Fixed | Fixed | Fixed | Stepless Control | Stepless Control |
Power Supply | Solar Cell And Lithium Battery | Solar Cell And Lithium Battery | Solar Cell And Lithium Battery | Solar Cell And Lithium Battery | Solar Cell And Lithium Battery | Solar Cell And Lithium Battery |
Grinding Function | NO | No | Yes | Yes | Yes | Yes |
Tig, Mig, Mag, Protective | Yes | Yes | Yes | Yes | Yes | Yes |
Sensor Quantity | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs | 2pcs |
Power Switch | Fully Automatic | Fully Automatic | Fully Automatic | Fully Automatic | Fully Automatic | Fully Automatic |
Operation Temperature | -10°C ~ + 55°C | -10°C ~ + 55°C | -10°C ~ + 55°C | -10°C ~ + 55°C | -10°C ~ + 55°C | -10°C ~ + 55°C |
Stroage Temperature | -20°C ~ + 70°C | -20°C ~ + 70°C | -20°C ~ + 70°C | -20°C ~ + 70°C | -20°C ~ + 70°C | -20°C ~ + 70°C |
Lower Power Warn | No | No | No | No | No | Yes |
Power Test Function | No | No | No | No | No | Yes |
Battery Replaceable | No | No | No | No | No | Yes |
Warranty | 1year | 2years | 2years | 2years | 2years | 2years |
Apply to | Eye Path Maks, Hands Mask, Leather Mask, Apple Mask | Decals Helmet, Spray Pait Helmet, Polishing Helmet | Decals Helmet, Spray Pait Helmet, Polishing Helmet | Decals Helmet, Spray Pait Helmet, Polishing Helmet | Decals Helmet, Spray Pait Helmet, Polishing Helmet | Decals Helmet, Spray Pait Helmet, Polishing Helmet |
Package | 200pcs/carton | 4units/carton, 6units/carton, 20units/carton |

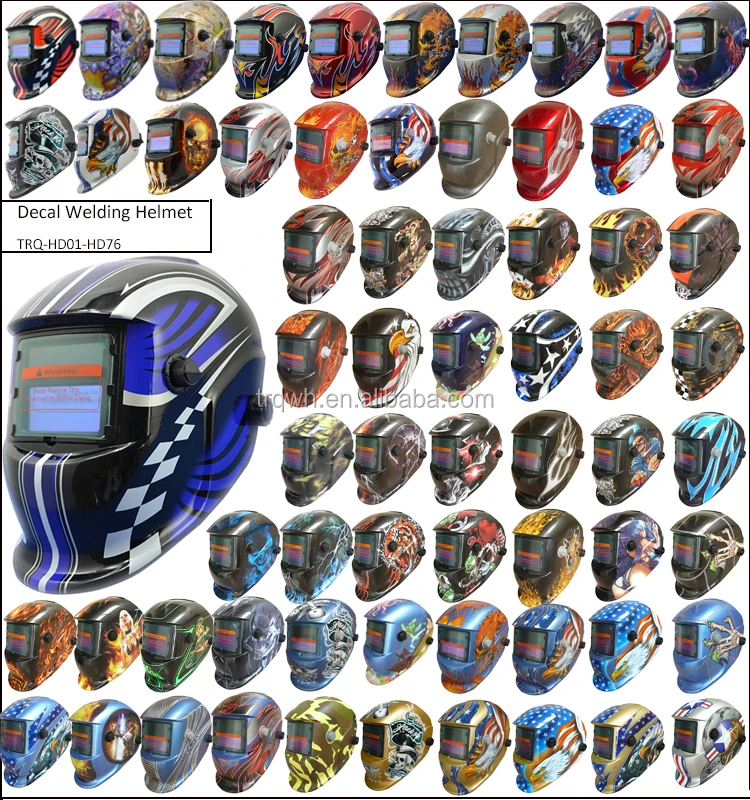

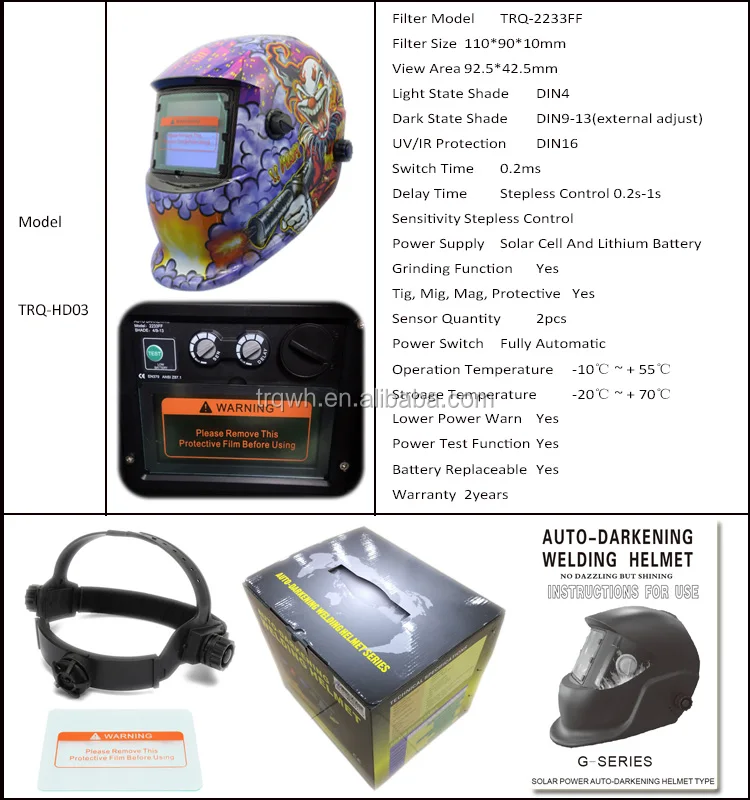

TRQ HD Series Decals Helmet(decals can also be customized, can be added logo)
This isn't all, more decals or paiting and water transfer workart welding helmet, please contact our sales!
A: when we receive you inquiry, our sales girl will reply you at the first time on email or trademangager and give the information you want to get which are about products helmets or welding.
B: during we are discussing about the details, like packing, shipping, which payment we can accept, warranty, technical question or OEM prdouction, we will do our best and our sales will serve you on line anytime, you need describe your question precisely.
C: during workshop produce, our sales girl will monitor the producing progress anytime and take pictures for you or show on video to ensure the quality and delivery time.
D: our quality control circle will check all products for you, from filter produce, helmet install and packing completed and cartons packing.

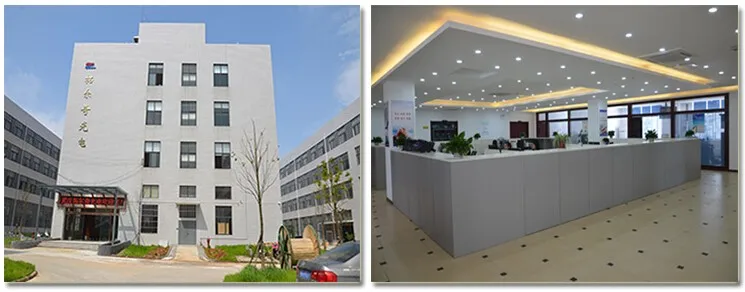

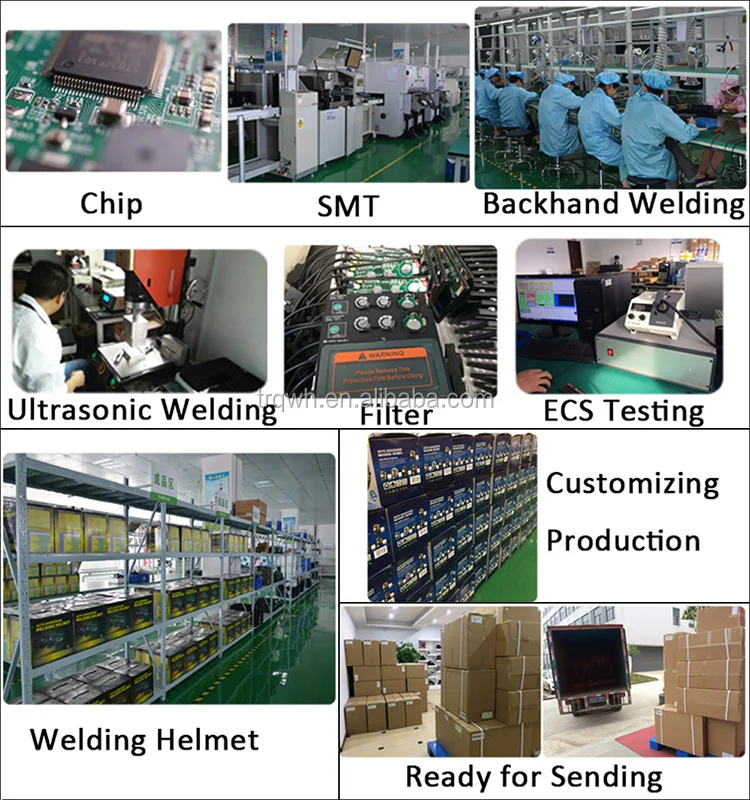

We are a factory local in the middle area of China, wuhan city which have Yellow Crane Tower, many people from all over the world like to trave here. You know changjiang river? Our factory and office all in the third project of Optic Valley Electronic Industrial Park donghu gaoxin district. We focus on producing for more than 30 years, especially on PCB board, auto-darkening welding filter design and research are our advantages. We are eager to produce the multifunction products .
Our automatic darkening welding helmet suitable for Argon arc welding, Tig, Tig Pulsing, Mig, Mag, Electrode, Plasma cutting and Grinding.

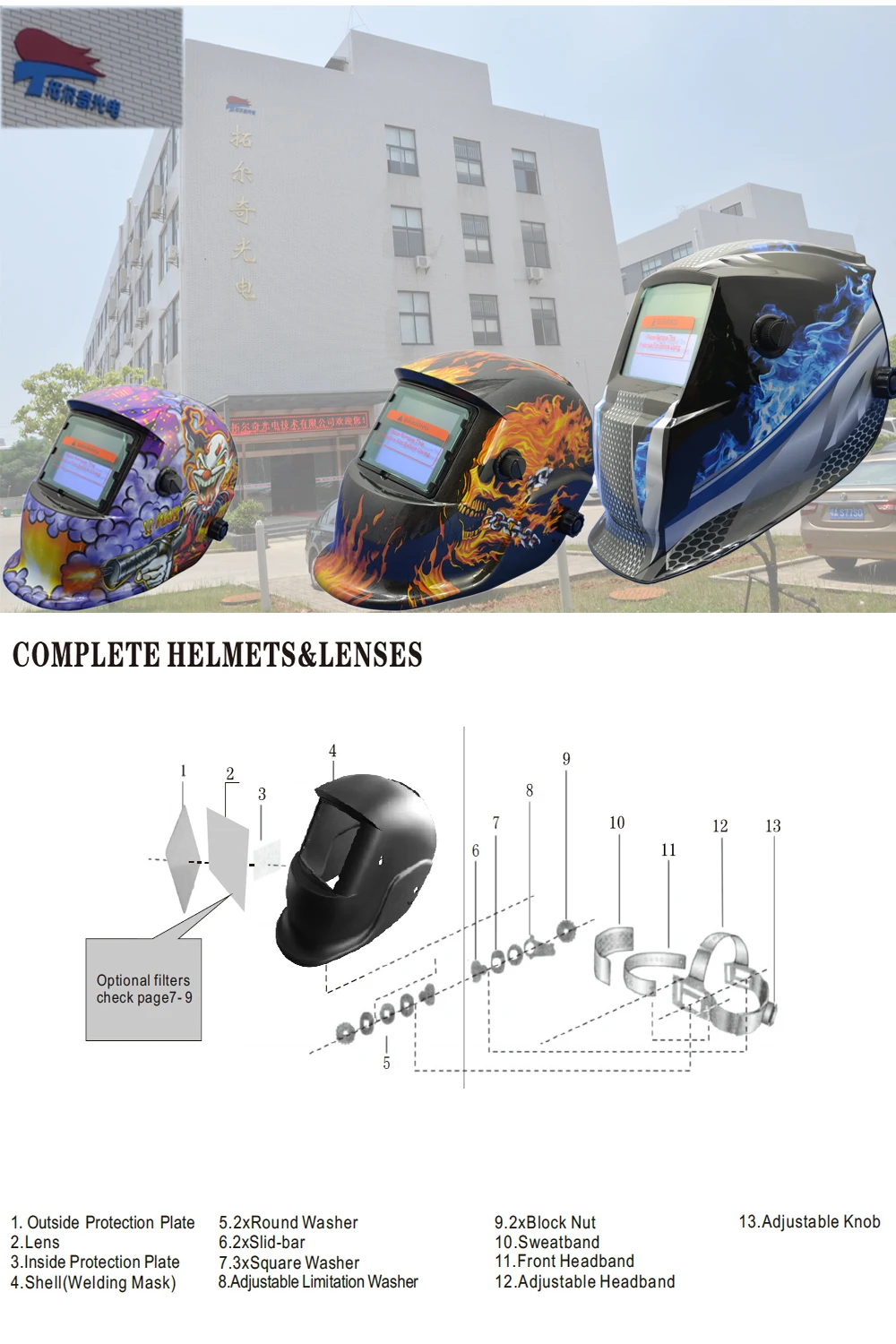

TRQ Displace Case
Packing Details:
1 unit=1 set auto darkening welding helmet to a PE plastic bag, 1 piece instruction book, 1 piece color box
1 single small box measurement: 25*23*30cm Gross Weight: 0.85KG
4 units/carton carton Measuremetn: 54*50*32cm Gross Weight: 5.0KG
6 units/carton carton measurement: 76*55*32cm Gross Weight: 7.5KG
20 units/carton carton measurement: 68.5*55*45cm Gross Weight: 18.9KG
Q: Whether your comany is a trading company or a factory?
A: We are a professinal manufacture.
Q: How long your company do on optoelectronic industry?
A: More than 20years.
Q: Which payment terms your company prefer to?
A: T/T, L/C, Western Uniton Or Paypal. We choose the payment according to different country, hope you can understand.
Q: Can we visit your factory?
A: Welcome your visiting.
Q: Can you produce the welding helmet for ur with our logo?
A: Yes, we can. Also, we can laser your logo on the welding filter.
Q: How long is your delivery time usually?
A: It's about 10-30days. We can dliver by air and by sea.
