Single package size: | 31X29X12 cm; | Color: | Customized Color; |
Phase: | Single-phase; | Place of Origin: | Guangdong China; |
Waterproof: | IP66; | Power: | 1.76kw; |
Warranty: | 1 Years; | Brand Name: | Dagreen; |
Connectors: | J1772 Connector; | Model Number: | Ali-FH-RX-5-15N; |

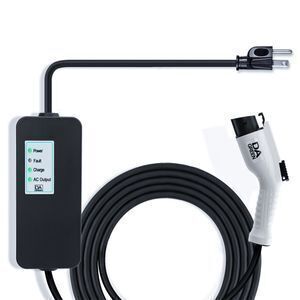

Selling Units: | Single item; | Product name: | Portable EV Charger; |
Operation Temperature: | -30°C~50℃; | Rated current: | 16Amp; |
Package Preview: | ; | Single gross weight: | 3.5 KG; |
Weight: | 3.5KG; |
Input & Output | |||
Input Voltage/Output Voltage | 110V | Max. Output Current | 16A |
Working Frequency | 50/60Hz | Charging Interface Type | SEA J1772 Standard |
Max. Output Power | 1.76KW | Stand by Power | <2w |
EMC | FCC/CLASS A | ||
Protection | |||
Over Voltage Protection | √ (>AC265V) | Over Load Protection | √ |
Under Voltage Protection | √ ( | Over-Temp Protection | √ |
Short Circuit Protection | √ | Over Current Protection | √ (>18A (latch off)) |
Ground Fault Detection* | √ | Environment Temperature | -30°C ~ 50°C |
*Why is grounding important? The most important reasons for grounding wire is that it protects your ev charger, your home and everyone in it from surges in electricity. If your electrical system is grounded, all of that excess electricity will go into the earth — rather than frying everything connected to your system. | |||
Certificate | |||
CE, TUV, FCC, IP66 for control box/IP67 for ev connector, UL for ev connector | |||
Other AC Input Plug Choice | |||

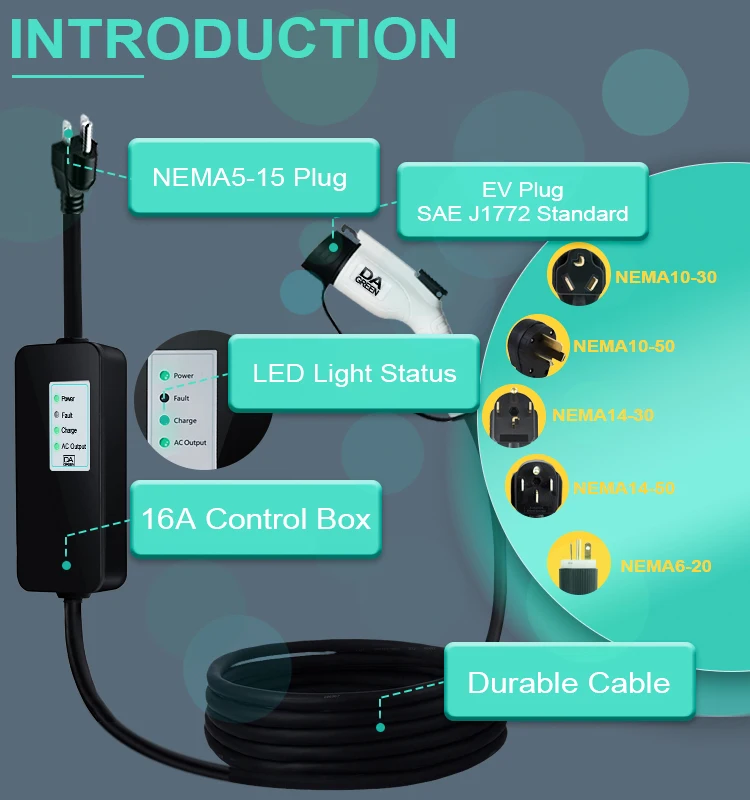

NEMA 6-20/5-15/10-30/14-30/14-50/6-50/10-50/EU Plug | |||
Cable Length | |||
25FT or Customized |
1. Professional equipments to make the excellet products with quality controland saving cost in foreign trade.
2. You inquiry related to our product & price will be replied with in 24 hours.
3. Well-trained & experienced staff are to answer all your inquires in Engliash or other language.
4. Working time: 8:00 am - 10:00pm, Monday to Saturday (UTC+8).
5. Your business relationship with us will be confidential to any third party.
6. Good after-sale service offered. Please feel free to contact us if any more information needed.
If you are in any of the following situations:
1. Want to know more about our products
2. Customize the products that belong to your own company
3. Very familiar with EV charging products, want to be our dealer
4. Be interesting in this industry recently, but not very sure how to sell them well
5. Have a good idea or design, hope to cooperate with us
Packing Included:
1* EV Charger
1* User Manual
1* Portable Case
Dagreen has abundant experience in electric and circuit manufacturing after engaging in electric research and manufacturing for over 30 years. In order to comply with the worldwide trend of energy conservation and environmental protection, it has been focusing on the R & D and manufacturing of efficient power supply products since 2016. In addition to developing new products, it has been implementing high quality standards and safety specifications as well.

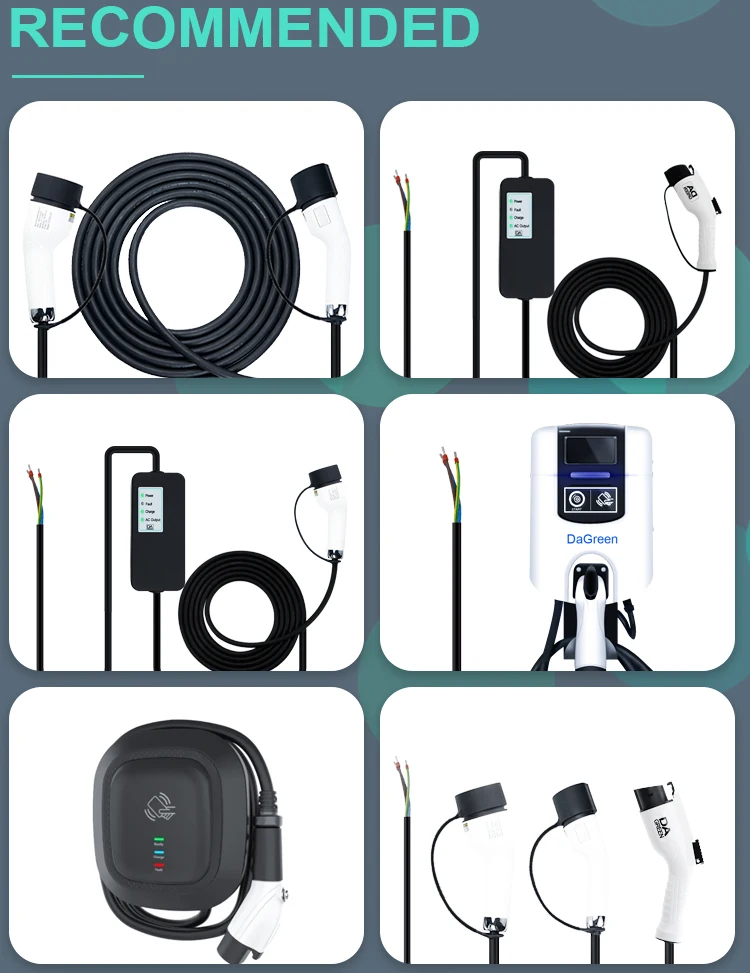

So far, it has successfully developed various efficient and energy-saving charging products for electric vehicles, including
household charging piles such as DC charging piles, portable AC control boxes, wall-mounted AC charging piles, as well as

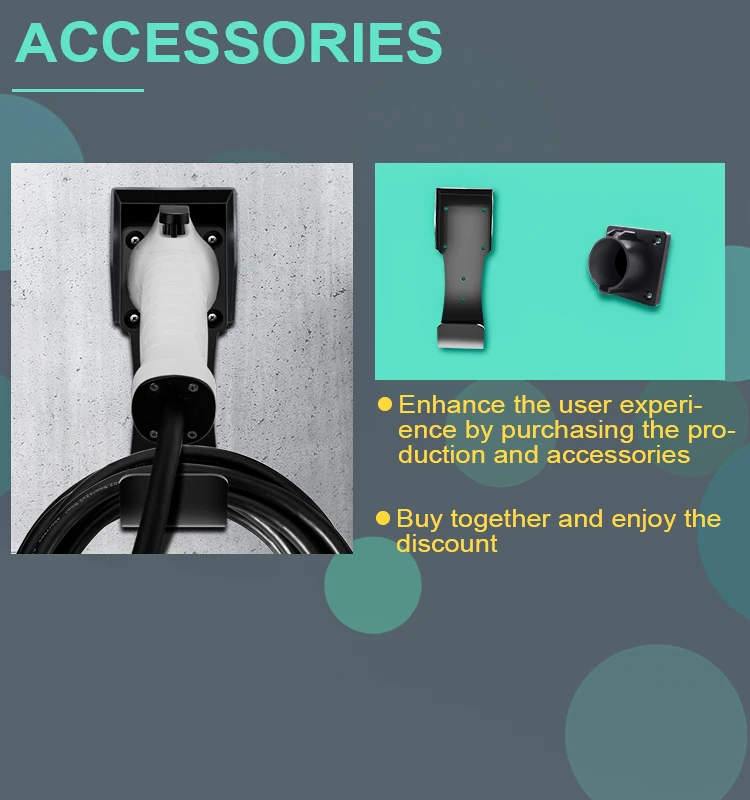

corresponding accessories such as J1722/Type 2 connectors, charger holders, and hooks. Besides products, we also provide satisfactory charging solutions, including product designs, custom-made die sinking, production, and maintenance.
The team composed of engineers from Mainland China and Taiwan has been devoted to developing products exported to Europe, America, Japan, and South Korea. So far, the products have passed the security certifications including UL, CE, CSA and TUV. Based on our rigid QC system, we can provide products with stable quality and customer service prioritizing customer experience. We’ve been dedicated to providing safe and convenient products facilitating the charging of electric vehicles to guarantee each of your drives.
1. What is your terms of payment?
We will recommend our customer to use different terms of payment based on difference in quantity of order.
Less than 1000 USD, generally choose the PayPal
More than 1000 USD, generally choose telegraphic transfer or Alibaba
If you need the detailed terms of payment, pls contact us.
2. What is terms of delivery?
Generally EXW, FOB, FCA,other delivery terms, please contact us.
3.How do you delivery your goods to me?
By DHL, TNT, UPS, Air freight, Ocean freight, Truck freight.
The best shipment way according to the actual situation.
4. Do your products have quality certification? How long is the warranty time?
All of our EV charging products posses with CE, TUV certifications. Generally speaking, the warranty time is 1 year.
5. How do you deliver your goods to me? How long will it take?
We have various ways of shipment for customers to choose, DHL, TNT, UPS, Air freight, Ocean freight. If not have the special requirements, the weight of products less than 50kg will be arranged by DHL (3 days), the weight of products more than 50 kg will be arranged by Ocean freight (30 days). But pls note that this is just the time of transportation, the producing time of products will be varied from 3days to 10 days due to the quantity of order, the level of busyness in production line.
6. What is OEM service can you offer?

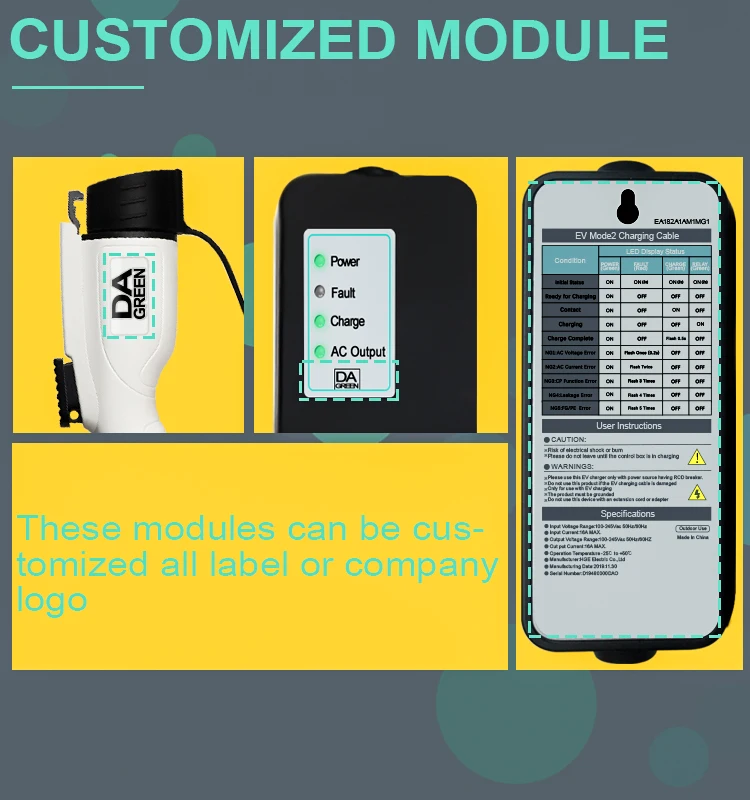

Logo,Color,Cable, Plug, Connector,Packages, and anything others you want to customized, pls feel free to contact us.
7. How is your product quality? In case of problem occurs, what should I do?
Firstly, we sell our products for many years, we have the professional engineer team in this field. Moreover, our products have to pass strict inspections and repeated tests before they go out, rate of fine variety is 99.98%. If it is the quality which lead to the failure in use, we will take place the new one for free.
8.How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit; and also we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
