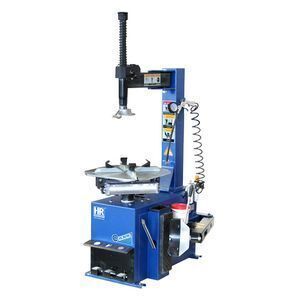

HC8210S semi-automatic tire changer machine tyre mounting machine for sale

Product details
Outer Clamping Range:12"~21";Certification:CE / ISO9001;
Place of Origin:Zhejiang China;Logo:Customer Request;
Extra clamp:Motorcycle tire clamp;Wheel Width:1.5"~20";
Motor Power:0.75kW/1.1kW;Beadbreaking Force:2700kg;
Inner Clamping Range:10"~19";Packaging Detail:Wooden box;
Color:Customer Request;Max. Wheel Diameter:960mm;
Warranty:12;Power Supply:380V/220V;
Package Preview:;Brand Name:Hauvrex;
Delivery time:25-30days;Operating Pressure:8~10 Bar;
Model Number:HC8210S;

HC8210S manual car tire changer machine for sale

Product Description
  ♦ Swing horizontal arm with 36mm hexagon shaft.
  ♦ Mechanical locking and vertical adjustment of mounting arm.
  ♦ Tools head with interchangeable plastic inserts for rim protection.
  ♦ Self-centering four-jaws with double pneumatic cylinder for secure clamping of all rim types.
  ♦ Powerful clamping cylinders provide uniform clamping pressure.
  ♦ Clockwise and anticlockwise rotation of the turntable through electric motor.
  ♦ The pedal assembly can be removed allowing easy servicing.
  ♦ Inflation gun with pressure gauge and pressure release button.
  ♦ Protection kit for bead breaker shoe, demounting head and clamping jaw comes standard.
  ♦ Complete with lubrication filter and pressure regulator.
  ♦ Optional Motorcycle tire clamp allows you to save money on another machine.
Technical Parameters



Rim Clamping Outside10"~19"
Rim Clamping Inside12"~21"
Max. Wheel Width15"
Max. Wheel Diameter37-3/4"
Beadbreaking Force2,500kg
Operating Pressure8~10bar
Driving Power0.75kW/1.1kW
Power Supply380V/50Hz/3Ph
Noise Level<70db
