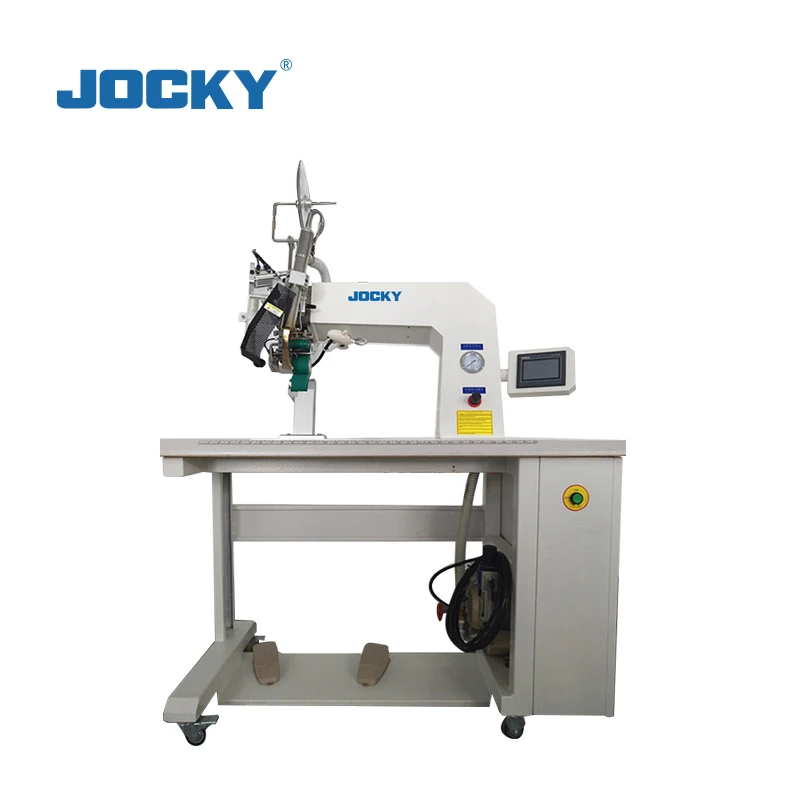

JK-A2 Hot Air Seam Sealing Tape Machine

JK-A2 Hot Air Seam Sealing Tape Machine

Specifications:
Power supply: Sigle phase 220V 50Hz / 110V

Rating efficiency: 2000W
Work pressure 0-0.5kgf/cm2
Temperature: Up to 700°C
Electric current 0-8.5A
Speed 124m/min
Air supply: 0.35~0.5Mpa
Width of pinch roller: Standard: 25.4mm mill finish, stell grain or straight grain are optional.

Width of seam sealing tape: according to demand.

Upper roller lift: 20-35mm, others are available according to requirements
Machine size: 1300mm(L)*600mm(W)* 1600mm(H)
Packing size: 1370*650*1650mm

Gross weight: 200kg

Prevention against jumping over sewing work: There are adustable devices to prevent the gun from jumping over the seamed sections when the gun is moveing inward with the idle wheel staring, or when the gun moving outward with the idle wheel stopping.

JOCKY hot air seam sealing machine can easily suit in any thick and thin PVC, PU, NYLON, NEOPRENE materials.

Be suitable for seam sealing tape over a sewing seam or glued joints as required in the production of waterproof products, such as nylon-pvc and nylon-pu, oxford cloth and rubber cloth rain coats, jackets, wind coats, snow-suits, ski wears, nylon tents, military water-proof coverings and bags, light vehicle coverings, car coverings,etc.

Detail performance for JOCKY hot air seam sealing machine

1, Suitable for kinds of waterproof garment and products, such as waterproof jacket, raincoat, tent car cover etc.

2, Panasonice PLC control.

3, The up and low roller chain are synchronous, auto compensation and reverse.

4, Double pedal control is designed according to human mechanics, simple and comfortable, suitable for long time operation.

5, It is possible to work 24 hours continuously with hight efficiency.

6, Blowing-in wind can be filtrated without oil or water by unique heater rube.

7, Auto tape clipping, feeding and finishing reduce function.

8, The functions of auto tape clipping, sending and finishing reduce the wastage of raw material.

9, Super-thin lower column is suitable to sealing product with various sizes.
