50 ton air hydraulic bottle jack, air hydraulic jack

Supplier: Wuxi Golden Boat Car Washing Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr. Yuzhou Jin
Price: $398.70 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1;	Payment Terms:	T/T;
Min Height:	151mm;	Max Height:	317mm;
Port:	SHANGHAI;	Supply Ability:	100 Unit/Units per Week;

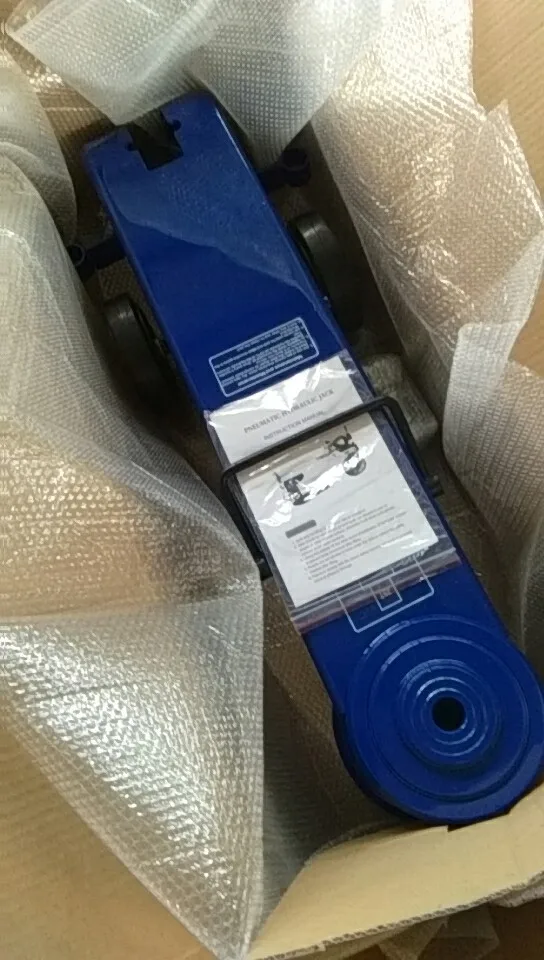

MOQ:	1 Piece;	Packaging Detail:	Plywood box;
Brand Name:	GOLDEN BOAT;	Delivery Detail:	Shipped in 0 days after payment;
Type:	Air Jack;	Port:	Shanghai;
Delivery Time:	30-45 Days;	Use:	Car Jack;
OEM:	YES;	Capacity (Load):	11-20T;
Place of Origin:	Jiangsu China;	Product name:	Air hydraulic jack;
Certification:	CE ISO;	Packing:	Wooden Box;
Payment term:	T/T;	Color:	Blue;
Material:	Metal;	Application:	Automotive Repair Tools;

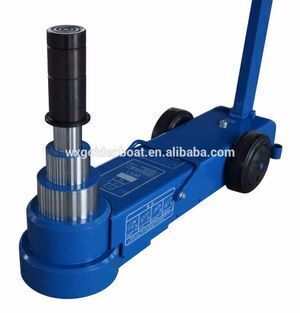

50 ton air hydraulic bottle jack, air hydraulic jack

Model type	50-T3
Type	AIR HYDRAULIC JACKS
Lifting Capacity	10/25/50T
Min Height	151mm
Max Height	317mm
Lifting Height	10T:52mm 25T:54 mm 50T:60mm
Working air pressure	0.9-1.2Mpa
Net weight	57kg
Gross weight	73kg
Packing size:	*1450330280mm*

Lifting:

1.Connect adequate air source to the air supply inlet(Air pressure 0.9-1.2Mpa)

2.Turn the control valve clockwise until the pump starts.

3.Transfer the load immediately to appropriately rated jack stands.

Lowering:

1.Raise load high enough to clear the jack stands.

2.Remove jack stands carefully(always used in pairs).

3.Slowly turn handle knob counter-clockwise, if the load fails to lower:
(a).Use another jack to raise the vehicle high enough to reinstall jack stands.

(b).Remove the malfunction jack and then jack stands.

(c).Use the functioning jack to lower the vehicle.

4.After removing jack from under the vehicle, fully retract the jack to reduce ram exposure to rust and contamination.

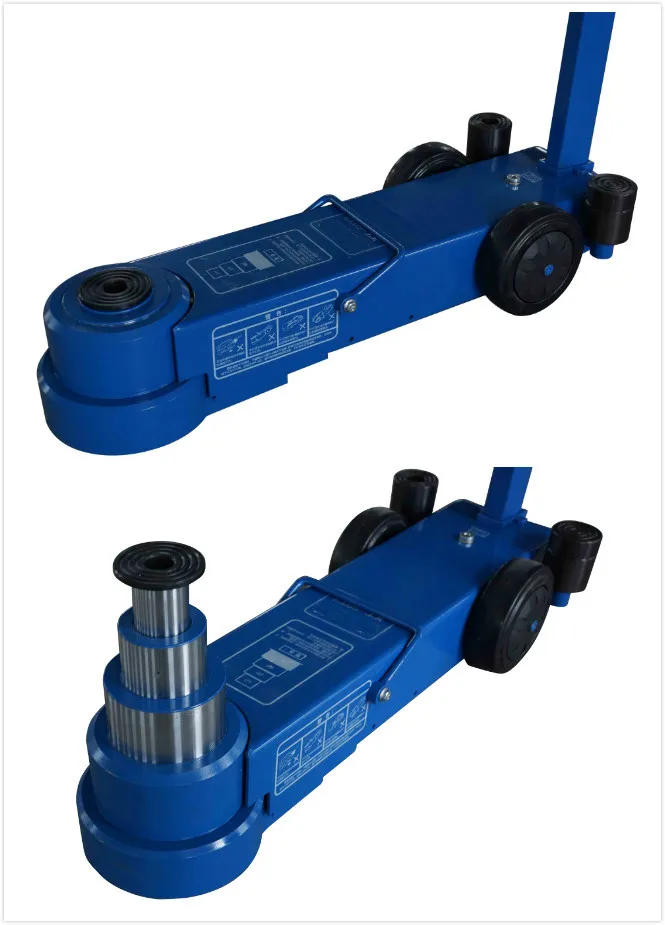

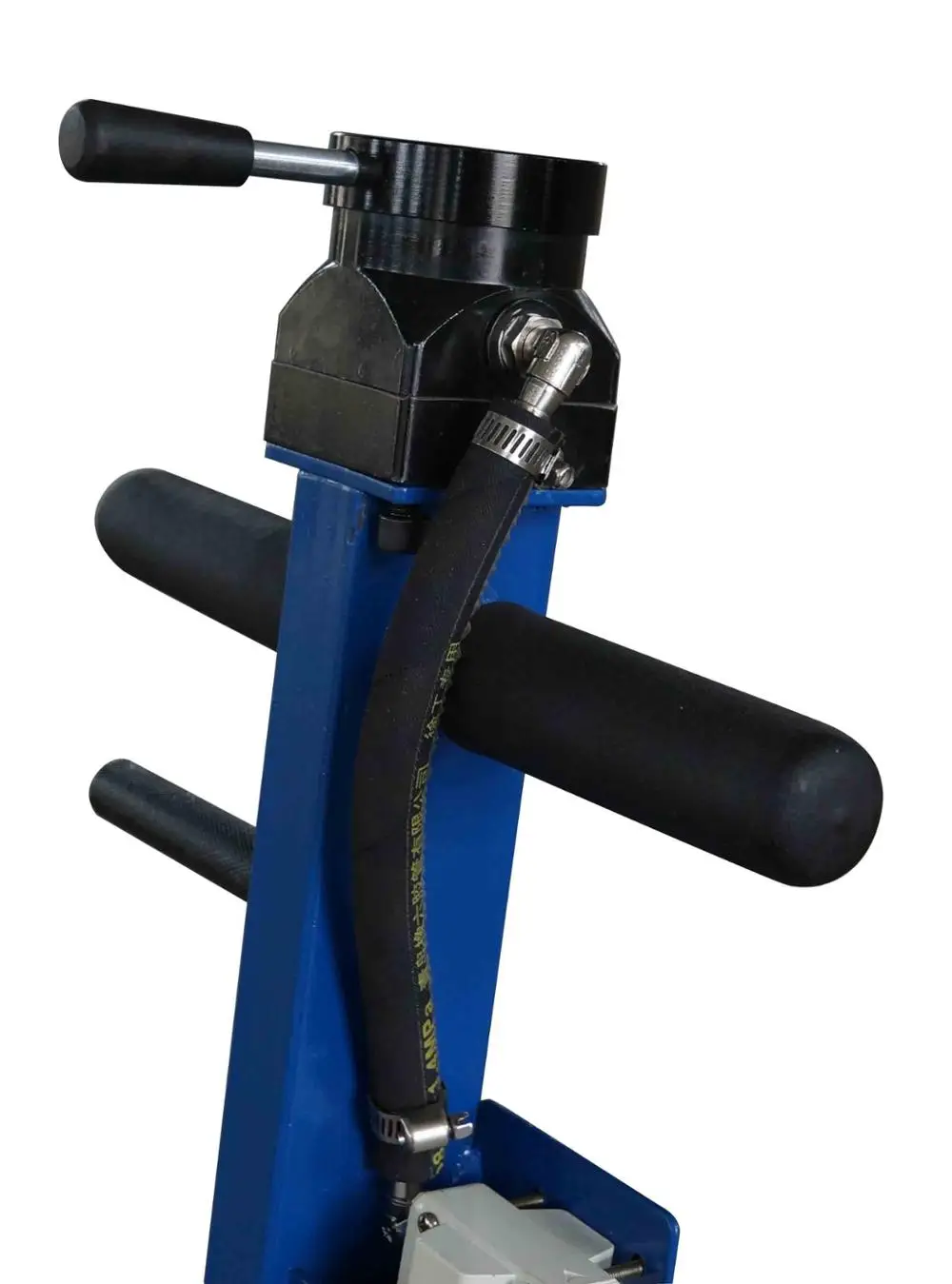

The detailed compenent parts:
