Size for evaporator: | 850*520*175mm; | Refrigerant: | R134a/R404a; |
Cooling capacity (Ambient 30℃): | -5℃/1630W, -15℃/1033W; | Payment Terms: | L/C,T/T,Western Union; |
Suggested box body volume: | 2m3~ 8m3; | Delivery Detail: | Shipped in 5 days after payment; |
Packaging Detail: | carton packing for reefer units for cargo vans; | Temperature range in box body: | -15℃ ~ +25℃; |
Brand Name: | Rifusen; | Port: | Qingdao, China; |
Supply Ability: | 500 Unit/Units per Month reefer units for cargo vans; | Coil for condenser and evaporator: | copper tube aluminum fin; |
Size for condenser: | 880*865*209mm; | Model Number: | R280T; |
Product name: | refrigerated van; | Place of Origin: | Henan China; |

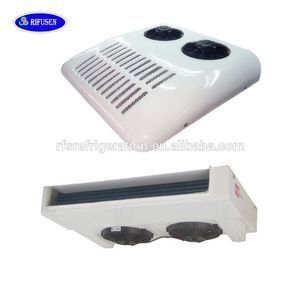

Model: R280T/roof top/12V 24V/van refrigeration unit for cargo vans & refrigerated van is designed specially for small refrigerated vans and small box bodies insulated for fresh or frozen transportation. R280T is suitable for operation down to -5 or -18°C.
Technical data | |
Model | R280T |
Temperature range in box body | -18℃ ~ +25℃ |
Drive | Engine drive |
Construction | Split & depend unit |

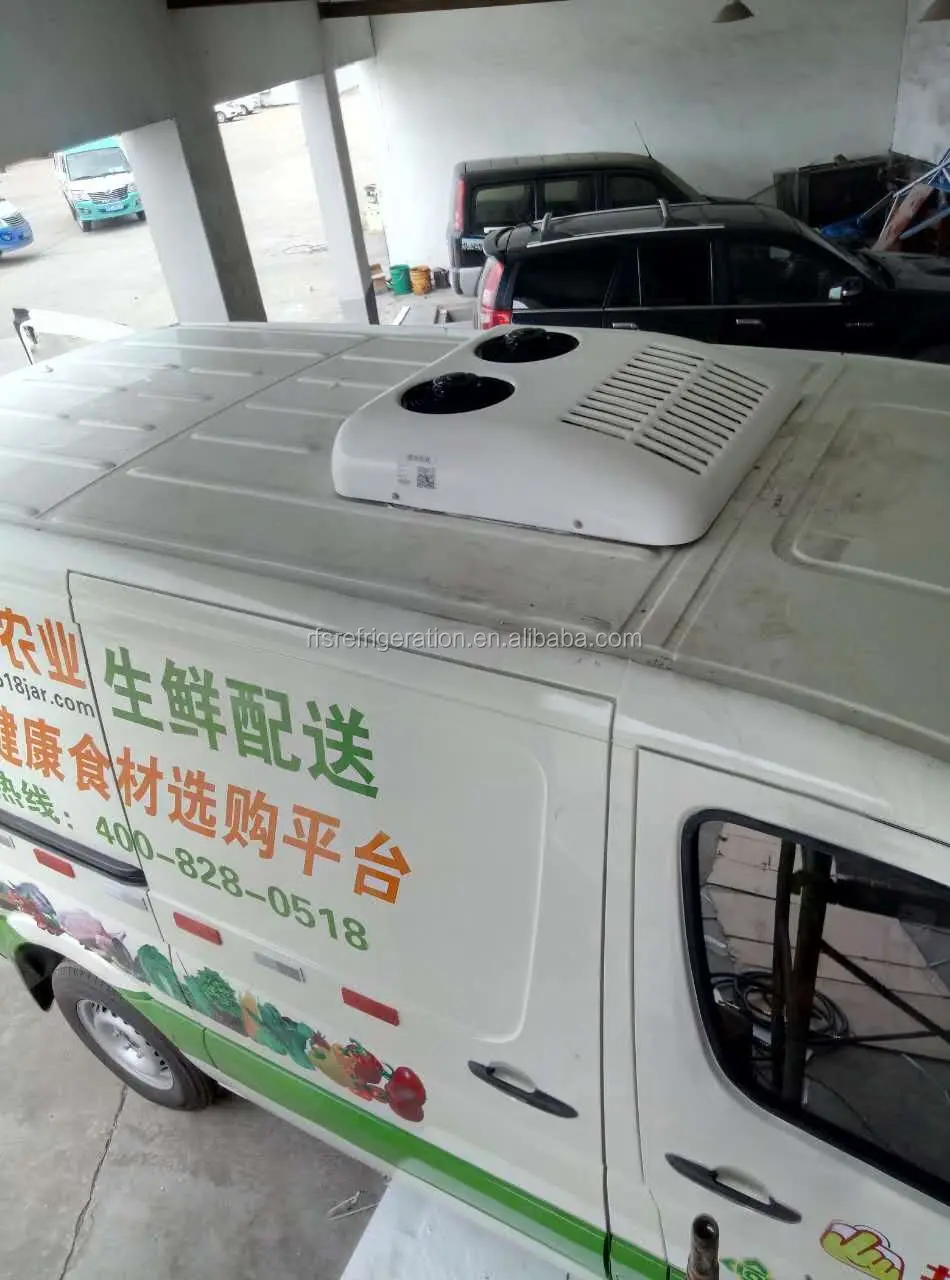

Installation | Roof top |
Voltage | 12V/24V |
Current draw | 12V/23A, 24V/15A |
Suggested box body volume | 2m³ ~ 8m³ |
Control | Digital microprocesser in cab |
Compressor | 5H11, 108cc/r |
Refrigerant | R404a |
Gas charge | 0.6kgs ~ 0.7kgs |
Protection | High & low pressure switch |
Defrost | hot gas |
Size for evaporator | 850*520*175mm |
Size for condenser | 880*865*209mm |
Weight for evaporator | 16kgs |
Weight for condenser | 30kgs |
Application | Refrigerated van |
STANDARD FEATURES
Engine driven compressor
In-cab digital box display, programmable for Centigrade operation
High/Low pressure protection
Hot gas defrost (R404a only)
℃ | ℉ | Watts | Kcal/h | Btu/h |
-5 | 23 | 2030 | 1745 | 6926 |
-18 | - 0.4 | 1420 | 1221 | 4845 |
As amebient temperature is +30℃ |
1. After receiving inquiry we will reply you as soon as possible .
2. We will recommend you the most suitable refrigeration unit as per your
local temperature and working condition .
3. We guarantee the delivery in the time of the order specificed .
4. After the goods is received , we will help you how to install and use .
5. Rifusen supply one year's spare parts .

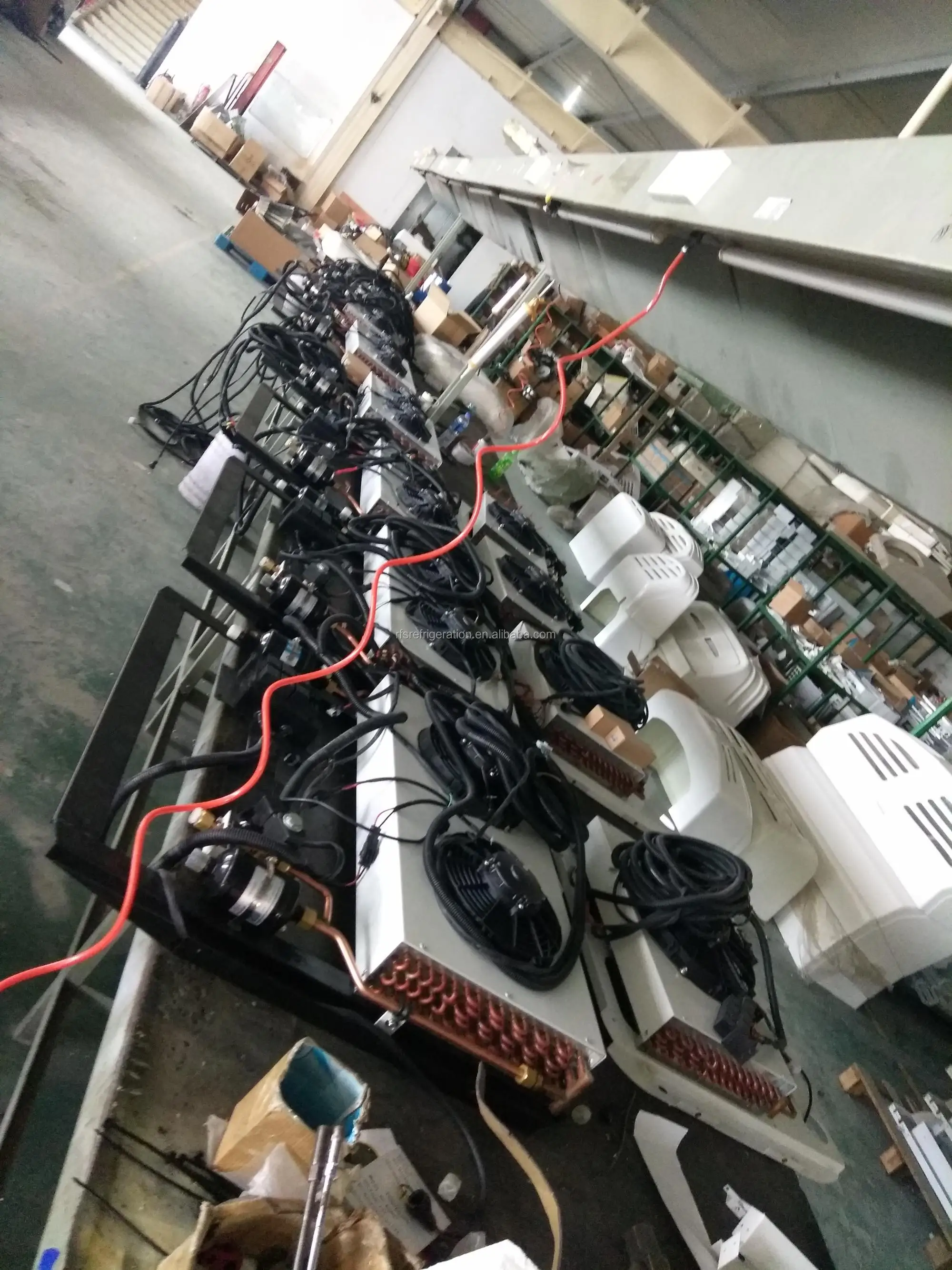

With over 10 years experience, Rifusen specializes in the manufacture of durable, vehicle engine powered mobile refrigeration for safe delivery of your fresh and frozen products. Our refrigeration units are suitable for installation in the truck box body from 2.6m to 9.6m . Rifusen is OEM supplier for large refrigerated truck box body manufacturers in China such as Beijing FOTON , Henan Xinfei and Liuzhou WUling .etc .Also our refrigeration units have been exported to many regions such as North America , South America , Middle east and Africa .
