Brand Name: | WH; | Condition: | New; |
Weight: | Depends on Size,Depends on size; | Payment Terms: | L/C,T/T,Western Union; |
Size: | Varies; | Power: | Optional; |
Features: | High Efficiency; | Power(W): | 50HZ; |
Warranty: | 1 Year; | Mesh: | 35-325; |
Certification: | API; | Supply Ability: | 5000 Set/Sets per Month; |
Production Capacity: | 500 Sets; | Packaging Detail: | The size of carton varies on order scale, and Ply-wooden carton with base for forklift use. The carton are strong Enough for loading and unloading and for long distance transportation.; |
Place of Origin: | Jiangsu China; | Model: | Swaco and Brandt; |
Port: | Shanghai; | Delivery Detail: | Within A month; |
Place of Original: | Jiangsu China; | Model Number: | ZS; |
Dimension(L*W*H): | Contact with us; | After-sales Service Provided: | No overseas service provided; |
Product name: | Shaker Screen; | Voltage: | Customers' Request); |
Application: | Drilling Mud Cleaning System,mud; |

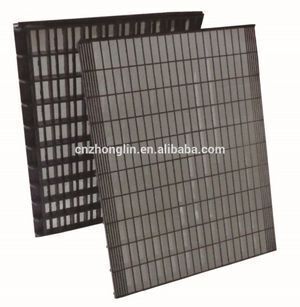

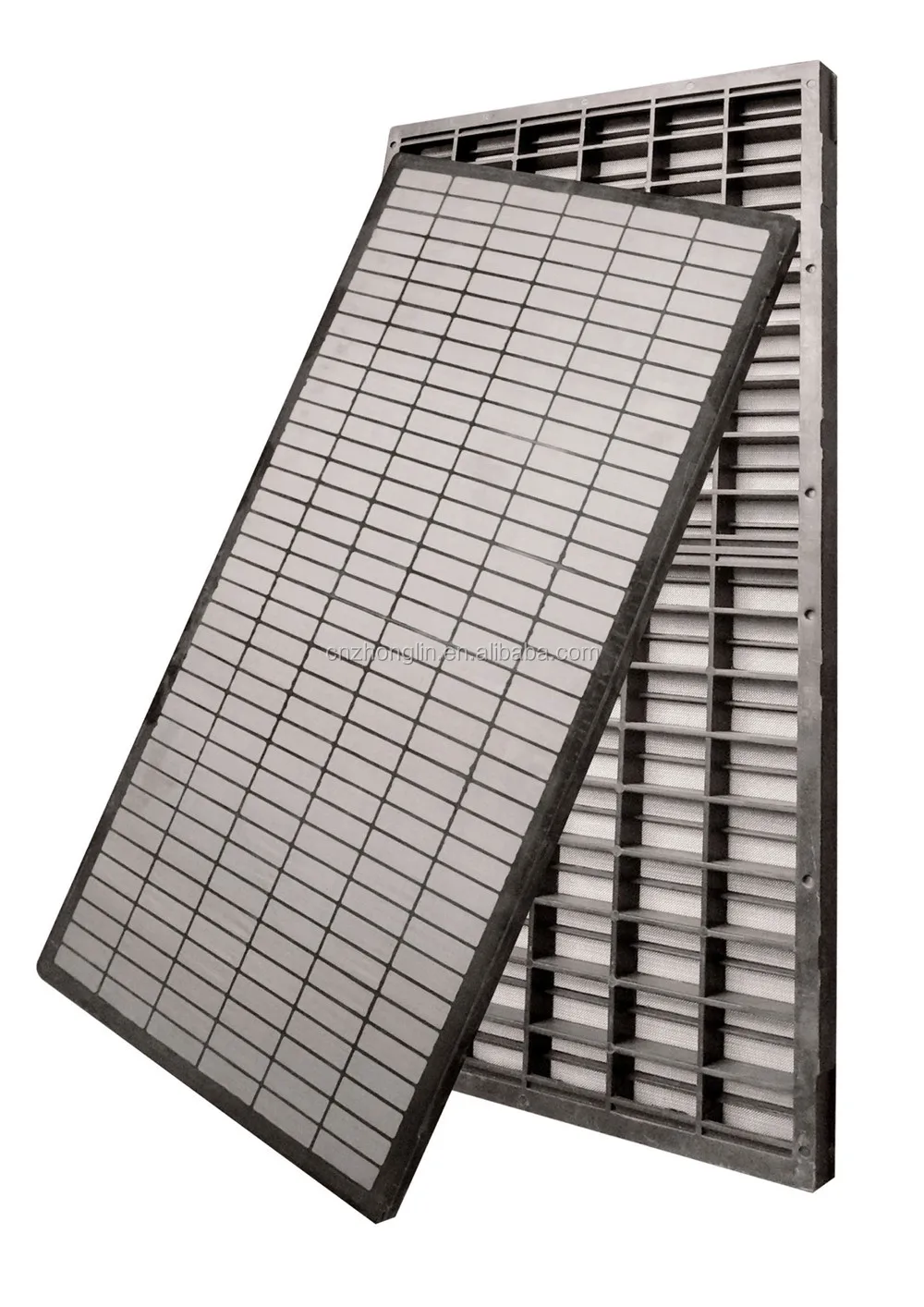

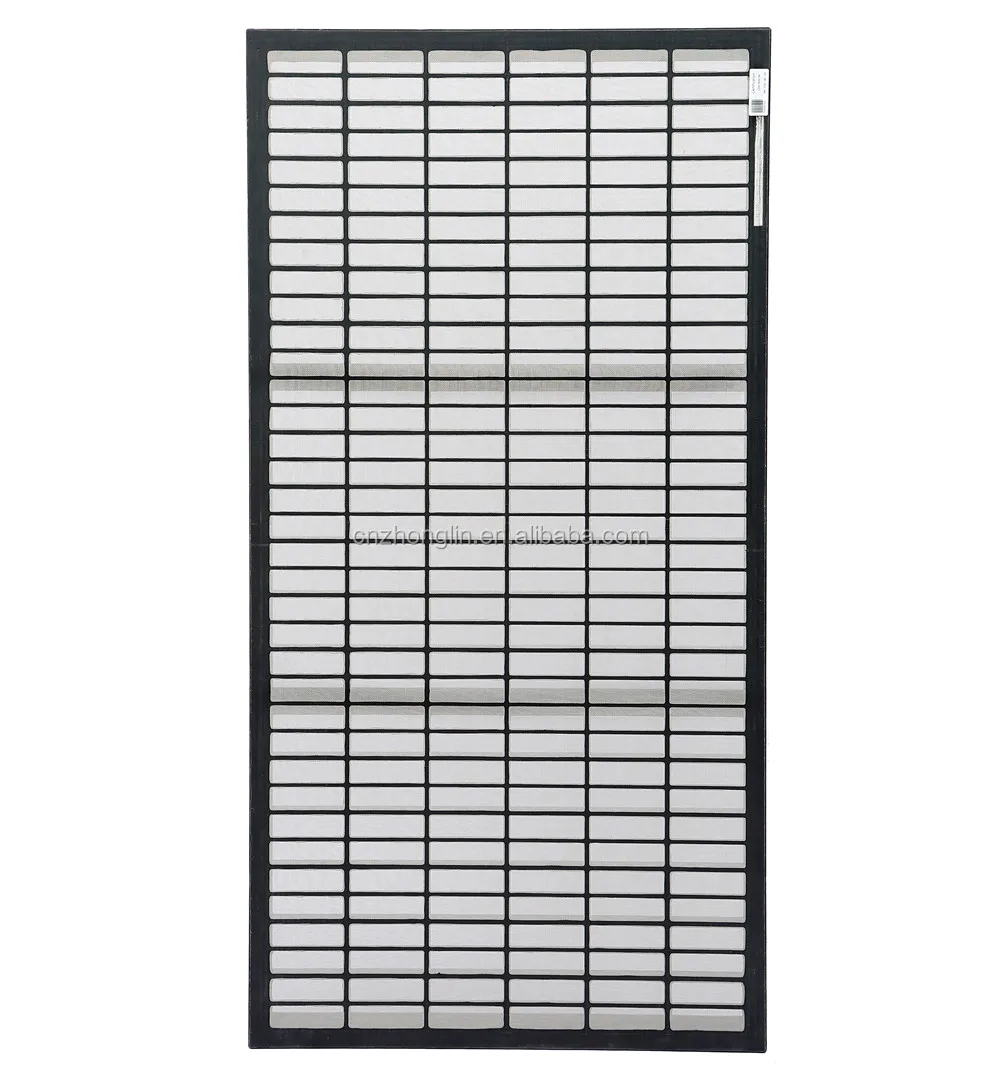

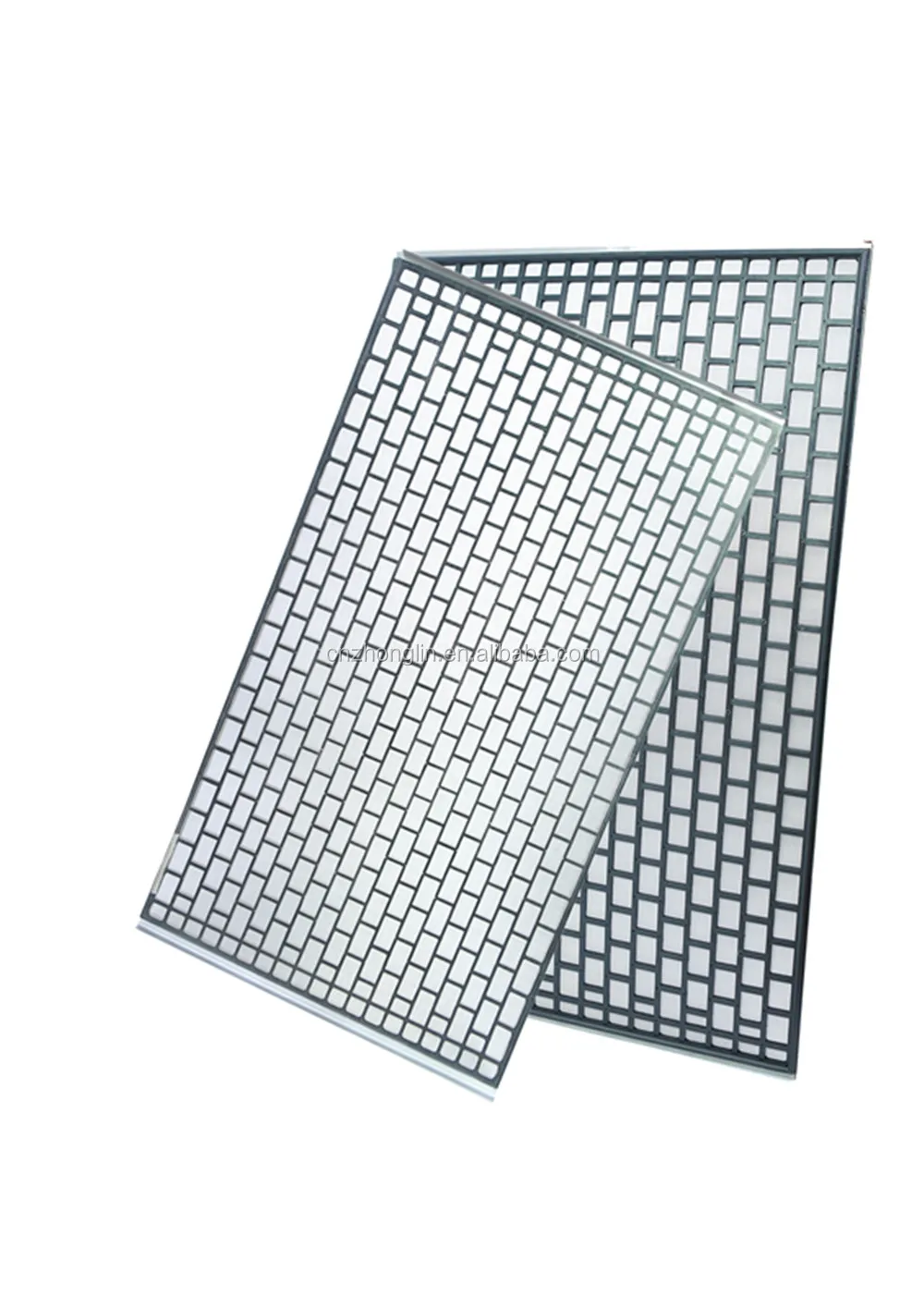

Shaler Screen
technological properties.
Simple structure, convenient installation and operation.
Widely used, good wear resistance, long service life ,high efficiency.
Strong disposal ability, low operation cost, high classification precision.
screen parameter | ||||
1)DRT-XR screen parameter | ||||
NO. | DRTXR MESH | API RP 13CMESH | API RP 13C d100 (micron) | Diversion rate (Kd/mm) |
1 | DRTXR084M | 50 | 308 | 4.13 |
2 | DRTXR105M | 60 | 250 | 3.46 |
3 | DRTXR120M | 70 | 211 | 3.18 |
4 | DRTXR150M | 75 | 196 | 2.87 |
5 | DRTXR165M | 80 | 180 | 2.47 |
6 | DRTXR200M | 100 | 162 | 1.88 |
7 | DRTXR230M | 120 | 118 | 1.48 |
8 | DRTXR270M | 140 | 110 | 1.26 |
9 | DRTXR325M | 170 | 89 | 0.94 |
10 | DRTXR400M | 200 | 73 | 0.68 |
2) DRTXL screen parameter | ||||
NO. | DRTXL MESH | API RP 13CMESH | API RP 13C d100 (micron) | Diversion rate (Kd/mm) |
1 | DRTXL050M | 35 | 414 | 6.38 |
2 | DRTXL084M | 60 | 238 | 3.49 |
3 | DRTXL105M | 70 | 198 | 2.95 |
4 | DRTXL120M | 100 | 162 | 2.46 |
5 | DRTXL165M | 120 | 120 | 1.74 |
6 | DRTXL200M | 140 | 111 | 1.64 |
7 | DRTXL230M | 170 | 80 | 1.28 |
8 | DRTXL270M | 200 | 78 | 1.05 |
9 | DRTXL325M | 230 | 55 | 0.62 |
3) DRTTBC screen parameter | ||||
NO. | DRTTBC MESH | API RP 13CMESH | API RP 13C d100 (micron) | Diversion rate (Kd/mm) |
1 | DRTTBC 52M | 70 | 221 | 3.98 |
2 | DRTTBC 84M | 70 | 221 | 3.03 |
3 | DRTTBC105M | 100 | 169 | 2.21 |
4 | DRTTBC120M | 100 | 156 | 2.33 |
5 | DRTTBC165M | 140 | 107 | 1.57 |
6 | DRTTBC200M | 170 | 91 | 1.41 |
7 | DRTTBC230M | 200 | 78 | 1.17 |
8 | DRTTBC250M | 200 | 69 | 0.75 |
9 | DRTTBC270M | 230 | 61 | 0.74 |
10 | DRTTBC300M | 270 | 56 | 0.53 |
11 | DRTTBC325M | 325 | 43 | 0.4 |
