SY IP69 IP68 Electrical Waterproof High Quality Atex Black Grey PG Long Thread Plastic Nylon Cable Gland with Nut

Supplier: Jiaxing Shengyang Electric Co., Ltd
Region: Zhejiang, China
Contact: Ms Jing Zhou
Price: $0.05 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Certificate:	REACH CE RoHS IP68 SGS;	Packaging Detail:	A. Common Packing: Certain Pcs + Zip Lock Bag + Label + Export Carton B. Common Packing:Colorful Inner Box + Export Carton C. Customized Packing: OEM Label, Inner Box, Blister, etc.;
Model Number:	Metric;	Color:	Red,Black,White,Grey,Blue and customized colors;
Size:	M12-M63;	Advantages:	Free Samples, Fast Delivery, Save Money, No Need Screw Plug;
Material:	Nylon,Nylon;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;
Protection Level:	IP68,IP68-5Bar;	Product name:	Electrical Grey Plastic Cable Gland;
Supply Ability:	1000000 Piece/Pieces per Month Electrical Grey Plastic Cable Gland;	Function:	Protect Cable;
Place of Origin:	Zhejiang China;	Thread:	Metric Standard;
Port:	Ningbo or Shanghai;	Work Temperature:	-40°C to 100°C in static state, -20°C to 80°C in dynamic state;
Fire Proof Level:	94V-2/V-O;	Brand Name:	SY;

Product Description

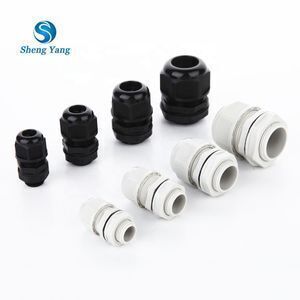

SY IP69 IP68 Electrical Waterproof High Quality Atex Black Grey PG Long Thread Plastic Nylon Cable Gland with Nut

Thread specifications:	Metric thread, in line with the eu norms.
Products Material:	A.C.E.F part made of nylon PA66 (fire rating UL 94 v - 2), B and D part adopts EPDM weather resistance rubber. All kinds of aperture, material of rubber can accept customization
Product certification:	European CE certificate,European environmentalROHS, REACH certificate,The United States UL certification, and explosion-proof certification of the EX.
Protection Level :	Within the scope of the provisions of card buckle, and use of type O sealing screw tight tight head, achieve IP68-5 bar.
Color type:	Black, grey, blue, red, white, add letters after all sorts of color please contact with the product. For example: MA12-08 b black and so on.
Working temperature:	Static: - 40 ℃ ~ + 100 ℃ short time can be up to + 120 ℃.
Product features:	Special clamping claw, and the design of the clamping ring is concave and convex clasped with forced tight head assembly time-savers, cable clamping range is big, strong tensile resistance, can waterproof, dustproof, salt resistance, resistance to acid and alkali, alcohol, grease and common solvent.

Cable Gland Details

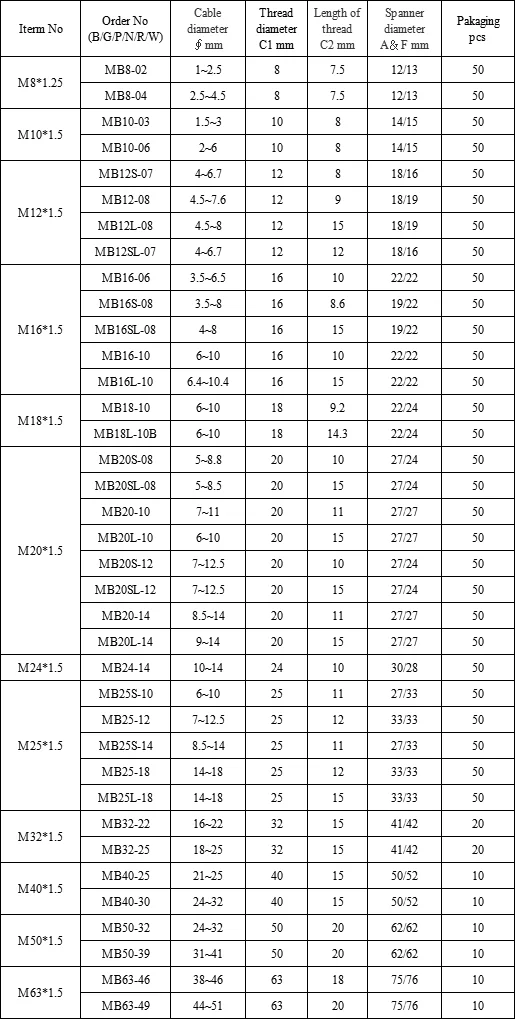

Technical Specifications

product application

Packing & Delivery

Packaging Details:

Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other

packing can be supplied according customers request.

Delivery Detail:

Shipped in 7 days after payment

Our company

Established in 1999, ShengYang electric company has been boomed and prospered in areas of Shanghai, Jiaxing, etc.. Ever since then, the company has been dedicated to the R&D of cable wiring equipment, the manufacture and the sales.The series of fixed head cables have been rated as the top-selling products since 2008 among peers in industry.

Certifications

FAQ

Q1: Are you a manufacturer or trading company?

A: We are a manufacturer with professional R&D team, and providing OEM & ODM services.

Q2: Where is your factory located?
A: Our factory located in Jiaxing Zhejiang Province that is closed to Shanghai and Hangzhou.Welcome to visit us.

Q3: Do you charge for samples and freight cost?
A: In generally,samples will be FREE. Will take reasonable charge if the samples are high-cost, the freight will be bear by yourself or send via your account.

Q4: Are your products conforming to our standards?
A: Yes, our products can pass the testings as your requires, such as REACH,CE,RoHS,IP68 etc.

Q5: Can you give us a favorable discount?
A: Of course, a favorable discount will be offered if the quantity is sizable.

Q6: How do you ship the goods and how long does it take?
A: For small order usually ship by UPS, FEDEX, TNT, DHL,TOLL, EMS etc. It usually takes 5-7 days to arrive. For big order, will take around 20-35 days by sea, 5-10 days by air.
