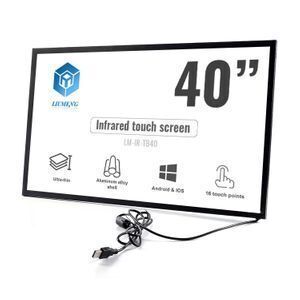

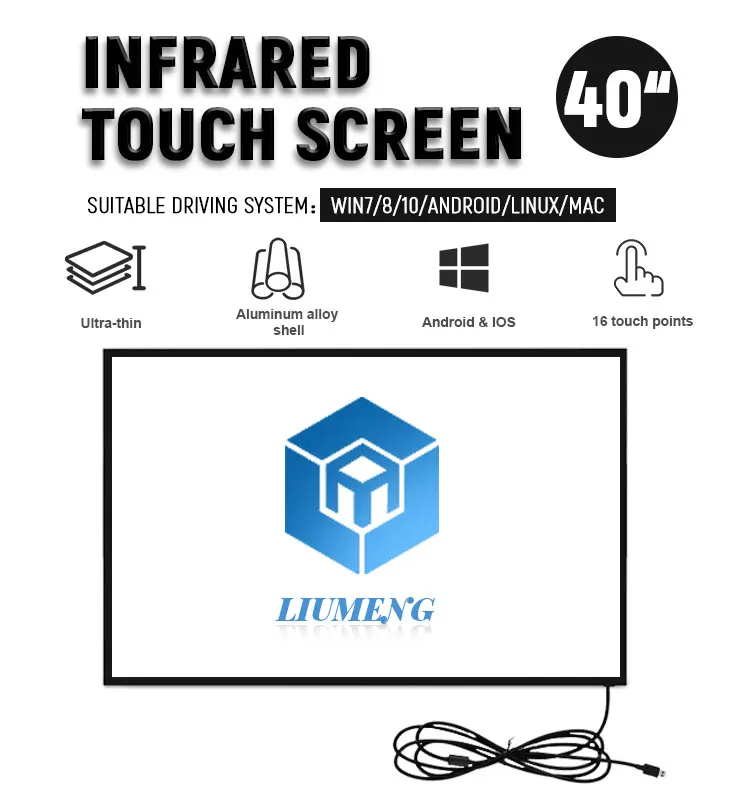

Factory price New designed LCD ir multi touch screen frame 40 inch for coffee table

Product details
Support Systems:Win7/8/10/Android/Mac/Linux;Brand Name:Liumeng;
Place of Origin:Guangdong, China;Certificates:ISO9001/CE/FCC/RoHS;
Products Status:Stock;Model Number:LM-IR-TB40;
Resolution:32767x32767;Selling Units:Single item;
Single gross weight:3.5 KG;Warranty(Year):1-year;
Screen Size:40";Single package size:113X10X10 cm;
Interface type:USB;After-sales Service:Call Center and on-line Technical Support;
Type:Infrared,Infrared;Packaging Detail:Carton;
Touch points:16 Points;Glass material:without glass;
Response time:<10ms;
Product Description

Active Area Size 40 inches

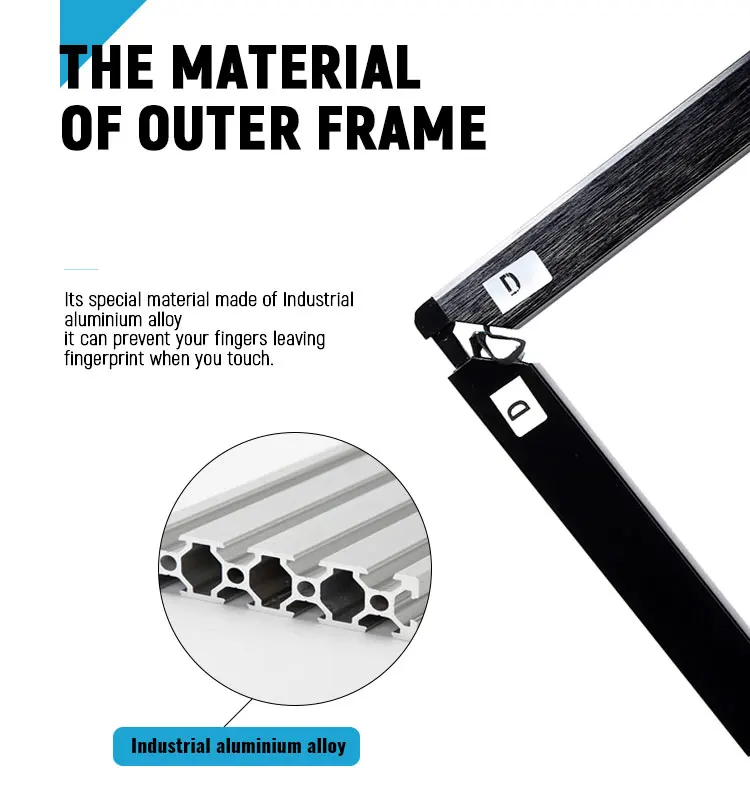

Bezel Material Aluminium Alloy
Glass Temper type with 2mm (Customized glass can be OEM)
Touch Resolution 32767x32767
Response Time Less than 10ms
Touch Accuracy +/-2mm(Over 95% area)
Touch Input Objects Fingers,Opague objects
Touch Durability Unlimited
Size for touch input objects 7mm
Interface  USB2.0 full speed

3.Electrical Specification

Scan Rate More than 100Hz/s
Communication USB2.0
Transmission Rate 480Mbps
Power supply mode USB 5V DC
Supply Voltage from 4.75 to 5.25V
Operating Voltage equal to or less than 200MA



4.Environmental Specification



Working Temperature -15℃~55℃
Stock Temperature -40℃~75℃
Working Hudimity 10%~90%RH,no condense
Stock Humidity 10%~90%RH,no condense
Anti light Ability <80000Lux
Static Electricity  Equal to grade EN 6100-4-2  2008:3, Touching type Power release 4KV,Air type Power release 8KV(Install to display to test)



5.Software Compatibility



Firmware Upgrade Available
OS compatibility Win7/Win8/Win10,Android/Linux/Mac
API(software interface) able to provide motive links datasheet,DIY API interface is available

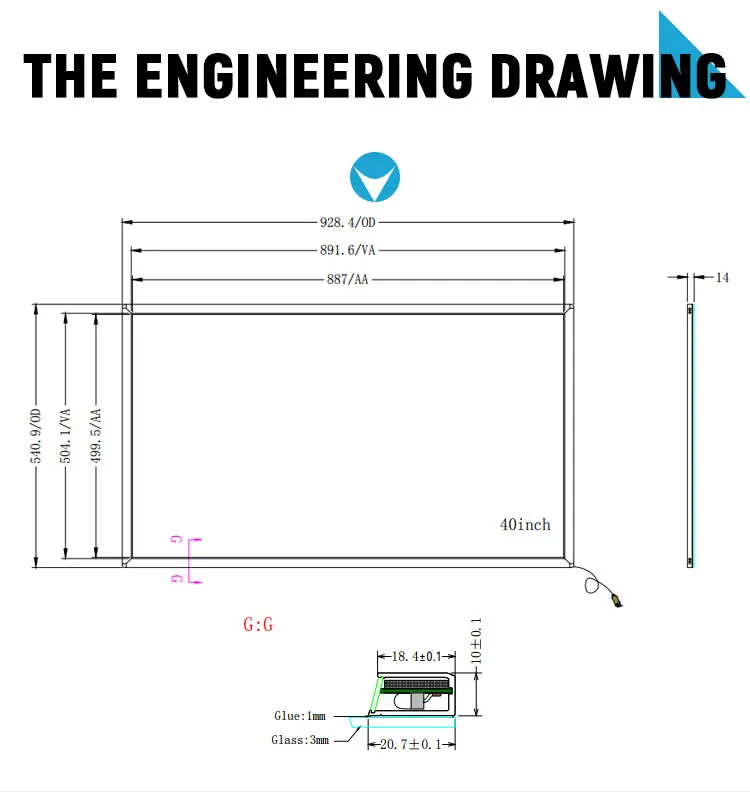

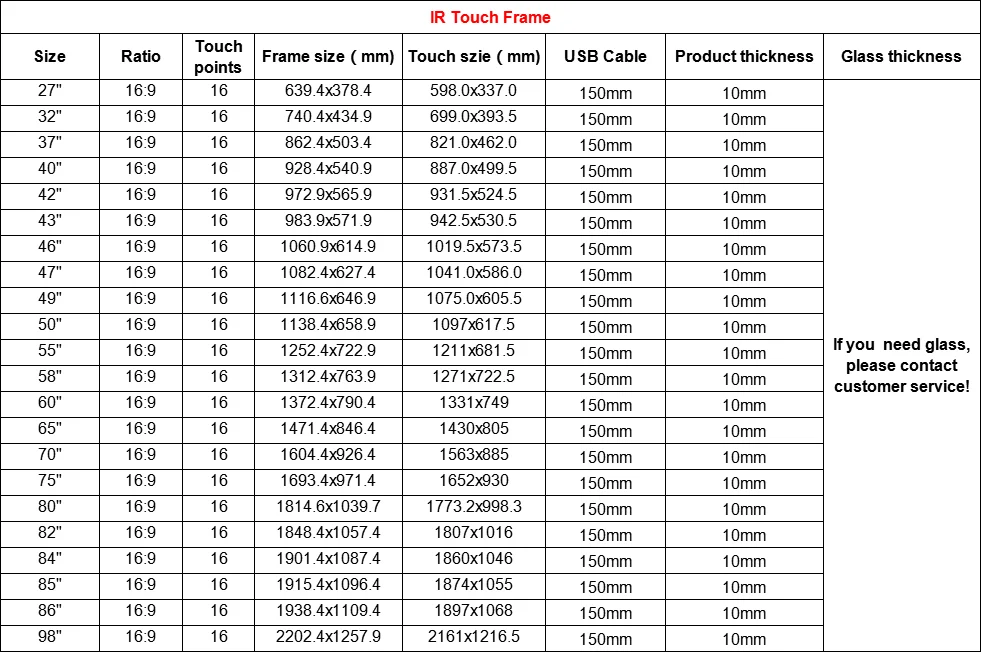

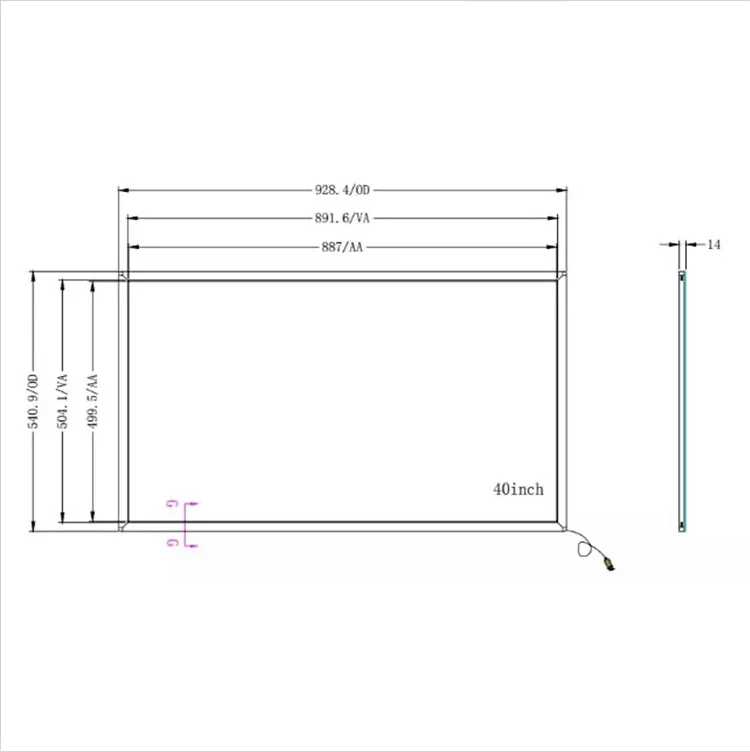

Product Size

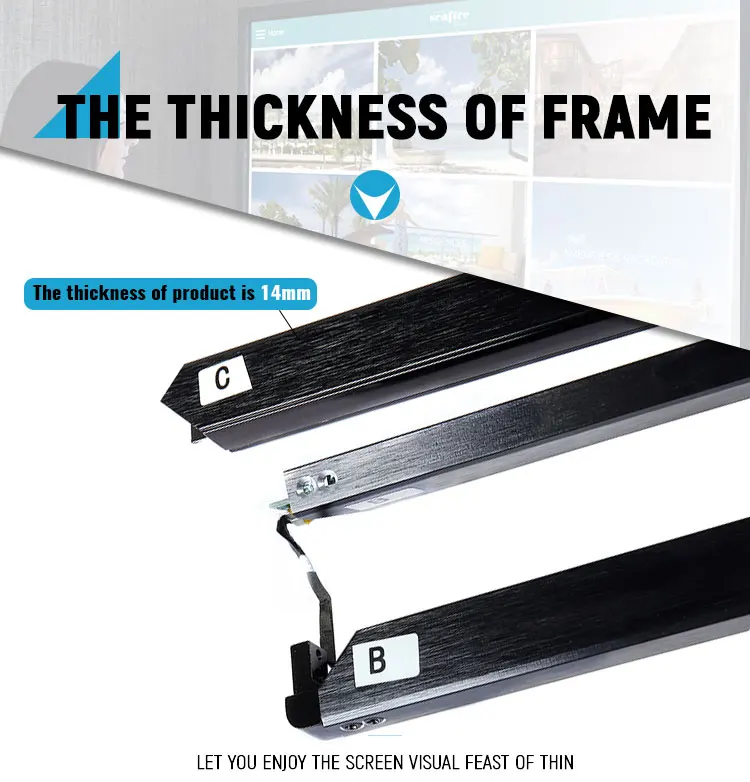

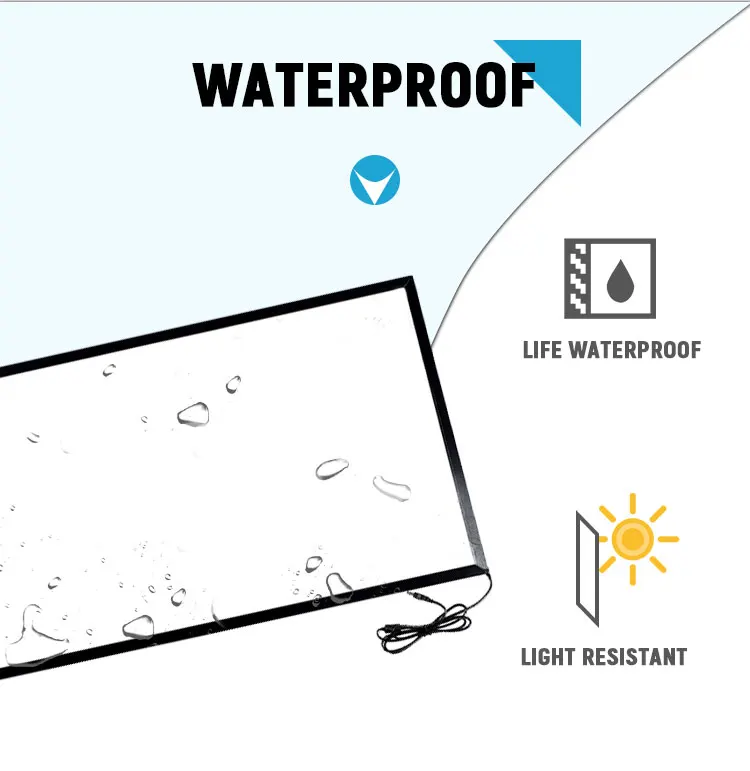

Detailed Images

 ====

Application

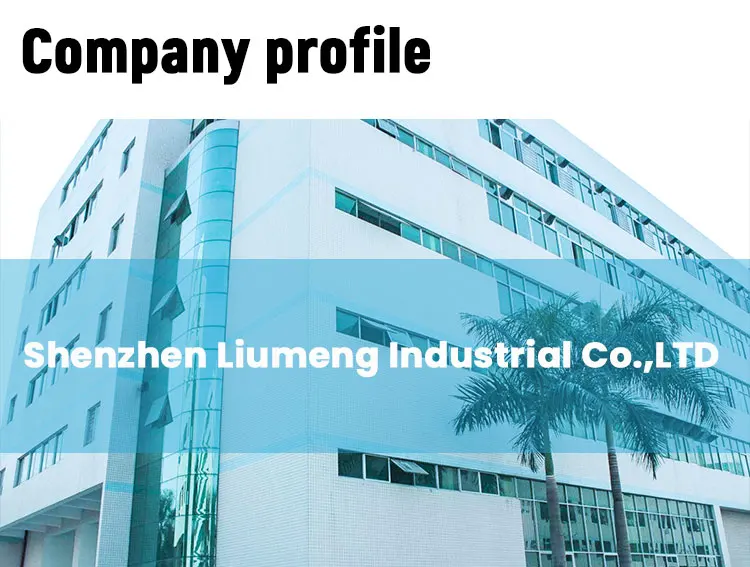

Company Information



Packaging & Shipping

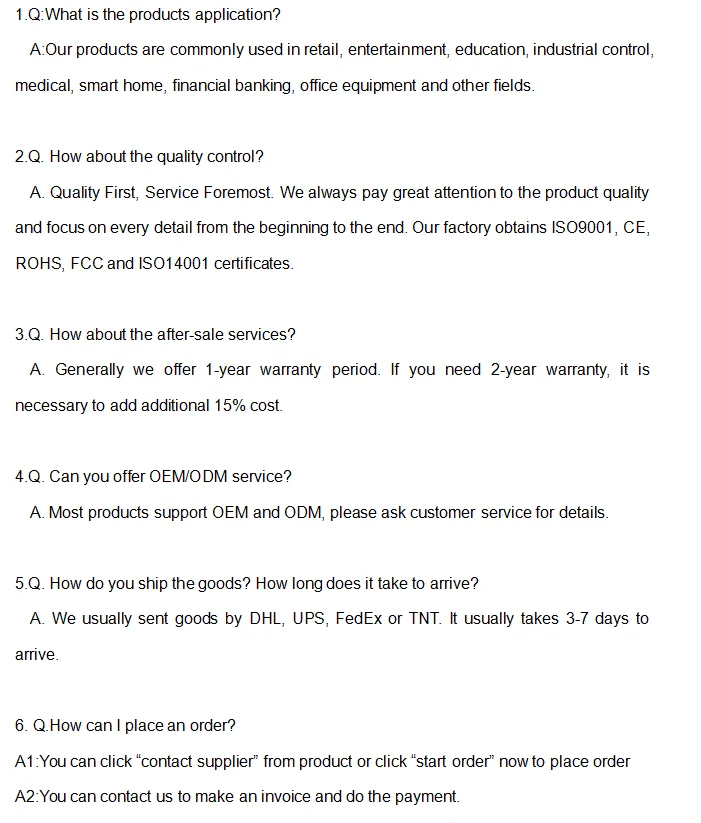

FAQ
