EU Socket Tester Leakage detector GFCI electric socket tester

Product details
Place of Origin:Guangdong China;correct connection:yes;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Port:shenzhen;
Supply Ability:50000 Set/Sets per Month;RCD test (105D):>30mA;
Weight:Approx.50g;open neutral:yes;
Operating Temperature:Normal temperature;RCD test (105E):>30mA;
Dimensions:65mm*62mm*58mm;Packaging Detail:carton;
GFCI test:>5mA;Accuracy Class:0.5;
Measuring Range:AC 48~250v;Brand Name:HOTOTECH;
live wire and ground wire reverse:yes;open live:yes;
Safety Rating:EN61010-1,-2-030;EN61326-1,CATII300V;Model Number:HT106B;
open ground:yes;Supply Voltage:AC220V;
Display Type:Digital Only;

HT- 106

SOCKET TESTERS

PRODCUT FEATRUE

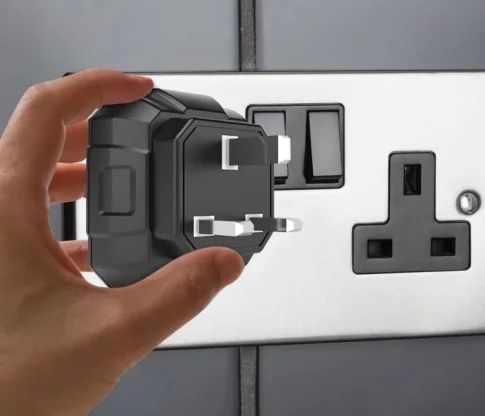

  • The entire test array can be performed by simply plugging the device into the socket and observing the state of the lamp.
  • Quick reading: bright red and blue durable color LED lights and audio tones for easy indication.
  • Durable: High impact-resistant ABS housing for compact ergonomics.
  • Check the line wire ,ground wire  and  neutral wire  is correct

PRODUCT SPECIFICATIONS

Specifications

HT106B

HT106D

HT106E

Voltage range

AC 48~250v

GFCI test

>5mA





RCD test



>30mA

>30mA

Voltage measurement(48V~250V/45~65Hz)

LCD display

backlight

Socket connection detection

Correct connection



Open ground



Open neutral



Open live



Live wire and ground wire reverse



Live wire and neutral wire reverse



Live wire and ground wire reverse, missing ground wire

Weight

Appro*.50g

Size

65mm*62mm*58mm

Safety rating

EN61010-1,-2-030;EN61326-1,CAT II 300V



PRODUCT IMAGES

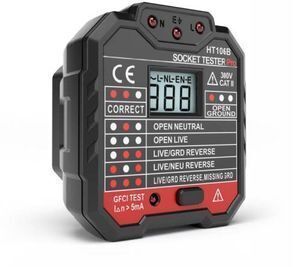

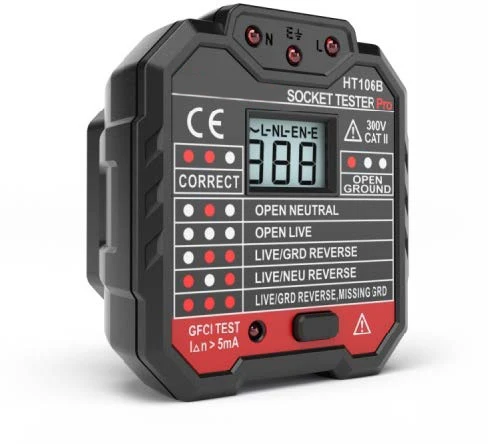

                                                            HT106B

                                    HT106D







                                                        HT106E
