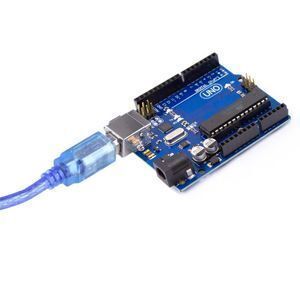

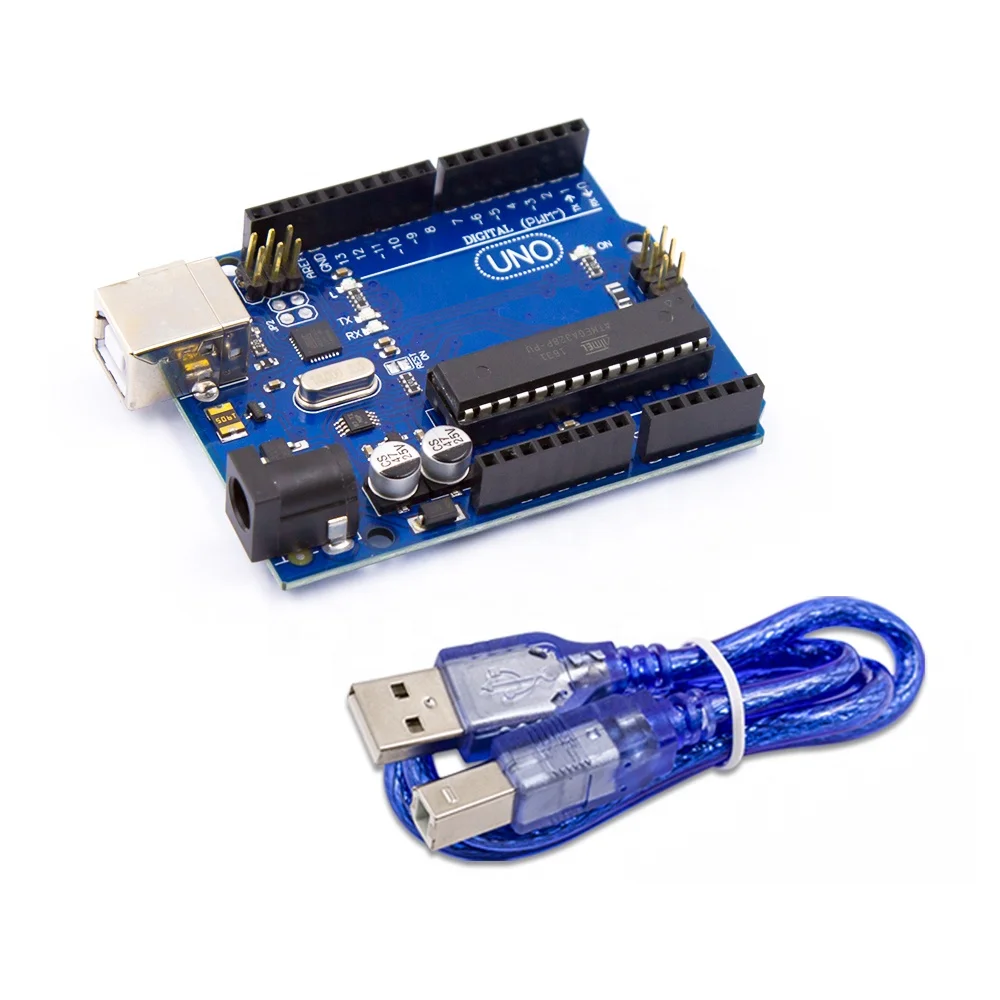

Uno R3 Dip Board ATmega328P ATMEGA16U2 Development Board Compatible UNO R3 with USB Cable for Aduino

Product details
Weight:64g;Product Name:Uno R3 Development Board Microcontroller Based ATmega328 ATMEGA16U2;
Single gross weight:0.1 KG;Brand Name:Kuongshun;
Place of Origin:Guangdong China;Excellent Quality:Solder is Very Clean;
Selling Units:Single item;Model Number:AA002 uno r3 dip board;
Size:15*14*1.5cm;Included:USB Cable for Board;
Single package size:15X14X1.8 cm;Chip 2:ATMEGA16U2;
Platform:Microcontoller based on the ATmega328;Item:AA002;
Chip 1:ATmega328;Type:Development board;
Product Description
UNO R3 DIP Board
Item No.
AA002
Chip 1
ATmega328
Chip 2
ATMEGA16U2
Size
7.5*5.3cm
Weight
64g
Corlor
Blue
Custom
OEM, ODM

The Uno R3 is a microcontroller board based on the ATmega328 (datasheet).

It has 14 digital input/output pins (of which 6 can be used as PWM outputs)
-6 analog inputs, a 16 MHz crystal oscillator
-USB connection, a power jack, an ICSP header
-Reset button

It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Uno differs from all preceding boards in that it does not use the FTDI USB-to-serial driver chip. Instead, it features the Atmega8U2 programmed as a USB-to-serial converter.

Microcontroller ATmega328
Operating Voltage
5V
Input Voltage (recommended)
7-12V
Input Voltage (limits)
6-20V
Digital I/O Pins
14 (of which 6 provide PWM output)
Analog Input Pins
6 DC Current per I/O Pin 40 mA DC Current for 3.3V Pin 50 mA
Flash Memory
32 KB of which 0.5 KB used by bootloader
SRAM
2 KB
EEPROM
1 KB
Clock Speed
16 MHz.

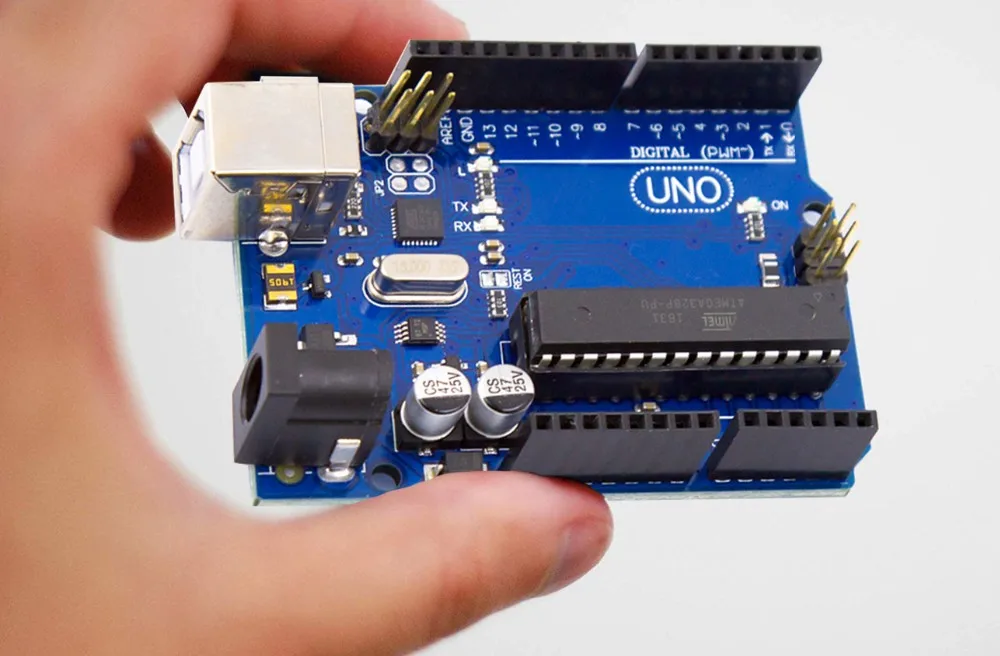

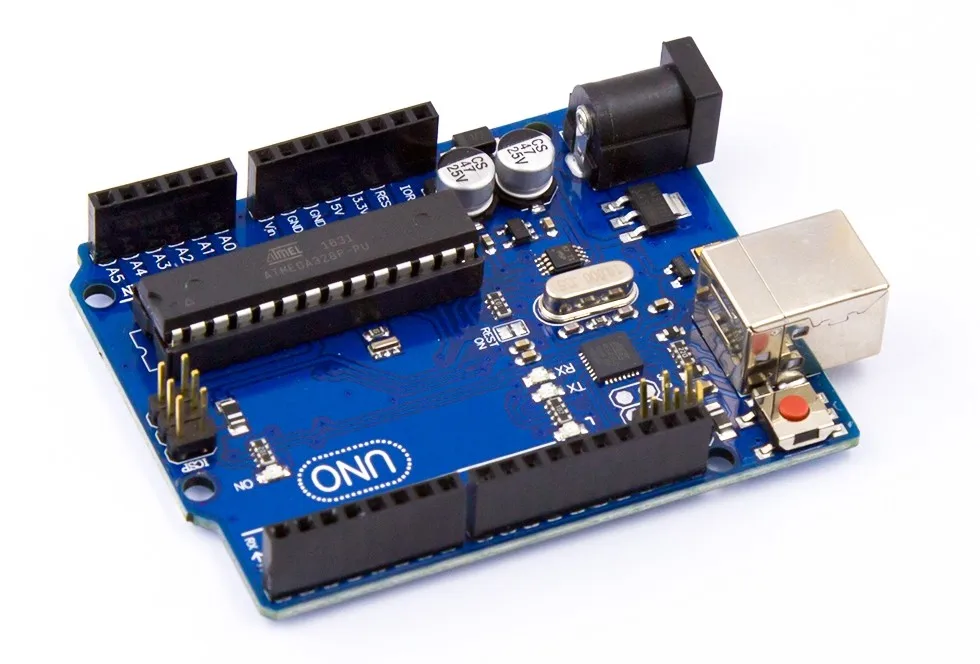

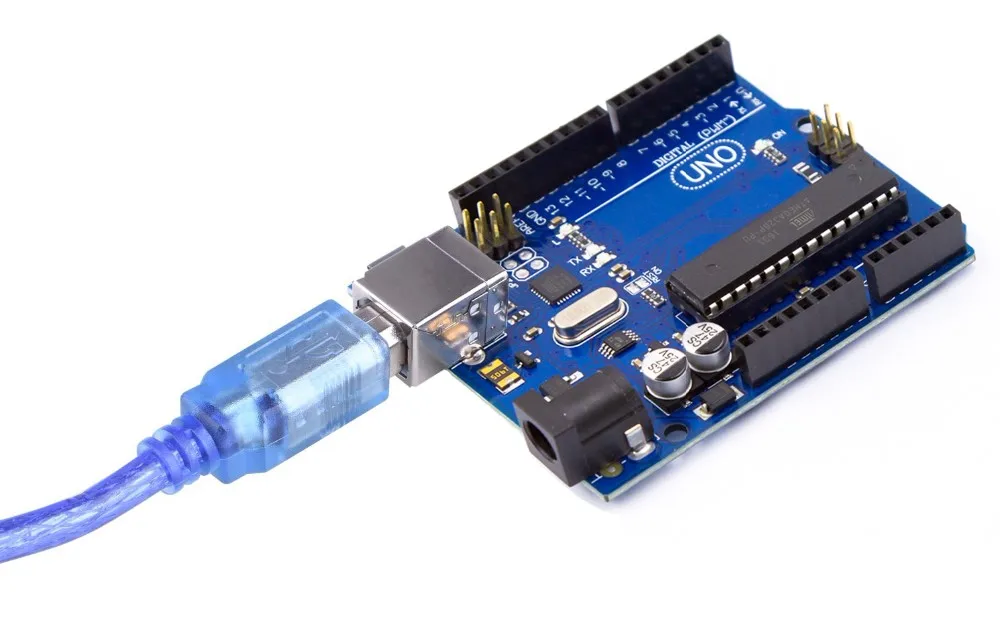

Detailed Image

What can I do with an Uno R3 board?

If you are unsure on what your first project could be you can try the UNO R3 Starter Kit, it will guide you from your very first steps with electronics into the world of interactive and sensing objects.
If you are looking for inspiration you can find a great variety of Tutorials on UNO R3 Project Hub.
Also UNO R3 board can be used in UNO R3 Starter Kit.
