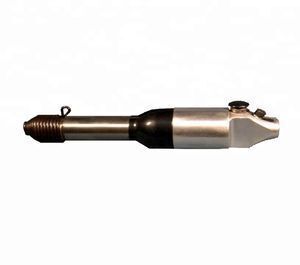

1740 BPM 4X INDUSTRIAL STRAIGHT AIR RIVETING HAMMER (GS-0805-4XS)

Product details
Payment Terms:L/C,T/T,Western Union;SOUND PRESSURE LEVEL:95 DBA;
Supply Ability:500 Piece/Pieces per Month;NET WEIGHT:1.4 KGS;
No-Load Speed:1740 BPM;Place of Origin:TAIWAN;
Port:TAIWAN;AIR PRESSURE:90 PSI;
Model Number:GS-0805-4XS;Packaging Detail:PACKING: 1 PC/INNER BOX, 10 PCS/ 13.00KGS/ 15.00KGS/ 0.70CUFT/CTN;

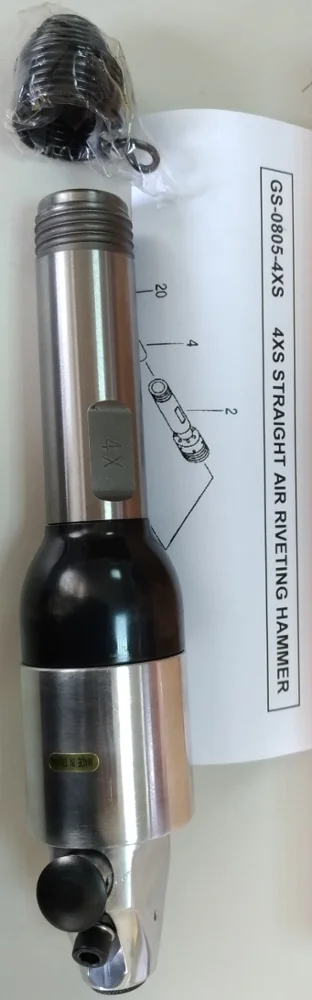

GS-0805-4XS   4X AIR RIVETING HAMMER

DESCRIPTION

* CHISEL SHANK ROUND HEX: 6.4, 4.8 MM

* BORE AND STROKE: 12.7 X 77.8 MM

* IMPACT PER MIN: 1,740 BPM

* AIR INLET: 1/4" NPT OR PT

* NET WEIGHT: 1.4 KGS

* AIR PRESSURE: 90 PSI

* OVERALL SHANK OPENING: 10.2 MM

* HOSE SIZE: 3/8" (9.5 MM)

* AVG. AIR CONS: 12 CFM (350 L/MIN)

* SOUND PRESSURE LEVEL: 95 DBA

* SOUND POWER LEVEL: 105 DBA

* VIBRATION LESS THAN: 13 M/SEC2

* PACKING: 1 PC/INNER BOX, 10 PCS/ 13.00KGS/ 15.00KGS/ 0.70CUFT/CTN
