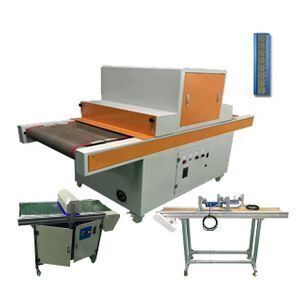

MOYOHO High quality UV LED drying oven UV curing machine conveyor belt dryer

This series of products is suitable for dring/curing silk-screen printing, pad printing, painting, varnish and adhesive glue, ect, it can replace the ordinary lamp.

Product characters of UV LED curing system

Product specification

	MODEL#: MYH-B(LB)400S40-3200-W *UV LED Power controller: P12, L365*W500*H160mm *Size of UV emitting window / area: Le405 * We40mm *Radiation intensity (FYR): 0-25W/cm² *Wavelength: 365 / 385 / 395 / 405nm ± 2.5nm, single or mix *Curing time or speed:0.1-2s (depending on UV chemical) *Water cooling *Material of frame: Aluminium *Size of frame: L(1000-2000)*W500*H800mm *Material of conveyor: PVC, Tefflon or Metal mesh *Size of conveyor belt: L(1000-2000)*W400mm *Running Speed: 0-15m/min *Electric power of set : 3200W
	MODEL#: MYH-B(LB)600S40-4700-W *UV LED Power controller: P18, L690*W500*H230mm *Size of UV emitting window / area: Le630 * We40mm *Radiation intensity (FYR): 0-25W/cm² *Wavelength: 365 / 385 / 395 / 405nm ± 2.5nm, single or mix *Curing time or speed:0.1-2s (depending on UV chemical) *Water cooling *Material of frame: Aluminium *Size of frame: L(1000-2000)*W700*H800mm *Material of conveyor: PVC, Tefflon or Metal mesh *Size of conveyor belt: L(1000-2000)*W600mm *Running Speed: 0-15m/min *Electric power of set : 4700W
	MODEL#: MYH-B(LB)800S40-5900-W *UV LED Power controller: P30, L600*W360*H1200mm *Size of UV emitting window / area: Le810 * We40mm *Radiation intensity (FYR): 0-25W/cm² *Wavelength: 365 / 385 / 395 / 405nm ± 2.5nm, single or mix *Curing time or speed:0.1-2s (depending on UV chemical) *Water cooling *Material of frame: Aluminium *Size of frame: L(1000-2000)*W900*H800mm *Material of conveyor: PVC, Tefflon or Metal mesh *Size of conveyor belt: L(1000-2000)*W800mm *Running Speed: 0-15m/min *Electric power of set : 5900W
Customized available

Product photoes

Product packaging & shipping

1.Packed with PE foam, export carton box or plywood box.

2. By sea, by are or by express.

MOYOHO has a lot of items for your to choose from,  as a one stop solution for the UV LED industry Moyoho provides curing and drying for most of UV chemicals that include UV ink, UV adhesive, UV coating, UV varnish and so on, MOYOHO belevies you can choose some items you are really interested in.

Shenzhen Moyoho Optoelectronic Technology Co., Ltd was established in 2010 in Shenzhen China, and as a leader in UV LED production Moyoho Optoelectronic specializes in manufacturing UV LED curing lamps, UV LED curing system, UV LED curing machines, UV LED module and packaging the UV LED chipsets. As a one stop solution for the UV LED industry we provide curing and drying for all UV-LED chemicals that include UV ink, UV adhesive, UV coating, UV varnish, ect. Moyoho Optoelectronic has broad experience in the UV LED field and is backed by our strong in-house R&D, production and QC capabilities to ensure we produce top quality products with competitive pricing. Our internal sales and after-sales-service teams ensure fast delivery and comprehensive service to our customers. Moyoho Optoelectronic works with many unique customers including both OEM and ODM. We are able to support projects requiring non-standard or even custom products, our experienced staff is able to meet your needs and requirements.

Moyoho Optoelectronic is dedicated to providing a full range of environmentally friendly and energy-saving UV LED solutions to the world, we base our service on the principle of honesty and integrity with the goal of creating mutually beneficial relationships. To learn more you are welcome to visit our manufacturing facility.

CE, RosH, CCC qualified.

*The warranty period of our UV LED products is 2 year

*Offer spare part or module for replacement

*24h online supporting

*Video supporting

Q1: Why do I replace a UV LED Lamp?

A1: UV LED's working time is more than 25,000 hours, 10 times longer than the traditional lamp, Besides, UV LED curing is more effective, save 80% of energy costs and environment friendly.

Q2: Do all of current UV chemicals work well with UV LED?

A2: No, The chemical must be specifically to take advantage of the narrow Wavelength, please ask for your supplier for the best wavelength, and then we can customized the most suitable and high-efficiency wavelength for you.

Q3: What about the warranty period?

A3: All of Moyoho products come with a full two-year warranty, Moyoho can offer the parts for free if any parts demanged in warranty.

Q4: What about the after-sales service?

A4: Moyoho provides spare parts for replacement, and 24 hours online and video technical support.

Q5: How to get the best solution with right price?

A5: There are some important information we need to know before offering:

    1,What do you use it for? (such as, it will be used for drying silk-screen printing )

    2.Which wavelength do you need or what UV chemical do you want to cure? (It depends on your  UV chemical, such as 365/375/385/395/405/415nm and so on.)

    3.What size of emitting window do you need?(It depends on your product’s size or curing method)

    4.How much peak irradiance do you need?(It depends on your UV  chemical and your max producing speed.)

    5.If any spec of common set can't meet your requirement, don't worry! CUSTOMIZED solutions are available.
