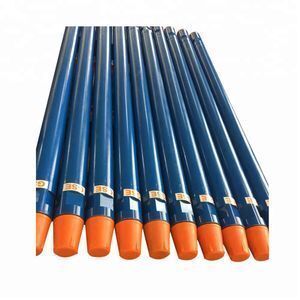

down the hole water well mining DTH drill pipe

Product details
Local Service Location:None;Processing Type:Forging;
Material:Carbon Steel;Use:Ore Mining;
Advantage:rival Atlas copco for lifspan and price;Certification:API;
color:black or customized;Brand Name:SINODRILLS;
Supply Ability:50000 Piece/Pieces per Month DTH drill pipe;Size:2 3/8 REG;
Type:Drill Pipe;other name:mining drill pipe / water well drill pipe;
Place of Origin:Guizhou China;Payment Terms:L/C,D/A,D/P,T/T;
product name:DTH drill pipe;Machine Type:Drilling Equipment;
outer diameter:76/89/102/114/127mm;Condition:New;
Packaging Detail:DTH drill pipe will be packed in bundles ,;Warranty:Unavailable;
Port:Shanghai,China;Showroom Location:None;
Applicable Industries:Construction works ,Energy & Mining,water well drilling;

down the hole water well mining DTH drill pipe



Product description

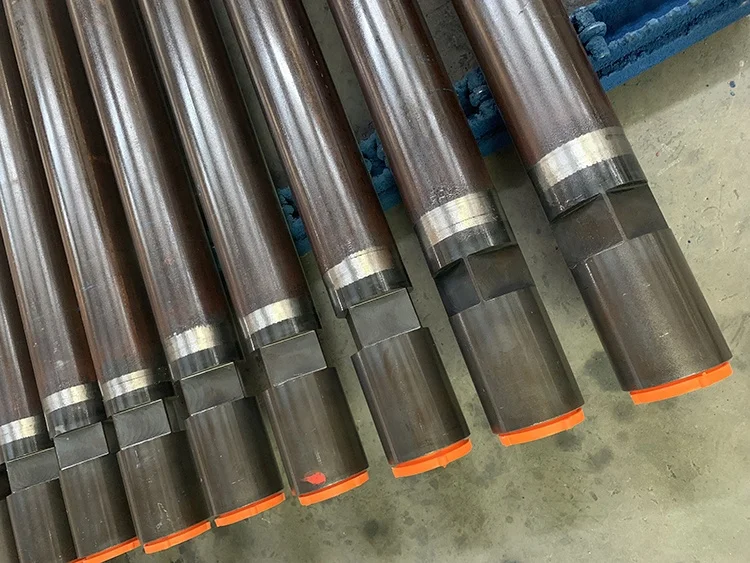

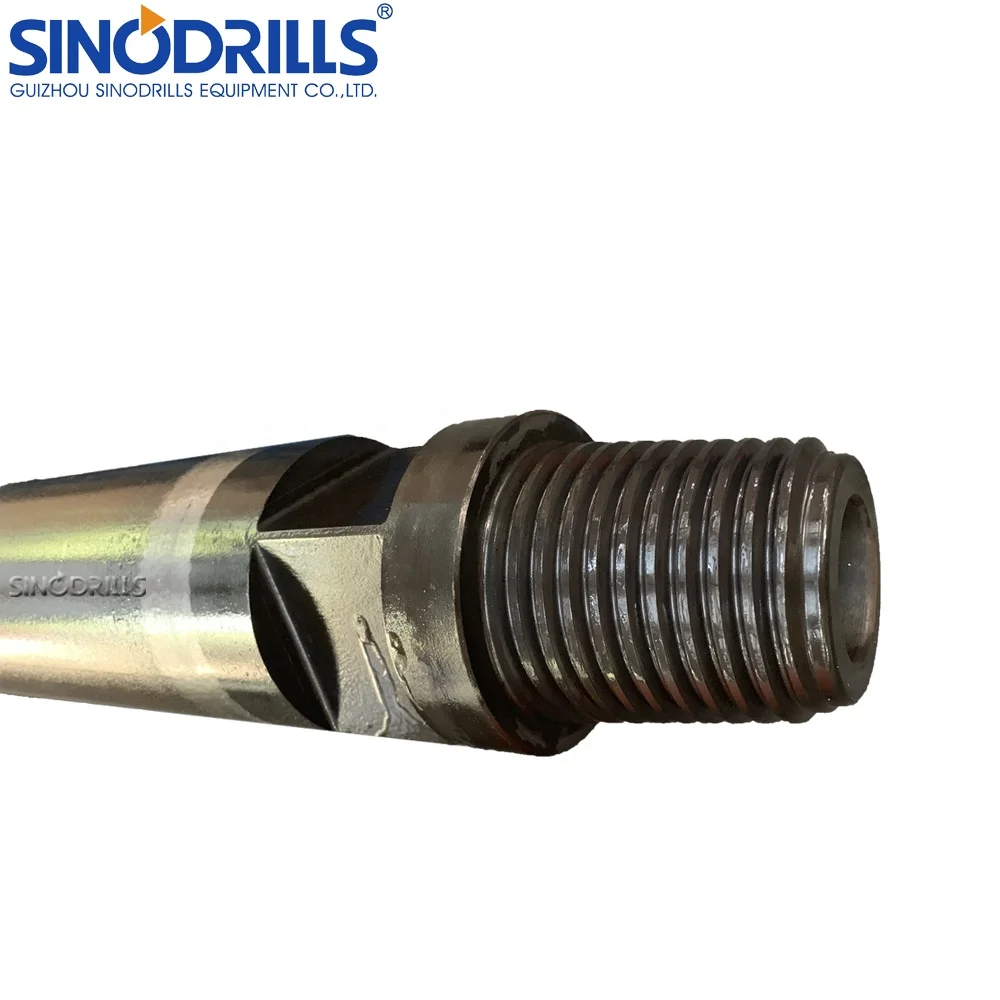

down th hole drill pipes play a significant role in all DTH drilling, regardless of application, rock type, hole depth or drill rig. The key features of a high quality DTH tube are durability, accuracy and manageability. Sinodrills DTH drill pipes are made of superior alloy and the both thread ends are friction welded to the seamless steel pipe.The high pressure air is delivered to DTH hammer by DTH drill pipe, simultaneously it transfers the rotation and press force to the DTH hammer.

Standard DTH drill pipe:

Diameter: 76mm, 89mm, 102mm, 114mm, 127mm, 140mm,
Length: 1000mm, 1500mm, 2000mm, 3000mm, 5000mm, 6000mm;
Thread: 2 3/8” API REG, 2 7/8” API REG, 3 1/2” API REG, 4 1/2” API REG, 2 3/8 API IF, 3 1/2 API IF

 Special DTH drill pipe:

The drill pipe for Atlas Copco – Ingersol Rand T4, Schramm T64, Atlas Copco F6, L6 and L8, and the drill pipe for Sandvik Driltech D25/D40K.

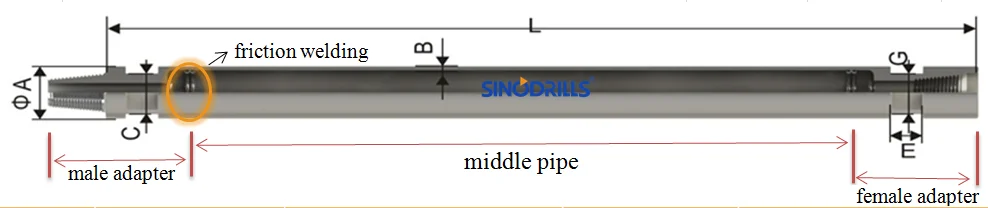

Specification

mm

mm

mm

mm

Joints connection

OD A

Wall thickness B

Effecitve length L

Wrench flat C/G

Pin-Box

76

5.5

1000/1500/2000

3000

57/65

3/8” REG

76

6.5

1000/1500/3000

4000/5000/6000

65

3/8” REG

89

5.5

1000/1500/2000

3000

65

3/8” REG, 2 3/8” IF

89

6.5

1000/1500/2000

3000/4500/6000

65

3/8” REG, 2 3/8” IF

102

6.5

1500/2000/3000

4000/5000/6000

75/83

7/8” REG

102

8.5

1500/2000/3000

4000/5000/6000

75/83

7/8” REG

114

6.5

1000/1500/2000

3000/4500/6000

89/95

1/2” REG, 2 7/8” IF, 3 1/2” IF



114

8.5

1500/2000/3000

4000/5000/6000

89/95

1/2” REG, 2 7/8” IF, 3 1/2” IF

127

10

3000/4000/5000

6000/8100/9140

89

1/2” REG, 4 1/2” REG,

127

19

3000/4000/5000

6000/8100/9140

89

1/2” REG, 4 1/2” REG,

140

11

3000/4000/5000

6000/8100/9140

10670

114

1/2” REG,

140

19

3000/4000/5000

6000/8100/9140

10670

114

1/2” REG,



You may like : DTH hammers and bits

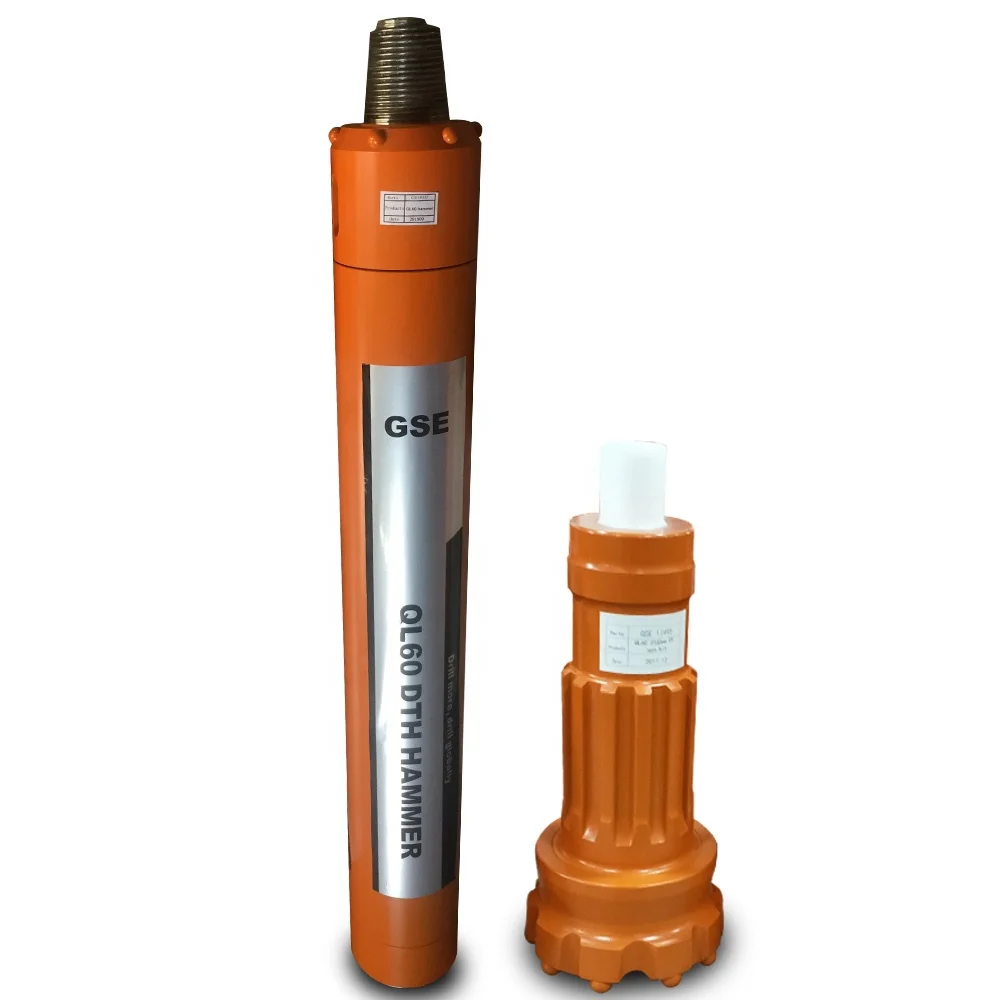

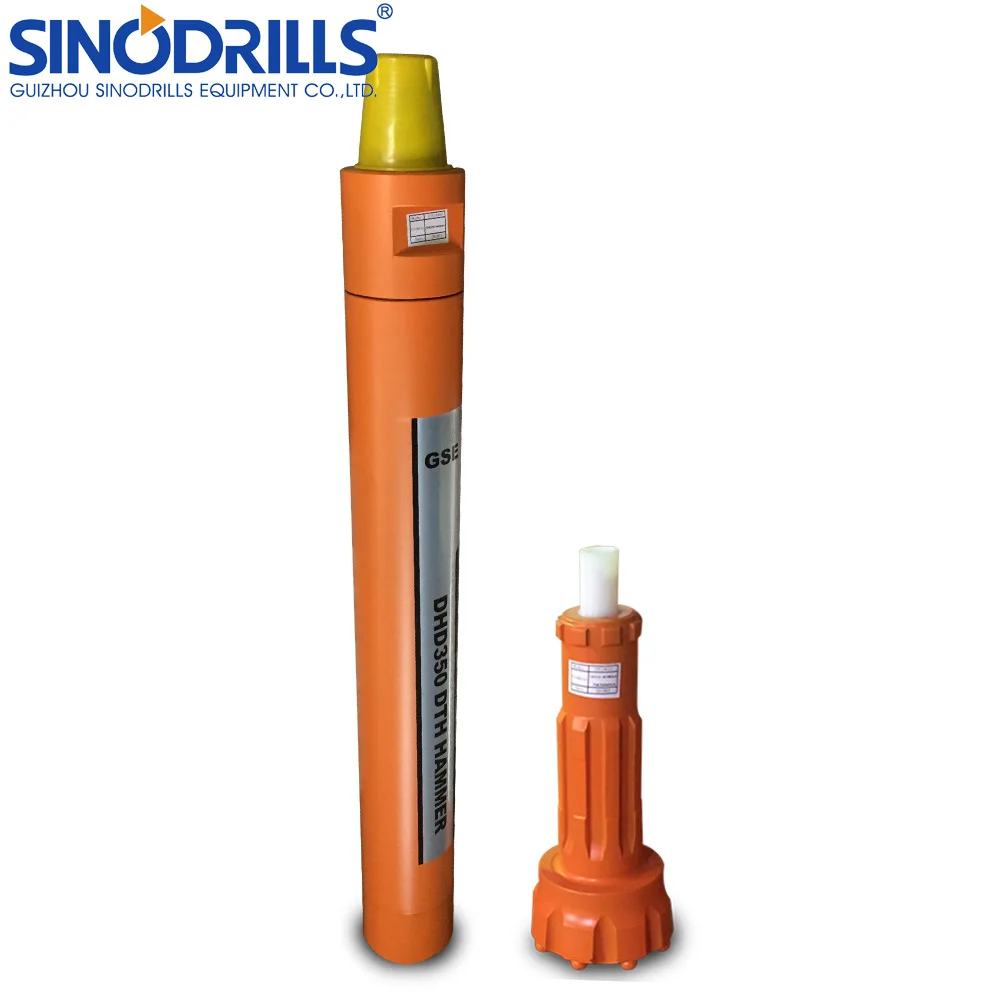

QL40/QL50/QL60/QL80 DTH hammers and bits                    DHD3.5/DHD340/DHD350/DHD360/DHD380 DTH hammers and bits
