Heavy Duty DPDT Dual Battery Isolator Cut Off Disconnect Switch OE 0341003004

Click here to contact

Product details

Terminals:	4 post terminals;	Size:	as shown as picture;
Supply Ability:	100000 Piece/Pieces per Week;	Port:	Ningbo;
Weight:	1.1KG;	Brand Name:	binrong;
Type:	battery isolator switch;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;
Model Number:	BDS-035;	Key:	1;
Car Make:	cars, boats, trucks, RVs;	Packaging Detail:	1pc/Box..20pc/Carton ,23KG;
Stud size:	M10;	Warranty:	6;
Pack:	1pc/box , 20pcs/Carton;	Metal plate hole pitch:	120mm;
Place of Origin:	Zhejiang China;	Color:	Silver/Black;

Heavy Duty DPDT Dual Battery Isolator Cut Off Disconnect Switch

OE 0341003004

1. Good conductivity, stable performance.

2. Engages or Disconnect 2 Batteries Simultaneously

3. Rated 300 Amp Continuous, 2500 Amps Surge at 12 Volts

4. Key is Captive in ON Position and Removable in OFF Position

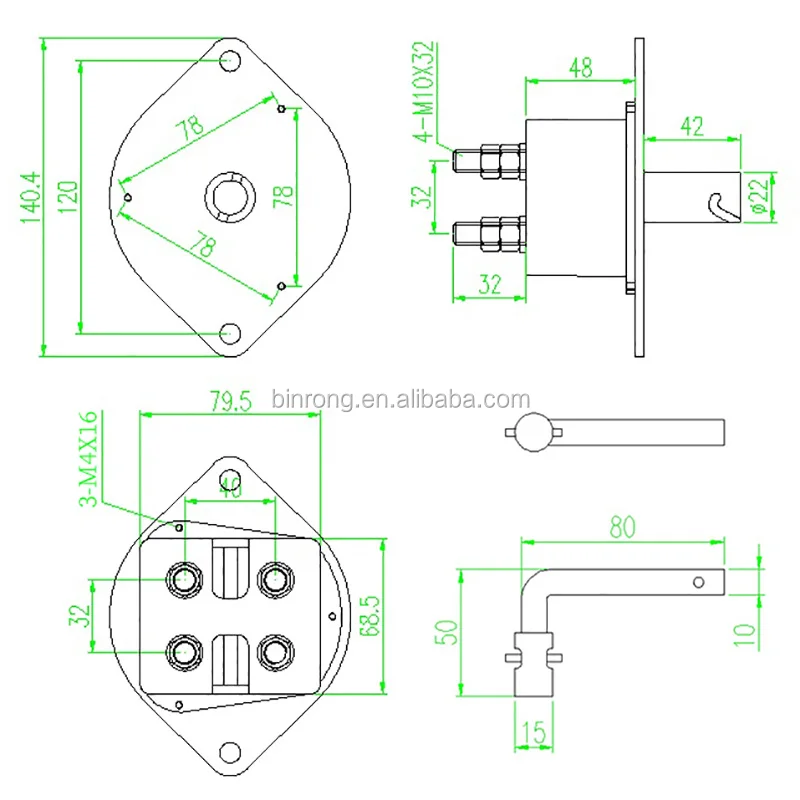

Specification

Metal Plate Size:140mm(L)x 105mm(W)

Mounting hole pitch :120mm

Black Case Size:70mm(W)x80mm(L)

M10 Stud ,Silver

Switch Total Height:128mm (Exclude the key)

Weight: Approx 1.1kg per piece
