Zhongji High Quality Sandwich Panel Making Machine

Supplier: Shanghai Zhongji Machinery Manufacturing Co., Ltd.
Region: Shanghai, China
Contact: Ms Sunny Wang
Price: $20000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	30 Set/Sets per Month;	Warranty:	1 YEAR;
Brand Name:	ZJM panle making machine;	After-sales Service Provided:	Engineers available to service machinery overseas;
Applicable Industries:	Manufacturing Plant,Construction works ;	Production line speed:	3~8m/min;
Certification:	ISO9001,CE;	Color steel sandwich panel:	Width: 700 ~ 1000mm Thickness: 30 to 150mm custom length;
Stove power:	200,000Kcal;	Double belt laminated conveyor length:	24m;
Packaging Detail:	all wood case packing.;	Max temperature of the air circulation:	70℃;
Place of Origin:	Shanghai China;	Total power:	300KW;
The total installed power capacity:	About 207KW;	Payment Terms:	L/C,T/T;
Port:	shanghai;

Sandwich Panel Making Machine

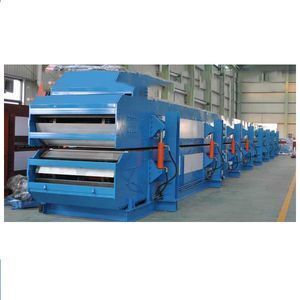

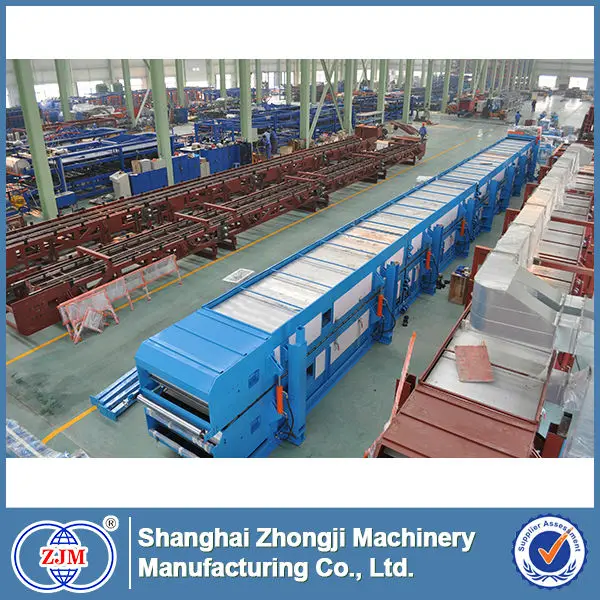

1.Continuous PU Sandwich Panel Production Line

Main Features:

Panel from the continuous sandwich panel production line is a composite structure consisting of two external facings and an insulating core. The core can be flexible with Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic or EPS. Various profiles are available according to customer's requirement with pre-painted steel sheets, PVC sheets, Aluminum paper or other similar supports;
The continuous sandwich panel production line has a large scale production capacity. It allows a uniform distribution of the reactive mixture, a homogeneous density, suitable physical and mechanical characteristics. ;
Roof panels, wall panels and door panels are made mainly of metal section support and polyurethane insulating mass;
The capacity of the continuous line is 3-7m/min, length of the production line is 100m, the size of the final panel is 3-18m long, 900-1200mm wide, 20-150mm thick, the valid length of double belt conveyor is 24m, the total power is 300KW;

Technical Data:

NO.	ITEMS	TYPE/UNIT	SP-PU-C
1	Color steel sandwich panel Specifications	mm	Width: 700 ~ 1000 Thickness: 30 to 150 custom length
2	Production line speed	m/min	3~8
3	Double belt laminated conveyor length	m	24m
4	The maximum temperature of the hot air circulation	°C	70
5	Total power	Kw	300
6	Line dimensions (L × W × H)	mm	About 86000×7000×3800
7	The total installed power capacity	Kw	About 207
8	Stove power	Kcal	200,000
9	Double belt laminated conveyor length	m	24

2.SP-9 EPS/Mineral Wool Sandwich Panel Production Line

Main Features:

The SP-9 Z Lock Colored Steel Sandwich Panel production line mainly consists of the Corrugated Roll Forming Machine and the Colored Steel Sandwich Panel Laminator. With this machine colored steel wall panels or colored steel roof panel can be produced in just one-time, and the Corrugated Roll Forming Machine and the Sandwich Panel Laminator can work independently. The whole production line of the Corrugated Roll Forming Machine consists of the uncoiler, cold-bending roll forming machine, cutting device, whereas the Sandwich Panel Laminator consists of the uncoiler for colored steel, EPS block, or mineral wool panel, shallow wave for wall panels pressing device, extruding system, mixed-glue spraying, heating and pressurizing system, sandwich, flat curling, edge rolling, edge-turnover, grooving, edge-trimming device, pneumatic clamping device, automatic plastic film coating device, automatic cutting, product stacker;
The transmission of the sandwich panel laminator uses worm-worm gear transmission system, ensuring that lamination speed is stable and lamination is uniform;
The sandwich panel laminator uses the frequency regulator to automatically cut according to the pre-set sandwich panel length;
The sandwich panel laminator uses rubber-coated roller type laminator to protect the color paint on the colored steel as well as during the pressurizing of the sandwich panel;
The sandwich panel laminator has a high quality and thick wall rectangular steel welding method, and to get rid of the rust, polishing, smoothing and aging treament;
The appropriate colored steel sheet: width=1000-1200mm (the size of the length of panel is without imitation), thickness= 0.2-0.8mm;
The recommended core materials for Sandwich Panel: EPS Panels, PU Panels, XPS Panels and Mineral Wool Panels;
Production Capacity of this Production Line: 5-7m/min; Total Length of this Production Line: 60m; Net Weight of this Production Line: About 30tons; Total Power Supply of this Production Line: 60kw; Thickness of the finished Panel produced by this production line: 50-250mm.
