LXD high pressure water blasting machine for removing Road marking/Rubber of Airport

Supplier: Jiangsu Luxinda Traffic Facilities Co., Ltd.
Region: Jiangsu, China
Contact: Mr James Zhang
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	5m2.2m2.23m;	After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Brand Name:	LXD;	Name:	high pressure water blasting machine;
Power:	120KW;	Road Marking Paint Remover:	Safety Road Marking Paint Remover;
Remove width:	150-250mm;	Time of add water:	3times a day;
Supply Ability:	20 Set/Sets per Year;	Warranty:	1 YEAR;
booster pump:	Max. 6KG;	UNIQUE SELLING POINT:	High operating efficiency;
Condition:	New;	Weight:	4.5Ton;
Brand:	LXD;	Port:	Shanghai Port;
Power(W):	120KW;	Suction pressure:	-0.4;
Package Preview:	;	Remove speed:	5-7m/min;
Packaging Detail:	As to clients requirement;	Certification:	ISO9001;
Usage:	Road Line Painting Removing Machine;	Payment Terms:	L/C,T/T;
Applicable Industries:	Construction works ,road marking removal;	Place of Origin:	Jiangsu China;

Product description

LXD high pressure water blasting machine for removing Road marking/Rubber of Airport

Technical data:

Diesel engine	DEUTZ
Power	120KW
High pressure Pump	America TETECH90-3 Pump Pressure:140mpa,Flow30L/min bearing:Japan NSK;,Plunger:hard alloy Φ18; High pressure seal:imported seal
Remove speed	5-7m/min
Remove width	150-250mm
Suction system	German Technology Open-type non-pressure tank,can remove solid waste under construction
Suction pressure	-0.4
booster pump	Max. 6KG
water supply pipe	stainless steel and Withhold hose
Water supply protection system	With Low pressure protection device for water supply
Filter	Double layer stainless steel vertical type Filter
Computer monitor instrument box	Total Computer monitor
Fresh water/waste water tank capacity	3000KG/2000KG(customized)
Machine size	5.61.62.56m
Machine weight (empty weight)	44000KG

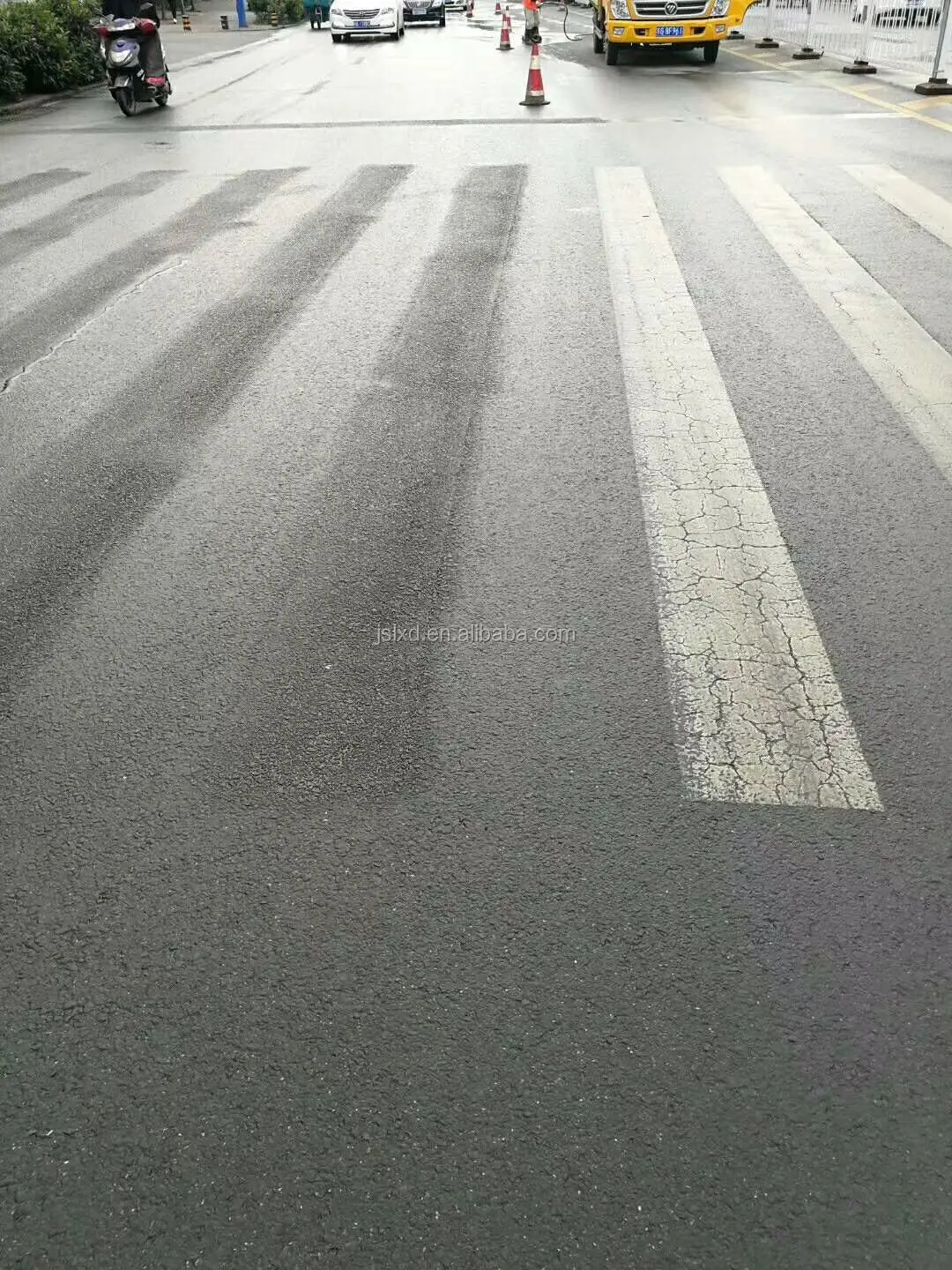

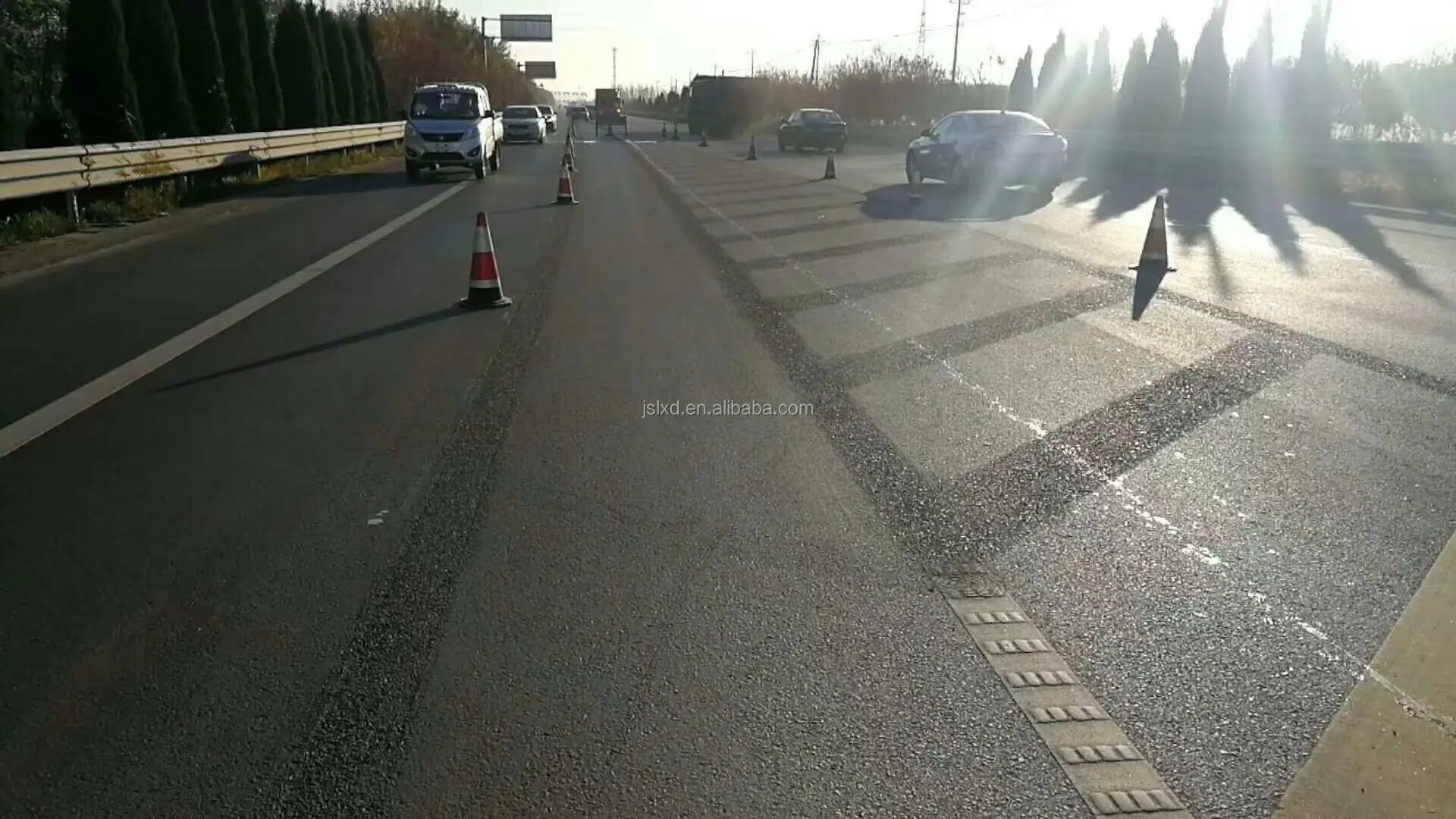

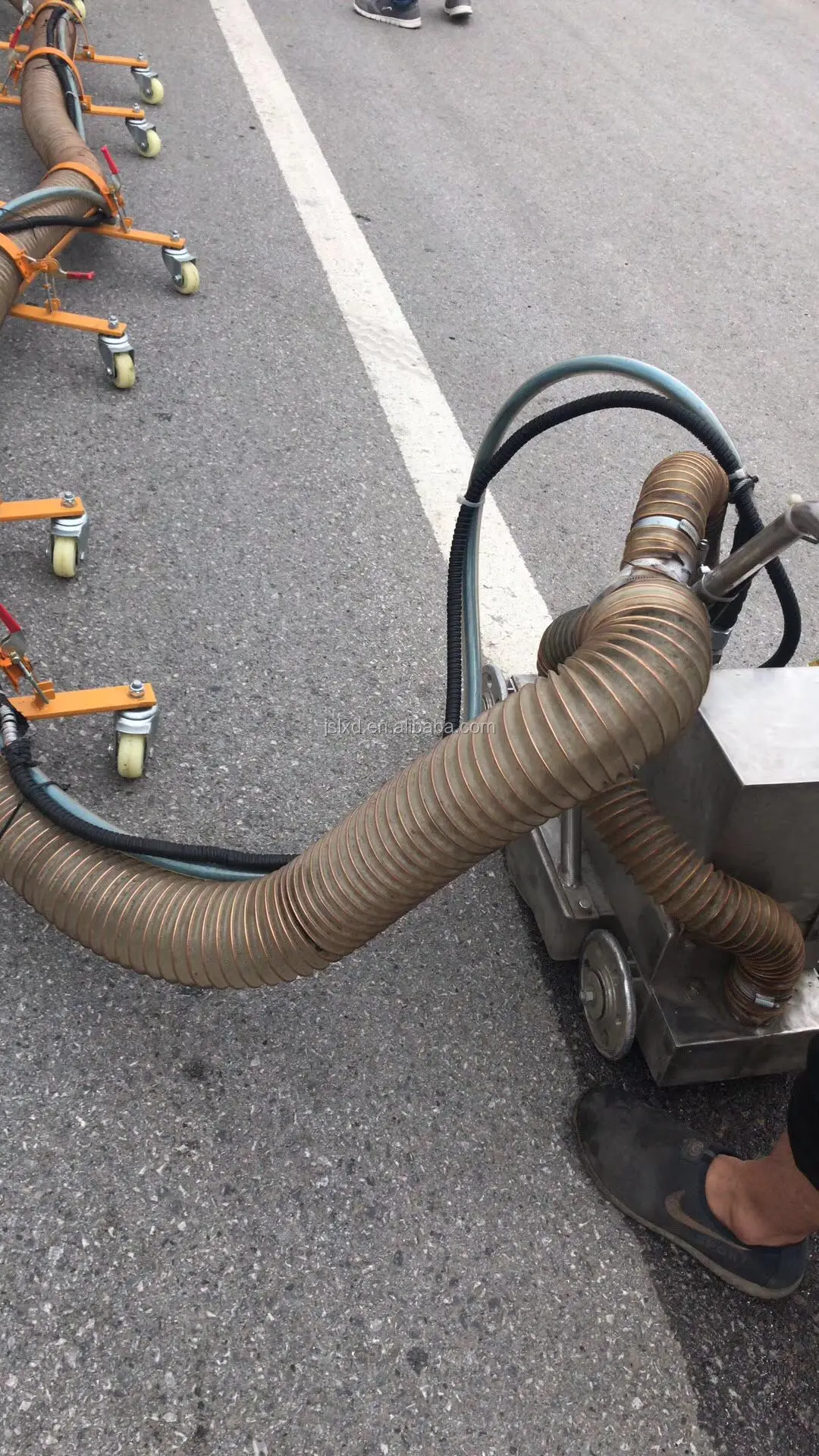

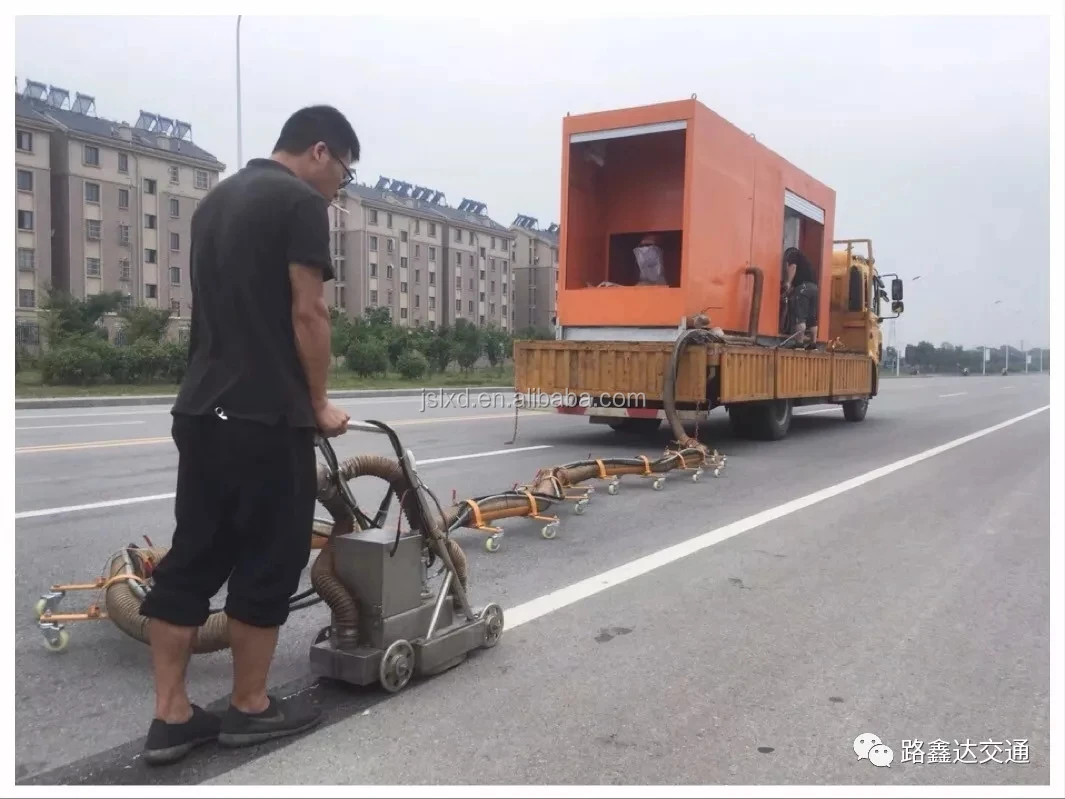

Application pictures:

Advantages of high pressure water blasting machine:

1.LXD high pressure water blasting machine adopt suction system imported form Germany,equipped with JETECH90-3 type high pressure pump imported form America.

It can remove road marking without damaging the road surface,and the waste water and residue can be suctioned into waste water tank,

The waste water tank can accommodate about 2Tons waste water.

New designed vehicle,equipped with more nozzle,can be jetting form different angles,to clean up road marking without damaging the road surface.

2.Residual and waste water can be suctioned into vacuum chamber,

what’s more,the residue can be separated from the waste water automatically,residue can be placed into plastic woven bag, which can be putted in the nearby Dustbin .

The waste water will be flowed into waste water tank,when the waste water tank are full, just discharge them into sewer through water pipe. Very convenient ,very safety, and very friendly to the environment!

Even in the city road,there’s no need to block the road.

3.The machine can work continuously,its work efficiency can over about 5.2m/min,

working and recycling can be done at the same time, no need to stop the machine.

Really meet the requirement of high efficient and environment protection.
