Automatic bottle washing machine new type

Automatic bottle washing machine new type
Performance: This series of bottle washers are mainly used for inner and outer showers of glass bottles and polyester bottles.
1. Flush thoroughly: use the insert type internal flush design, flush in place, and avoid blocking the bottle mouth when the flushing water returns;
2. The outer shower is comprehensive: the outer spray of the umbrella-shaped high-pressure nozzle is used, and the outer wall of the bottle is sprayed in all directions;
3. Adapt to the bottle type: applicable to a variety of bottle types with a bottle height of 100-360mm and a

bottleneck of Φ25mm-Φ100mm;
4. Saving water source: equipped with circulating water tank, recycling after water filtration, reducing water consumption;
5. Wide adaptability; optional cold water washing, hot water washing, circulating water washing, and alternating hot and cold water washing.

The advantage
1. The bottle flushing speed is fast, saving time and labor. Variable frequency speed regulation can be adjusted arbitrarily according to production needs.
2. There is a flushing channel and the water consumption is low.
3. The water diversion valve strictly controls the time for flushing and controlling the bottle to ensure that the bottle is clean, and there is no water in the bottle after the bottle is controlled.
4. The height is adjusted electrically and the operation is simple.
5. The range of applicable bottles is large, except for special shaped bottles, most of the regular bottle types can be applied.
6. The advanced jaws are processed with precision, reliable operation and long service life.
7. Each part is equipped with a limit device, and it will automatically stop when there is a failure to protect the equipment from damage.

Working principle
The main working principle of the machine is that the power of the motor is driven by the reducer to rotate the main shaft, and the main shaft drives the clamping jaws to make circular movements. When the bottle is turned over and the bottle is turned to the vertical position, the flush valve is opened to rinse the bottle. After the bottle is rinsed for a certain period of time, the flush valve is closed, the water in the bottle is controlled clean, and the bottle is sent out after the jaws are turned over.

Technical parameter

Product quality certification

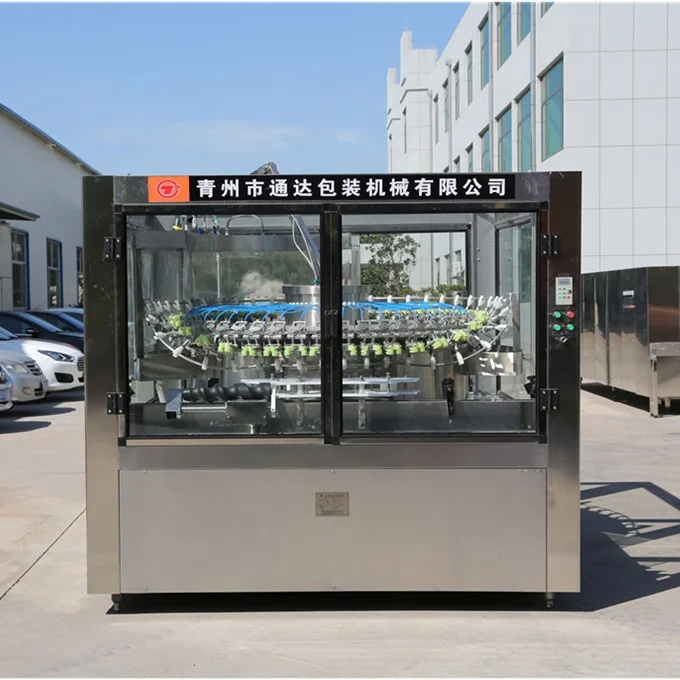

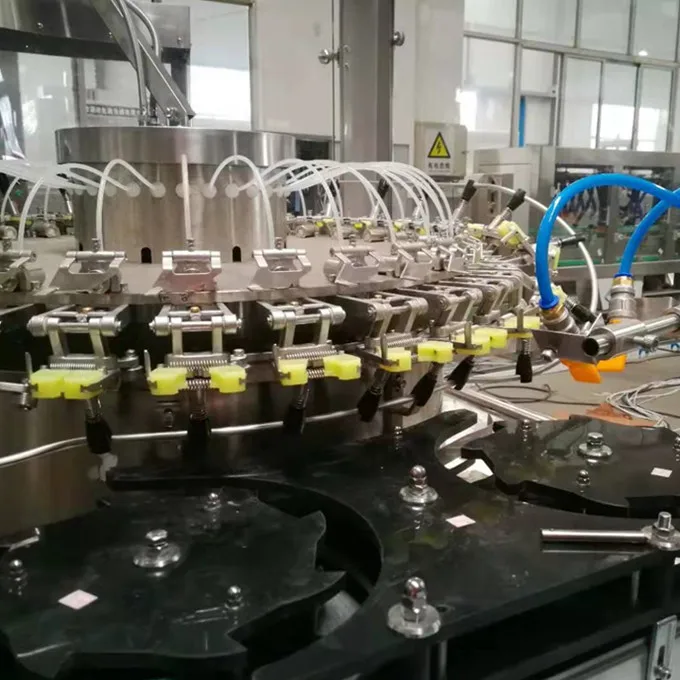

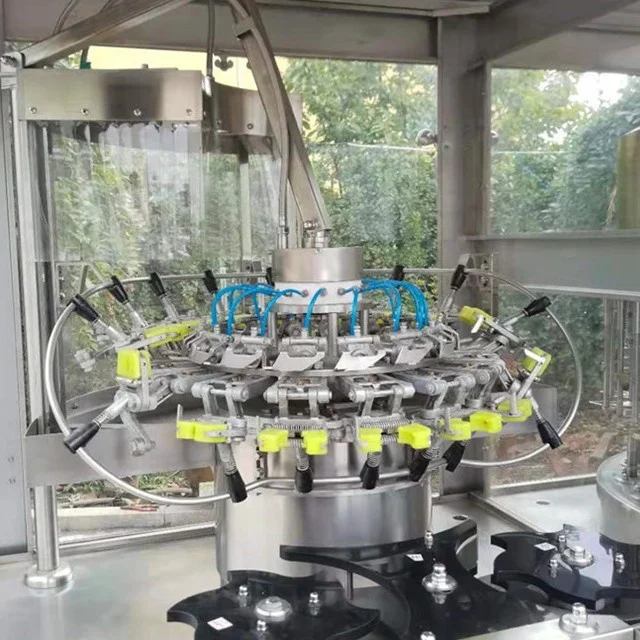

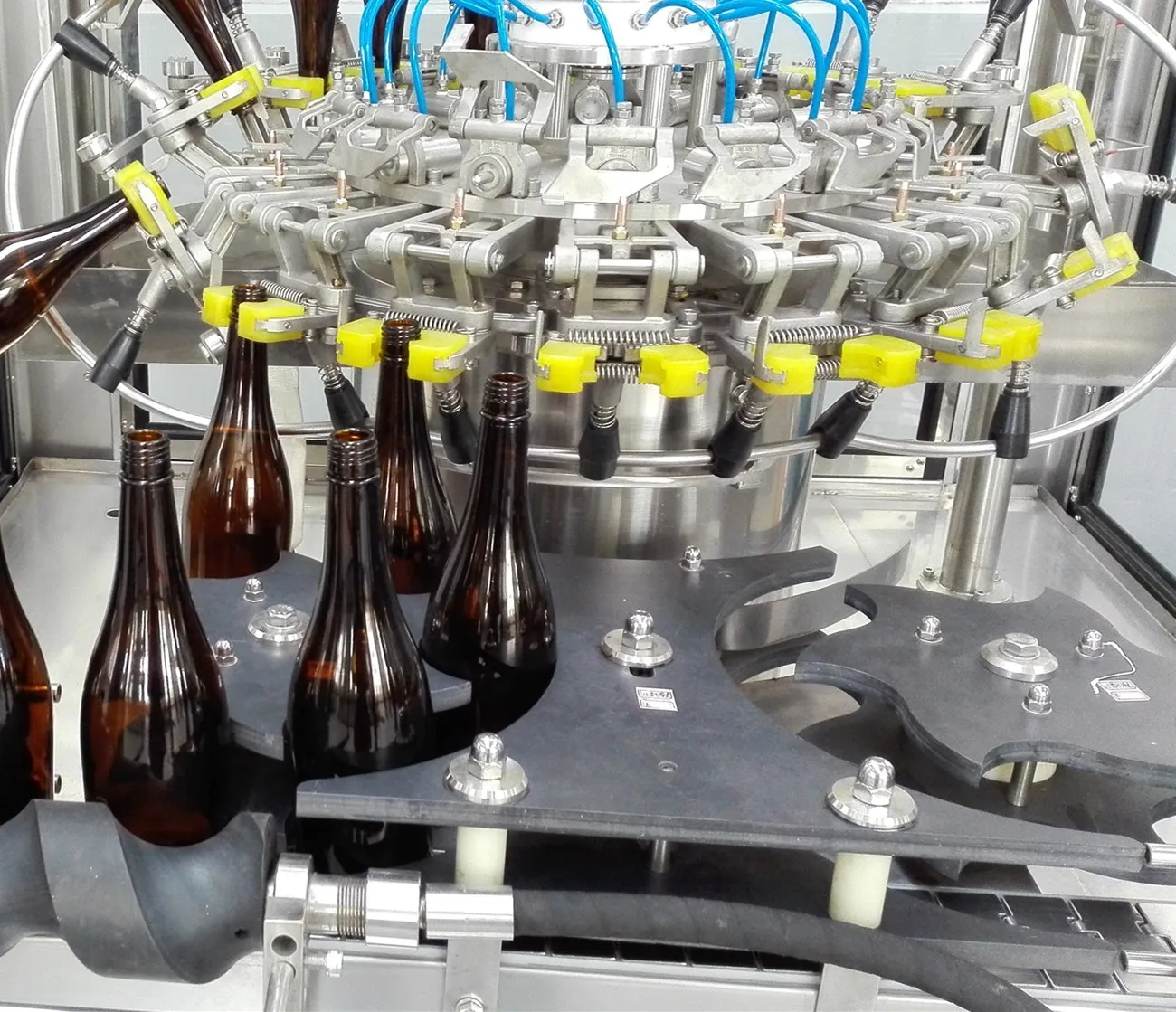

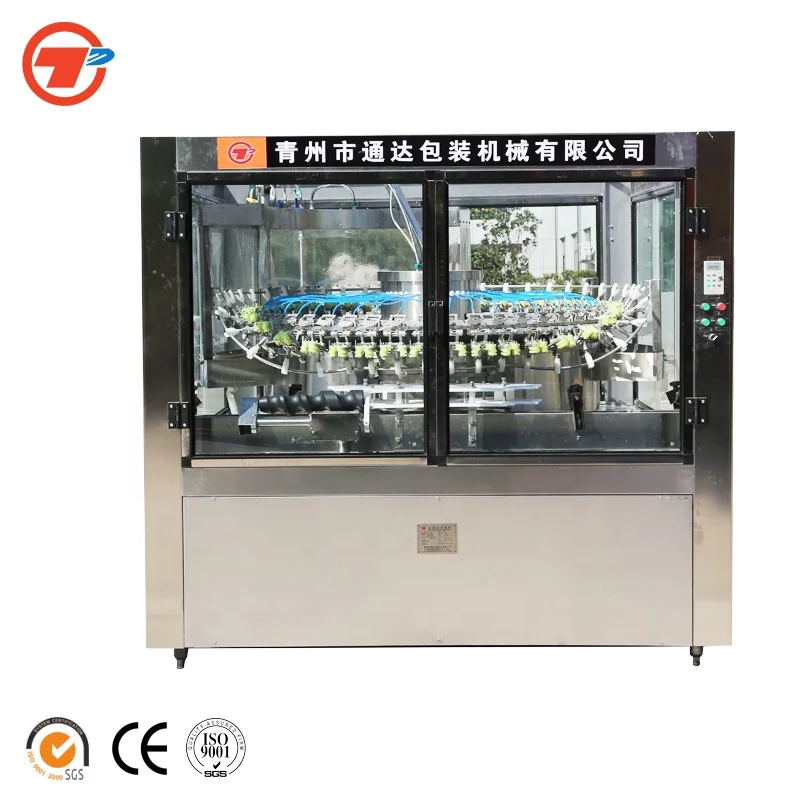

Product photo

FAQ
1. What is your sample service?
  We can send you the video of the finished machine or you can welcome to visit our company and see the machine running in the factory.
Or if we get the permission of the customer who has brought the machines from us,we can tell you our customers` contact information,you can go to visit their factory.
2. What is your after sale service?
  We will send technicians overseas,commissions and operator training.Our warranty period is 12 months,in this period,we provide free parts for buyer as well as the necessary technical support.Out of warranty period,we offer free technical support and the cost of spare parts.
3. How about the spare parts?
  After we finish all the things,we will offer you a spare parts list for your reference.
4. What services are there during the production?
  We will cooperate with buyers and update the manufacturing process and status to buyers and we will invite buyer come to test the machine when the goods finished in our factory, if the buyer think it is ok,we will arrange shipping or we can make the testing video and send it to buyer.
5. How to customize the service?
  We can design the machines according your requirements (material,power,filling type,the kinds of the bottles and so on),at the same time we will give you our professional suggestion.
  We can offer free technical support and consultation,draw the factory layout.

About us

We are a professional manufacturer of non-carbonated liquid bottling line equipments,we have more than 15 years' manufacturer experience in this field.
We mainly manufacture non-carbonated liquid bottling line, our bottling equipments are mainly used for white spirit, grape wine, fruit wine, vinegar, soy sauce, cooking oil, enzyme, juice, non-carbonated drink, honey, syrup, tomato sauce, fruit jam, engine oil, lubricating oil……our bottling equipments mainly include bottle loading table, bottle washing machine, bottle filling machine, bottle capping machine, bottle sterilization machine, bottle drying machine, bottle labeling machine, inkjet printer, laser coder, tape carton sealing machine……
