24ft Large Ceiling Warehouse Used HVLS Fan

Supplier: Shanghai Siyi Technology Co., Ltd.
Region: Shanghai, China
Contact: Ms. Linda Liu
Price: $1900.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

No.s of Blade:	6PCS;	Brand Name:	SIYI;
Blade Material:	Aluminum Alloy;	RPM(MIN/MAX):	20/50RPM;
Type:	Other,Other;	Mounting:	Ceiling Fan;
Power:	1.5KW;	Weight:	150KG;
Packaging Detail:	One fan is packed into two wooden cases. 1)477791cm 2)4525350cm;	Fan Diameter:	7.3M/24FT;
Single package size:	350X42X25 cm;	Place of Origin:	Shanghai China;
Single gross weight:	240.0 KG;	Height:	1.1M/3.3FT;
Frequency:	50HZ/60HZ;	After-sales Service Provided:	Video technical support,Engineers available to service machinery overseas;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Construction works ,Energy & Mining,Food & Beverage Shops;	Warranty:	3 years;
Voltage:	220V/380V/415V;	Selling Units:	Single item;
Certification:	CE;	Package Preview:	;
Coverage Area:	1300㎡;

Skype:siyifans88

Wechat:17701813966

Mobile/Whatsapp:+86 13795219347

7.3m Industrial Large Warehouse HVLS Fan

Technical Specifications		Control Box
Model number	SYD73

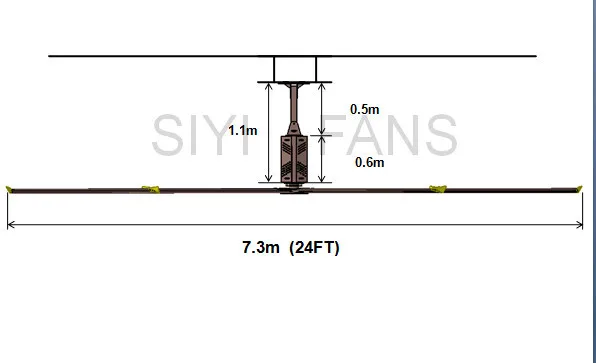

Fan diameter	7.3m (24ft)
Airfoil material	Aluminum Alloy
Airfoil finishes	Plastic Spraying
Weight	150kg
Height	1.1m (3.3ft)
Number of airfoils	6pcs	Motor
Controller included	Yes
Voltage	220V/380V
Frequency	50HZ/60HZ
RPM(min/max)	20/50rpm
Power	1.5kw
Coverage area	1300m²
Warranty	3Years
Protection	IP55

What is SIYI large warehouse HVLS fans?

SIYI large industrial fan is a type of mechanical fan used in commercial and industrial settings. Unlike residential ceiling fans that are typically 36 to 52 inches in diameter, SIYI large industrial fans have very large diameters that start at 12 feet and go up to 24 feet. SIYI large industrial fans move very slowly unlike standard fans which operate at high speed. With large diameters and low rotating speed, SIYI large industrial fans can move large amounts of air, so it is named “high volume, low speed” (HVLS) fan.

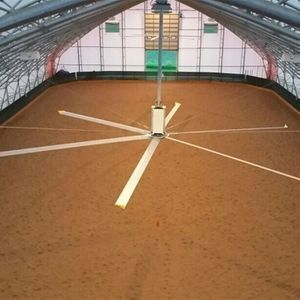

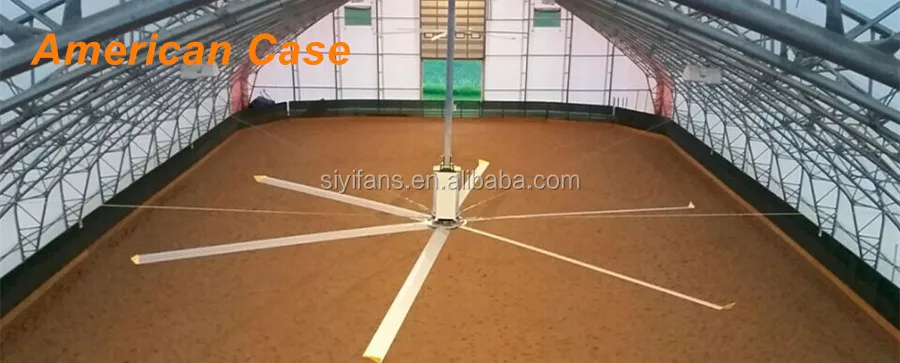

SIYI large industrial fans are widely applied in livestock barns, warehouses, distribution centers, shopping malls, skating rinks health clubs and so on. Due to the rising costs of energy, industrial ceiling fans are often used to supplement HVAC systems as they provide a stronger cooling effect while helping to maintain a constant temperature and humidity.

How to work?

The unique airfoil blades on the SIYI large industrial fan produce a massive, cylindrical column of air that flows down to the floor and outward in all directions. This horizontal floor jet pushes air a greater distance before it begins to move vertically and is drawn back through the fan. The greater the down flow, the greater the air circulation will be.

Accessories

	After repeatedly tests, SIYI HVLS large industrial fans adopt Germany NORD motor to ensure the low noise, efficient, reliable and durable operation. The motor is free lubrication for life and any potential oil leakage is prevented by double lip seals.
	SIYI HVLS fans adopt SCHNEIDER inverter, which is the most famous inverter in worldwide. The overload protective device in controller box can automatically disconnect the power supply once accident occurs. So safety is assured. You can regulate the wind speed at will by rotary switch. What's more, the inverter can control the fan to rotate in forward and reversing direction.
	SIYI large industrial fan adopt the totally new cutting technique to manufacture the chassiss. Compared with the low pressure casting technique, the life span of new chassis is 10 times more. What’s more, it solve the segmentation absolutely.
	The flabellum is the core technique of the fan. Our large industrial fans have six or eight PCS of blades and winglets to ensure maximum airflow and efficiency. Unique designed winglets at the airfoil tips greatly eliminate wind noise. The blades is made of aluminum alloy with plastic spraying finish, so it can resist corrosion and dust very well.
