Packaging Detail: | STANDARD EXPORT PACKING; | Package Preview: | ; |
After-sales Service Provided: | Online support; | thicknesser working table: | 400*760; |
chuck: | 0 - 16; | Applicable Industries: | Manufacturing Plant,Home Use,Retail,Diy & Workshop; |
Warranty: | 1 YEAR; | planer working table: | 400*1800; |
mortiser working table: | 250*500; | cutter block rotation speed: | 5700; |
Supply Ability: | 200 Set/Sets per Month; | Condition: | New; |
Place of Origin: | China; | cutterblock diameter: | 70; |
working height: | 4-220; | Brand Name: | SICAR; |
Payment Terms: | L/C,T/T; | feeding speed: | 7; |
longitudinal/trasversal/vertical stroke: | 205/95/90; | Port: | Qingdao; |

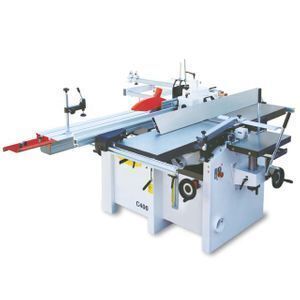

C400 5 works wooden working combines machine
C400 Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a table saw and sliding table, planer, thicknesser and spindle moulder unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
Being a professional standard machine, the C400 of course is fully adjustable and the accuracy is second to none. As far as accuracy goes it will not even be bettered by full sized industrial machines. With three independent class 1 motors providing ample power, changing function can be done with the flick of a switch rather than the going through the laborious task of changing belts.
The saw utilises a sliding beam which runs along side the blade like a panel saw. By running the beam this close to the blade, 100% accuracy is assured.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs. These options include; heavy duty morticing unit, spindle moulder ring fence, power feeder and tenoning hood.
Features:
Panel saw sliding beam | Scoring for veneered boards | Accurate cross cut fence with flipstops |
Cast iron construction | Sturdy swinging arm squaring frame | Inward parallel swing planer table |
3 x 2.2kw class 1 motors | Micro adjust spindle moulder fence | Fully adjustable settings |
Planner | unit | C400 |
working table | mm | 400*1800 |
cutter block diameter | mm | 70 |
cutterblock rotation speed | r.p.m | 5700 |
knives dimensions(3 knives) | mm | 400*20*3 |
Max table adjustment | mm | 4 |
Thicknesser | unit | C400 |
Working table | mm | 400*760 |
Feeding speed | m/1' | 7 |
Working height | mm | 4-220 |
Mortiser | unit | C400 |
Working tableVelocita | mm | 250*500 |
Longitudinal/Trasversal/ Vertical stroke | mm | 205/95/90 |
Chuck(M18*1.5-S) | mm | 0-16 |
Circular saw | unit | C400 |
Working table | mm | 326*1112 |
Shaft rotation/Engraver speed | r.p.m | 4500/7000 |
Blade diameter | mm | 300*30 |
Cutting height at 45°/90° | mm | 75/100 |
Max cutting width between blade and fence | mm | 730 |
Engraver blade diameter | mm | 90*22 |
Shaper | unit | C400 |
working tables | mm | 290*1112 |
shaft rotation speeds | r.p.m | 2000/3100 4400/7000 |
standard shaft diameter | mm | 30/35/50 |
shaft vertical stroke | mm | 115 |
Max.tool diameter | mm | 180 |
Max. tenoning depth | mm | 65 |
Standard accessories | unit | C400 |
3-phase motor power | mm | 4.0-3.0 |
carriage dimensions | mm | 1800*315 |
Weight | mm | 680 |
Optional accessories | unit | C400 |
Single-phase motor | HP-KW | 4.0-3.0 |
Increased 3-phase motor | HP-KW | 5.5-4.0 |
spiral cutter heads | • | |
Moving whels | • | |
Contouring fence | • | |
Wescott(Diameter) | mm | 0-16 |
Dimension Carriage | mm | 2200/2600 |
Spindle moulder extension output table | mm | 288*250 |
Tenoning protection with shelf | mm | 326*500 |
Optional Accessories
Woodworking Combined Machine
We are professional manufacturer and sale of machine for more than 25 years.Depending on many years experience and strong technical power.Welcome to choose us!

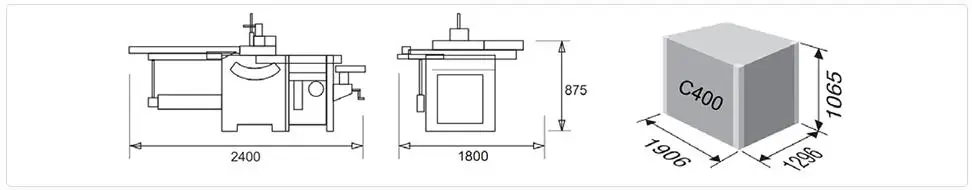

Packing size

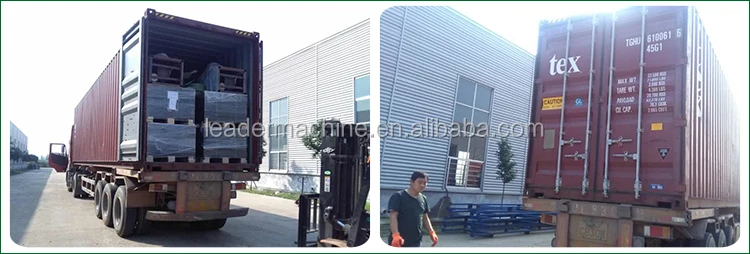

Shipping
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing PE foam fruit net machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas

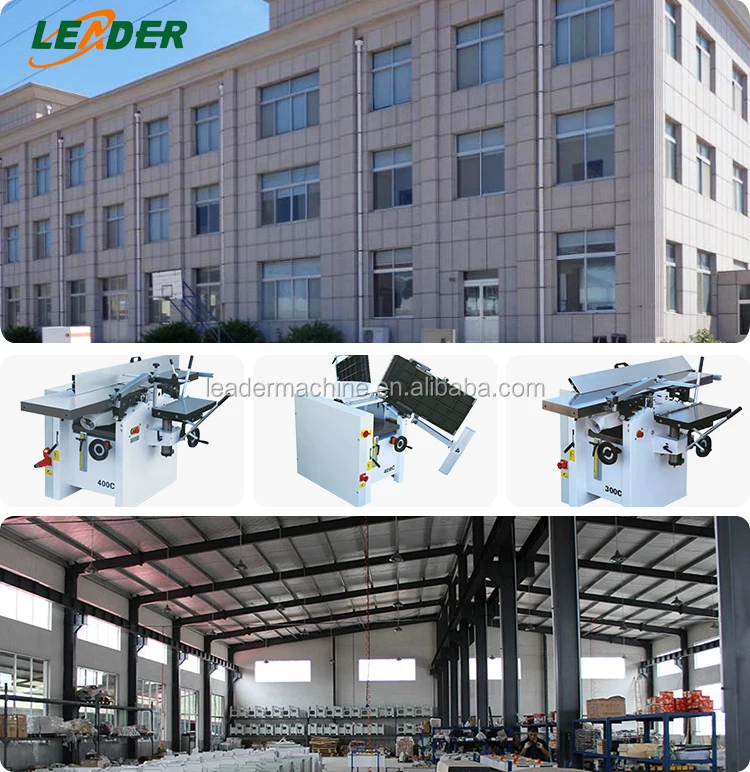

why choose our company?
