High Pressure American and German Type Stainless Steel Worm Drive Spring Pipe Hose Clamp

Product details
Size:Varisized;Product name:Worm drive Hose Clamp;
Usage:Pipe Clamps;Place of Origin:Zhejiang China;
Warranty:18;Type:Hose clamp;
Brand Name:METERS;Color:Silver;
Material:Stainless Steel;Name:Hose clamp;
Car Make:General Usage;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,hose clamp order can accept paypal;
Supply Ability:5 Twenty-Foot Container per Month;Model Number:MT8 series;
Band width:12.7mm (1/2");OE NO.:Customer;
Port:Shanghai;Packaging Detail:Normal packing for hose clamp is 10 pcs per bag and then with export carton.;
Application:Construction Area;Delivery Detail:always 30 days;
Package:10 pcs per bag;CERTIFICATES:ISO9001:2008;
Standard:DIN3017;



Product Description

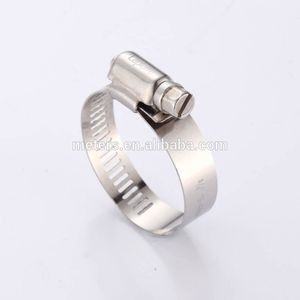

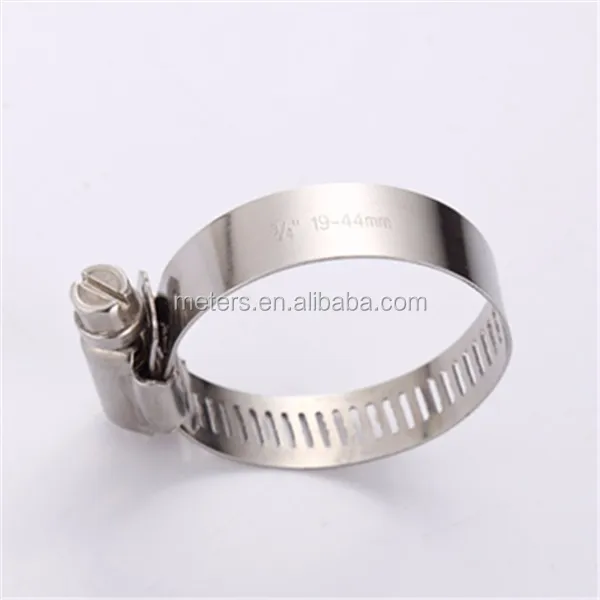

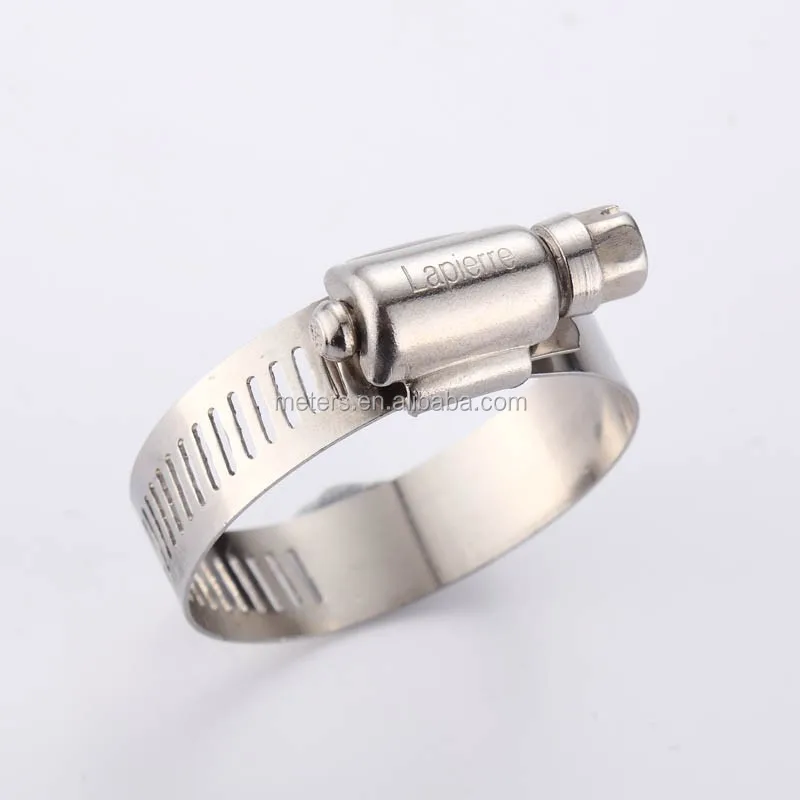

High Pressure American or German Type Stainless Steel Worm Drive Spring Pipe Hose Clampps

American type hose clamp width

or

Worm Drive Hose Clamps

Band width 1/2" (12.7mm)

American type hose clamp

Band width 12.7mm

Material: galvanized steel

German type hose clamp

Band width 9mm

German type hose clamp

Band width 12mm


 Heavy Duty Hose Clamp Double Ear Hose Clamp Single Ear Hose Clamps  Contant Tension Clamps



-

1. Used for clamp in automotive

2. Stamp with clients logo

3. Fur-free serration

4. Band width: 1/2" (12.7mm)

5. Thickness: 0.65mm

6. Material option:

                     W1: All carbon steel

                    W2: Stainless steel 201/301/304 housing and band with carbon steel screw.

                    W4: Alll stainless steel 201/301/304

                    W5: All stainless steel 316 material

7.Specification:

Dia Range(in)Dia Range (mm)
1-1/16"14-27mm
1-1/4"18-32mm
1-1/2"21-38mm
1-3/4"21-44mm
2"27-51mm
2-1/4"33-57mm
2-1/2"40-63mm
2-3/4"46-70mm
3"52-76mm
3-1/4"59-82mm
3-1/2"65-89mm
3-3/4"72-95mm
4"78-101mm
4-1/4"84-108mm
4-1/2"91-114mm
4-3/4"95-120mm
5"105-127mm
5-1/4"110-134mm
5-1/2"118-140mm
5-3/4"125-146mm
6"130-152mm
6 1/4"133-159mm
6-1/2"143-165mm
6 3/4"146-171mm
7"155-178mm



|
