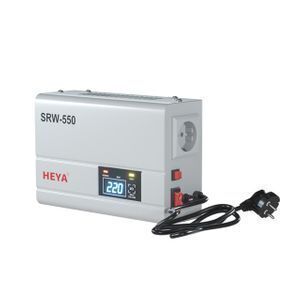

SRW Wall Mounted Relay Control 1500va 220v ac automatic voltage regulator / stabilizer

Click here to contact

Product details

Protection system:	short circuit, over heating, over/lack voltage, over load;	Phase:	Single Phase;
Usage:	SVC;	wave form distortion:	No additional wave form distortion,voltage regulator;
Product Name:	1500va voltage regulator;	Certification:	ISO9001:2008,PCT,SGS,CE;
Packaging Detail:	Wall Mounted Relay Control 1500va 220v ac automatic voltage regulator / stabilizer The package:standard export cartons; packing size:550x450x240 pcs/carton:6;20GP:435 cartons;40GP: 900 cartons; 40HC: 1140 cartons;	Output voltage:	220V+-8%;
Port:	Ningbo/Shanghai;	Frequency:	50Hz/60Hz;
Current Type:	AC;	Place of Origin:	Zhejiang China;
Input voltage:	AC140V-260V;	Model Number:	SRW-1500VA;
Brand Name:	HEYA/OEM;	Supply Ability:	30000.0 Piece/Pieces per Month 1500va voltage regulator;
Technology:	CPU based digital circuit + transformer;	Delay time:	Short 5s-+2s(can be selected);
Power factor:	0.8(can Customized 100%full power);	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Wall Mounted Relay Control 1500va 220v ac automatic voltage regulator / stabilizer

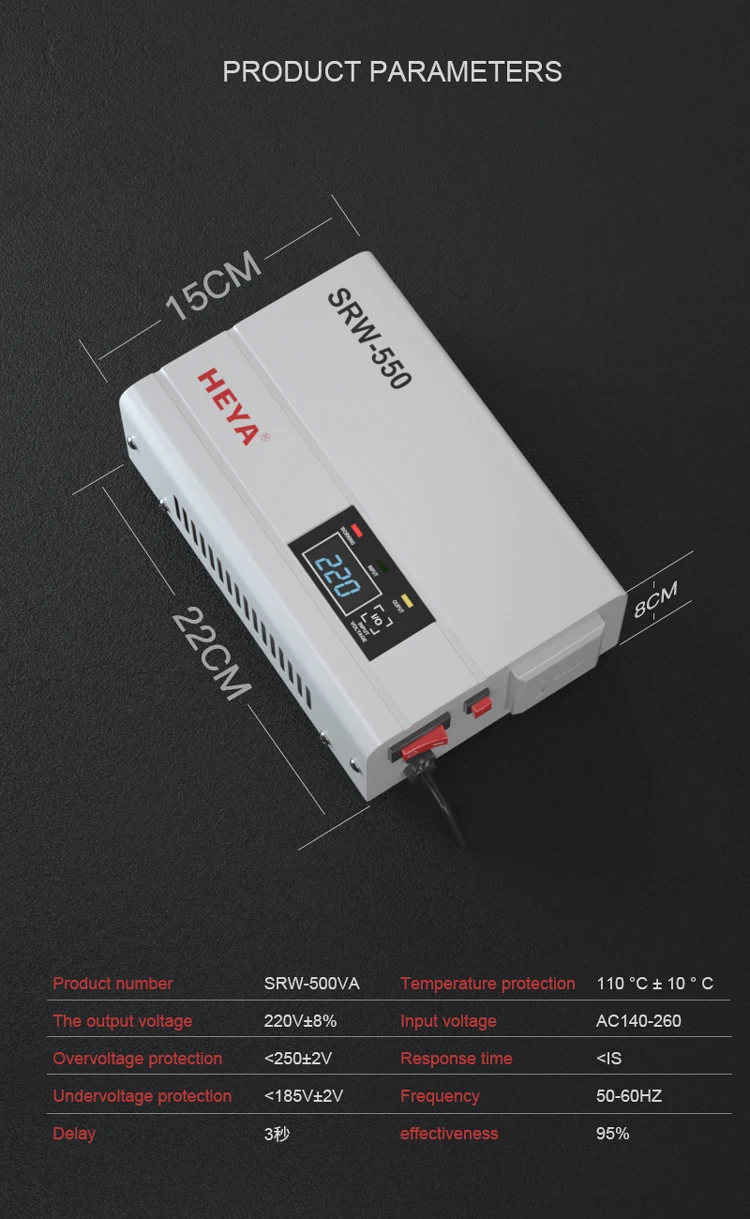

Technical Parameters

Model	SRW-500-D		SRW-1000-D		SRW-1500-D
Technology	Relay Control System+Micro compute programed control+control algorithm relay"Cross zero"
LED Display	Color	According to customer requirement
	Info	Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection
	Protection	Over Voltage		Output voltage ≥245v±4
		Over Loading		more than 120%
		Over Temperture		120°C±10°C
		Delay time		3 second
	Lauguage	English/Russia/Chinese
Input Voltage	AC140-260V
Output Voltage	220V±8% Adjustable
Frequency	50Hz/60Hz
Phase	Single Phase
Efficiency	≥90%
Ambient Temperature	-15°C~45°C
Relative Humidity	<95%
Waveform distortion	no additional wave form distortion
Insulating Resistance	Normally more than 2MΩ
Power	400W		800W		1200W
Packing Size(mm)	465330280		465330280		465330280
Packing(Pcs)	6		6		6
G.W	11.70		14.6		15.50
