20ton lifting capacity dump truck hydraulic jack

Product details
Model Number:KRM183;Payment Terms:L/C,T/T;
Min Height:1226mm;Certification:ISO;
Brand Name:OEM;Packaging Detail:plywood case,iron pallet;
Port:Fangcheng,Guangzhou;Capacity (Load):21-30T;
Place of Origin:Guangxi China;Supply Ability:5000 Set/Sets per Month;
Max Height:1870;Type:Other;

20ton lifting capacity dump truck hydraulic jack

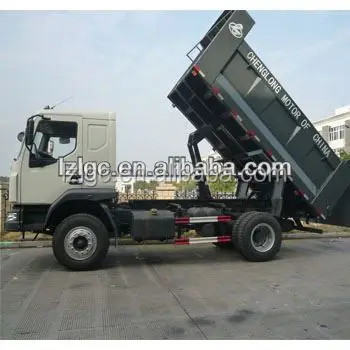

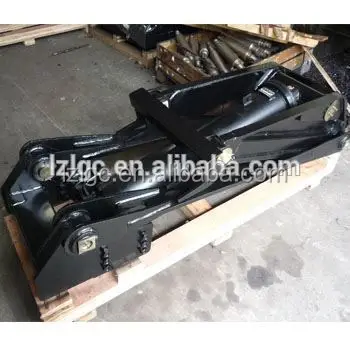

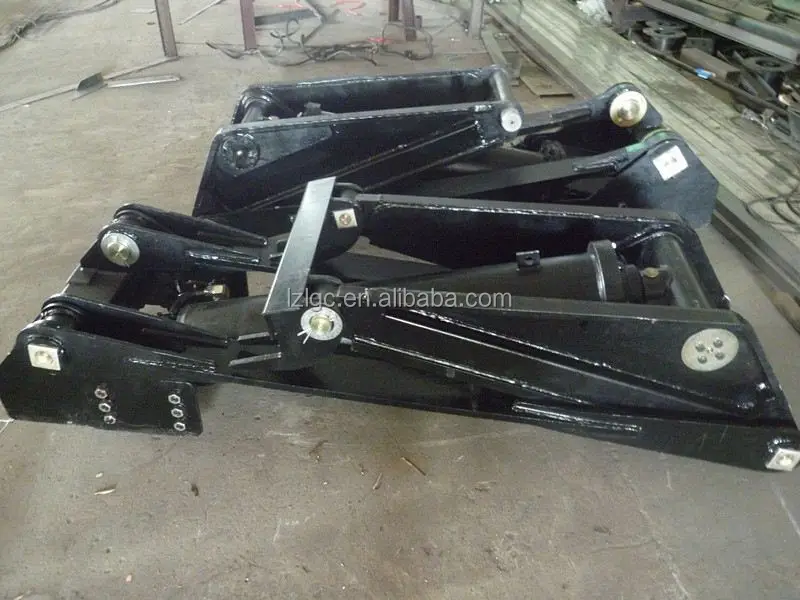

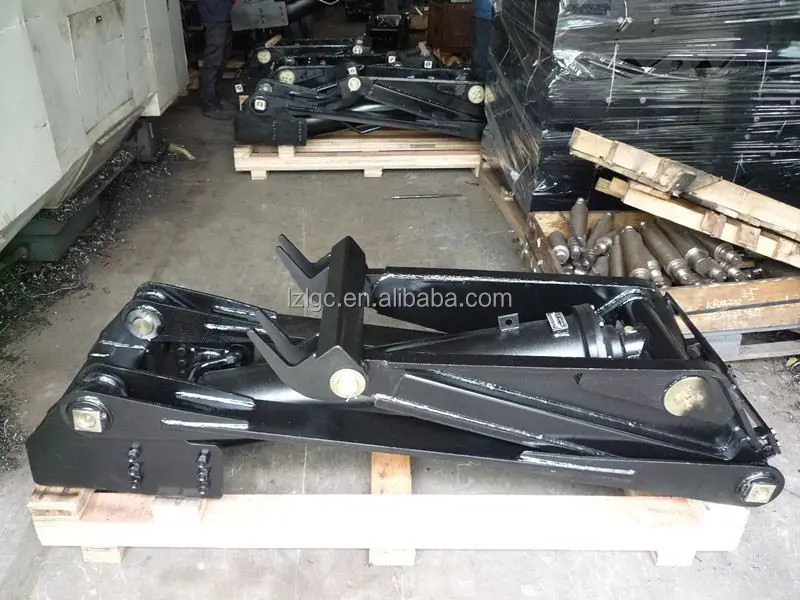

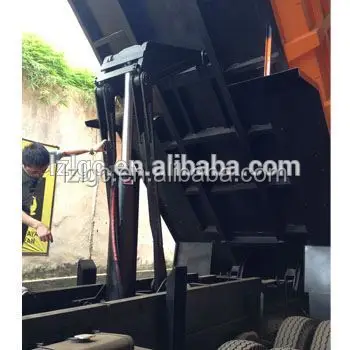

Real Photos







Hoist Mechanism, Dimensions and Weight (approx.)



Length(mm)

Width(mm)

Height(mm)

Min. Closed Length(mm)

Weight(kg)

1740

592

541

1175

464







Hoist Cylinder and Pump Combination Specification (approx.)











Hydraulic cylinger

KRM183

Working Pressure      (MPa)

                (Kgf/cm2)

11.8









Gear Pump KP-1405A





Rotating speed

(rpm)

800

120

Inner Diameter          (mm)

180

Discharge Volume(ml/rev.)

136

Stroke                 (mm)

832

Max. Testing Pressure      (MPa)

 (Kgf/cm2)



Min. Closed Length      (mm)

1108

20.6

210

Piston Rod Diameter    (mm)

80



Weight(kg)



37

Max. pressure         (MPa)

                (Kgf/cm2)

20.6

210







Hoist Mounting and Maximum Lifting Capacity



Recommended Truck G.W.

(kg)

Body Length(mm)

Rear Overhang(mm)

Distance between Load Center to Hinge(mm)

Distance between trunion to Hinge(mm)

Rated Lifting Capacity(kg)

Designed Max. lifting Capacity(kg)

(including load weight)

21000-29000

5300

900

1750

2480

15000-17000

27000/53°







Products are briefly describe and advantage:

1.hydraulic hoist 2.Carbon steel 3.Hard chrome plated piston rod 4.Imported material for seal kits



Products feature:

1.With Rolling technology,the cylinder are straighter ,the surface are harder and its quality are more durable .

2.All piston rod have to go through comprehensive processing : Heating →Vehicle processing→ Grinding→Polishing→Plating hard chrome→Polishing , this comprehensive processing make the cylinder harder ,wearable and acid .

3.Using imported materials for seal kits .

4.The structure kits are made by high-strength manganese plate

5.Andvanced surface treatment :

a.Environmental automatically pipelined painting

b.Cleaning with automatic washing machine

c. Assembling in seal clean workshop







Quality Control :

1.Cylinder products have to pass strict quality control from purchasing materials, processing, assembling . (We passed the certification of ISO/ TS 16949:2009)

2.Automated cleaning equipment to ensure the cleanliness of fuel tank assembly.

3.Welding with CO2 arc and automatically girth welding, which can ensure the welding

quality of the seal parts

4. Full Cylinder inspection, all products need to100% pass the comprehensive test before deliver out from factory.
