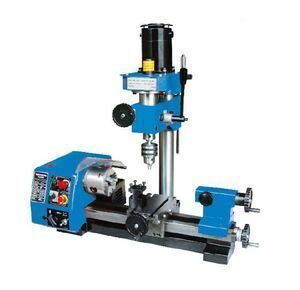

3 in 1 lathe mill drill combo mini multi-purpose machine SP2301

Product details
Spindle taper:MT2;After Warranty Service:Video technical support,Online support;
Motor output power:150W;Marketing Type:Hot Product 2019;
spindle speed:100-2,000rpm;Local Service Location:Viet Nam;
Video outgoing-inspection:Provided;Condition:New;
Weight (KG):51;Supply Ability:10000.0 Set/Sets per Month;
Machinery Test Report:Provided;Packaging Detail:1 set/polywood case (aluminum strips strengthen);
Showroom Location:Viet Nam;Place of Origin:China;
Port:Shanghai Port;Swing over bed:140mm;
Cross slide travel:50mm;Distance between centers:250mm;
Max. drilling/milling capacity:10mm;T-slot:8mm;
Core Components:Gearbox,Motor,Gear;Warranty:1 YEAR;
Payment Terms:L/C,D/A,D/P,T/T;Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Retail;
Warranty of core components:1 YEAR;Spindle bore:10mm;
Key Selling Points:Competitive Price;Drilling/milling spindle travel:30mm;
After-sales Service Provided:Online support,Video technical support;Brand Name:Sumore Machinery;
HOME



Product Description



SP2301 Multi-purpose machine belongs to one of our most economic manual Multi-purpose machine. It is new condition not used Multi-purpose machine. And it is small in size and delicate in design. This Multi-purpose machine is made in China, but have very high quality. The main features are as below:

1. Chuck guard is with automatic power off.
2. Belt drive
3.Gear drive is available.
4. Brushless motor is available.
5. Widely used, simple to operate, and a wide range of processing. After high frequency quenching process and precision grinding of high-quality cast iron bed.
6. Good quality and reasonable factory price.
7. Made in China, supplier from Shanghai China.
8. Good after sale service.
9. Power supply could be customized 110v/220V.
10. All machines have to pass the checklist of the machine precision before shipment

  •    ·Mass production of a variety of small parts and high-speed machining of                  complex parts, diversity processing;
  •     Complex process can be done in one time
  •     Function: cutting ,drilling,Milling etc
  •    Small in size and delicate in design
  •     High Precision for Model Engineering
  •    Easy Operation & Convenient Reparations



Technical Data

Model SP2301

Turning
Swing over Bed 140 mm
Distance Between Centers 250 mm
Spindle Bore 10 mm
Spindle Taper MT2
Range of Spindle Speeds 100 - 2,000 rpm
Tailstock Quill Travel 50 mm
Tailstock Quill Taper MT1
Range of Imperial Threads 16 - 24 TPI
Range of Metric Threads 0.5 - 1.25 mm

Drilling & Milling
Drilling Capacity 10 mm
End Milling Capacity 10 mm
Spindle Speed Range 100 - 1,500 rpm
Spindle Travel 30 mm
T-slot Width 8 mm

Whole Machine
Motor Power 150 w
Power Supply Customerized
Overall Dimension (LxWxH) 620 x 330 x 570 mm
Packing Size (LxWxH) 690 x 430 x 615 mm
Net Weight 45 kg
Gross Weight 51kg
Accessories

Standard Accessories

Optional Accessories

3-jaw chuck

4-jaw Chuck

Dead Center

Face Plate

Cutting Tools

Face Plate Clamping Kit

Change Gear Set

TiN Coated Cutting Tools & Replaceable Tips

Splash Guard

Steady Rest

Chuck Safety Guard

Follow Rest

Stand

Drill Chuck and Drill Arbor

Oil Tray

Live Center

Oil Gun

Quick Change Tool Post

Manual & Parts List

Clutch for Feed Rod



Lead Screw Guard

  Digital Readout Cutting Depth
  Coolant System
  Work Light









Packaging & Shipping

Package

1 set/polywood case  (aluminum strips strengthen)

Minimum Order Quantity (MOQ) 1 sets
Full Container Loading Quantity (FCL) 120 sets/20’GP  (unitary; customerized packing available)
Delivery Time 25 calendar days after receiving of advance / full payment





Illustrative Image Only
