12 Tons Hydraulic Battery Hydraulic Crimper Tool With 400mm2 Crimping Capacity

Supplier: Xianheng International Science&Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Alvin Liu
Price: $774.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Battery capacity:	3.0 Ah, Li-Ion;	Model Number:	ECT-12042;
Battery voltage:	18V;	Weight:	6.8kg;
Crimping capacity:	400mm2;	Max Pressure:	700bar;
Packaging Detail:	Plastic carrying case with paper carton outside;	Selling Units:	Single item;
Stroke:	42mm;	Output Force:	12T;
Single package size:	59X49X17 cm;	Crimping times:	150 times per charge(150mm2);
Warranty:	12 Months;	Single gross weight:	14.5 KG;

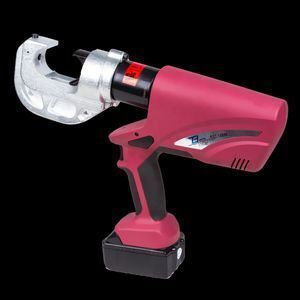

12 tons hydraulic battery hydraulic crimper tool with 400mm2 crimping capacity

1. C-Head with 42 mm opening width, easy for disassembly, particularly suitable for crimping sleeves

2. Ergonomic 2-component plastic housing with soft linings for comfortable and safe one hand operation

3. Built-in safety valve, automatic pressure-relief when achieve max pressure

4. Built-in micro chip controller, more crimping times with one time charge, maintain good performance.

5. Crimping head rotates 360°

6. High-performance 18V Li-ion battery with high capacity

7. Environmentally-friendly hydraulic oil, quickly biodegradable

Technical data

Crimping force		12Ton
Rated Pressure		700bar
Stroke		42mm
Crimping capacity(Cu/Al/C-clamp)		400/300/95mm2
Standard Dies		50-400mm2
Weight		6.8kg
Battery voltage:	18 V
Battery capacity:	3.0 Ah, Li-Ion
Crimping capacity	approx.80 crimps (Cu 150 mm2)
Ambient temperature:	-15° C up to +40° C
Sound pressure level in 1 m distance	70 dB (A)
Vibrations	< 2.5 m/s²
Charging time	Approx.2 hours
Accessory	Steel box, 1pc 18V battery, 1 charger

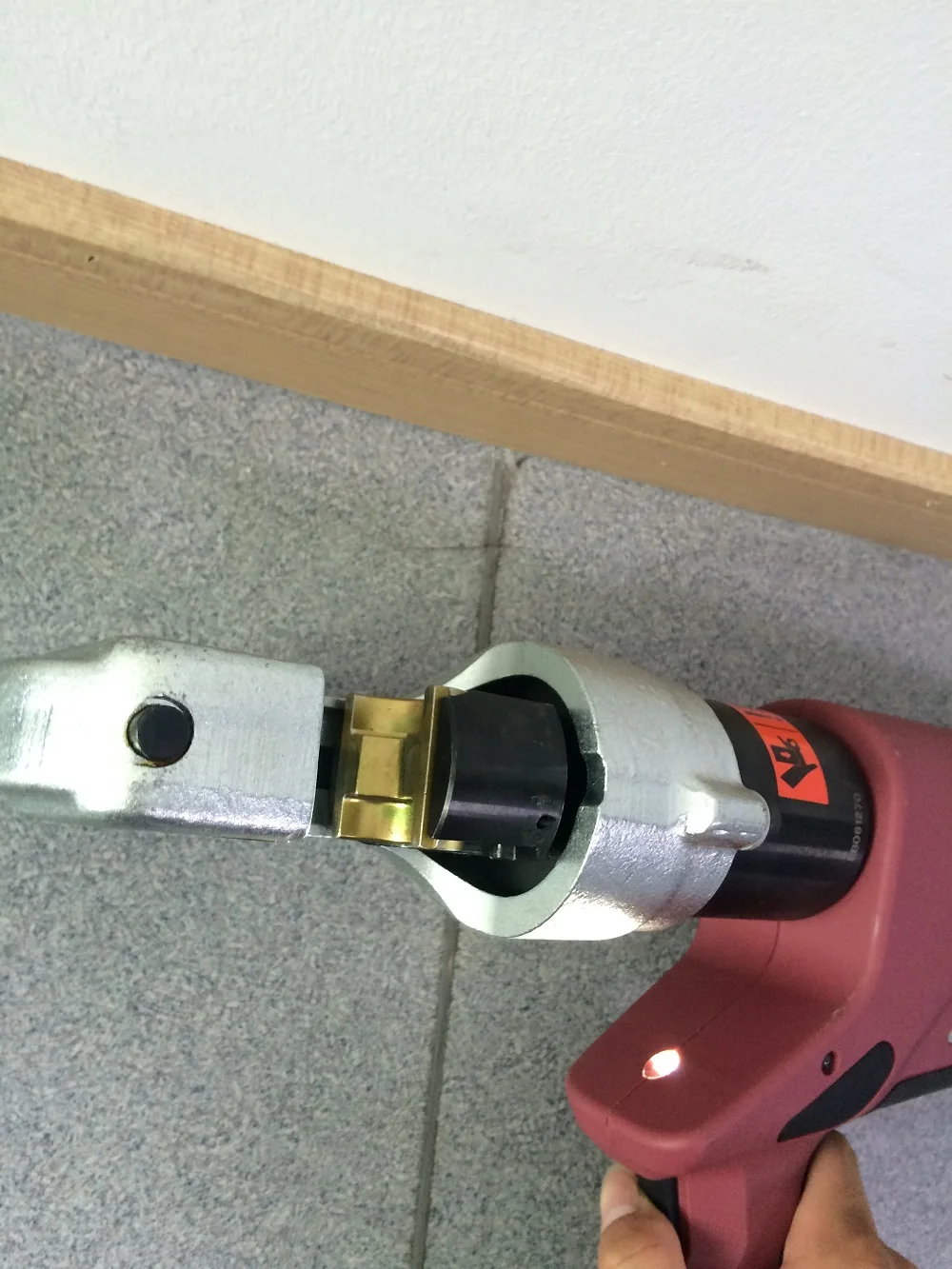

Working Light:

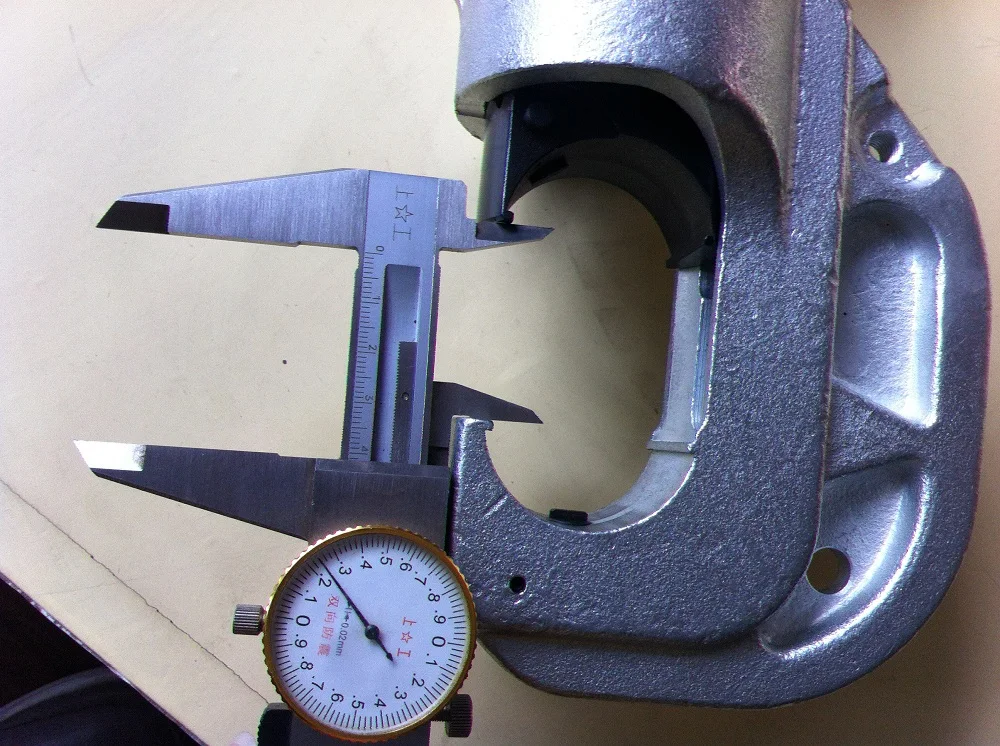

42mm jaw opening:

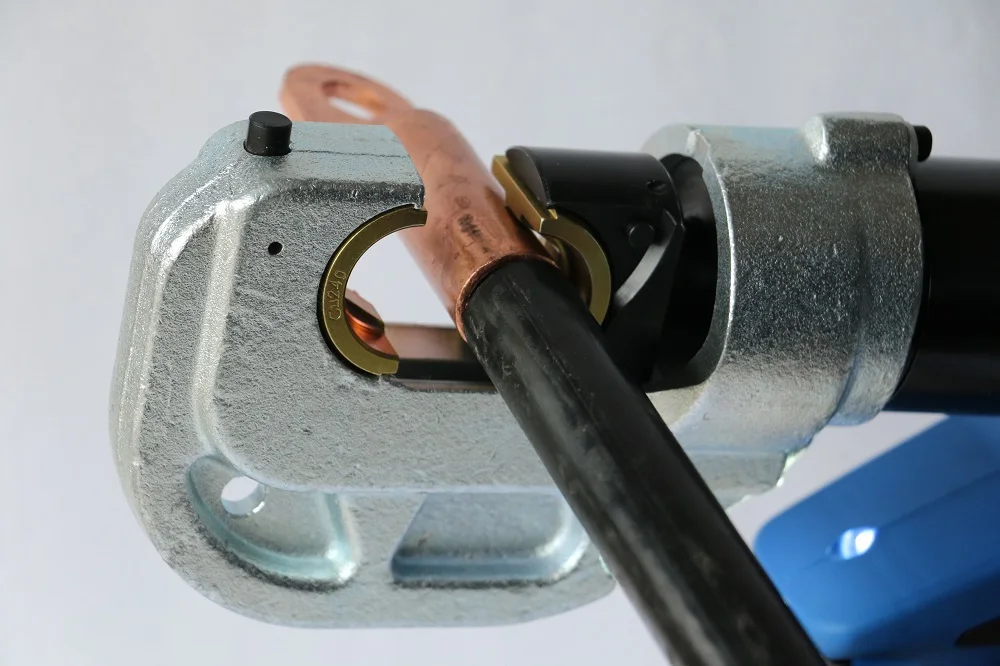

Crimping:

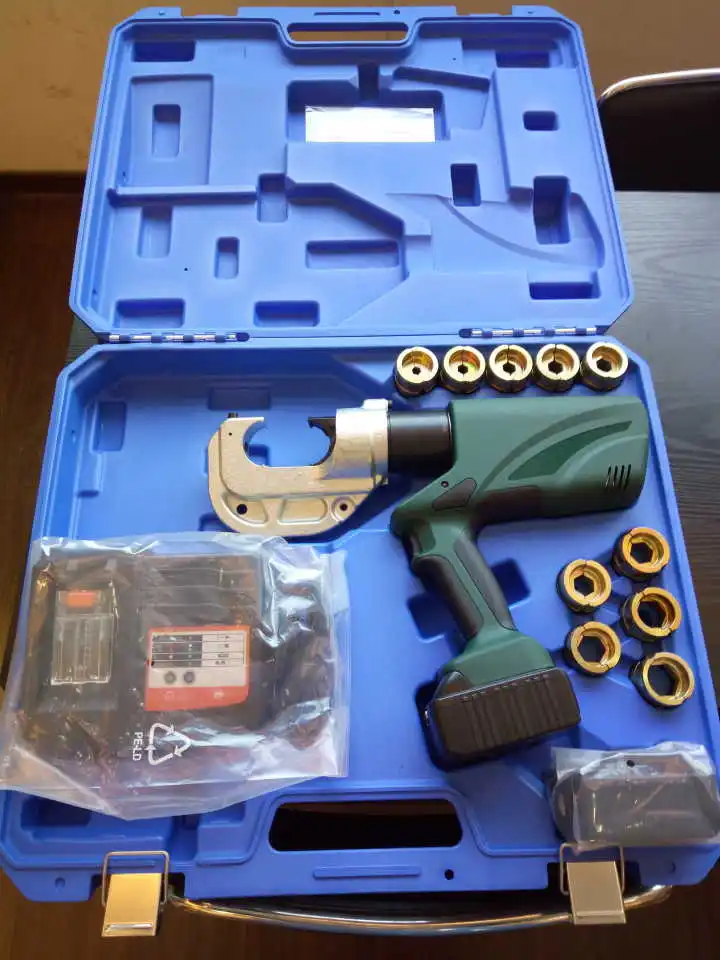

Green color housing also optional:

Crimping dies-by machining:

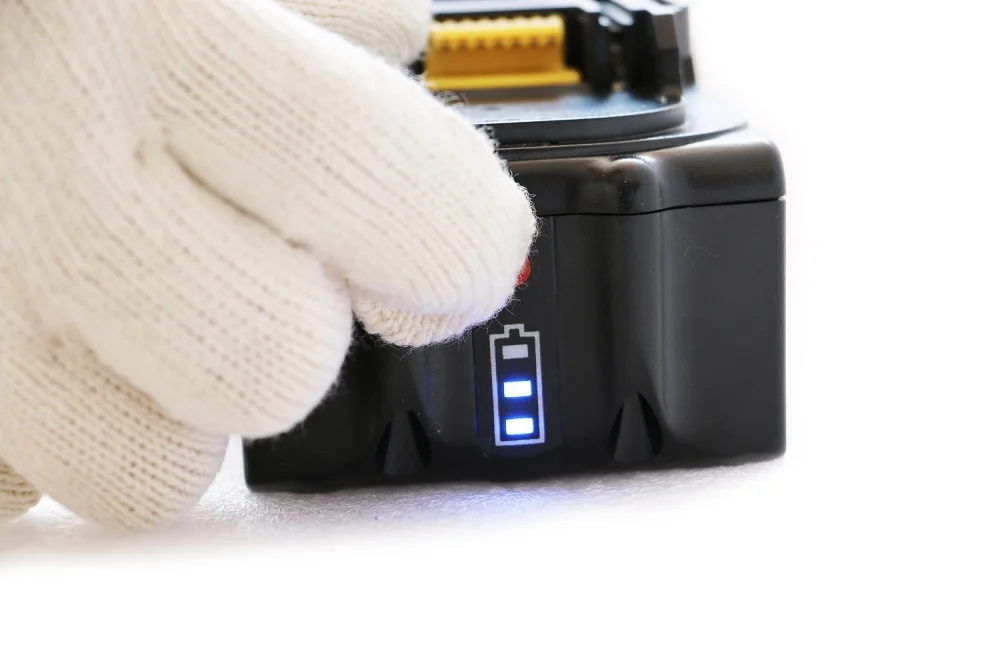

18V Lithium battery-rechargeable, with battery level indicator:

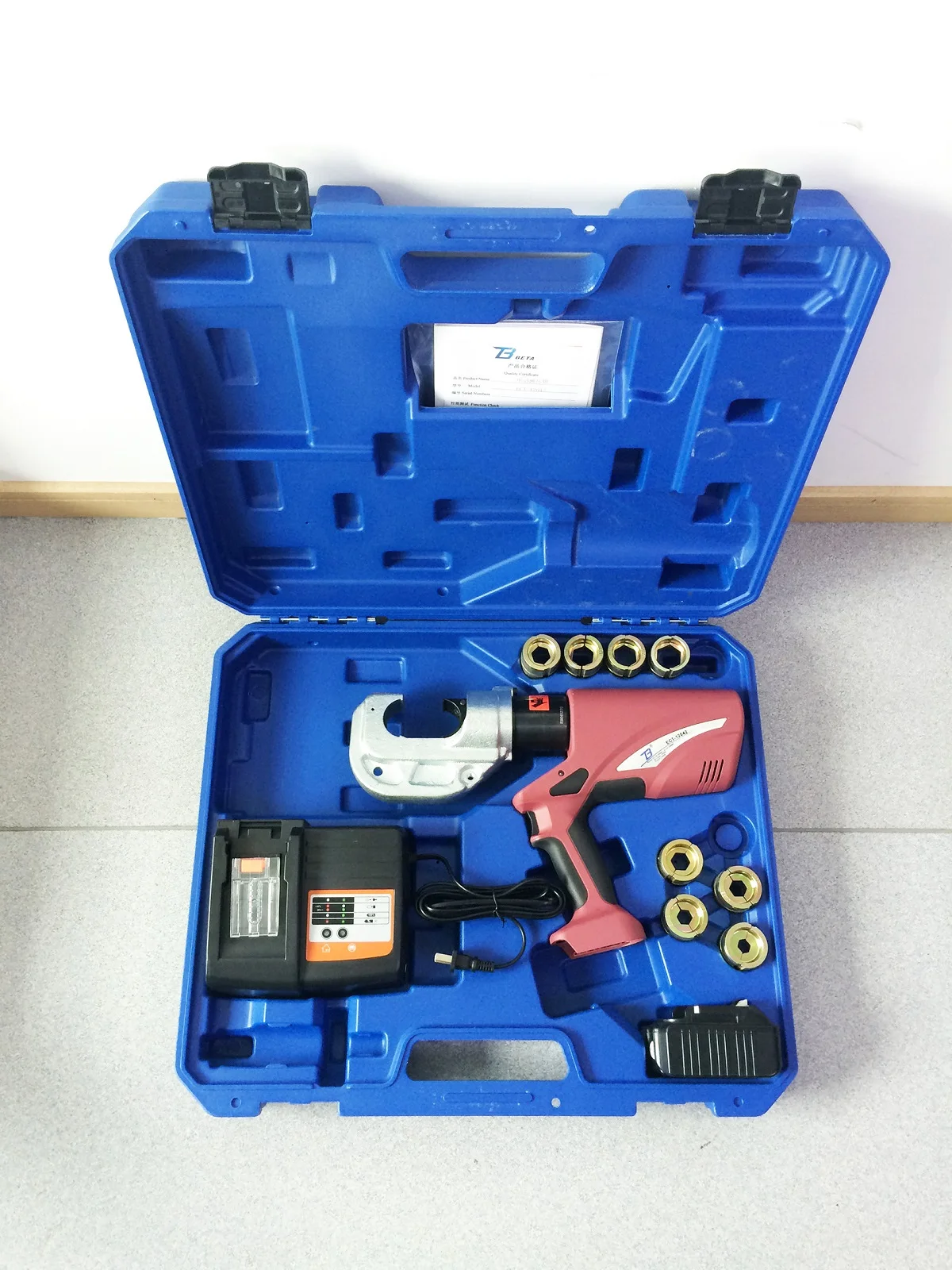

Strong plastic carrying case:

Packing:

Production:

International Exhibitions:

Questions & Answers:

1. How about the payment terms?

Answer: We accept 30% T/T in advance, 70% balance before the delivery. Other terms like O/A and L/C also available, we can discuss in details.

2. How do you guarantee your quality?

Answer: Firstly, quality test in every process. We produce most components by ourselves, started from cutting raw material, machining roughly in the first step, casting, forging, punching, heat treatment, finish machining, painting, assembling and finally packing, we will spot check for each step.

Secondly, we collect all comments on our products from customers in time, then improve quality all the time.

3. Is the whole working procedure finished by your workshop?

Answer: 90% procedures are finished in our workshop, so we can control strictly the quality of components and finished products. Surface color treatment is done outside but we check each batch incoming materials.

4. How about your delivery time and stock status?

Answer: We have stock for our best-selling products and most models, so we can shorten delivery time to 3 days and even 1 day after order confirmation.

5. How long is your warranty period?

Answer: Standard warranty period is 12 months.

6. Can you provide OEM service and have our own logo on products?

Answer: Yes, we work on OEM orders. That's ok to have your own logo on the products. Please contact us with details before placing order.

7. How about the packing and shipping?

Answer: Normally, we have plastic carrying case, carton and foam for packaging. If you have any other special requirements, please feel free to let us know.

8. Where is your factory located? Can I visit your factory?

Answer: We are in Hangzhou city, Zhejiang province, east China. We have international airport. 1 hour from Shanghai by train. Very convenient to visit us, and all clients from all over the world are highly welcome.

For more information, please scan or contact our sales--24hours available:
