Y81F-63 Turn out scrap Metal Baler Hydraulic metal baler/metal baler/baler machine Z26

Product details
Local Service Location:None;Condition:New;
Key Selling Points:High Productivity;Supply Ability:100.0 Set/Sets per Year;
Payment Terms:L/C,T/T;Place of Origin:Jiangsu China;
Warranty:Unavailable;Model Number:Y81F-63;
Brand Name:ETERNAL;Capacity:0.4-0.8 Tons/h;
Applicable Industries:Manufacturing Plant,Construction works ,Food & Beverage Shops;Material / Metal Processed:Brass / Copper,ALLOY,Aluminum,Stainless Steel;
Press box size:10009*600*500;Weight (KG):4000;
Showroom Location:None;Baler weight:15-30 kg;
Main cylinder force:63Ton;Power (kW):7.5;
Port:SHANGHAI;After Warranty Service:Online support;
Packaging Detail:WOODEN BOXES;

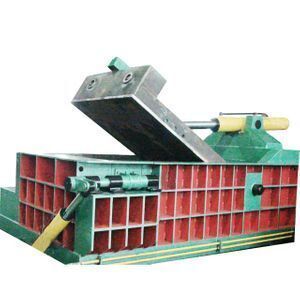

Y81F Turn-out Type hydraulic metal baler

 1. Application :

     This model hydraulic metal baler is applicated to press all kinds of metal scrap

(steel scrap ,aluminum scrap , copper scrap , stainless steel scrap , and scraped automobile car etc ) into rectangular , octagonal ,cylindrical shape bulk for furnace melting . Not only it could save transportation cost , but also it could short feeding time .

This model hydraulic metal baler is installed in steel plant , metal recycling plant , ferrous and non-ferrous metal melting plant .



2. Technical specification :

1.All of models choose hydraulic driving , it could choose manual operation or PLC operation .
2.Discharging mode could choose Turn-out type , Forward-out type , Push-out type, And discharging by man-hand .
3.It isn’t necessary to install with foundation bolt . If power isn’t available , diesel engine could be chosed .
4.Main cylinder extrusion force is from 63 tons to 400 tons . Productivity is  from 4 tons -40 tons each shift
5.Press box size and bale size could be designed and made according to the customers’ requirements .
6.Hydraulic pump , valve and electric parts choose Chinese famous brand .
7.Our hydraulic cylinder has passed through BV marine certification , they have long lifetime .
8.Our hydraulic metal baler has passed through CE certification .

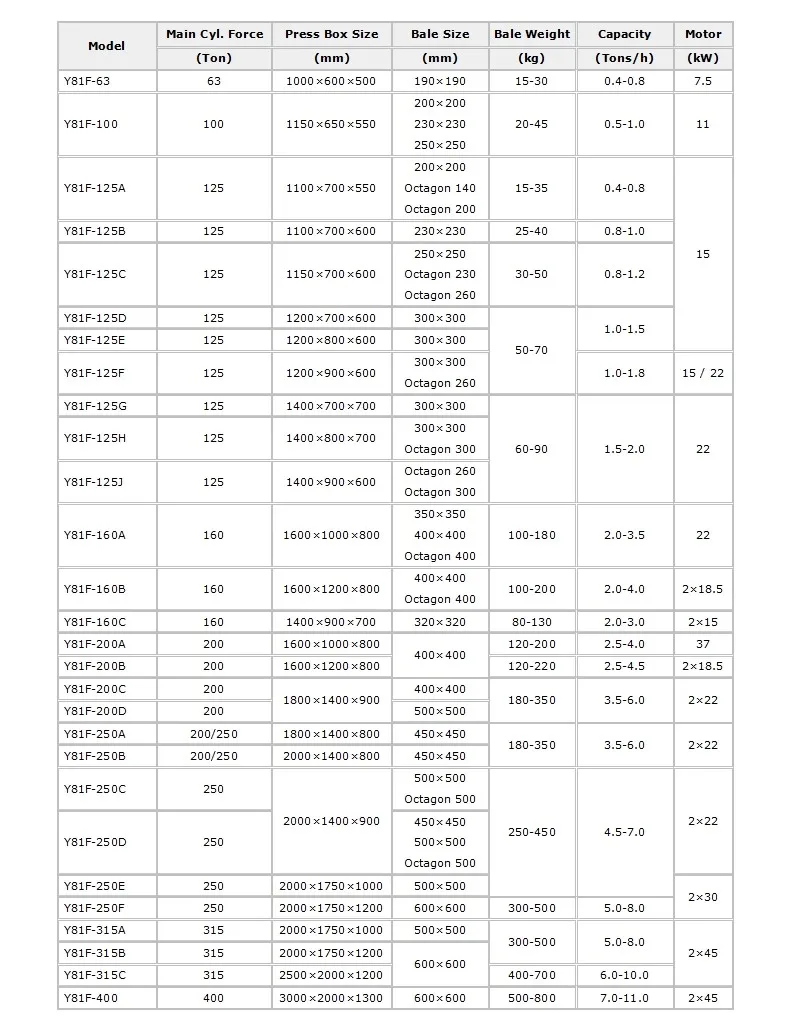

3.Technical Specifications

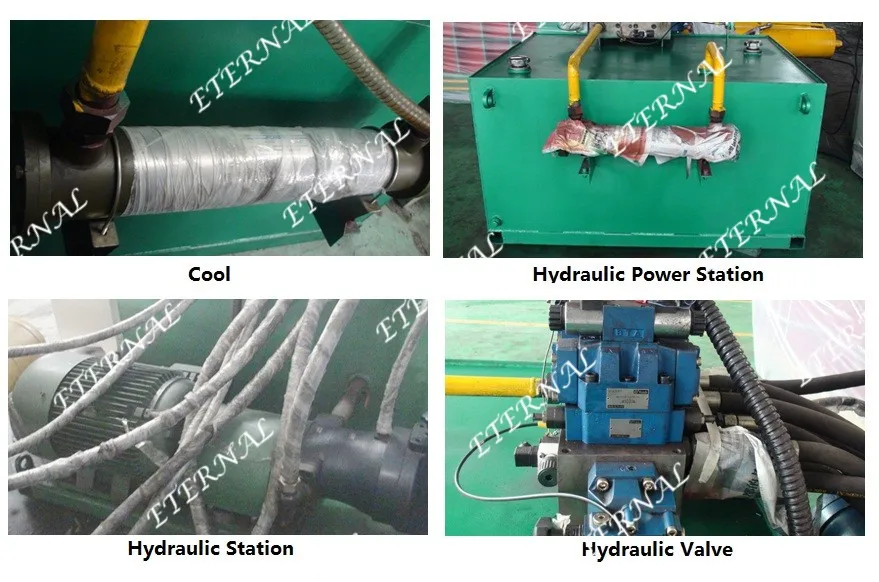

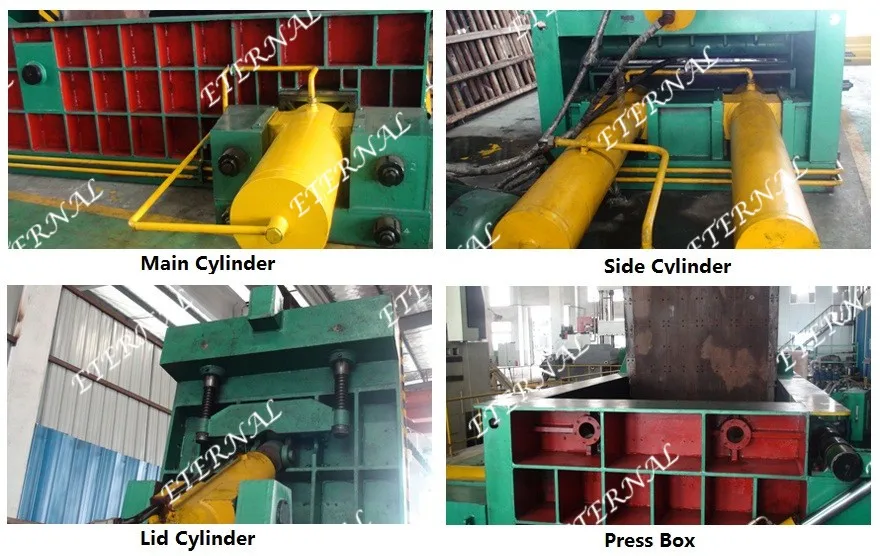

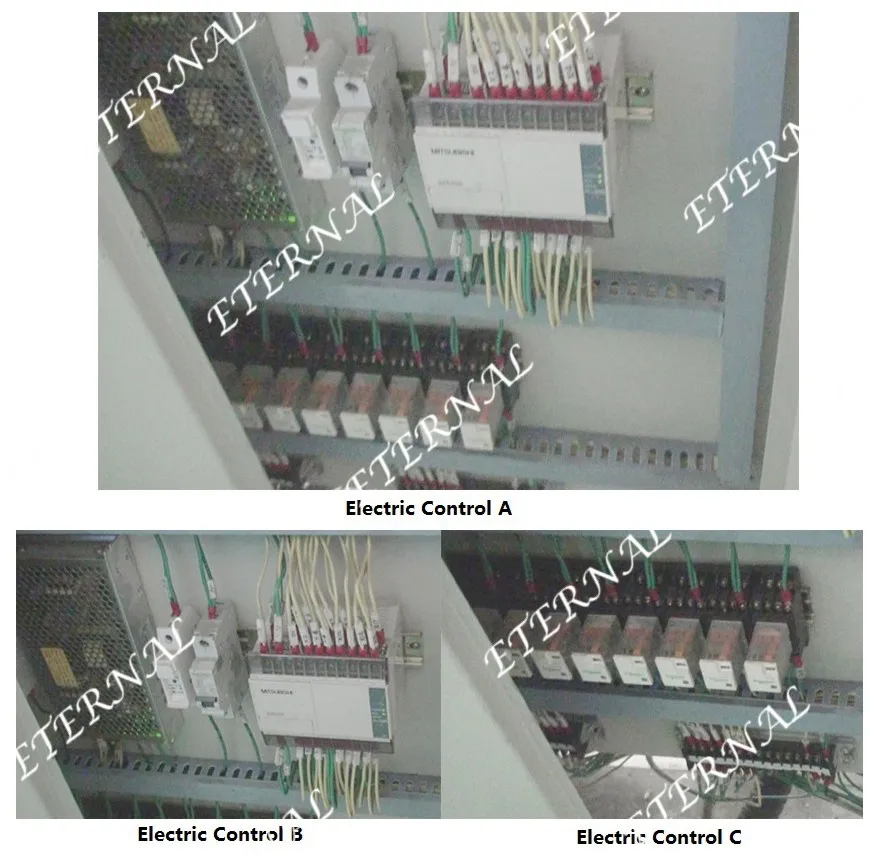

 4.Main parts
