CNC aluminum channel letter forming bending machine

Product details
Automation:Automatic;Warranty:2 years;
Port:qingdao;Place of Origin:Shandong China;
Material Width:20-133mm;Condition:New;
Certification:ce;Power:CNC,1000W;
Processing material:Aluminum profile, Aluminum coil, Channelumel;Product name:Aluminum Letter Bender Machine/Sign Letter Making Machine;
Extra Services:Slotting & Notching;Application:Making 3D Sign Channel Letters;
Material thickness:0.3-1.2mm;Applicable Industries:Manufacturing Plant,Retail,Printing Shops,Advertising Company;
Supply Ability:100 Set/Sets per Month;Model:YIKE-6L;
Packaging Detail:Bubble film+Plywood case.;Material / Metal Processed:ALLOY;
Package Preview:;Raw Material:Sheet / Plate Rolling;
Key Selling Points:Multifunctional;Weight (KG):400;
Function:Auto Feeding, Slotting and Bending;Brand Name:YIKE;
Year:2019;After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Online support,Video technical support,Engineers available to service machinery overseas;
Voltage:220V;Payment Terms:L/C,D/P,T/T,Western Union,MoneyGram;
Machine Type:Beading Machine;
Product Description

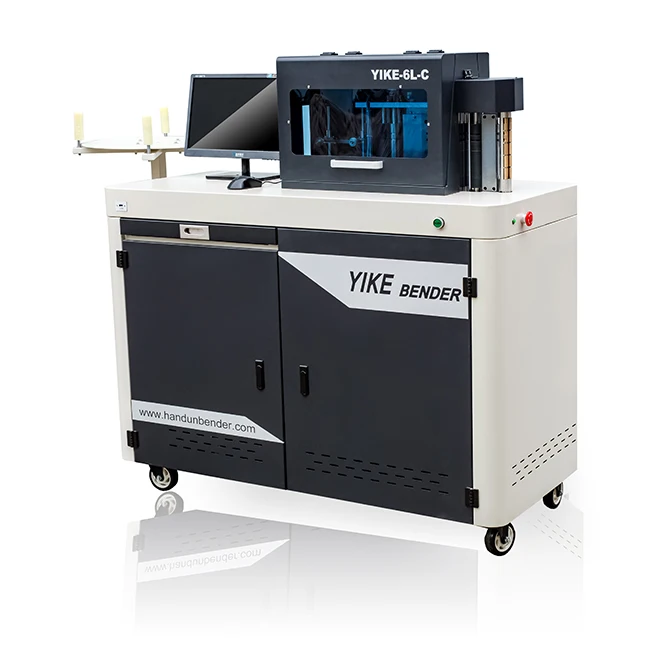

 CNC aluminum channel letter forming bending machine



Main Features:

1, Exclusively developed software, high precision, easy to use. Free software upgrades and technical support service for life.

2, Single-side slotting and double-side slotting are both optional, you can select according to your requirement.

3, It can process extruded aluminum profile, aluminum coil, channelume and steel etc.

4, Max material width is 160mm. It is equipped with 6 famous brand stepper motors and high precision control device.

5, Quality Saw Blade. One more for steel iron specially.

6, Work with air compressor.

7, Rubber rollers and quick-wear parts are easy to be changed by workers.

8, Fast bending speed, curve bending smooth and beautifully.

9, All gears drive system instead of belt driving. Very durable.

10, CE certificated. United States Patent No.: US9,021,847 B2.

11, Two year free warranty.



Technical ParametersValues
Material thickness0.3-1.2mm
Material width20-133
Min. letter size100mm
Min. bending radius 7mm
Min space between two slottings 5mm
Rated power1000W
Machine size 1400*600*1240mm
Machine weight 230 kg
Rated voltage 220V
Step motor 6pcs
 Air compressor 0.6-0.8kgf/cm2
 File format Ai



Demo Corner:

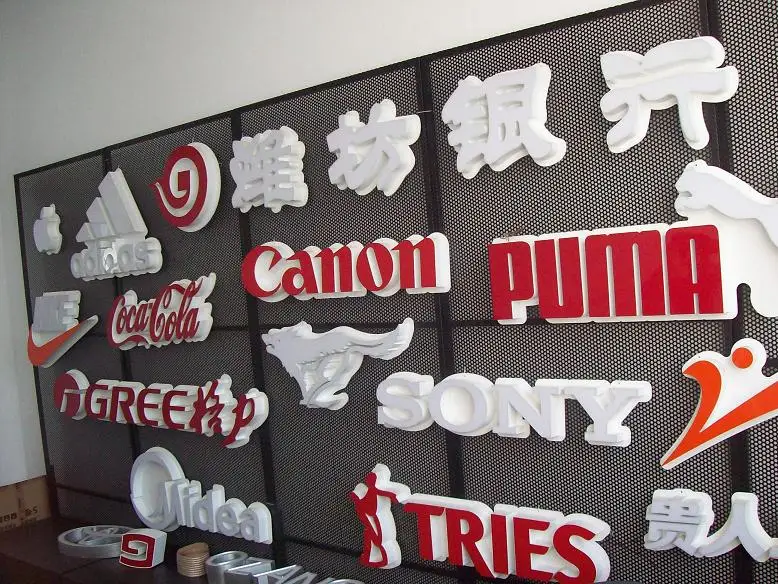

 Applications:

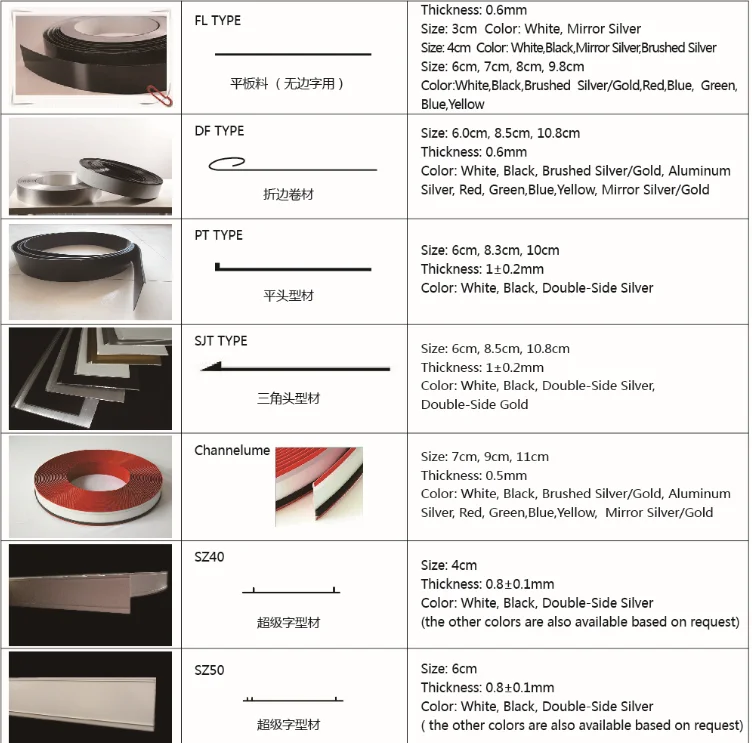

Applicable aluminum materials:

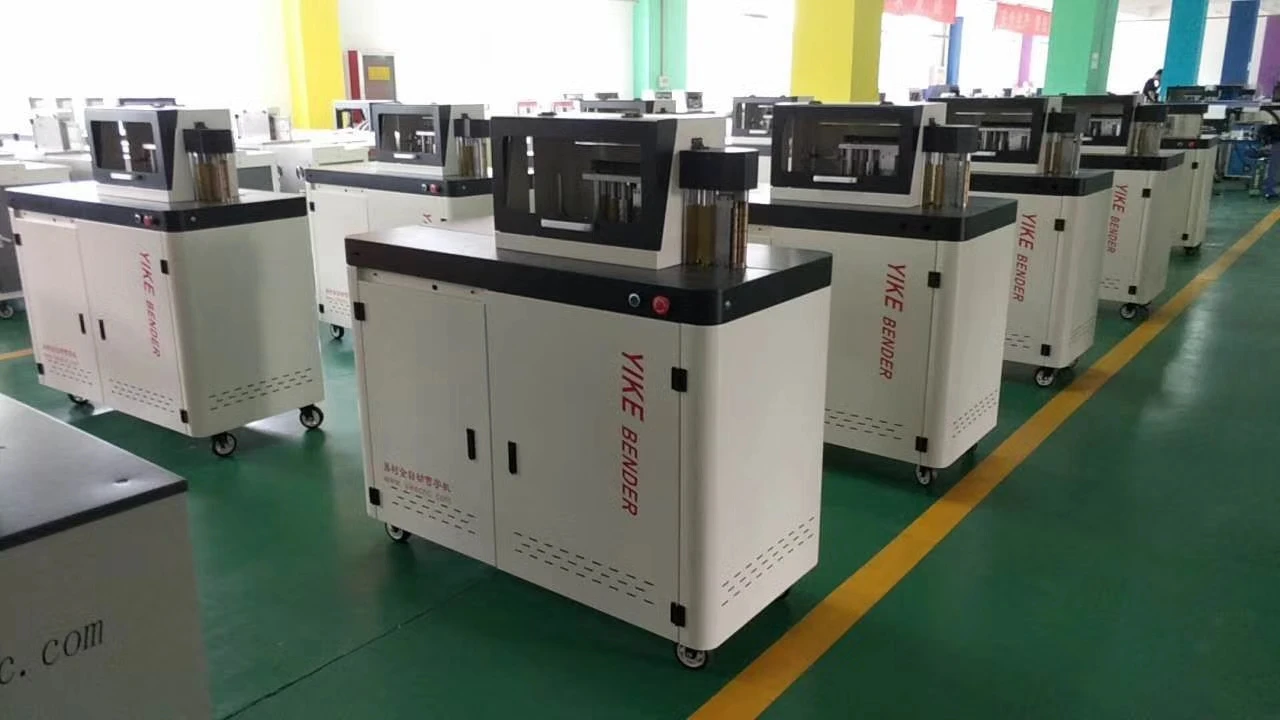

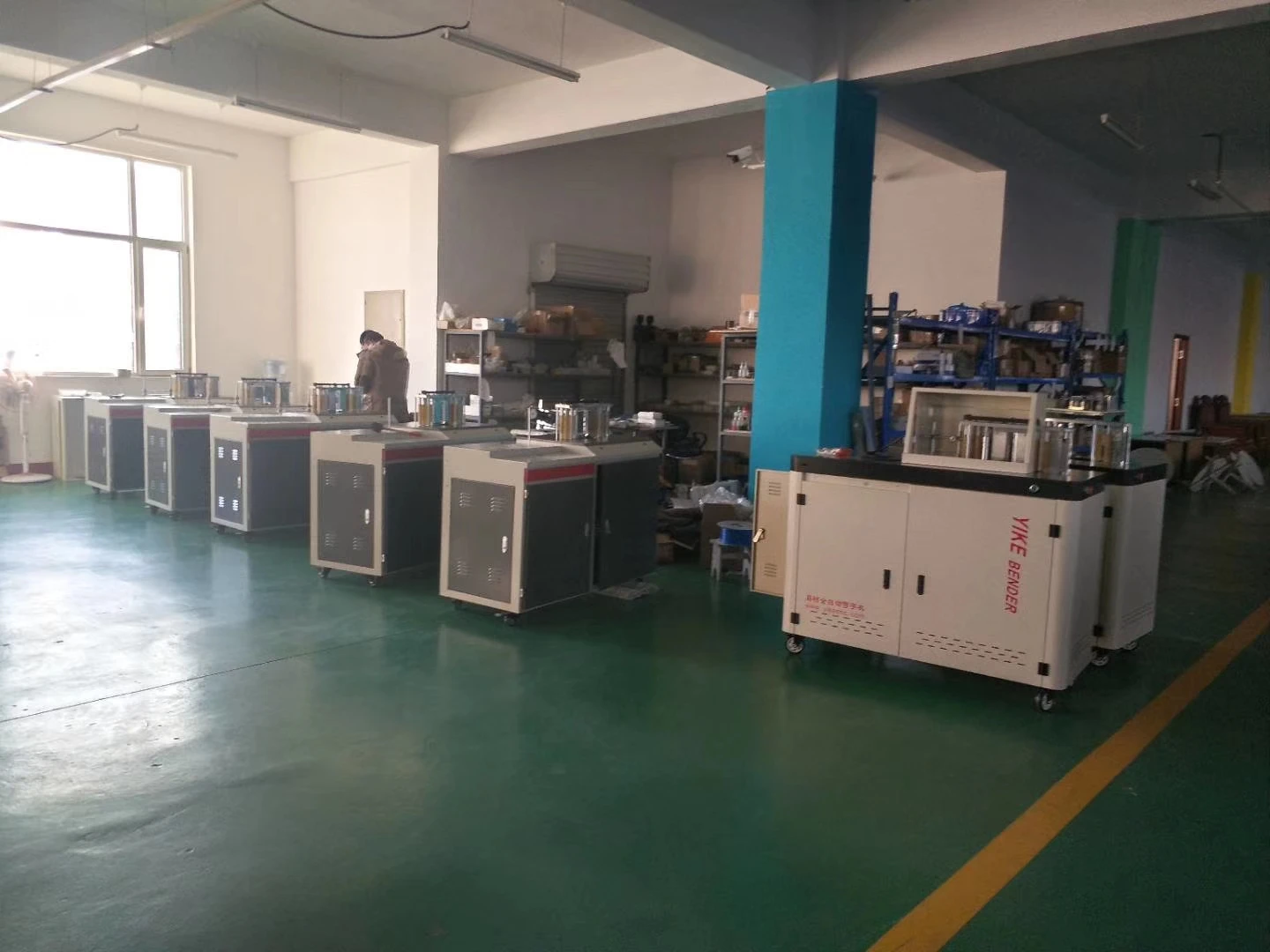

Our factory- Leadership in CNC channel bending machine industry!

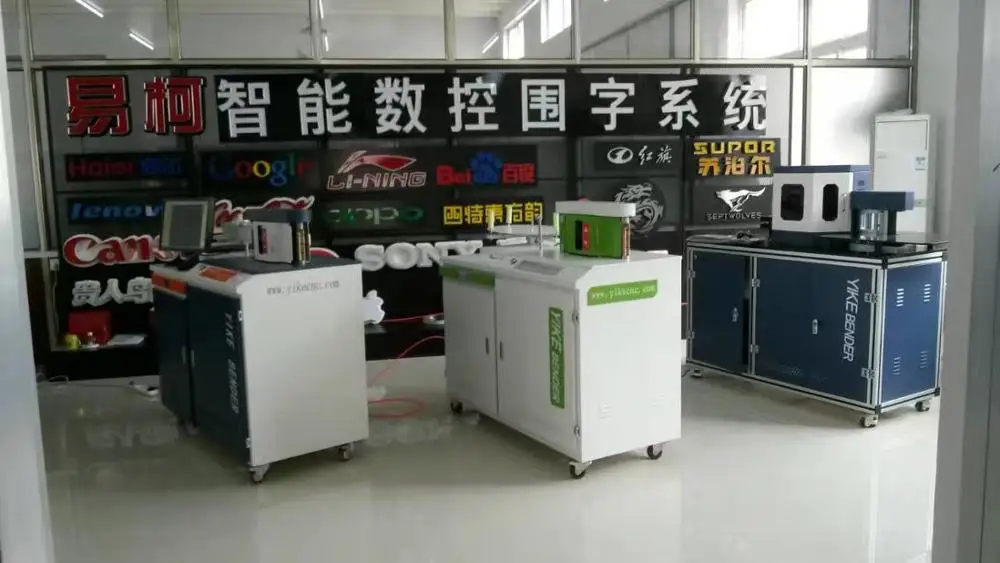

 Our Exhibitions:



Our Certificates & Patents:
