Weight per set: | 88kg; | Type: | Isolated Container; |
Size: | 178*162*118mm; | Package: | wooden pallet; |
Material: | Casting Steel; | Supply Ability: | 10000.0 Set/Sets per Month; |
Place of Origin: | Tianjin China; | Sample: | Availuable; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Brand Name: | TJHX; |
Application: | container,container house,machine house; | Surface treatment: | Painting; |
Port: | Xingang,Tianjin;Shanghai,; | Port: | Tianjin port; |
Weight per pc: | 11kg; | External Dimensions(l x W x H)(mm): | 178mmx162mmx118mm; |
Length (feet): | 20'; | Keyword: | ISO 1161 Shipping Container Corner Fitting; |
Internal Dimensions(l x W x H)(mm): | 178mmx162mmx118mm; | Certification: | ISO9001; |
Package Preview: | ; | Capacity: | 20GP,40GP; |

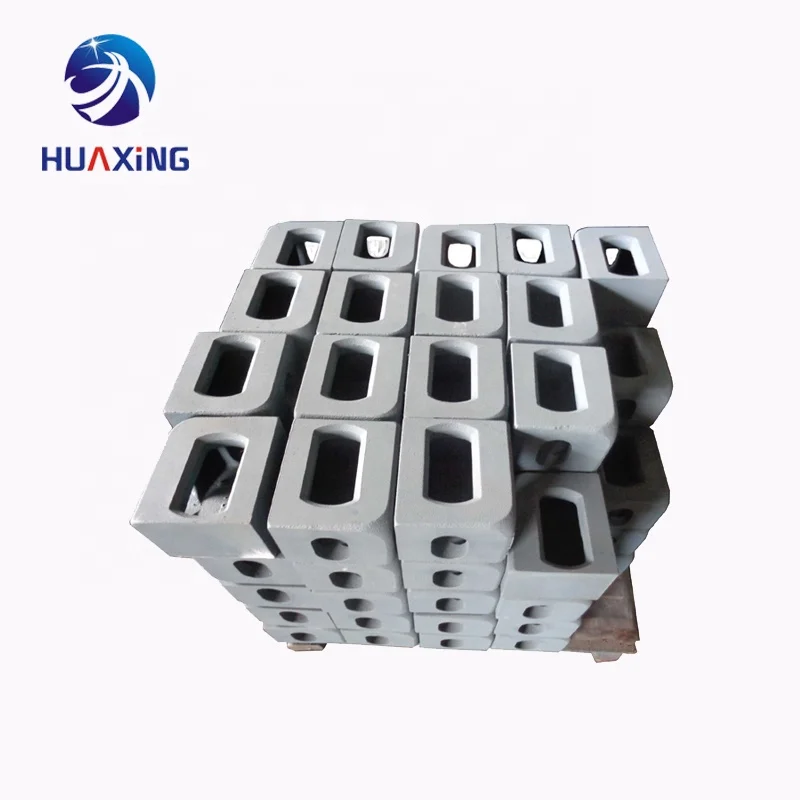

Packaging Detail: | Wooden pallets or according to customer's requirements. 100 pcs in one pallet,and 20 pallets in one 20ft container.; |

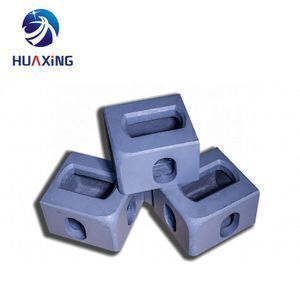

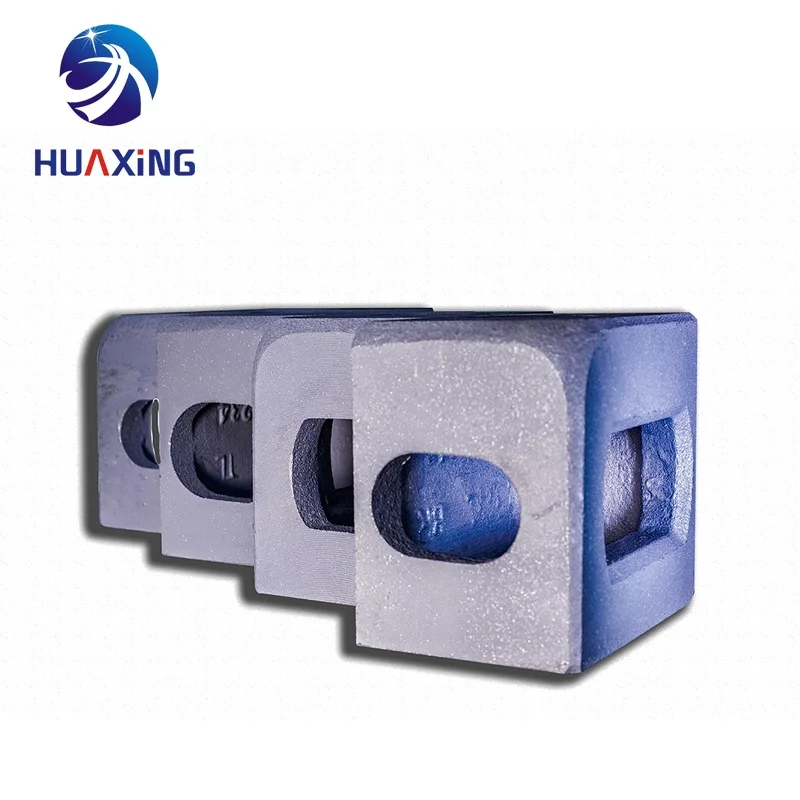

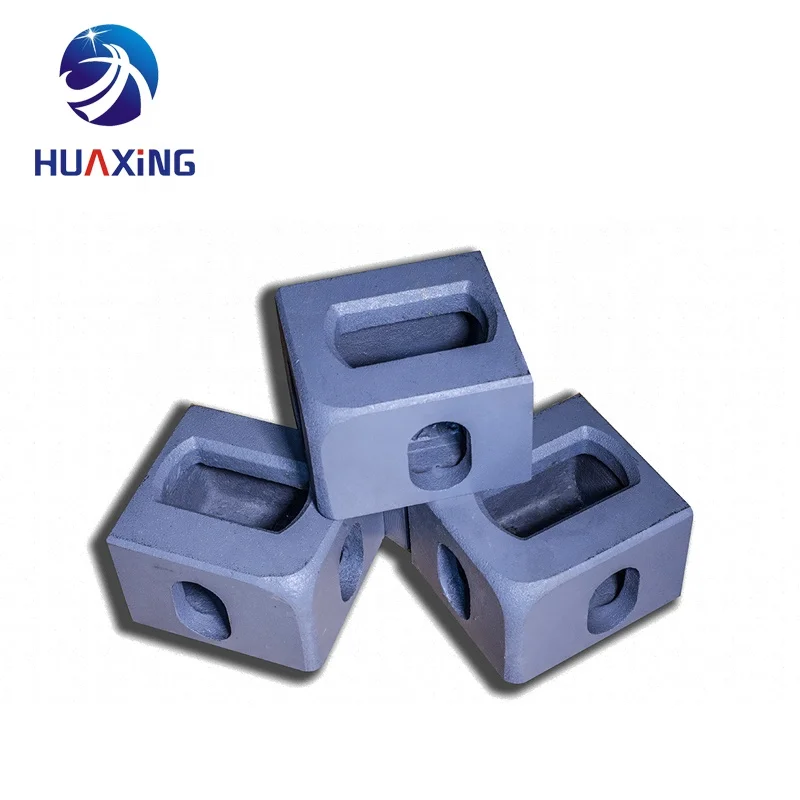

Container Parts,ISO 1161 Shipping Container Corner Fitting
ISO corner casting
Here we promise you seriously that all the picture are real and our own factory products.We just do some simple processing,such as change the image background,add some word.And no copy with others.
Sold in sets of 8 container corner castings (or individually)
88kg weight per set / 11kg Each
Meets the ISO Standard (ISO 1161) for Container Corner Castings
There are 2 each of 4 different marine shipping container corner castings per set:
Bottom Left, Bottom Right and Top Left and Top Right
Castings are stamped on inside with TR, TL, BR and BL to make things easy!
Detail Information
Description |
Standard ISO corner casting made from special steel designed for low temperature working at -40°C as standard.8 pieces in one set,including 2 BR,2 BL,2 TR,2 TL. |
|||
Part No. |
TL |
TR |
BL |
BR |
|
CC8101TL |
CC8102TR |
CC8103BL |
CC8104BR |
Standard |
ISO1161-1984, |
|||
|
8pcs in one set ,including 2TL, 2TR, 2BL, 2BR |
|||

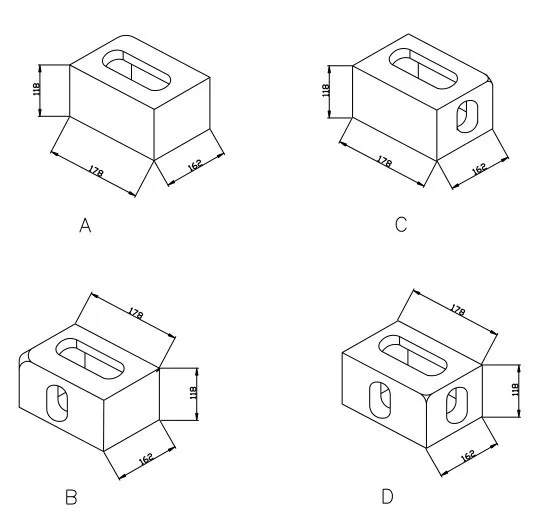

Casting Size |
178mm*162mm*118mm |
|||
Material |
Cast Steel/SCW480 |
|||
Weight |
11kg/pc |
|||
Finished |
Hot Dip Galvanized |
|||
Application |
ISO shipping container, Dry Cargo Container, Reefer Container, Open Top Container, Tank Container,Bulk Cargo Container,etc. |
|||
Package |
Wooden pallets or according to customer's requirements. 100 pcs in one pallet, and 20 pallets in one 20ft container. |
|||
Certification |
Provide ISO 9001 2008,ABS certificates for ISO corner casting |
1.Could you please provide sample?
Yes, this sample is charged, please contact us more information.
2.Whether to accept the L/C at sight?
Yes, the Invoice value shall be more than US$50,000 and according to the Bank's advice
3.Whether this product can be customized?
Yes, We have design teams of 20 professional staffs.
4.How many forms of transportation?
LCL or FCL by Sea; FCL by Railage; By Air ; By Express delivery
5.How long is the delivery time?
Top rated products are in stock.
Others delivery in 15days.
Tianjin Jinbin Huaxing Mechanical Fitting Co., Ltd was found in 2003, we production in accordance with the quality management system in compliance with ISO9001:2008. And we are specialized in manufacture container spare parts and lashing parts,truck body parts over 14 years and 7 years Golden Supplier on Alibaba.
We has got the certificate BV of France in 2007, and got the ABS of America in 2011.
